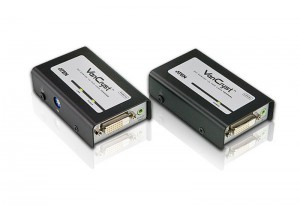

VE600A

DVI Extender with Audio

The VE600A DVI Extender with Audio extends your DVI display up to 60 m away from your DVI source using Cat 5e cables. The use of Cat 5e cables provides a simple and reliable connection method that takes advantage of the wiring system in most modern office buildings. The VE600A incorporates ATEN’s technology that allows the A/V signal to be transmitted over one Cat 5e cable. If the real EDID is required, simply use a second Cat 5e cable. With stereo audio support and support for popular widescreen formats, the VE600A provides crystal-clear image and sound quality in all installations where remote DVI video displays are required.



RoHS compliantdo not dispose







Package Contents

  • 1x VE600A DVI Extender with Audio Local Unit
  • 1x VE600A DVI Extender with Audio Remote Unit
  • 2x Power Adapters
  • 1x Mounting Kit
  • 1x User Instructions



VE5600A Spec / Data Sheet
VE5600A Spec / Data Sheet
ve600a_extender_ss_en.pdf
202.2 KB
105 Downloads
Details
VE5600A Quick Start / User Guide
VE5600A Quick Start / User Guide
ve600a_extender_ug.pdf
4.1 MB
94 Downloads
Details
  • Extends the distance between DVI source and DVI display device
  • Long distance transmission – up to 60 m
  • Uses Cat 5e cable to connect the local and remote units
  • Features ATEN EDID technology that allows transmission over one Cat 5e cable
  • Superior video quality – up to 1920x1200 (40 m); 1080p (40 m) ; 1080i (60 m)
  • Audio enabled
  • Adjustable EQ compensation control
  • Supports widescreen formats
  • Rack mountable
  • HDCP Compatible
Function VE600AL VE600AR
Connectors Video In 1 x DVI-D Female
(White)
N/A
Video Out N/A 1 x DVI-D Female
(White)
Audio In 1 x mini stereo jack
(Green)
N/A
Audio Out N/A 1 x mini stereo jack
(Green)
Power 1 x DC Jack
Unit to Unit 2 x RJ-45 Female (Silver)
Switch EQ Switch N/A 1 x 8-position switch
LEDs Power 1 (Green)
Link N/A 1 (Green)
Video 1080i @ 60 m; 1080p @ 40 m; VGA, SVGA, SXGA, UXGA, WUXGA (1920x1200)
Power Consumption DC5.3V, 2.05W DC5.3V, 1.45W
Environment Operating Temp. 0–50°C
Storage Temp. -20–60°C
Humidity 0–80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.35 kg 0.35 kg
Dimensions
(L x W x H)
9.13 x 5.76 x 2.40 cm 9.13 x 5.76 x 2.40 cm
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
