EIP-200 DLP™ Projector

DLP PROJECTOR FEATURES:

  • 2000 ANSI Lumens, 85% uniformity, up to 2000:1 contrast ratio.
  • DLP®imaging technology delivers a "seamless" high contrast image.
  • True SVGA resolution. SXGA+, SXGA, SVGA, VGA & compatible.
  • Smart data compression / expansion, and video scaling.
  • Convenient manual zoom and focus lens.
  • Preset image offset. Vertical digital keystone correction.
  • Accepts Composite, S, and Component Video in all major standards.
  • Displays both Regular 4:3 and Widescreen 16:9 ratio video formats.
  • Supports all HDTV resolutions.
  • System Lock function. Keylock function.
  • Menu Driven Help System. Power Management function.
  • Wireless remote control.
  • 3 Year Projector Warranty!
  • Portable or optional fixed install
  • Ultra Portable

Included Accessories:

  • Owner's manual.
  • Setup Guide CD.
  • System lock caution.
  • Quick guide.
  • AC Power Cord. Lens Cover.
  • VGA-type Computer Input Cable (HD-15 ~HD15).
  • Wireless Remote Control and Batteries (2 x AA).
  • Component Video Input Cable (HD15~3-RCA).
  • RS-232 Control Adapter (DB9~8-pin DIN).

Optional Accessories:

  • Replacement Lamp.
  • Ceiling Mount.
  • Ceiling Post and Plate.
  • Eztrol® Local Control.
  • NPC-1 Network Control.
  • NetControl® Advanced Software.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)
()

Display Technology DDR SVGA DMD™
Brightness (ANSI) Standard, 2,000 / Eco 1,740 ANSI Lumens
Native Resolution 800 x 600 (SVGA)
Max. Computer Input SXGA+
Max. Video Input 1080i/p (50/60)
Contrast Ratio 2000:1 (Full ON/OFF)
Panel Size 0.55"
Lens Type (Throw:Width) 1.72~1.99:1
Fixed Image Offset 110.5% of Image Height, up
Keystone Correction Digital: up-to 13° up or down

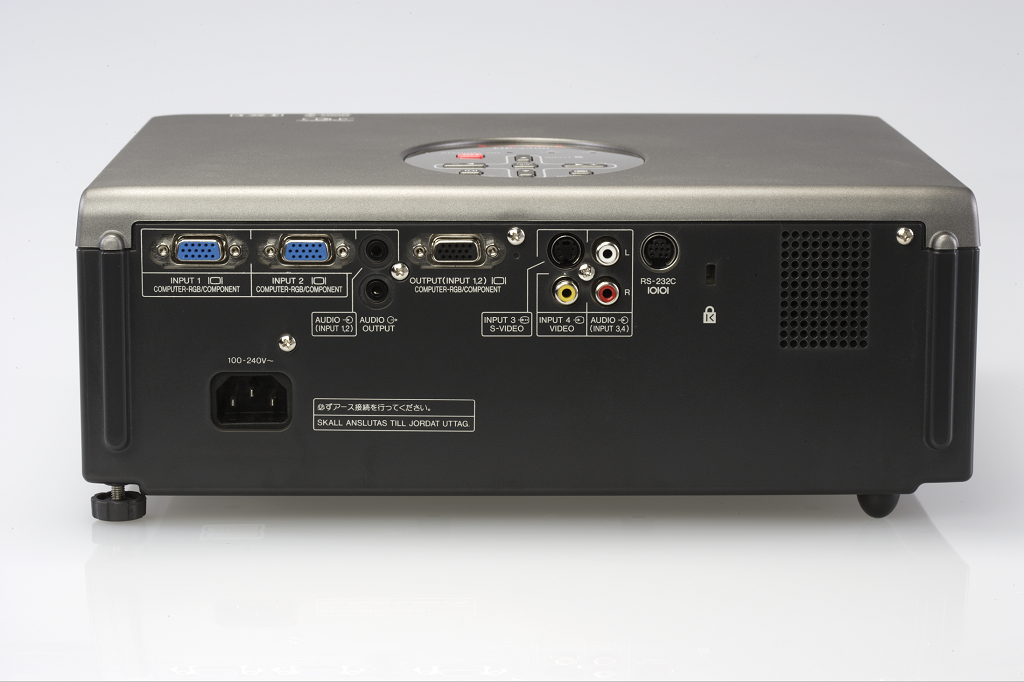

Inputs HD15 x1; HD15 x 1; Stereo: MiniStereo x 1; S-Video x 1; RCA x 1
Outputs HD15 x 1; Stereo: MiniStereo x 1); HD15 x 1; Stereo: MiniStereo x 1(variable)
Sound System Mono:2 Watt;1.6 x 1.1 in. (4 x 2.85 cm) oval x 1
Network Control Full Function
Warranty 3 years
Lamp Life Up to 5,000 hours
Lamp Part # AH-5001
Fan Noise 33 dBA Standard / 30 dBA in Eco mode
Air Filter --
Maximum Pitch up to 8° up
Weight 8.6 lbs. (3.9 kg)
Ceiling Mount Part # 0173-5001
 NameDescriptionSizeType
Icon of EIP-200 Cad DrawingEIP-200 Cad Drawing0.2 MB
Icon of EIP-200 Cad Drawing DxfEIP-200 Cad Drawing Dxf1.9 MB
Icon of EIP-200 Color Data SheetEIP-200 Color Data SheetEIP-200 Color Data Sheet0.4 MBPDF
Icon of EIP-200 Lens ChartEIP-200 Lens ChartEIP-200 Lens Chart12 KBPDF
Icon of EIP-200 Owners ManualEIP-200 Owners ManualEIP-200 Owners Manual6.5 MBPDF
Icon of EIP-200 Remote Control CodesEIP-200 Remote Control CodesEIP-200 Remote Control Codes61 KBPDF
Icon of EIP-200 RS-232 Basic Serial CommandsEIP-200 RS-232 Basic Serial CommandsEIP-200 RS-232 Basic Serial Commands90 KBPDF
Icon of EIP-200 SpecificationsEIP-200 SpecificationsEIP-200 Specifications32 KBPDF
