EIP-UJT100 3-Chip DLP® Projector

Key Features

  • 14,000 lumens bright and a 2000:1 contrast ratio.
  • 3-chip DLP® technology.
  • 4 Digital Inputs including HDBaseT and 3G HD-SDI.
  • Native WUXGA resolution. Compatible with inputs up-to UXGA and WUXGA.
  • Supports analog and digital video input in all color standards up-to 1080p.
  • Displays both 4:3 and 16:9 aspect ratios. Supports most HDTV resolutions.
  • 3D availability with Stereo DVI.
  • Wired network monitoring and control.
  • Dicom Simulation mode for viewing grayscale images such as X-rays.
  • Rear-accessed lamp for ease of maintenance.
  • Optional lens cover a range of 0.67 to 6.96:1 Throw ratios.
  • Built-in Edge Blending and Image Warping and Corner Keystone Correction.
  • Built-in Picture in Picture and Picture by Picture.
  • Security bar. Kensington® MicroSaver® security slot. PIN lock.
  • Select between 115V and 230V.
  • 3 years / 6000 hours projector warranty (whichever occurs first).

Included Accessories: Quick Start Guide, Owner's Manual on CD-ROM, VGA Computer Input Cable (Dsub15 to Dsub15), 6.0 ft (1.8 m) Detachable Power Cords x 2
Remote Control (with 2 AA Batteries), Wired Remote Cable (MiniStereo to MiniStereo).

Optional Accessories: Replacement Lamp, Component Video Input Cable (Dsub15 to 3RCA), ATA-Style Case with Wheels and Telescoping Handle, Ceiling Mount, Ceiling Post and Plate.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
()



Display Technology 3 chip DLP®
Brightness (ANSI) 14,000 lumens
Native Resolution WUXGA (1920 x 1200), 16:10
Max. Computer Input WUXGA
Max. Video Input 1080p
Contrast Ratio 2000:1
Panel Size 0.96" DMD™ DLP® chip
Lens Type (Throw:Width) Optional Lenses Available - See on website
Power Lens Shift --
Vertical Keystone Correction Horizontal Keystone Correction Digital: Up-to 20º up or down; Digital: Up-to 35º left or right
Inputs Dsub15 x 1; DVI-D (w/ HDCP) x 1; HDMI® x 1; BNC x 5; BNC x 2; DC12V x 2; RJ45 x 1
Outputs 3G HD-SDI - BNC x 1;
3D Sync - BNC x 1;
Sound System -
Network Control Wired LAN monitor & control
Warranty 3 year/6000 hrs. (whichever comes first) projector warranty.
Lamp Life up-to 2,500 hours
Lamp Part # AH-D31010
Fan Noise (Normal / Eco) 48 / 42 dB
Air Filter Assy Filter (Side Rear) MUF-13D
Assy Filter (Front)          MUF-13D
Maximum Pitch -
Weight 81.5 lb (37 kg)
Ceiling Mount Part # --
 NameDescriptionSizeType
Icon of EIP-UJT100 Cad DxfEIP-UJT100 Cad DxfEIP-UJT100 Cad Drawing1.4 MBDXF
Icon of EIP-UJT100 Cad PdfEIP-UJT100 Cad PdfEIP-UJT100 cad drawing - pdf2.6 MBPDF
Icon of EIP-UJT100 Brochure 0417EIP-UJT100 Brochure 0417EIP-UJT100 Color Data Sheet3.0 MBPDF
Icon of EIP-UJT100 Hires Images Beauty1EIP-UJT100 Hires Images Beauty1EIP-UJT100 hires images8.9 MBPNG, ZIP
Icon of EIP-UJT100 Hires Images Beauty2EIP-UJT100 Hires Images Beauty2EIP-UJT100 hires images10.1 MBPNG, ZIP
Icon of EIP-UJT100 Hires Images ConnectionsEIP-UJT100 Hires Images ConnectionsEIP-UJT100 hires images15.7 MBPNG, ZIP
Icon of EIP-UJT100 Hires Images FrontEIP-UJT100 Hires Images FrontEIP-UJT100 hires images6.5 MBPNG, ZIP
Icon of EIP-UJT100 Hires Images Front FilterEIP-UJT100 Hires Images Front FilterEIP-UJT100 hires images5.4 MBPNG, ZIP
Icon of EIP-UJT100 Hires Images LAMPEIP-UJT100 Hires Images LAMPEIP-UJT100 hires images5.4 MBPNG, ZIP
Icon of EIP-UJT100 Lens ChartEIP-UJT100 Lens ChartEIP-UJT100 Lens Chart74.0 KBPDF
Icon of EIP-UJT100 Owners ManualEIP-UJT100 Owners ManualEIP-UJT100 Owners Manual11.9 MBPDF
Icon of EIP-UJT100 Rs-232 Serial CommandsEIP-UJT100 Rs-232 Serial CommandsEIP-UJT100 RS-232 Serial Commands460.1 KBPDF
Icon of EIP-UJT100 SpecificationsEIP-UJT100 SpecificationsEIP-UJT100 Specifications101.0 KBPDF

Related Products

0173-5033 Ceiling Mount
0173-5033 Ceiling Mount
Heavy Duty Universal Projector Mount (black)
3175-5039 Rigging/Stacking Frame
3175-5039 Rigging/Stacking Frame
Deluxe Projector Rigging/Stacking Frame
5 axis adjustment
2 unit stacking capability
Black Powder Coat
0183-5034 Shipping Case
0183-5034 Shipping Case
Projector Shipping Case w/ 3-1/2" caster wheels (hard ATA type)
0183-5036 Shipping Case
0183-5036 Shipping Case
Lens Shipping Case - no wheels (hard ATA type)
AH-D21010 Power Zoom & Focus Lens
AH-D21010 Power Zoom & Focus Lens
Power Zoom & Focus f:2.5
AH-D22010 Manual Zoom and Focus, Fixed Lens
AH-D22010 Manual Zoom and Focus, Fixed Lens
Manual Zoom & Focus, Fixed Lens f:2.5
AH-D22020 Manual Zoom and Focus, Fixed Lens
AH-D22020 Manual Zoom and Focus, Fixed Lens
Manual Zoom and Focus, Fixed Lens f:2.5
AH-D22030 Power Zoom & Focus Lens
AH-D22030 Power Zoom & Focus Lens
Power Zoom & Focus f:2.5
AH-D23010 Power Zoom & Focus Lens
AH-D23010 Power Zoom & Focus Lens
Power Zoom & Focus Lens f:2.5
AH-D23020 Power Zoom & Focus Lens
AH-D23020 Power Zoom & Focus Lens
Power Zoom & Focus Lens f:2.5
3243270701 Filter
3243270701 Filter
Assy Filter (Side Rear) MUF-13
3243411700 Filter
3243411700 Filter
Assy Filter (Front) MUF-13D

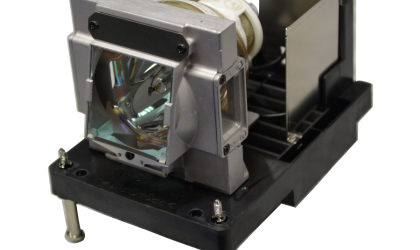

AH-D31010 Lamp
