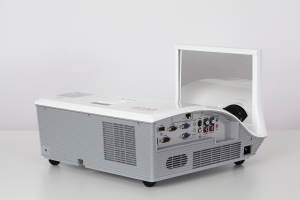

EIP-WSS3100 HD Widescreen Projector

Key Features

  • 3,100 ANSI lumens bright with 80% uniformity and a 8000:1 contrast ratio.
  • HDMI Digital connectivity with HDCP compliance. 1-chip DLP® technology.
  • Native WXGA resolution. Compatible with inputs up-to UXGA and WSXGA+.
  • Supports analog and digital video input in all color standards up-to 1080p.
  • Compatible with Crestron RoomView™ & AMX Device Discovery Technology.
  • Interactive Features Optional. 3D Ready.
  • Ultra-Short Throw projector (0.35:1) manual focus lens.
  • Accepts composite, component, and S-Video in all major standards.
  • Displays both 4:3 and 16:9 aspect ratios. Supports most HDTV resolutions.
  • Built-in 10 Watt sound system. Closed Caption decoding (NTSC).
  • Wired network monitoring and control. Digital zoom: 2X
  • Side-accessed lamp for ease of maintenance.
  • Color board modes. Custom warm-up screen. Auto input selection.
  • Security bar. Kensington® MicroSaver® security slot. PIN lock.
  • 3 year/6000 hrs. (whichever comes first) projector warranty.

Included Accessories: Quick Start Guide, Owner's Manual on CD-ROM, VGA Computer Input Cable (Dsub15 to Dsub15), 6.0 ft (1.8 m) Detachable Power Cord, Remote Control (with Lithium Battery CR2025).

Optional Accessories: Replacement Lamp, Component Video Input Cable (Dsub15 to 3RCA), Ceiling Mount, Ceiling Post and Plate, IR Pen and 2 AAA Batteries, IR Pointer and 2 AAA Batteries, IR Camera, Interactive Software on CD, USB Cable.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Detailed black & white pdf specification sheet)
()

Display Technology 0.65" DMD™ DLP® chip x 1
Brightness (ANSI) up-to 3,100 ANSI Lumens
Native Resolution WXGA (1280x800)
Max. Computer Input WSXGA+
Max. Video Input 1080p
Contrast Ratio up-to 8000:1
Panel Size 0.65"
Lens Type (Throw:Width) Attached - Manual Focus Lens (0.35:1)
Lens Shift -
Keystone Correction Digital: up-to 15° U/D
Inputs Dsub15 x 2; HDMI (PC Digital / AV HDCP) x 1; S-Video x 1; RCA x 1; Mini USB x 1 (Display); MiniStereo x 2 (Analog Audio); RCA x 4 (Video audio); MiniStereo x 1 (Microphone)
Outputs Dsub15 x 1; Variable, Stereo: MiniStereo x 1
Sound System 10 Watt 1.46 in (3.7 cm) speaker x 1 (Mono)
Network Control Wired network monitoring and control
Warranty 3 year/6000 hrs. (whichever comes first) projector warranty.
Lamp Life Up to 4,000 hours per lamp
Lamp Part # TBA
Fan Noise TBA
Air Filter -
Maximum Pitch Up to 360º
Weight 17.5 lb (8.0 kg)
Ceiling Mount Part # TBA
NameDescriptionSizeType
EIP-WSS3100 Cad Drawing2.9 MB
EIP-WSS3100 Cad Drawing Dxf3.2 MB
EIP-WSS3100 Color Data Sheet966.5 KB
EIP-WSS3100 Hi-res Image InteractiveEIP-WSS3100 Hi-res Image Interactive2.2 MBJPG, ZIP
EIP-WSS3100 Hi-res Image LampEIP-WSS3100 Hi-res Image Lamp4.5 MBJPG, ZIP
EIP-WSS3100 Hi-res Image RearEIP-WSS3100 Hi-res Image Rear3.7 MBJPG, ZIP
EIP-WSS3100 Hi-res Image RemoteEIP-WSS3100 Hi-res Image Remote4.5 MBJPG, ZIP
EIP-WSS3100 Hi-res Image Side1EIP-WSS3100 Hi-res Image Side14.2 MBJPG, ZIP
EIP-WSS3100 Hi-res Image Side2EIP-WSS3100 Hi-res Image Side24.0 MBJPG, ZIP
EIP-WSS3100 Hi-res Image TopEIP-WSS3100 Hi-res Image Top3.4 MBJPG, ZIP
EIP-WSS3100B Hi-res Image InteractiveEIP-WSS3100B Hi-res Image Interactive2.2 MBJPG, ZIP
EIP-WSS3100B Hi-res Image LampEIP-WSS3100B Hi-res Image Lamp4.5 MBJPG, ZIP
EIP-WSS3100B Hi-res Image RearEIP-WSS3100B Hi-res Image Rear3.7 MBJPG, ZIP
EIP-WSS3100B Hi-res Image RemoteEIP-WSS3100B Hi-res Image Remote4.5 MBJPG, ZIP
EIP-WSS3100B Hi-res Image Side1EIP-WSS3100B Hi-res Image Side14.2 MBJPG, ZIP
EIP-WSS3100B Hi-res Image Side2EIP-WSS3100B Hi-res Image Side24.0 MBJPG, ZIP
EIP-WSS3100B Hi-res Image TopEIP-WSS3100B Hi-res Image Top3.4 MBJPG, ZIP
EIP-WSS3100 Lens ChartEIP-WSS3100 Lens Chart12.2 KBPDF
EIP-WSS3100 Owners ManualEIP-WSS3100 Owners Manual12.9 MBPDF
IK-US10 Operation ManualIK-US10 Owners Manual5.2 MBPDF
EIP-WSS3100 RS-232 Basic Serial CommandsEIP-WSS3100 RS-232 Basic Serial Commands40.5 KBPDF
EIP-WSS3100 Lightpen3 SoftwareEIKP-WSS3100 LightPen3 Dual, Interactive software109.6 MBZIP
EIP-WSS3100 SpecificationsEIP-WSS3100 Specifications43.0 KBPDF
