EIP-WX5000 HD Widescreen Projector
EIP-WX5000L HD Widescreen Projector (no lens)

Get the film-like imaging of DLP® technology in a projector with conference room brightness and built-in network control.

  • 5,200 ANSI lumens bright with 90% uniformity and a 1800:1 contrast ratio.
  • Native WXGA resolution. Compatible with inputs up-to UXGA and WXGA.
  • Supports analog and digital video input in all color standards up-to 1080p.
  • 3 chip DLP® imaging technology delivers a “seamless,” high-contrast image.
  • Dual lamp system provides redundancy and permits 4 brightness levels.
  • Power zoom and focus lens. Optional wide-angle and telephoto lenses.
  • Vertical and horizontal power lens shift and digital keystone correction.
  • Unique Projector Stack Control and VideoWall signal division features.
  • Accepts composite, component, and S-Video in all major standards.
  • Built-in wired LAN connection for projector monitoring and control.
  • Variable power management option. Custom warm-up screen option.
  • Wireless/wired remote with remote mouse control.
  • Mechanical shutter for true black screen in "No Show" mode.
  • Kensington® security slot. Local or remote keylock functions.
  • 3 year/6000 hrs. (whichever comes first) projector warranty.

Included Accessories: Manual,CD-ROM (Set-Up Guide), System Lock Caution, Quick Guide, AC Power Cord 12" (3.6m), Lens Cover, VGA type Computer Input Cable 9.8ft (3m), Wireless/Wired Remote with Mouse Control & 2 (AA Batteries), Remote Mouse Receiver on 5.25ft. (1.6M) USB-A Cable

Optional Accessories: Replacement Lamps, ATA-Style Shipping Case with Wheels and Telescoping Handle, Wideangle and Telephoto lenses, Ceiling Mount, Ceiling Post & Plate.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Detailed black & white pdf specification sheet)
()

Display Technology 3 chip DLP®
Brightness (ANSI) 5,200 Lumens
Native Resolution WXGA (1280x800)
Max. Computer Input WXGA
Max. Video Input 1080p
Contrast Ratio 1800:1
Panel Size 0.65"
Lens Type (Throw:Width) 1.8-2.25:1
Power Lens Shift 66% Up or Down; 35% Left or Right
Keystone Correction 40° Up/Down; 30° Left/Right
Inputs HDMI x 1; DVI-D (with HDCP) x 1; DSub15 x 1; BNC x 5  S-Video x 1; RCA x 1; MiniStereo x 1
Outputs Dsub15 x 1; MiniStereo x 1
Sound System 3 Watt; 1.3 x 2.6" oval speakers x 2
Network Control Wired LAN monitor & control
Warranty 3 year/6000 hrs. (whichever comes first) projector warranty.
Lamp Life Up to 3,000 hours
Lamp Part # AH-55001 (2)
Fan Noise As low as 34 dBa
Air Filter Standard
Maximum Pitch Up-to 9º Up or Down
Weight 58.4 lb (26.5 kg)
Ceiling Mount Part # 0173-5015
NameDescriptionSizeType
EIP-WX5000 Cad Drawing151.1 KB
EIP-WX5000 Cad Drawing Dxf2.4 MB
EIP-WX5000 Cad Drawing Lens Dxf2.5 MB
EIP-WX5000 Cad Drawing With AH-5520125.6 KB
EIP-WX5000 Cad Drawing With AH-55201 Dxf332.9 KB
EIP-WX5000 Cad Drawing With AH-5530126.1 KB
EIP-WX5000 Cad Drawing With AH-55301 Dxf333.4 KB
EIP-WX5000 Cad Drawing With AH-5540125.8 KB
EIP-WX5000 Cad Drawing With AH-55401 Dxf332.0 KB
EIP-WX5000 Cad Drawing With AH-5550125.6 KB
EIP-WX5000 Cad Drawing With AH-55501 Dxf332.2 KB
EIP-WX5000 Cad Drawing With AH-5560125.4 KB
EIP-WX5000 Cad Drawing With AH-55601 Dxf331.9 KB
EIP-WX5000 Cad Drawing With AH-5570125.4 KB
EIP-WX5000 Cad Drawing With AH-55701 Dxf331.9 KB
EIP-WX5000 Cad Drawing With AH-5580125.4 KB
EIP-WX5000 Cad Drawing With AH-55801 Dxf331.8 KB
EIP-WX5000 Color Data Sheet349.5 KB
EIP-WX5000 Hi-res Image Beauty1EIP-WX5000 Hi-res Image Beauty13.7 MBZIP, TIF
EIP-WX5000 Hi-res Image Beauty2EIP-WX5000 Hi-res Image Beauty23.8 MBZIP, TIF
EIP-WX5000 Hi-res Image BottomEIP-WX5000 Hi-res Image Bottom5.1 MBZIP, TIF
EIP-WX5000 Hi-res Image FrontEIP-WX5000 Hi-res Image Front3.5 MBZIP, TIF
EIP-WX5000 Hi-res Image RearEIP-WX5000 Hi-res Image Rear4.5 MBZIP, TIF
EIP-WX5000 Hi-res Image RemoteEIP-WX5000 Hi-res Image Remote10.4 MBZIP, TIF
EIP-WX5000 Hi-res Image Side1EIP-WX5000 Hi-res Image Side13.5 MBZIP, TIF
EIP-WX5000 Hi-res Image Side2EIP-WX5000 Hi-res Image Side23.6 MBZIP, TIF
EIP-WX5000 Hi-res Image TopEIP-WX5000 Hi-res Image Top5.1 MBZIP, TIF
EIP-WX5000 Lens ChartEIP-WX5000 Lens Chart10.1 KBPDF
EIP-WX5000 Owners ManualEIP-WX5000 Owners Manual11.9 MBPDF
EIP-WX5000 Quick GuideEIP-WX5000 Quick Guide788.9 KBPDF
EIP-WX5000 Setup ManualEIP-WX5000 Setup Manual6.4 MBPDF
EIP-WX5000 Remote Control CodesEIP-WX5000 Remote Control Codes15.7 KBPDF
EIP-WX5000 RS-232 Basic Serial CommandsEIP-WX5000 RS-232 Basic Serial Commands493.6 KBPDF
EIP-WX5000 SpecificationsEIP-WX5000 Specifications79.1 KBPDF

Related Products

AH-50001 Lamp
AH-50001 Lamp
Rated Power: 260W
Lamp type: UHP
Life Expectancy: 2000h
Lamp Warranty: 90 Days
(EIP-5000 needs one (1) each of AH-50001 and AH-50002 BOTH ARE REQUIRED)
9NK3243101400 Filter
9NK3243101400 Filter
Replacement Filter (Foam)
AH-55501 Lens
AH-55501 Lens
EIP-WX5000
EIP-WX5000L

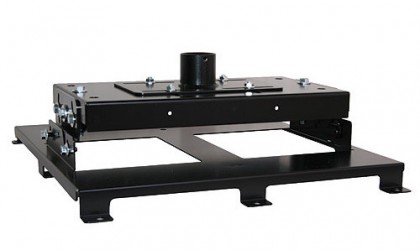

0173-5015 Ceiling Mount
