EIP-XSP2500 DLP™ Projector

Get the film-like imaging of DLP® technology with new BrilliantColorTM expanded-spectrum color reproduction in a classroom projector.

  • 2,500 ANSI lumens bright with 80% uniformity and a 1600:1 contrast ratio.
  • Native XGA resolution. Compatible with inputs up-to SXGA and WXGA.
  • Supports analog video input in all color standards up-to 1080i.
  • 1 chip DLP® imaging technology delivers a “seamless” high-contrast image.
  • 6-segment color wheel and BrilliantColor™ color processing.
  • Short throw fixed focal length lens with manual focus.
  • Fixed image offset. Vertical digital keystone correction.
  • Two Dsub15 computer inputs, plus one Dsub15 computer monitor output.
  • Accepts composite, component, and S-Video in all major standards.
  • Built-in wired LAN connection for projector monitoring and control.
  • Low maintenance: filter free operation and long life lamp.
  • Eco mode operation reduces power consumption and fan noise.
  • Kensington® security slot.
  • Wireless remote control. Digital zoom function.
  • 3 year projector warranty.

Included Accessories: Owner's Manual on CD-ROM, Power Cord, VGA Computer Input Cable (Dsub15 to Dsub15), Wireless Remote Control (with Lithium battery CR2025).

Optional Accessories: Replacement Lamp, Component Video Input Adapter Cable (Dsub15 to 3RCA), Ceiling Mount, Ceiling Post & Plate, Wall Mount (includes mounting plate, arm and projector mount).

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)
()

Display Technology 1-chip DLP
Brightness (ANSI) up-to 2,500 ANSI Lumens
Native Resolution XGA (1024x768)
Max. Computer Input WUXGA
Max. Video Input 1080i
Contrast Ratio up-to 1600:1
Panel Size 0.55 in (14 mm)
Lens Type (Throw:Width) Attached - Fixed FL, Manual Focus; Throw:Width 0.62:1
Power Lens Shift Adjustable 52.0-54.5% Up
Keystone Correction Digital: up-to 20° Up or Down
Inputs Dsub15 x 1; Dsub15 x 1;S-Video x 1; RCA x 1; Stereo: MiniStereo x 1
Outputs Dsub15 x 1
Sound System Stereo: Mono: 2 Watt; 1.3 in (3.2 cm) x 1 (Mono))
Network Control Full Function
Warranty 3 years
Lamp Life Up to 2,500 hours
Lamp Part # 23040028
Fan Noise as low as 34 dBA
Air Filter --
Maximum Pitch Up-to 360º
Weight 6.6 lb (3.0 kg)
Ceiling Mount Part # 0173-5021
NameDescriptionSizeType
EIP-XSP2500 Cad Drawing124.7 KB
EIP-XSP2500 Cad Drawing Dxf141.9 KB
EIP-XSP2500 Color Data Sheet945.4 KB

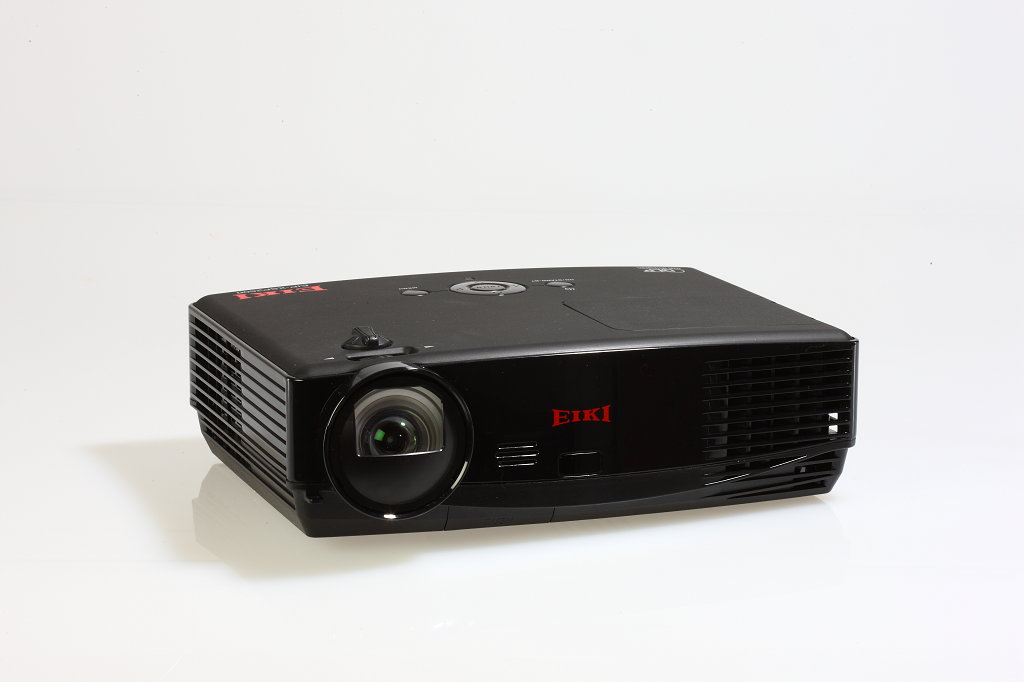

EIP-XSP2500 Hi-res Image Beauty1EIP-XSP2500 Hi-res Image Beauty14.2 MBJPG, ZIP

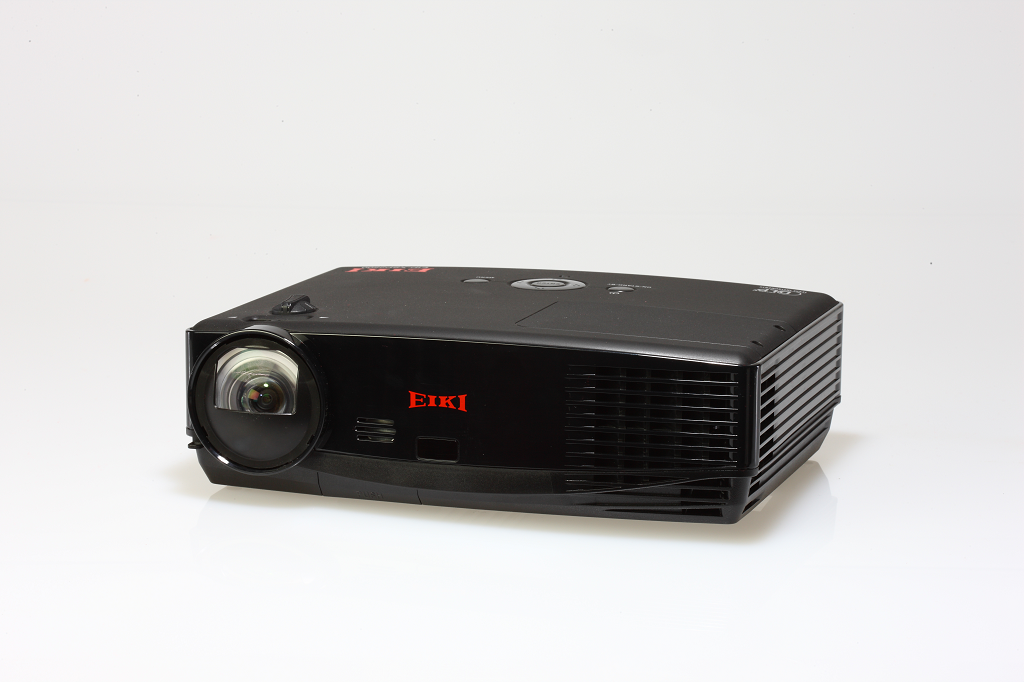

EIP-XSP2500 Hi-res Image Beauty2EIP-XSP2500 Hi-res Image Beauty24.2 MBJPG, ZIP

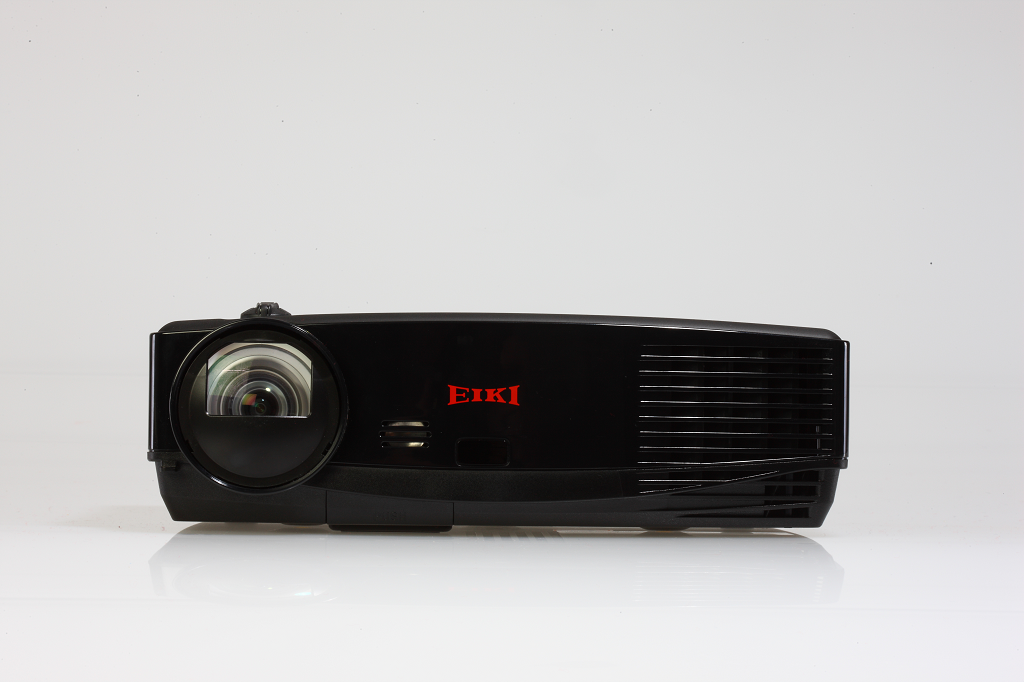

EIP-XSP2500 Hi-res Image FrontEIP-XSP2500 Hi-res Image Front4.6 MBJPG, ZIP

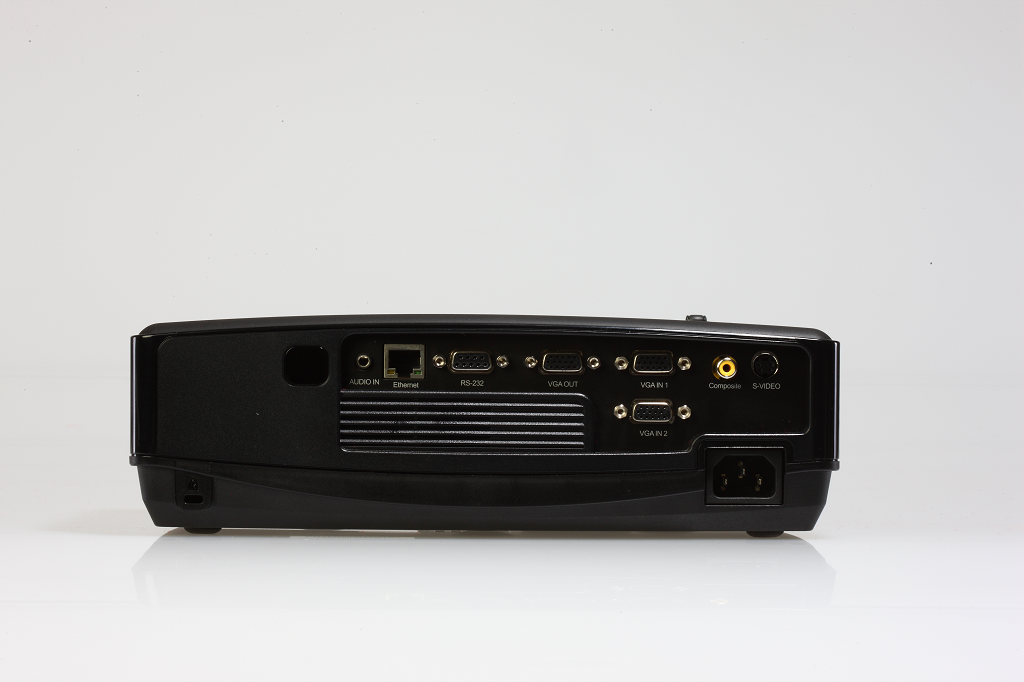

EIP-XSP2500 Hi-res Image RearEIP-XSP2500 Hi-res Image Rear4.8 MBJPG, ZIP

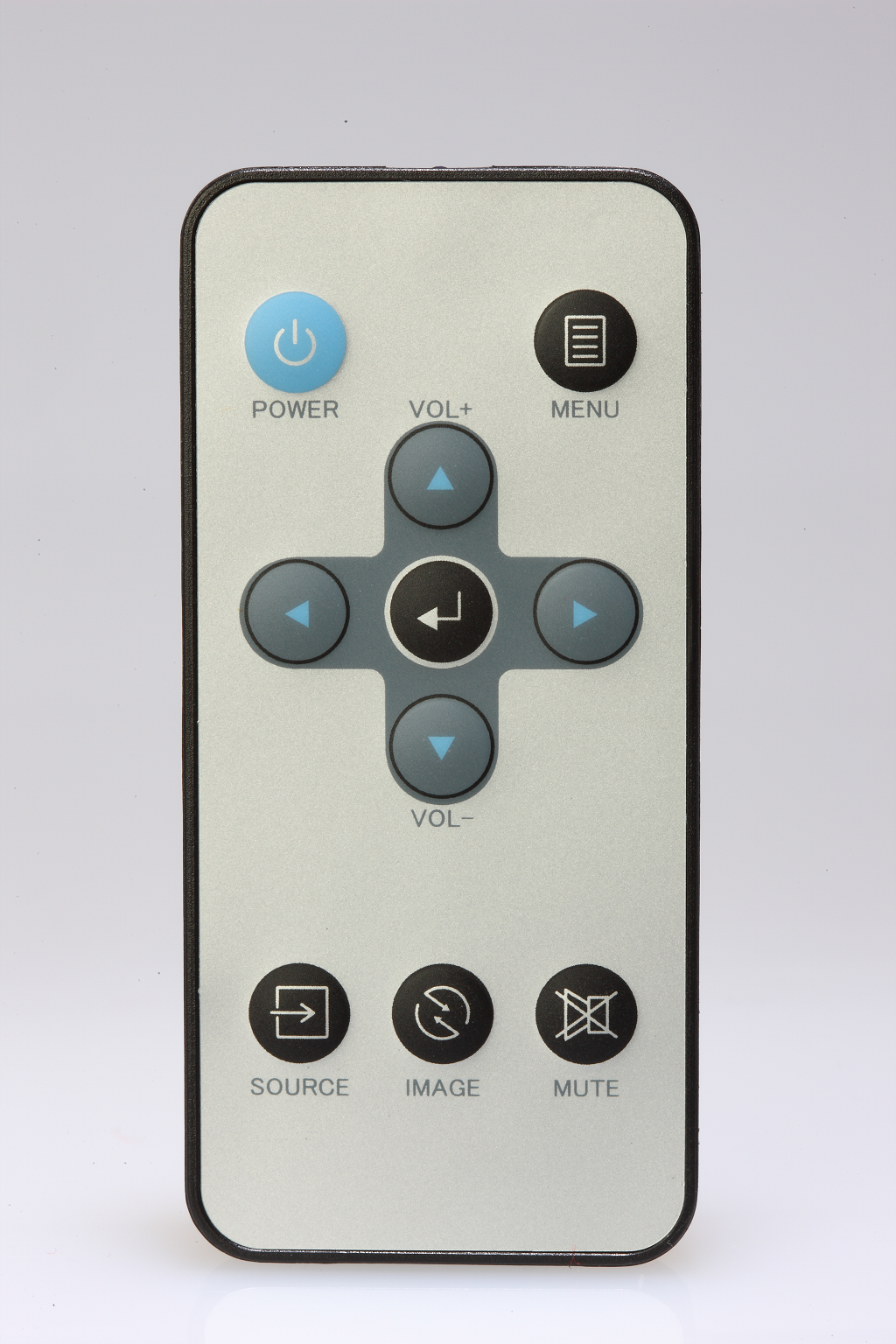

EIP-XSP2500 Hi-res Image RemoteEIP-XSP2500 Hi-res Image Remote7.7 MBJPG, ZIP

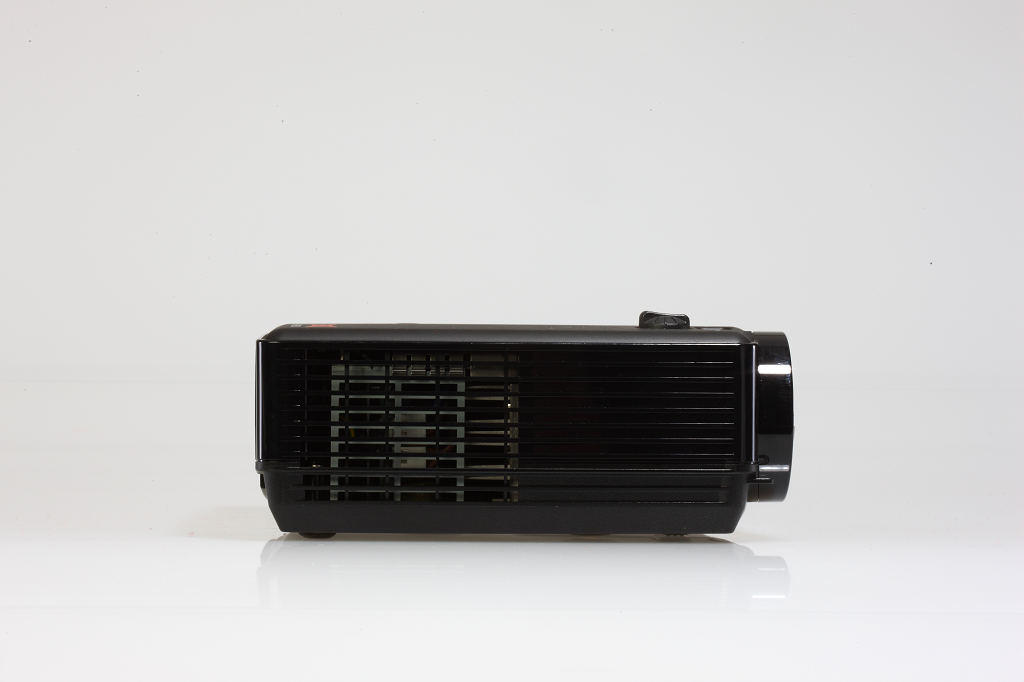

EIP-XSP2500 Hi-res Image Side1EIP-XSP2500 Hi-res Image Side14.3 MBJPG, ZIP

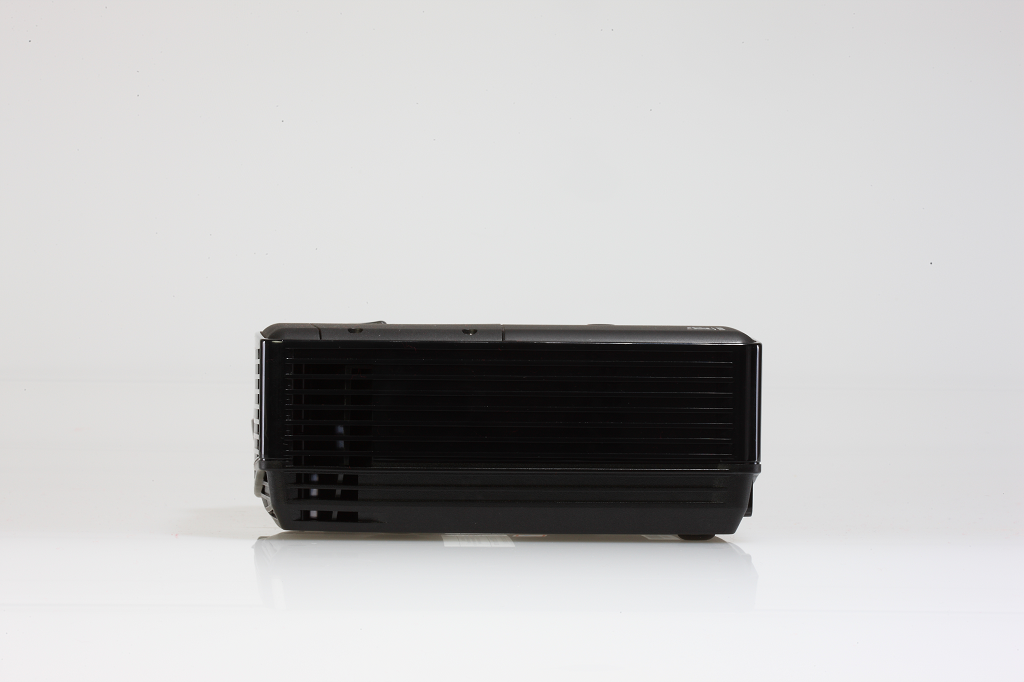

EIP-XSP2500 Hi-res Image Side2EIP-XSP2500 Hi-res Image Side24.1 MBJPG, ZIP

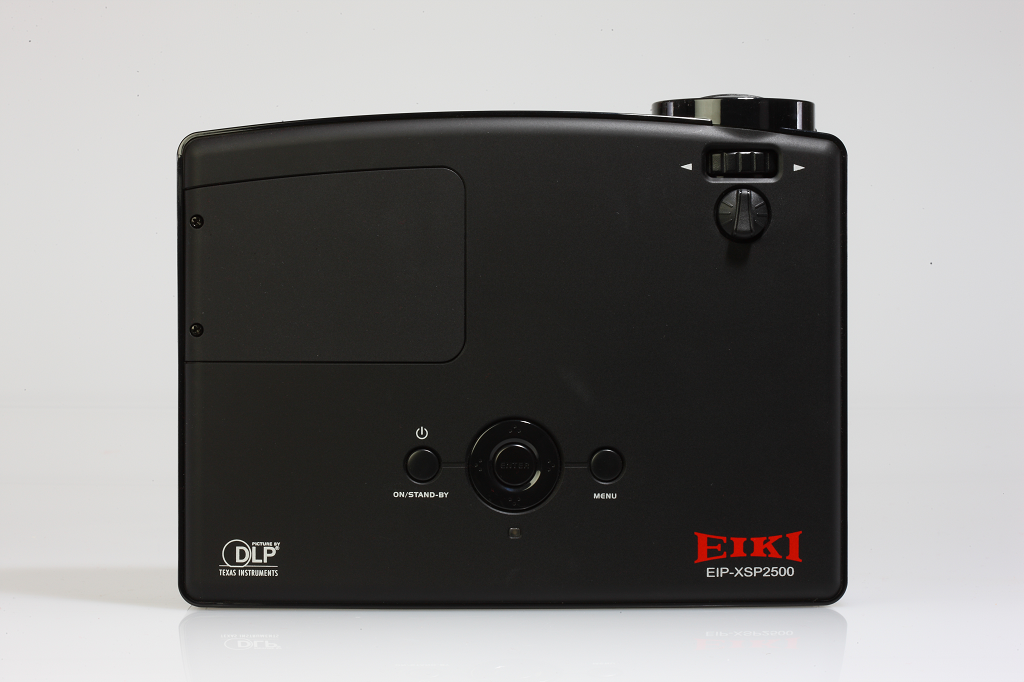

EIP-XSP2500 Hi-res Image TopEIP-XSP2500 Hi-res Image Top5.6 MBJPG, ZIP
EIP-XSP2500 Lens ChartEIP-XSP2500 Lens Chart11.8 KBPDF
EIP-XSP2500 Owners ManualEIP-XSP2500 Owners Manual4.9 MBPDF
EIP-XSP2500 Remote Control CodesEIP-XSP2500 Remote Control Codes38.8 KBPDF
EIP-XSP2500 RS-232 Control SoftwareEIP-XSP2500 RS-232 Control Software1.4 MB
EIP-XSP2500 RS-232 Basic Serial CommandsEIP-XSP2500 RS-232 Basic Serial Commands340.2 KBPDF
EIP-XSP2500 SpecificationsEIP-XSP2500 Specifications26.1 KBPDF

Related Products

23040028 Lamp
23040028 Lamp
Rated Power: 230W
Lamp type: P-VIP
Life Expectancy: 5,000h
Lamp Warranty: 6 months / 500h (whichever comes first)
