EK-102X Entry Level Projector

Key Features

  • 3,300 ANSI lumens bright with 80% uniformity and a 10,000:1 contrast ratio.
  • Native XGA resolution. Compatible with inputs up-to UXGA and WUXGA.
  • Supports analog and digital video input in all color standards up-to 1080p.
  • HDMI with MHL (Mobile High-Definition Link) displays HD Video from Smartphones & Tablets.
  • Convenient mid-range (1.2:1) manual zoom and focus lens.
  • Fixed image offset. Horiz., Vert. & Corner Keystone Correction.
  • Accepts composite, component, and S-Video in all major standards.
  • Displays both 4:3 and 16:9 aspect ratios. Supports most HDTV resolutions.
  • Built-in 10 Watt sound system. Closed Caption decoding (NTSC).
  • Wired network control. Digital zoom: 1/4~ x16.

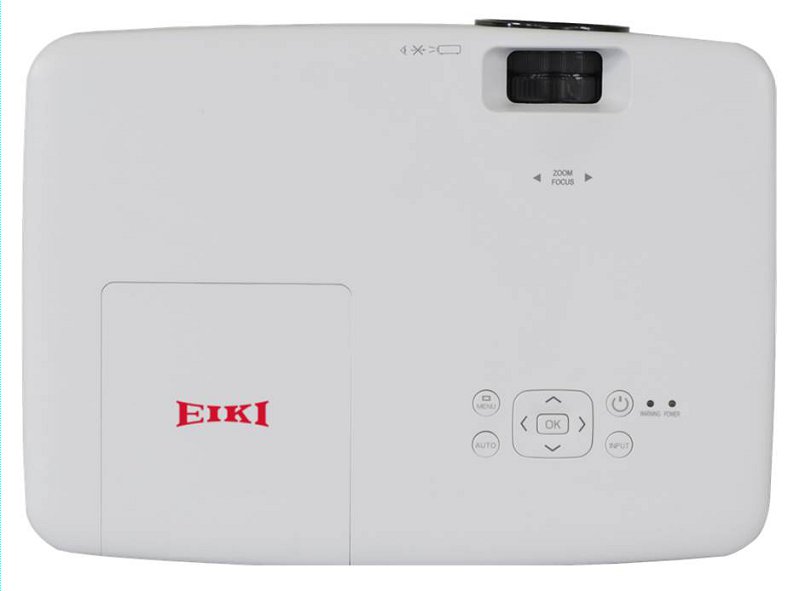

  • Side-accessed air filter & top accessed lamp for ease of maintenance.
  • Pin Cushion / Barrel image correction.
  • Auto input selection. Built-in Test Patterns.
  • Security bar. Kensington® MicroSaver® security slot. PIN lock.
  • 3 year / 6000 hours (whichever occurs first) projector warranty.

Included Accessories: Quick Start Guide, VGA Computer Input Cable (Dsub15 to Dsub15), 6.0 ft (1.8 m) Detachable Power Cord, Remote Control (with 2 AAA Batteries).

Optional Accessories: Replacement Lamp, Component Video Cable (3RCA to Dsub15), S-Video Cable (S-Video to Dsub15), USB Wifi Dongle, Ceiling Mount, Ceiling Post and Plate, Soft Carry Bag.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
Download a detailed black & white pdf specification sheet

Display Technology 3LCD
Brightness (ANSI) 3,300 lumens
Native Resolution XGA (1024x768), 4:3
Max. Computer Input WUXGA
Max. Video Input 1080p
Contrast Ratio 10,000:1
Imaging System 0.63 in (16 mm) inorganic LCD Panels x 3
Lens Type Attached - Manual Zoom and Focus
Keystone Correction Digital:V:+/- 30° - H: +/- 15°, Corner Keystone
Inputs Image Signal Inputs
Computer 1 (Component/S-Video) Dsub15 x 1;
Computer 2 (switchable Monitor Out) Dsub15 x 1;
Digital Video (w/ HDCP & MHL) HDMI x 2;
USB Type A - Memory Viewer USB Type A x 1;
USB Type B - USB Display/Firmware USB Type B x 1;
Composite Video RCA x 1;
Audio Signal Inputs
Computer Audio MiniStereo x 1;
Video Audio RCA x 2 (L/R);
Outputs Computer (Computer 2)  - Dsub15 x 1;
Audio Output Variable, Stereo: MiniStereo x 1
Sound System Amplifier Mono: 10 Watt; Speaker 1.4 in (3.7 cm) x 2 (Mono)
Network Control Wired network control.
Wifi -
Warranty Projector - 3 year / 6000 hrs. (whichever occurs first)
Estimated Lamp Life (Eco / Normal) 10,000 / 4,000 hours
Lamp Part # 23040052
Fan Noise (Eco / Normal) 34.9 dB / 38.9 dB
Air Filter tba
Maximum Pitch Up-to 30° Up or Down
Weight 7.0 lb (3.2 kg)
Ceiling Mount Part # 0173-4293
Icon of EK-102X Cad DrawingEK-102X Cad DrawingEK-102X Cad Drawing10.5 MBDXF
Icon of EK-102X Color Data SheetEK-102X Color Data SheetEK-102X Color Data Sheet1.1 MBPDF
Icon of EK-102X Hires Beauty2 ImageEK-102X Hires Beauty2 ImageEK-102X hires beauty2 image494.6 KBJPG, ZIP
Icon of EK-102X Lens ChartEK-102X Lens ChartEK-102X Lens Chart86.5 KBPDF
Icon of EK-102X Owners Manual EnglishEK-102X Owners Manual EnglishEK-102X Owners Manual24.0 MBPDF
Icon of EK-102X Owners Manual FrenchEK-102X Owners Manual FrenchEK-102X Owners Manual24.2 MBPDF
Icon of EK-102X Owners Manual GermanEK-102X Owners Manual GermanEK-102X Owners Manual24.2 MBPDF
Icon of EK-102X Owners Manual ItalianEK-102X Owners Manual ItalianEK-102X Owners Manual24.2 MBPDF
Icon of EK-102X Owners Manual Korean Vol2EK-102X Owners Manual Korean Vol2EK-102X Owners Manual Korean Vol225.3 MBPDF
Icon of EK-102X Owners Manual SpanishEK-102X Owners Manual SpanishEK-102X Owners Manual24.1 MBPDF
Icon of EK-102X Owners Manual Traditional ChineseEK-102X Owners Manual Traditional ChineseEK-102X Owners Manual27.1 MBPDF
Icon of EK-102X Remote Control Codes 20160930EK-102X Remote Control Codes 20160930EK-102X Remote Control Codes44.7 KBPDF
Icon of EK-102X RS232 Command ListEK-102X RS232 Command ListEK-102X RS232 Commands107.0 KBPDF
Icon of EK-102X SpecificationsEK-102X SpecificationsEK-102X Specifications101.9 KBPDF

Related Products

0173-4293 Universal Ceiling Mount
0173-4293 Universal Ceiling Mount
Universal Ceiling Projector Mount
AH-98771 Cable Adaptor
AH-98771 Cable Adaptor
Component Video (3 RCA) to HD-15 (Input Cable Adaptor - 12" length)

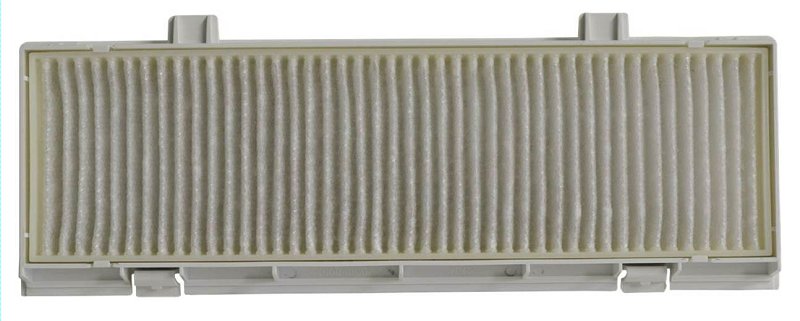

60040044 Filter
