EK-103X Entry Level Projector

Key Features

  • 3.300 ANSI lumens bright with 80% uniformity and a 1200:1 contrast ratio.
  • Native XGA resolution. Compatible with inputs up-to UXGA and WUXGA.
  • Supports analog and digital video input in all color standards up-to 1080p.
  • HDMI Digital connectivity with HDCP compliance.
  • Convenient mid-range (1.2:1) manual zoom and focus lens.
  • Fixed image offset. Automatic vertical digital keystone correction.
  • Accepts composite, component, and S-Video in all major standards.
  • Displays both 4:3 and 16:9 aspect ratios. Supports most HDTV resolutions.
  • Closed Caption decoding (NTSC).
  • Digital zoom: 1/4~ x16.
  • Side-accessed air filter & top accessed lamp for ease of maintenance.
  • Color board modes. Custom warm-up screen.
  • Auto input selection. Built-in Test Patterns.
  • Security bar. Kensington® MicroSaver® security slot. PIN lock.
  • 3 year / 6000 hours projector warranty (whichever occurs first.

Included Accessories: Quick Start Guide, Owner's Manual on CD-ROM, VGA Computer Input Cable (Dsub15 to Dsub15), 6.0 ft (1.8 m) Detachable Power Cord, Remote Control (with 2 AAA Batteries).

Optional Accessories: Replacement Lamp, Component Video Cable (3RCA to Dsub15), S-Video Cable (S-Video to Dsub15), Ceiling Mount, Ceiling Post and Plate, Soft Carry Bag.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)



Display Technology 3LCD
Brightness (ANSI) 3,300 lumens
Native Resolution XGA (1024x768), 4:3
Max. Computer Input WUXGA
Max. Video Input 1080p
Contrast Ratio 1200:1
Imaging System 0.63 in (16 mm) inorganic LCD Panels x 3
Lens Type Attached - Manual Zoom and Focus
Keystone Correction Digital:V:+/- 30°(Auto)

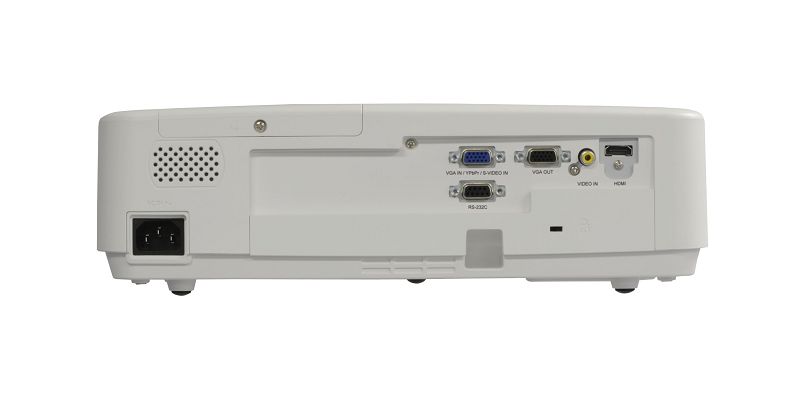

Inputs Image Signal Inputs
Computer 1 (Component/S-Video via adapter) - Dsub15 x 1;
Digital Video (w/ HDCP) - HDMI x 1;
Composite Video RCA x 1;
Outputs Computer Monitor (Computer 2) - Dsub15 x 1;
Sound System -
Network Control -
Wifi -
Warranty Projector - 3 year / 6000 hrs. (whichever occurs first)
Lamp Life Up-to 10,000 hours (eco)
Lamp Part # 23040052
Fan Noise (Eco / Normal) 34.9 dB / 38.9 dB
Air Filter -
Maximum Pitch Up to 360º
Weight 7.0 lb (3.2 kg)

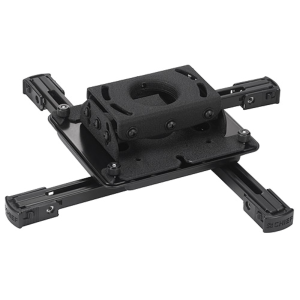

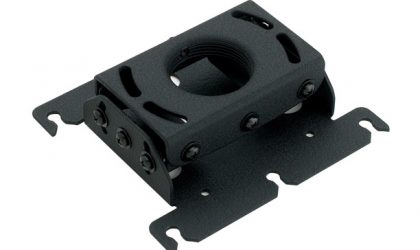

Ceiling Mount Part # 0173-4293
 NameDescriptionSizeType
Icon of EK-103X Cad DrawingEK-103X Cad DrawingEK-103X Cad Drawing10.5 MBDXF
Icon of EK-103X Color Data SheetEK-103X Color Data SheetEK-103X Color Data Sheet963.5 KBPDF
Icon of EK-103X Lens ChartEK-103X Lens ChartEK-103X Lens Chart86.5 KBPDF
Icon of EK-103X Owners Manual EnglishEK-103X Owners Manual EnglishEK-103X Owners Manual9.7 MBPDF
Icon of EK-103X Owners Manual FrenchEK-103X Owners Manual FrenchEK-103X Owners Manual9.8 MBPDF
Icon of EK-103X Owners Manual GermanEK-103X Owners Manual GermanEK-103X Owners Manual9.7 MBPDF
Icon of EK-103X Owners Manual ItalianEK-103X Owners Manual ItalianEK-103X Owners Manual9.8 MBPDF
Icon of EK-103X Owners Manual SpanishEK-103X Owners Manual SpanishEK-103X Owners Manual9.7 MBPDF
Icon of EK-103X Owners Manual Traditional ChineseEK-103X Owners Manual Traditional ChineseEK-103X Owners Manual10.5 MBPDF
Icon of EK-103X Remote Control Codes 20160930EK-103X Remote Control Codes 20160930EK-103X Remote Control Codes44.7 KBPDF
Icon of EK-103X RS232C Command ListEK-103X RS232C Command ListEK-103X RS232 Commands98.9 KBPDF
Icon of EK-103X SpecificationsEK-103X SpecificationsEK-103X Specifications102.0 KBPDF
