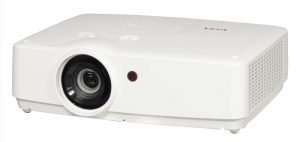

EK-303U Meeting Room Projector

Key Features

  • 4,500 ANSI lumens bright with 80% uniformity and a 8,000:1 contrast ratio.
  • Native WUXGA resolution. Compatible with inputs up-to UXGA and WUXGA.
  • Supports analog and digital video input in all color standards up-to 1080p.
  • HDMI with MHL (Mobile High-Definition Link) displays HD Video from Smartphones & Tablets.
  • Convenient mid-range (1.6:1) manual zoom and focus lens.
  • Fixed image offset. Horiz., Vert. & Corner Keystone Correction.
  • Accepts composite, component, and S-Video in all major standards.
  • Displays both 4:3 and 16:9 aspect ratios. Supports most HDTV resolutions.
  • Built-in 10 Watt sound system. Closed Caption decoding (NTSC).
  • Wired network control.
  • Side-accessed air filter & top accessed lamp for ease of maintenance.
  • Auto input selection. Built-in Test Patterns.
  • Security bar. Kensington® MicroSaver® security slot. PIN lock.
  • 3 year / 6000 hours (whichever occurs first) projector warranty.

Included Accessories: Quick Start Guide, VGA Computer Input Cable (Dsub15 to Dsub15), 6.0 ft (1.8 m) Detachable Power Cord, Remote Control (with 2 AAA Batteries).

Optional Accessories: Replacement Lamp, Component Video Cable (3RCA to Dsub15), S-Video Cable (S-Video to Dsub15), Ceiling Mount, Ceiling Post and Plate.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)



Display Technology 3LCD
Brightness (ANSI) 4,500 lumens
Native Resolution WUXGA (1920x1200), 16:10
Max. Computer Input WUXGA
Max. Video Input 1080p
Contrast Ratio 8,000:1
Imaging System 0.64 in (16 mm) inorganic LCD Panels x 3
Lens Type Attached - Manual Zoom and Focus
Keystone Correction Digital: V:+/- 30°(Auto)H: +/- 15° (Auto) Corner Keystone
Inputs Image Signal Inputs
Computer 1 (Component/S-Video) Dsub15 x 1;
Computer 2 (switchable Monitor Out) Dsub15 x 1;
Digital Video (w/ HDCP & MHL) HDMI x 2;
USB Type A - Memory Viewer USB Type A x 1;
USB Type B - USB Display/Firmware USB Type B x 1;
Composite Video RCA x 1;
Audio Signal Inputs
Computer Audio MiniStereo x 1;
Video Audio RCA x 2 (L/R);
Outputs Computer Monitor (Computer 2) - Dsub15 x 1;
Audio Output Variable, Mono: MiniStereo x 1
Sound System Amplifier Stereo: 10 Watt; Speaker 1.4 in (3.7 cm) x 1 (Mono)
Network Control Wired network control.
Wifi -
Warranty Projector - 3 year / 6000 hrs. (whichever occurs first)
Estimated Lamp Life (Eco / Normal) 4,000 / 3,000 hours
Lamp Part # 23040049
Fan Noise (Eco / Normal) 35.5 dB / 40.0 dB
Air Filter -
Maximum Pitch Up-to 30° Up or Down
Weight 9.9 lb (4.5 kg)
Ceiling Mount Part # 0173-4293
 NameDescriptionSizeType
Icon of EK-303U Series Manual Korean Vol 4 161101EK-303U Series Manual Korean Vol 4 161101EK-303U series manual - Korean Vol. 4 161101 29.4 MBPDF
Icon of EK-303U Lens ChartEK-303U Lens ChartEK-303U Lens Chart72.2 KBPDF
Icon of EK-303U Owners Manual English Vol4EK-303U Owners Manual English Vol4EK-303U Owners Manual26.3 MBPDF
Icon of EK-303U Owners Manual French Vol4EK-303U Owners Manual French Vol4EK-303U Owners Manual26.5 MBPDF
Icon of EK-303U Owners Manual German Vol4EK-303U Owners Manual German Vol4EK-303U Owners Manual26.5 MBPDF
Icon of EK-303U Owners Manual Italian Vol4EK-303U Owners Manual Italian Vol4EK-303U Owners Manual26.5 MBPDF
Icon of EK-303U Owners Manual Spanish Vol4EK-303U Owners Manual Spanish Vol4EK-303U Owners Manual26.4 MBPDF
Icon of EK-303U Owners Manual Traditional Chinese Vol4EK-303U Owners Manual Traditional Chinese Vol4EK-303U Owners Manual29.8 MBPDF
Icon of EK-303U Quick Start Guide English 20160331EK-303U Quick Start Guide English 20160331EK-303U quick start guide English
11.6 MBPDF
Icon of EK-303U SpecificationsEK-303U SpecificationsEK-303U Specifications101.8 KBPDF
