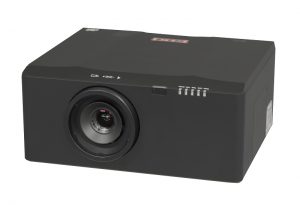

EK-611W (no lens)

Key Features

  • 6,500 ANSI lumens bright with 90% uniformity and a 4400:1 contrast ratio.
  • Native WXGA resolution. Compatible with inputs up-to UXGA and WUXGA.
  • Supports analog and digital video input in all color standards up-to 1080p.
  • HD BaseT, HDMI and DVI-D connectivity with HDCP compliance.
  • Built-in Mechanical Shutter. Auto input selection.
  • Accepts composite, component, and S-Video in all major standards.
  • Displays both 4:3 and 16:9 aspect ratios. Supports most HDTV resolutions.
  • Wired network control. Digital zoom: 1/4~ x16.
  • Horizontal and Vertical Keystone Correction.
  • Pin Cushion and Barrel image correction.
  • Security bar. Kensington® MicroSaver® security slot. PIN lock.
  • 3 year / 6000 hours (whichever occurs first) projector warranty.

Included Accessories: Quick Start Guide, VGA Computer Input Cable (Dsub15 to Dsub15), 6.0 ft (1.8 m) Detachable Power Cord, Remote Control (with 2 AAA Batteries).

Optional Accessories: Replacement Lamp, Component Video Cable (3RCA to 3RCA), Ceiling Mount, Ceiling Post and Plate.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
Download a detailed black & white pdf specification sheet
Color Data Sheet

Display Technology 1 chip DLP®
Brightness (ANSI) 6,500 lumens
Native Resolution WXGA (1280x800), 16:10
Max. Computer Input WUXGA
Max. Video Input 1080p
Contrast Ratio 4400:1 (Dynamic Aperture ON)
Imaging System 0.65" DMD™ DLP® chip x 1
Lens Type Optional lenses available
Keystone Correction Digital: U/D 30º; L/R 30º
Inputs

Image Signal Inputs:
Computer 1 - Dsub15 x 1,
Digital Video (w/HDCP) - HDMI x 1,
Digital Video (w/HDCP) - DVI-D x 1,
HD BaseT - RJ45 x 1,
Component Video (Y,Pb,Pr and R/G/B) RCA x 3,
Composite Video RCA x 1
Other Inputs:
Projector Control from LAN - RJ45 x 1,
Projector Control from Computer - RS-232C,
WiFi Dongle - USB x 1,
Mini USB - Service,
Wired Remote - Ministereo x 1

Outputs -
Sound System -
Network Control Wired network control.
Wifi -
Warranty Projector - 3 year / 6000 hrs. (whichever occurs first)
Lamp Life Up-to 2,000 hrs.
Lamp Part # -
Fan Noise (Normal / Eco) 41 / 37 dB
Air Filter -
Maximum Pitch Up to 360º
Weight (without lens) 30.8 lb (14 kg)
Ceiling Mount Part # -
 NameDescriptionSizeType
Icon of EK-611W CAD DrawingEK-611W CAD DrawingEK-611W CAD Drawing1.8 MBDWG
Icon of EK-611W Color Data SheetEK-611W Color Data SheetEK-611W Color Data Sheet788.9 KBPDF
Icon of EK-611W Hires Beauty1 ImageEK-611W Hires Beauty1 ImageEK-611W Hires Beauty1 Image1.1 MBPNG, ZIP
Icon of EK-611W Hires Beauty2 ImageEK-611W Hires Beauty2 ImageEK-611W Hires Beauty2 Image3.8 MBPNG, ZIP
Icon of EK-611W Hires Bottom ImageEK-611W Hires Bottom ImageEK-611W Hires Bottom Image7.7 MBPNG, ZIP
Icon of EK-611W Hires Connections ImageEK-611W Hires Connections ImageEK-611W Hires Connections Image9.9 MBPNG, ZIP
Icon of EK-611W Hires Control Panel ImageEK-611W Hires Control Panel ImageEK-611W hires control panel image9.2 MBJPG, ZIP
Icon of EK-611W Hires Filter ImageEK-611W Hires Filter ImageEK-611W Hires Filter Image1.4 MBPNG, ZIP
Icon of EK-611W Hires Front ImageEK-611W Hires Front ImageEK-611W Hires Front Image3.3 MBPNG, ZIP
Icon of EK-611W Hires Lamp ImageEK-611W Hires Lamp ImageEK-611W Hires Lamp Image1.2 MBPNG, ZIP
Icon of EK-611W Hires Left Side ImageEK-611W Hires Left Side ImageEK-611W Hires Left Side Image4.7 MBPNG, ZIP
Icon of EK-611W Hires Rear ImageEK-611W Hires Rear ImageEK-611W Hires Rear Image5.2 MBPNG, ZIP
Icon of EK-611W Hires Remote ImageEK-611W Hires Remote ImageEK-611W Hires Remote Image5.6 MBPNG, ZIP
Icon of EK-611W Hires Right Side ImageEK-611W Hires Right Side ImageEK-611W Hires Right Side Image4.2 MBPNG, ZIP
Icon of EK-611W Hires Top ImageEK-611W Hires Top ImageEK-611W Hires Top Image6.7 MBPNG, ZIP
Icon of EK-611W Lens ChartEK-611W Lens ChartEK-611W Lens Chart91.7 KBPDF
Icon of EK-611W Owners Manual - English v1.2EK-611W Owners Manual - English v1.2EK-611W owners manual - English Ver. 1.210.1 MBPDF
Icon of EK-611W Owners Manual - French v1.2EK-611W Owners Manual - French v1.2EK-611W owners manual - French Ver. 1.210.7 MBPDF
Icon of EK-611W Owners Manual - German v1.2EK-611W Owners Manual - German v1.2EK-611W owners manual - German Ver. 1.210.7 MBPDF
Icon of EK-611W Owners Manual - Italian v1.2EK-611W Owners Manual - Italian v1.2EK-611W owners manual - Italian Ver. 1.210.7 MBPDF
Icon of EK-611W Owners Manual - Japanese v1.2EK-611W Owners Manual - Japanese v1.2EK-611W owners manual - Japanese Ver. 1.210.8 MBPDF
Icon of EK-611W Owners Manual - Korean v1.2EK-611W Owners Manual - Korean v1.2EK-611W owners manual - Korean Ver. 1.210.8 MBPDF
Icon of EK-611W Owners Manual - Russian v1.2EK-611W Owners Manual - Russian v1.2EK-611W owners manual - Russian Ver. 1.210.8 MBPDF
Icon of EK-611W Owners Manual - Simplified Chinese v1.2EK-611W Owners Manual - Simplified Chinese v1.2EK-611W owners manual - Simplified Chinese Ver. 1.210.8 MBPDF
Icon of EK-611W Owners Manual - Spanish v1.2EK-611W Owners Manual - Spanish v1.2EK-611W owners manual - Spanish Ver. 1.210.7 MBPDF
Icon of EK-611W Quick Start Guide 0613EK-611W Quick Start Guide 0613EK-611W quick start guide6.5 MBPDF
Icon of EK-611WA Owners Manual - English v1.2EK-611WA Owners Manual - English v1.2EK-611WA owners manual - English Ver. 1.210.1 MBPDF
Icon of EK-611WA Owners Manual - French v1.2EK-611WA Owners Manual - French v1.2EK-611WA owners manual - French Ver. 1.210.7 MBPDF
Icon of EK-611WA Owners Manual - German v1.2EK-611WA Owners Manual - German v1.2EK-611WA owners manual - German Ver. 1.210.7 MBPDF
Icon of EK-611WA Owners Manual - Italian Verv1.2EK-611WA Owners Manual - Italian Verv1.2EK-611WA owners manual - Italian Ver. 1.210.7 MBPDF
Icon of EK-611WA Owners Manual - Japanese v1.2EK-611WA Owners Manual - Japanese v1.2EK-611WA owners manual - Japanese Ver. 1.210.8 MBPDF
Icon of EK-611WA Owners Manual - Korean v1.2EK-611WA Owners Manual - Korean v1.2EK-611WA owners manual - Korean Ver. 1.210.8 MBPDF
Icon of EK-611WA Owners Manual - Russian v1.2EK-611WA Owners Manual - Russian v1.2EK-611WA owners manual - Russian Ver. 1.210.8 MBPDF
Icon of EK-611WA Owners Manual - Simplified Chinese v1.2EK-611WA Owners Manual - Simplified Chinese v1.2EK-611WA owners manual - Simplified Chinese Ver. 1.210.8 MBPDF
Icon of EK-611WA Owners Manual - Spanish v1.2EK-611WA Owners Manual - Spanish v1.2EK-611WA owners manual - Spanish Ver. 1.210.7 MBPDF
Icon of EK-611W Remote Control CodesEK-611W Remote Control CodesEK-611W Remote control codes260.0 KBPDF
Icon of EK-611W RS-232 Command Codes V1EK-611W RS-232 Command Codes V1EK-611W RS-232 serial commands V1385.8 KBPDF
Icon of EK-611W SpecificationsEK-611W SpecificationsEK-611W Specifications98.4 KBPDF
