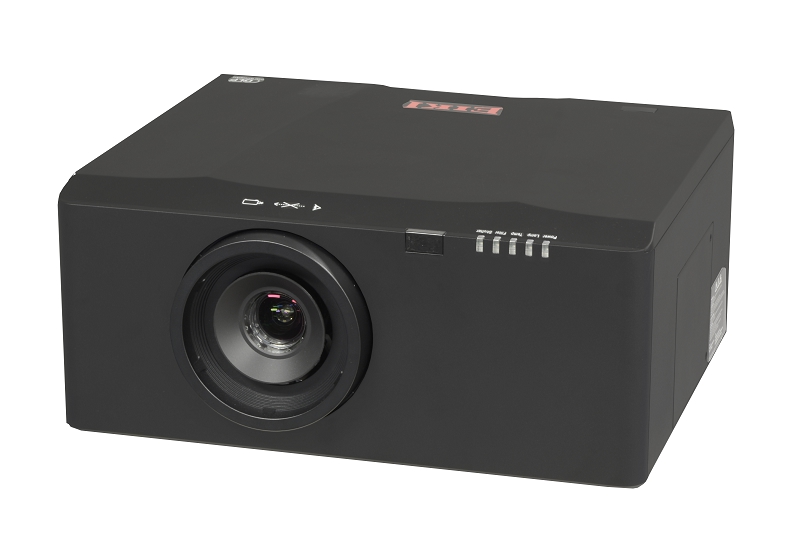

EK-612X (no lens)

Key Features

  • 7,000 ANSI lumens bright with 90% uniformity and a 4400:1 contrast ratio.
  • Native XGA resolution. Compatible with inputs up-to UXGA and WUXGA.
  • Supports analog and digital video input in all color standards up-to 1080p.
  • HD BaseT, HDMI and DVI-D connectivity with HDCP compliance.
  • Built-in Mechanical Shutter. Auto input selection.
  • Accepts composite, component, and S-Video in all major standards.
  • Displays both 4:3 and 16:9 aspect ratios. Supports most HDTV resolutions.
  • Wired network control. Digital zoom: 1/4~ x16.
  • Horizontal, Vertical and Corner Keystone Correction.
  • Color board modes. Custom warm-up screen.
  • Security bar. Kensington® MicroSaver® security slot. PIN lock.
  • 3 year projector warranty.

Included Accessories: Quick Start Guide, VGA Computer Input Cable (Dsub15 to Dsub15), 6.0 ft (1.8 m) Detachable Power Cord, Remote Control (with 2 AAA Batteries).

Optional Accessories: Replacement Lamp, Component Video Cable (3RCA to 3RCA ), Ceiling Mount, Ceiling Post and Plate.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)



Display Technology 1 chip DLP®
Brightness (ANSI) 7,000 lumens
Native Resolution XGA (1024x768), 4:3
Max. Computer Input WUXGA
Max. Video Input 1080p
Contrast Ratio 4400:1
Imaging System 0.7" DMD™ DLP® chip x 1
Lens Type Optional Lenses Available - See lens chart on website
Keystone Correction Digital:V:+/- 30° H: +/- 30°
Inputs

Image Signal Inputs:
Computer 1 - Dsub15 x 1,
Digital Video (w/HDCP) - HDMI x 1,
Digital Video (w/HDCP) - DVI-D x 1,
HD BaseT - RJ45 x 1,
Component Video (Y,Pb,Pr and R/G/B) RCA x 3,
Composite Video RCA x 1
Other Inputs:
Projector Control from LAN - RJ45 x 1,
Projector Control from Computer - RS-232C,
WiFi Dongle - USB x 1,
Mini USB - Service

Outputs -
Sound System -
Network Control Wired network control.
Wifi -
Warranty Projector - 3 year / 6000 hrs. (whichever occurs first)
Lamp Life Up-to 4,000 hours
Lamp Part # -
Fan Noise (Normal / Eco) 35 / 33 dB
Air Filter -
Maximum Pitch Up to 360º
Weight (without lens) 30.8 lb (14 kg)
Ceiling Mount Part # -
 NameDescriptionSizeType
Icon of EK-612X CAD DrawingEK-612X CAD DrawingEK-612X CAD Drawing1.8 MBDWG
Icon of EK-612X Color SheetEK-612X Color SheetEK-612X Color Data Sheet813.8 KBPDF
Icon of EK-612X Hires Beauty1 ImageEK-612X Hires Beauty1 ImageEK-612X Hires Beauty1 Image1.1 MBPNG, ZIP
Icon of EK-612X Hires Beauty2 ImageEK-612X Hires Beauty2 ImageEK-612X Hires Beauty2 Image3.8 MBPNG, ZIP
Icon of EK-612X Hires Bottom ImageEK-612X Hires Bottom ImageEK-612X Hires Bottom Image7.7 MBPNG, ZIP
Icon of EK-612X Hires Connections ImageEK-612X Hires Connections ImageEK-612X Hires Connections Image9.9 MBPNG, ZIP
Icon of EK-612X Hires Control Panel ImageEK-612X Hires Control Panel ImageEK-612X hires control panel image9.2 MBJPG, ZIP
Icon of EK-612X Hires Filter ImageEK-612X Hires Filter ImageEK-612X Hires Filter Image1.4 MBPNG, ZIP
Icon of EK-612X Hires Front ImageEK-612X Hires Front ImageEK-612X Hires Front Image3.3 MBPNG, ZIP
Icon of EK-612X Hires Lamp ImageEK-612X Hires Lamp ImageEK-612X Hires Lamp Image1.2 MBPNG, ZIP
Icon of EK-612X Hires Left Side ImageEK-612X Hires Left Side ImageEK-612X Hires Left Side Image4.7 MBPNG, ZIP
Icon of EK-612X Hires Rear ImageEK-612X Hires Rear ImageEK-612X Hires Rear Image5.2 MBPNG, ZIP
Icon of EK-612X Hires Remote ImageEK-612X Hires Remote ImageEK-612X Hires Remote Image5.6 MBPNG, ZIP
Icon of EK-612X Hires Right Side ImageEK-612X Hires Right Side ImageEK-612X Hires Right Side Image4.2 MBPNG, ZIP
Icon of EK-612X Hires Top ImageEK-612X Hires Top ImageEK-612X Hires Top Image6.7 MBPNG, ZIP
Icon of EK-612X Lens ChartEK-612X Lens ChartEK-612X Lens Chart71.6 KBPDF
Icon of EK-612X Owners Manual English V1.1EK-612X Owners Manual English V1.1EK-612X Owners Manual English V1.111.3 MBPDF
Icon of EK-612X Owners Manual French V1.1EK-612X Owners Manual French V1.1EK-612X Owners Manual French V1.19.7 MBPDF
Icon of EK-612X Owners Manual German V1.1EK-612X Owners Manual German V1.1EK-612X Owners Manual German V1.19.7 MBPDF
Icon of EK-612X Owners Manual Italian V1.1EK-612X Owners Manual Italian V1.1EK-612X Owners Manual Italian V1.19.7 MBPDF
Icon of EK-612X Owners Manual Japanese V1.1EK-612X Owners Manual Japanese V1.1EK-612X Owners Manual Japanese V1.19.9 MBPDF
Icon of EK-612X Owners Manual Korean V1.1EK-612X Owners Manual Korean V1.1EK-612X Owners Manual Korean V1.19.9 MBPDF
Icon of EK-612X Owners Manual Russian V1.1EK-612X Owners Manual Russian V1.1EK-612X Owners Manual Russian V1.19.8 MBPDF
Icon of EK-612X Owners Manual Simplified Chinese V1.1EK-612X Owners Manual Simplified Chinese V1.1EK-612X Owners Manual Simplified Chinese V1.110.0 MBPDF
Icon of EK-612X Owners Manual Spanish V1.1EK-612X Owners Manual Spanish V1.1EK-612X Owners Manual Spanish V1.19.8 MBPDF
Icon of EK-612X Quick Start Guide 0613EK-612X Quick Start Guide 0613EK-612X quick start guide6.5 MBPDF
Icon of EK-612X Remote Control CodesEK-612X Remote Control CodesEK-612X Remote control codes260.0 KBPDF
Icon of EK-612X RS-232 Command Codes V1EK-612X RS-232 Command Codes V1EK-612X RS-232 serial commands V1385.8 KBPDF
Icon of EK-612X SpecificationsEK-612X SpecificationsEK-612X Specifications98.5 KBPDF
