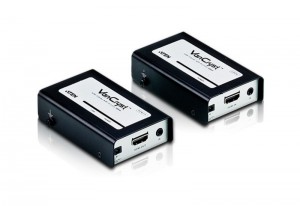

VE810

HDMI Extender with IR Control

The VE810 HDMI Extender extends your HDMI display up to 60 m from your HDMI source device using two Cat 5e cables. In addition, VE810 is equipped with IR signaling pass-through which allows the IR channel to control from the remote to local unit, to control the HDMI source, or from the local to remote unit, to control the display device.

For flexibility and convenience, the VE810 setup requires only one power adapter for both units. The VE810R remote unit will function without the need of an additional power adapter because it will be powered by the VE810 local unit.



hdmiRoHS compliantdo not dispose







3DPS31080p







Package Contents
  • 1x VE810L (Local Unit) HDMI Extender
  • 1x VE810R (Remote Unit) HDMI Extender
  • 1x Power Adapter (Local Unit)
  • 1x Mounting Kit
  • 1x User Instructions
  • 1x IR Receiver
  • 1x IR Transmitter





VE810 Spec / Data Sheet
VE810 Spec / Data Sheet
ve810_extender_ss_en.pdf
428.3 KB
104 Downloads
Details
VE810 Quick Start / User Guide
VE810 Quick Start / User Guide
ve810_extender_ug.pdf
3.7 MB
116 Downloads
Details
ve810_remote_control

Remote Control

Either the HDMI device or display can be controlled via IR control

ve810_non_powered
Non-Powered (Only one power adapter)

The remote unit functions without the need of an additional power adapter



  • Uses less expensive Cat 5e cables to connect the local and the remote units
  • Supports IR signals for remote control
  • Either the HDMI device or display can be controlled via IR control
  • 8 segment equalization adjustment switch optimizes display quality
  • Extend 1080p by 40 m; extend 1080i (HDTV) by 60 m
  • Superior video quality – 1920 x 1200 @ 60Hz , up to 1080p
  • Supports Dolby True HD and DTS HD Master Audio
  • HDMI (3D, Deep Color)
  • DDC compatible
  • HDCP 1.1 compatible
  • Compatible with all ATEN HDMI switches and splitters
  • Non-Powered (only require one power adapter)
Function VE810L VE810R
Device Connections 1 N/A
Connectors Display HDMI Out N/A 1 x HDMI Type A
Female (Black)
Device HDMI In 1 x HDMI Type A
Female (Black)
N/A
Power Jack 1 x DC Jack
Unit to Unit 2 x RJ-45 Female
IR 1 x 3.5 mm phone jack
Switches EQ Switch N/A 1 x 8-position switch
LEDs Power Green
On Line N/A Green
HDMI Resolution HDTV resolutions: 480p, 720p, 1080i. 1080p (1920 x 1080); PC resolutions: VGA, SVGA, XGA, SXGA, UXGA, WUXGA (1920 x 1200)
Power Consumption DC5V, 1.52W DC5V, 1.35W
Transmission Distance Up to 60 m at  1080i
Environment Operating Temp. 0–50°C
Storage Temp. -20–60°C
Humidity 0–80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.15 kg 0.15 kg
Dimensions
(L x W x H)
9.00 x 5.76 x 2.40 cm 9.00 x 5.76 x 2.40 cm
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.

Click image to enlarge

VE810-Extenders-dg-org
