LC-NB1UW LCD Projector
Key Features
- Weighs 8.6 lbs! Footprint smaller than a legal notepad!
- 700 ANSI Lumens, 90% uniformity with 250:1 contrast ratio.
- 3 panel LCD imaging delivers eye-popping, color saturated visuals.
- True SVGA resolution. XGA, SVGA, VGA and MAC compatible.
- Smart data compression / expansion, and video scaling.
- Power zoom and focus: adjust the picture from anywhere.
- Digital Zoom magnifies the image, not the pixels.
- 3 Year* Projector Warranty! 1 Year* Lamp Warranty
Important Features
- UHP (Ultra High Performance) long-life 120 Watt lamp.
- Accepts Composite and S-Video Input in NTSC, PAL, SECAM / NTSC 4.43 / PAL-M.
- Displays both Regular 4:3 and Widescreen 16:9 ratio video formats.
- International Power: 100~240V AC, 50 / 60 Hz (automatic).
Included Accessories: Owner’s Manual. AC Power Cord. Lens Cover. VGA-type Computer Input Cable. MAC Adapter. Wireless Remote Control With Mouse & Batteries (AA x 2). Mouse cables for computer PS/2, Serial, ADB Port. Soft Carry Bag.
Optional Accessories: Replacement Lamp. MAC Monitor Cable. Executive Carry Case with Computer Compartment. Luggage-Style ("wheelie") Carrying Case with Wheels, Telescoping Handle, and Detachable Computer Compartment. ATA-Style Shipping Case with Wheels and Telescoping Handle. Ceiling Mount. Ceiling Post and Plate. 33’ (10m) Mouse Extension Cable.
Specifications Overview
(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)
| Display Technology | 3LCD |
| Brightness (ANSI) | 700 lumens |
| Native Resolution | SVGA (800x600) |
| Max. Computer Input | XGA |
| Max. Video Input | --- |
| Contrast Ratio | 250:1 |
| Panel Size | 0.9” PolySilicon active matrix TFT Panels |
| Lens (Throw:Width) | 1.97~3.15:1 |
| Power Lens Shift | Preset Lens Offset, Ratio (Top:Bottom) 10:1 |
| Keystone Correction | --- |
| Inputs | Dsub15 x 2; S-Video x 1; RCA x 1;Stereo: MiniStereo x 1; RCA x 2 |
| Outputs | Monitor HD15 x 1; Line Output - Stereo: MiniStereo x 1 |
| Sound System | Mono: 1 Watts RMS Built in Speakers - 1.58 x 1.18 in. (4x3cm) x 1 |
| Network Control | -- |
| Warranty | 3 year/6000 hrs. (whichever comes first) projector warranty. |
| Lamp Life | Up to 4,000 hours |
| Lamp Part # | 610 287 5379 |
| Fan Noise | 43 dBA |
| Air Filter | -- |
| Maximum Pitch | 2° up |
| Weight | 8.6 lbs. (3.9 kg) |
| Ceiling Mount Part # | -- |
| Name | Description | Size | Type | |
|---|---|---|---|---|
 | LC-NB1UW Lens Chart | LC-NB1UW Lens Chart | 13 KB | |
 | LC-NB1UW Specifications | LC-NB1UW Specifications | 24 KB |
-

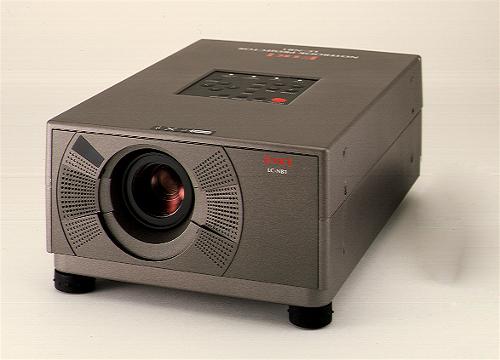

- LC NB1UW beauty
-

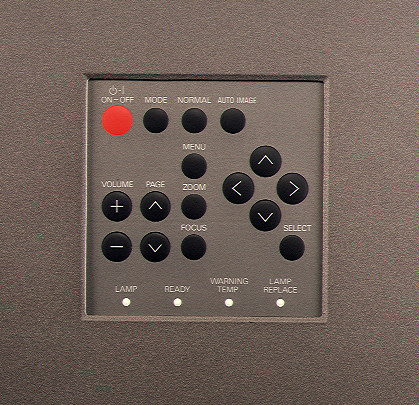

- LC NB1UW controls
-

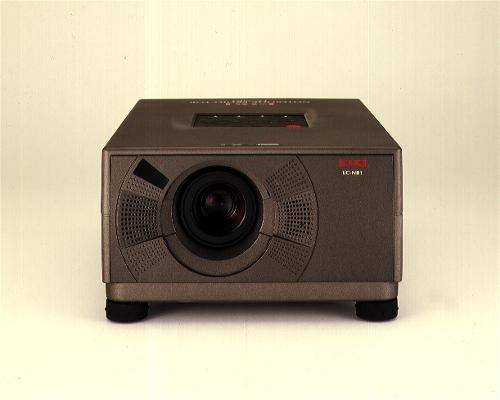

- LC NB1UW front
