LC-SB21 LCD Projector

<strong>KEY FEATURES</strong>
<ul>
<li>Weighs about 6 lbs! Footprint about the same as a sheet of paper!</li>
<li>2000 ANSI Lumens, 85% uniformity, and 450:1 contrast ratio.</li>
<li>3 panel LCD imaging delivers a rich, color saturated picture.</li>
<li>True SVGA resolution. XGA, SVGA, and VGA compatible.</li>
<li>Quiet operation: fan noise as low as 34 dBA in Eco mode.</li>
<li>Smart data compression / expansion, and video scaling.</li>
<li>Convenient wide range (1.5:1) manual zoom and focus lens.</li>
<li>Preset image offset. Vertical and Horizontal digital keystone correction.</li>
<li>Accepts Composite, S, and Component Video in all major standards.</li>
<li>Displays both Regular 4:3 and Widescreen 16:9 ratio video formats.</li>
<li>Supports all HDTV resolutions. Converts Interlace to Progressive scan.</li>
<li>Variable Power Management option. Optional local or remote keylock.</li>
<li>DVI is HDCP compatible. Slideshow Page Up/Down on remote control.</li>
<li>Custom warm-up screen image option. Factory defaults reset.</li>
<li>Wireless remote with mouse and Laser pointer. 7X digital zoom.</li>
<li>3 Year* Projector Warranty!
</ul>

<strong>New Features</strong>
<ol>
<li>Brushed silver cabinet color</li>
<li>"Film" function for 3:2 pulldown support</li>
<li>Automatic Vertical Keystone Correction (in normal orientation only)</li>
<li>Auto SetUp for both or either Auto PC Adjust / Auto Keystone Correct.</li>
<li>Shutdown fan speed can be set to continue at current rate or maximum</li>
<li>Projector lock (4 digit) prevents use by unauthorized persons</li>
<li>Logo lock (4 digit) prevents logo change by unauthorized persons</li>
<li>"Blackboard" mode optimizes image when projected on a greenboard</li>
<li>Fan noise 34 bBA in Eco mode.</li>
</ol>
<strong>Included Accessories</strong>

Owner’s Manual. AC Power Cord. Lens Cover. VGA type Computer Input Cable (HD15 ~ DVI-I).
Wireless Remote Control With Mouse and Laser Pointer & Batteries (AA x 2). Mouse cable for computer USB Port. Soft Carry Bag.

<strong>Optional Accessories</strong>

Replacement Lamp. Component Video Input Cable (HD15~3-RCA). MAC Adapter. MAC Monitor Cable. 9 Pin Serial cable
for RS-232 communications. Executive Carry Case with Computer Compartment. Luggage-Style ("wheelie") Carrying Case with Wheels,
Telescoping Handle, and Detachable Computer Compartment. ATA-Style Shipping Case with Wheels and Telescoping Handle. Ceiling Mount.
Ceiling Post and Plate. 33’ (10m) Extension Cable for Serial Cable. Multi Card Director system supports 1. Computerless Slide Show System. 2.
Wired Network Projector Control. 3. Wi-Fi Content Delivery and Projector Control System. EZtrol Local Control. NPC-1 Network Control.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)

Display Technology 3LCD
Brightness (ANSI) 2,000 lumens
Native Resolution 800 x 600 (SVGA)
Max. Computer Input SVGA
Max. Video Input 1080i
Contrast Ratio 450:1 (Full ON/OFF)
Panel Size .79"
Lens Type (Throw:Width) Manual Zoom and Focus, 1.25~1.87:1
Power Lens Shift Fixed Image Offset, Ratio (Top:Bottom) 9:1
Keystone Correction Digital: up to 40° up or down; Digital: up to 20° left or right
Inputs DVI-I x 1 (HD15 via supplied Input Cable); HD15 x 1;
RCA x 1 (Composite) S-Video x 1 (Y/C); Stereo: Ministereo x 1; RCA x 2 (L & R)
Outputs Stereo: Ministereo x 1 (Variable)
Sound System Mono: 1 Watt RMS; Stereo: Ministereo x 1 (Variable)
Network Control
Warranty 3 years
Lamp Life 2,000 hours
Lamp Part #
Fan Noise Normal: 38.5 dBA, Eco: 34 dBA
Air Filter Standard
Maximum Pitch +/- 90°
Weight 6.2 lbs. (2.8 kg)
Ceiling Mount Part # --
 NameDescriptionSizeType
Icon of LC-SB21 Cad DrawingLC-SB21 Cad Drawing173.4 KB
Icon of LC-SB21 Cad Drawing DxfLC-SB21 Cad Drawing Dxf373.5 KB
Icon of LC-SB21 Hi-res Image BeautyLC-SB21 Hi-res Image BeautyLC-SB21 Hi-res Image Beauty3.1 MBZIP, TIF
Icon of LC-SB21 Hi-res Image Beauty2LC-SB21 Hi-res Image Beauty2LC-SB21 Hi-res Image Beauty22.6 MBZIP, TIF
Icon of LC-SB21 Hi-res Image ConnectionsLC-SB21 Hi-res Image ConnectionsLC-SB21 Hi-res Image Connections9.8 MBZIP, TIF
Icon of LC-SB21 Hi-res Image ControlsLC-SB21 Hi-res Image ControlsLC-SB21 Hi-res Image Controls3.0 MBZIP, TIF
Icon of LC-SB21 Hi-res Image FrontLC-SB21 Hi-res Image FrontLC-SB21 Hi-res Image Front2.8 MBZIP, TIF
Icon of LC-SB21 Hi-res Image RemoteLC-SB21 Hi-res Image RemoteLC-SB21 Hi-res Image Remote1.9 MBZIP, TIF
Icon of LC-SB21 Hi-res Image Side1LC-SB21 Hi-res Image Side1LC-SB21 Hi-res Image Side12.3 MBZIP, TIF
Icon of LC-SB21 Hi-res Image Side2LC-SB21 Hi-res Image Side2LC-SB21 Hi-res Image Side22.3 MBZIP, TIF
Icon of LC-SB21 Lens ChartLC-SB21 Lens ChartLC-SB21 Lens Chart43.3 KBPDF
Icon of LC-SB21 Owners ManualLC-SB21 Owners ManualLC-SB21 Owners Manual1.8 MBPDF
Icon of LC-SB21 Remote Control CodesLC-SB21 Remote Control CodesLC-SB21 Remote Control Codes7.5 KBPDF
Icon of LC-SB21 RS-232 Control SoftwareLC-SB21 RS-232 Control Software1.5 MB
Icon of LC-SB21 RS-232 Basic Serial CommandsLC-SB21 RS-232 Basic Serial CommandsLC-SB21 RS-232 Basic Serial Commands684.2 KBPDF
Icon of LC-SB21 RS-232 Extended Serial CommandsLC-SB21 RS-232 Extended Serial CommandsLC-SB21 RS-232 Extended Serial Commands1.6 MBPDF
Icon of LC-SB21 SpecificationsLC-SB21 SpecificationsLC-SB21 Specifications33.8 KBPDF

Related Products

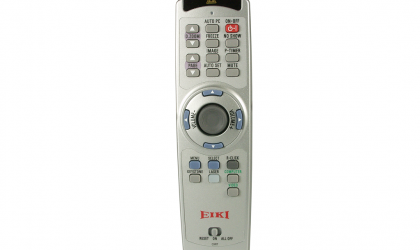

645 074 6413 Remote
