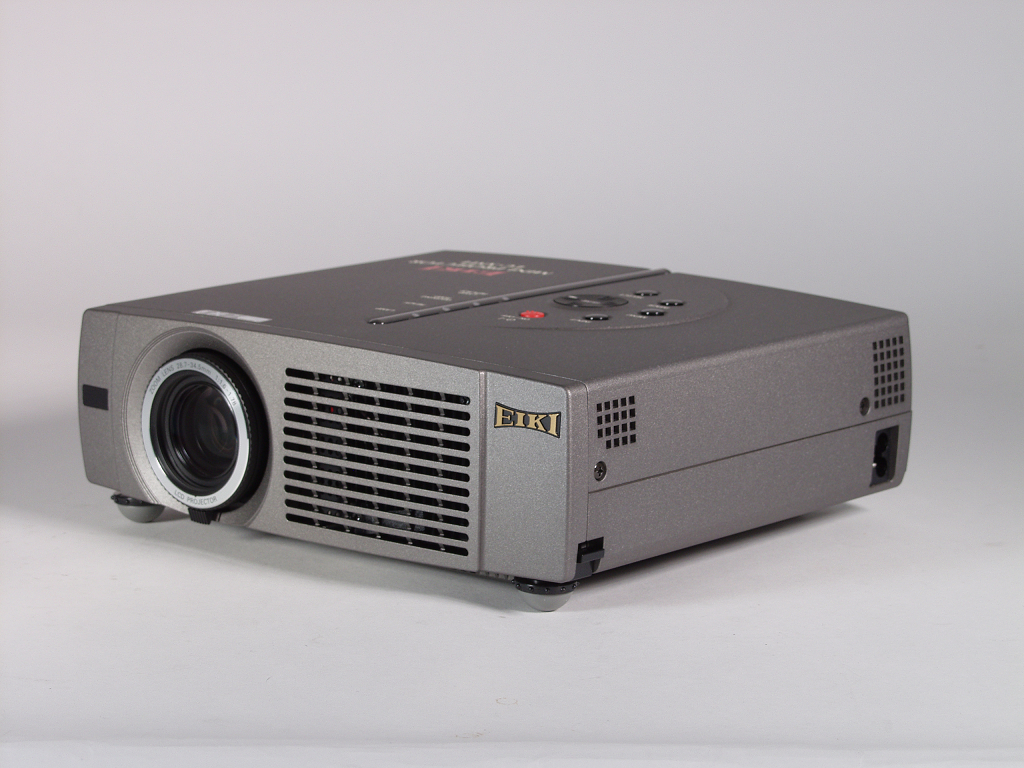

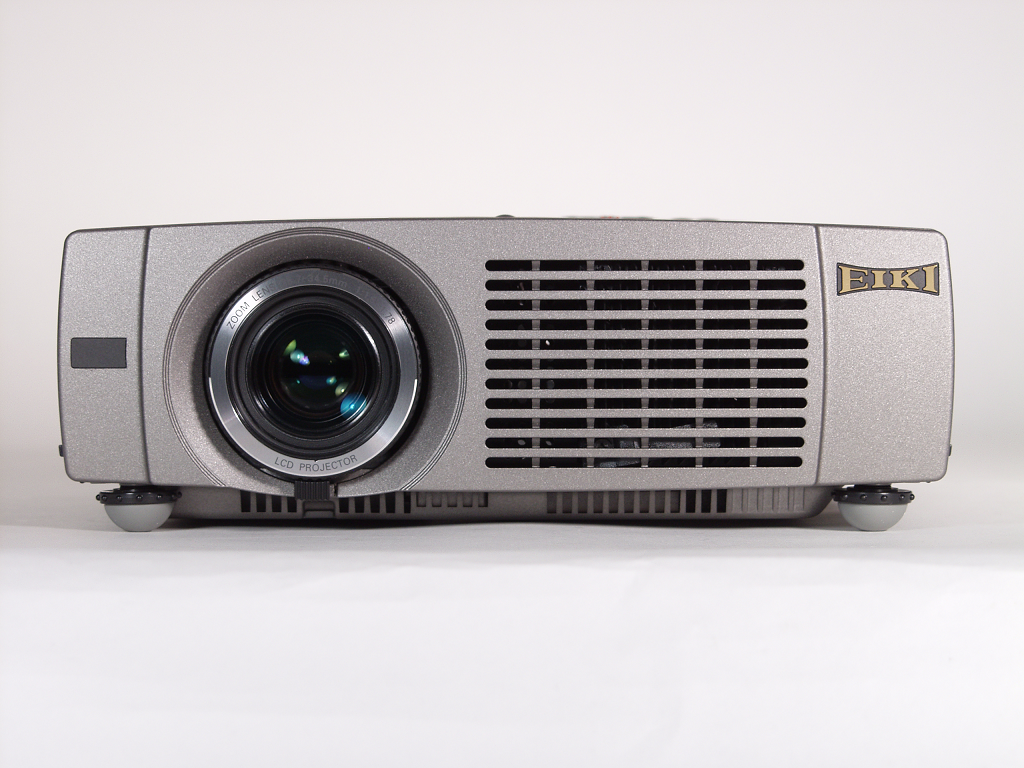

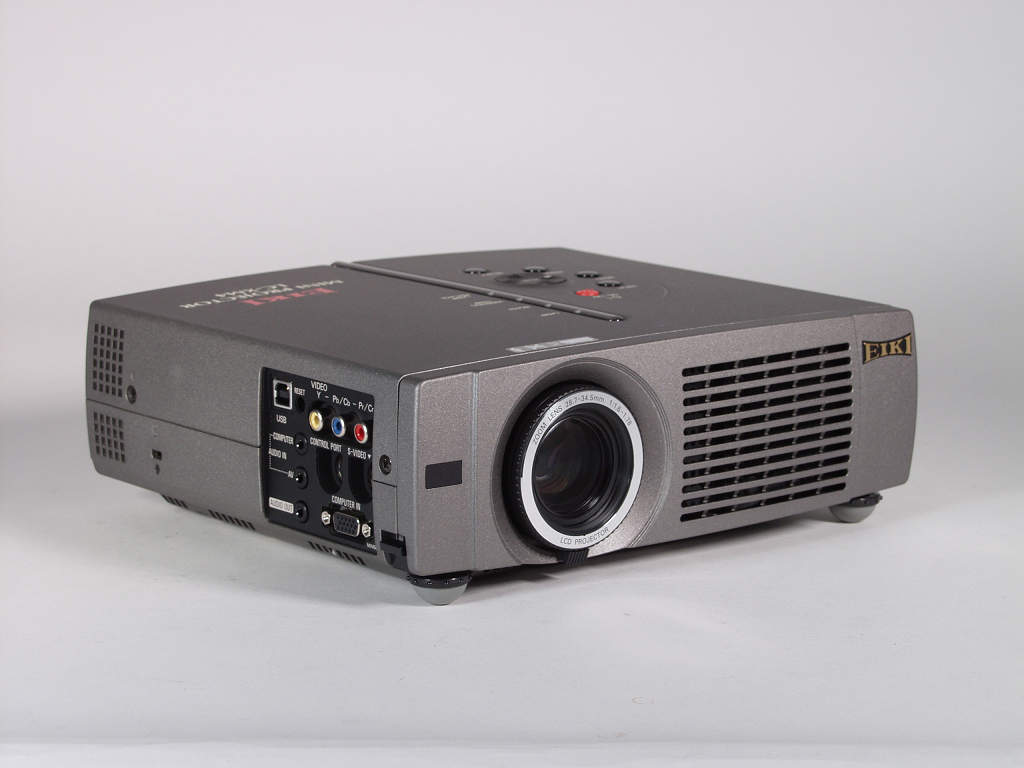

LC-SM4 LCD Projector

Key Features

  • Weighs less than 6.2 lb (2.8 kg)! Footprint smaller than a lettersize notepad.
  • True SVGA resolutiSpecificationson. XGA, SVGA, VGA and MAC compatible.
  • 1100 ANSI Lumens bright, at 90%+ uniformity, and a 350:1 contrast ratio.
  • Quiet, unobtrusive operation (only 37 dBA)
  • 3 panel LCD imaging delivers rich, color saturated visuals.
  • Smart data compression / expansion, and video scaling fills the screen.
  • Anti Keystone image offset, plus Digital Keystone Correction.

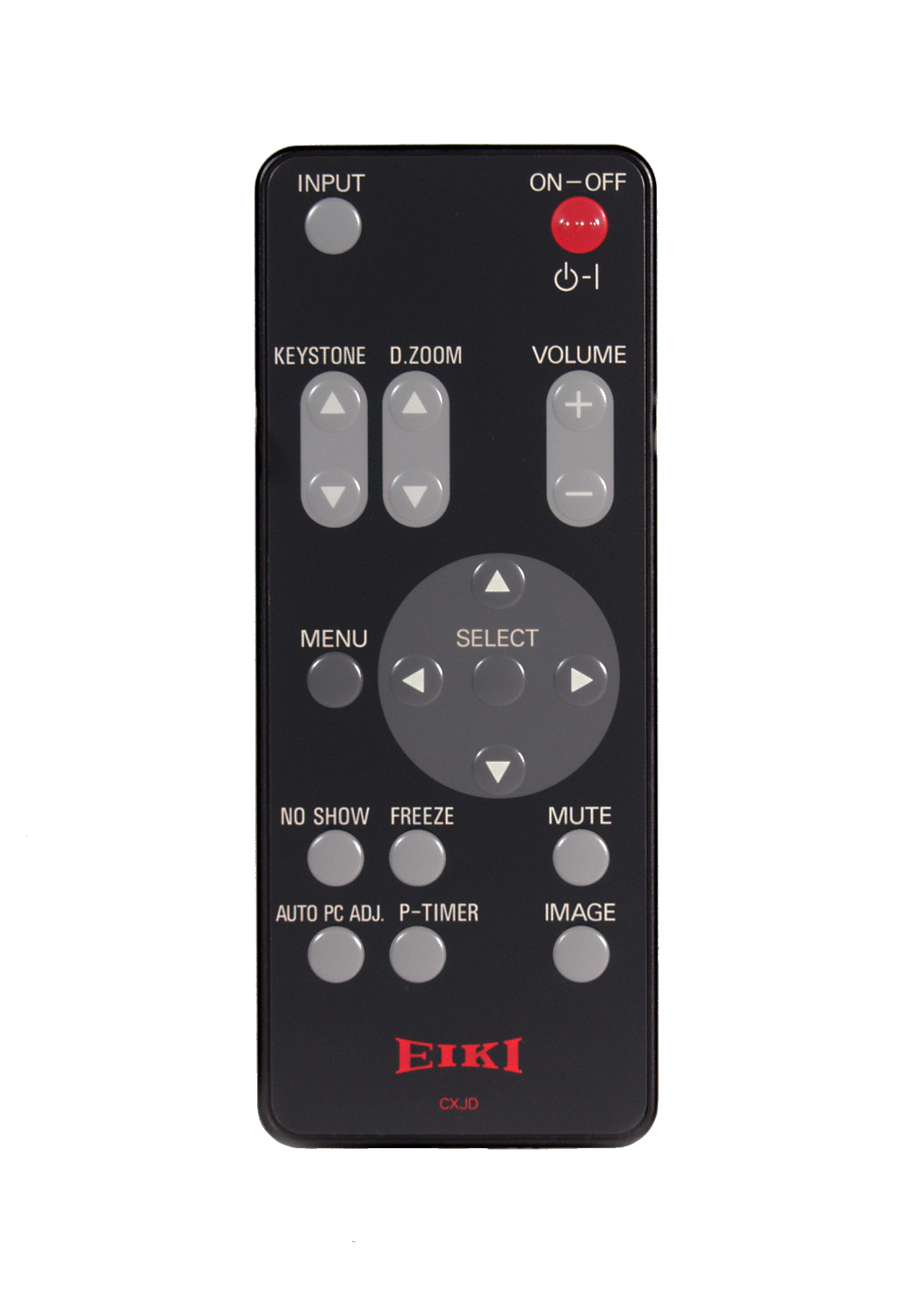

  • Wireless remote control. 4-power Digital Zoom, Freeze, and No Show.
  • Accepts Composite, S-Video, and DVD & HDTV Component Video Input.
  • Displays both Regular 4:3 and Widescreen 16:9 aspect ratio video formats.
  • Soft carry bag included.
  • 3 Year* Warranty.

Included Accessories: Owner’s Manual. AC Power Cord. Lens Cover. HD15 (VGA-type) Computer Input Cable. Wireless Remote Projector Control With Battery (Lithium, button type). Soft Carry Bag.

Optional Accessories: Replacement Lamp. MAC Adapter. Wireless Remote Control with Mouse & Batteries (AA x 2). Mouse cables for computer PS/2, Serial, ADB and Ports. 33’ (10m) Mouse Extension Cable for Control Port. Soft Carry Bag for Projector and Notebook Computer. Luggage-Style Carrying Case with Wheels, Telescoping Handle, and Detachable Computer Compartment. ATA-Style Shipping Case with Wheels and Telescoping Handle. Ceiling Mount. Ceiling Post and Plate.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)

Display Technology 3LCD
Brightness (ANSI) 1100 lumens
Native Resolution 800 x 600 (SVGA)
Max. Computer Input SVGA
Max. Video Input 1080i
Contrast Ratio 350:1 (Full ON/OFF)
Panel Size 0.7" PolySilicon active matrix TFT Panels
Lens (Throw:Width) 2.0~2.4
Fixed Image Offset Ratio (Top:Bottom) 19:1
Keystone Correction Digital: up to 20° up or down

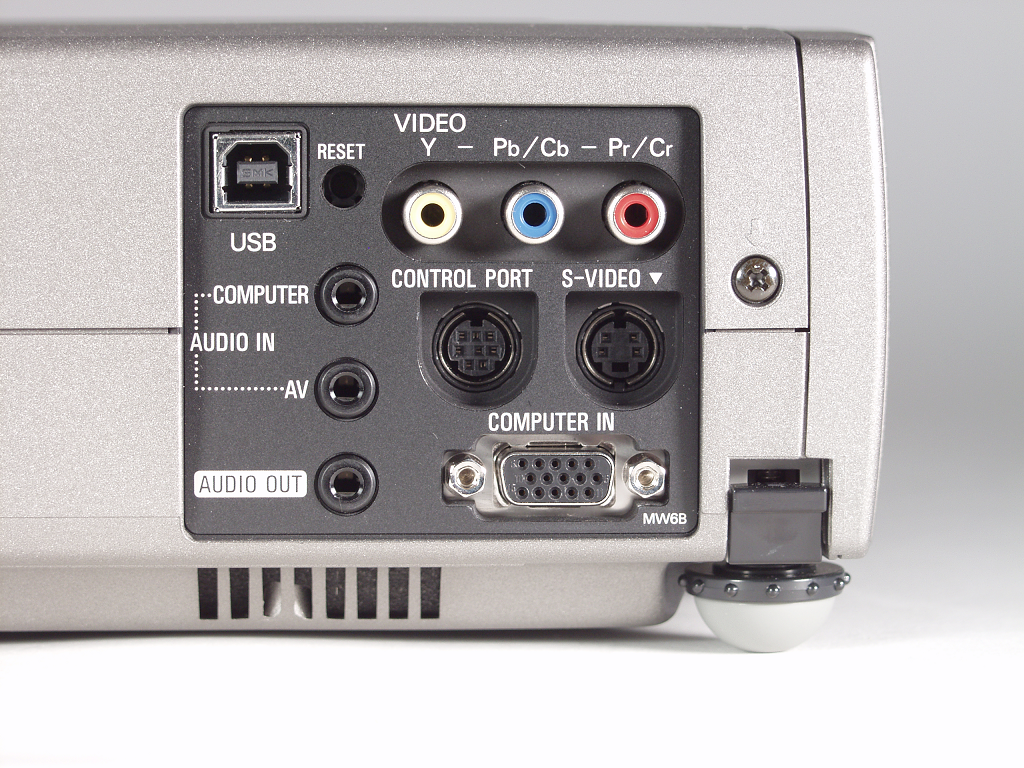

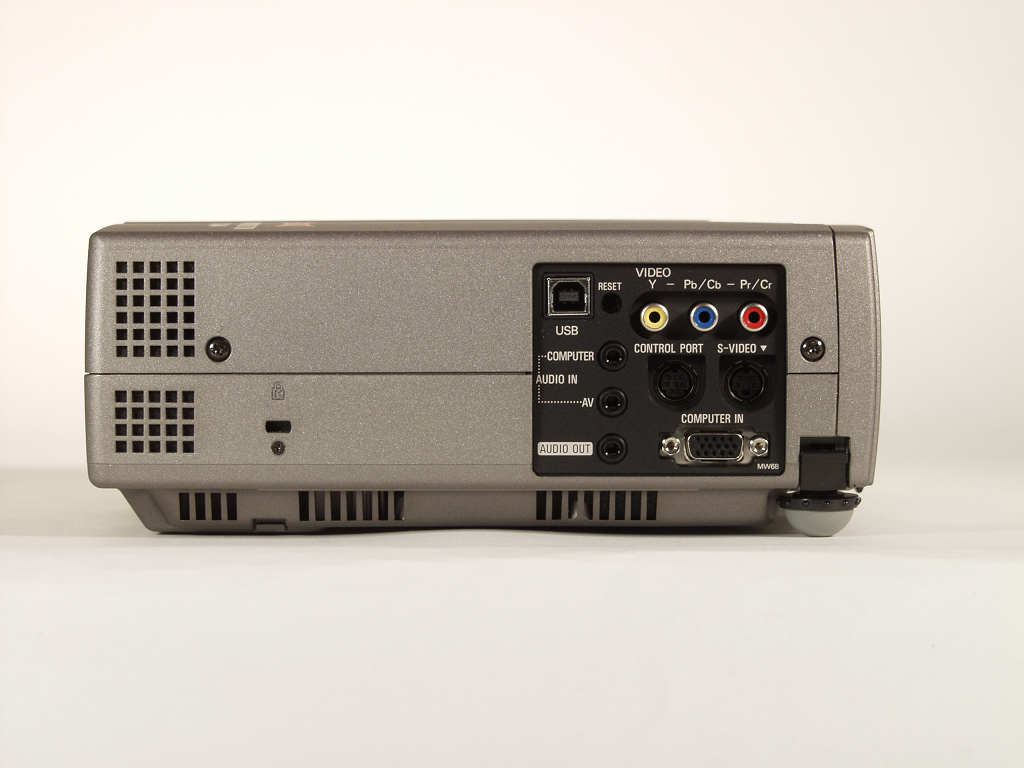

Inputs Computer Inputs: HD15 x 1
Computer Audio In: Stereo: MiniStereo x 1
Video In: RCA x 3 (Composite/Component: Y,Pb/Cb,Pr/Cr) S-Video x 1
Video Audio: Input: Stereo: MiniStereo x 1
Outputs Audio Output: Mono: MiniStereo x 1
Sound System Mono: 1 Watt RMS
Built In Speakers: Mono: 1.1 in. (2.8 cm) x 1
Network Control -
Warranty 3 Yr / 6000 Hr *(Parts/Labor to Correct Defects)
Lamp Life 2000 hours
Lamp Part # 610 295 5712
Fan Noise 37 dBA

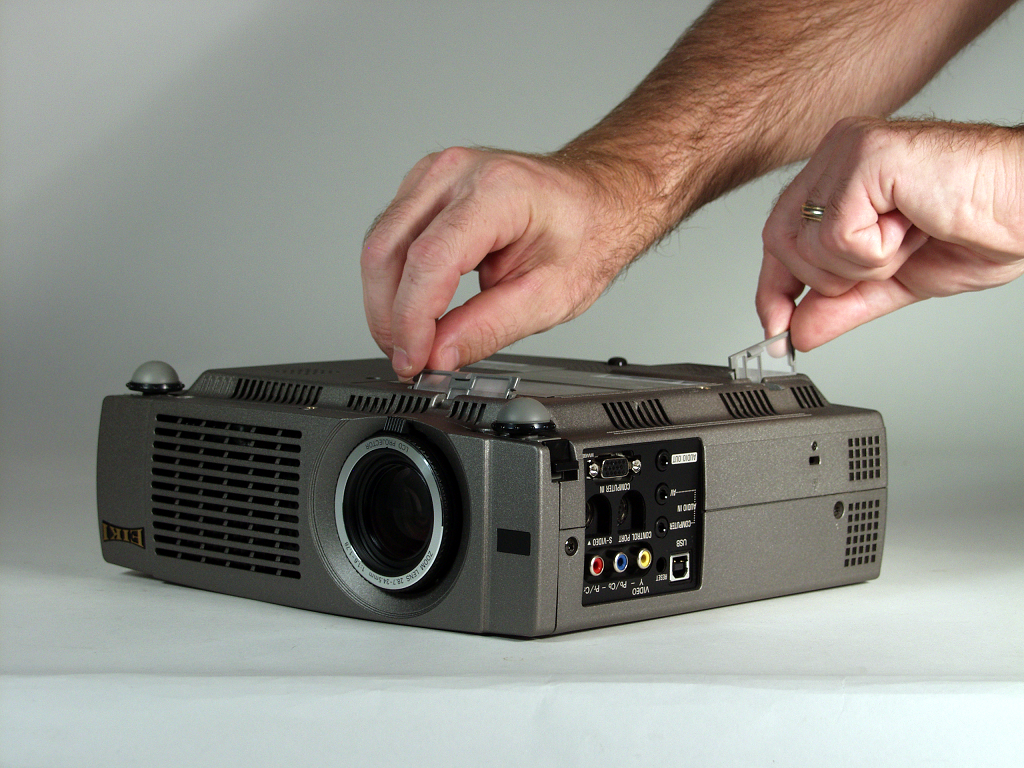

Air Filter Standard
Maximum Pitch +/-20°
Weight  6.18 lbs. (2.8 kg.)
Ceiling Mount Part #  ---
 NameDescriptionSizeType
Icon of LC-SM4 Lens ChartLC-SM4 Lens ChartLC-SM4 Lens Chart36 KBPDF
Icon of LC-SM4 Owners ManualLC-SM4 Owners ManualLC-SM4 Owners Manual0.7 MBPDF
Icon of LC-SM4 SpecificationsLC-SM4 SpecificationsLC-SM4 Specifications33 KBPDF
