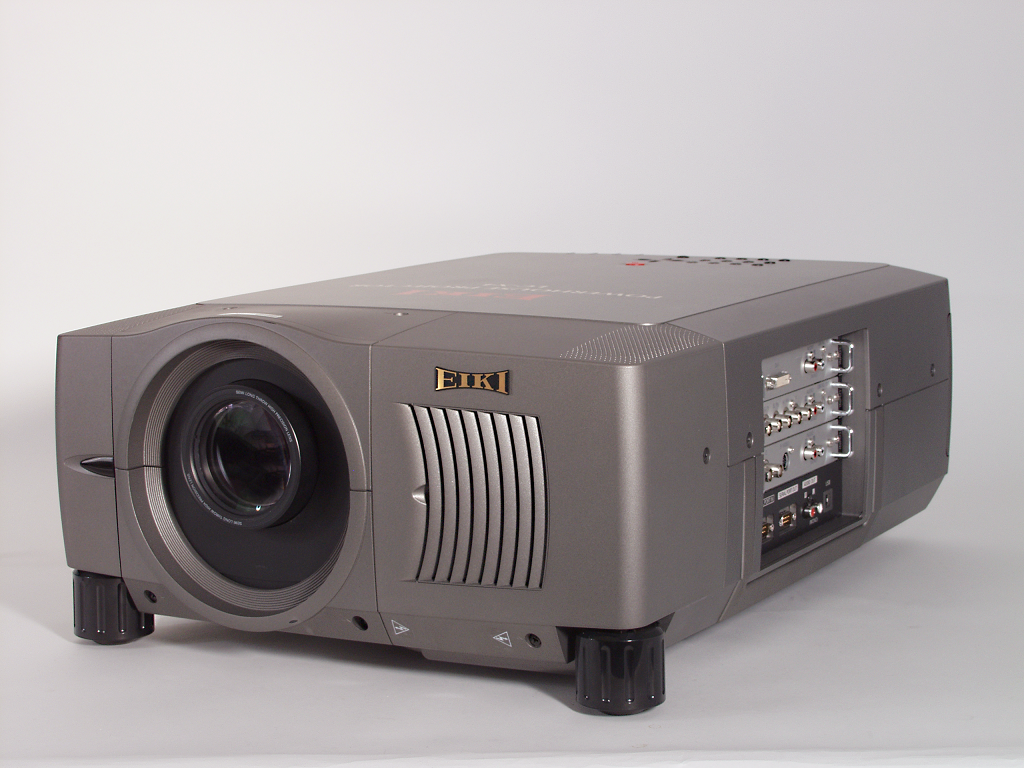

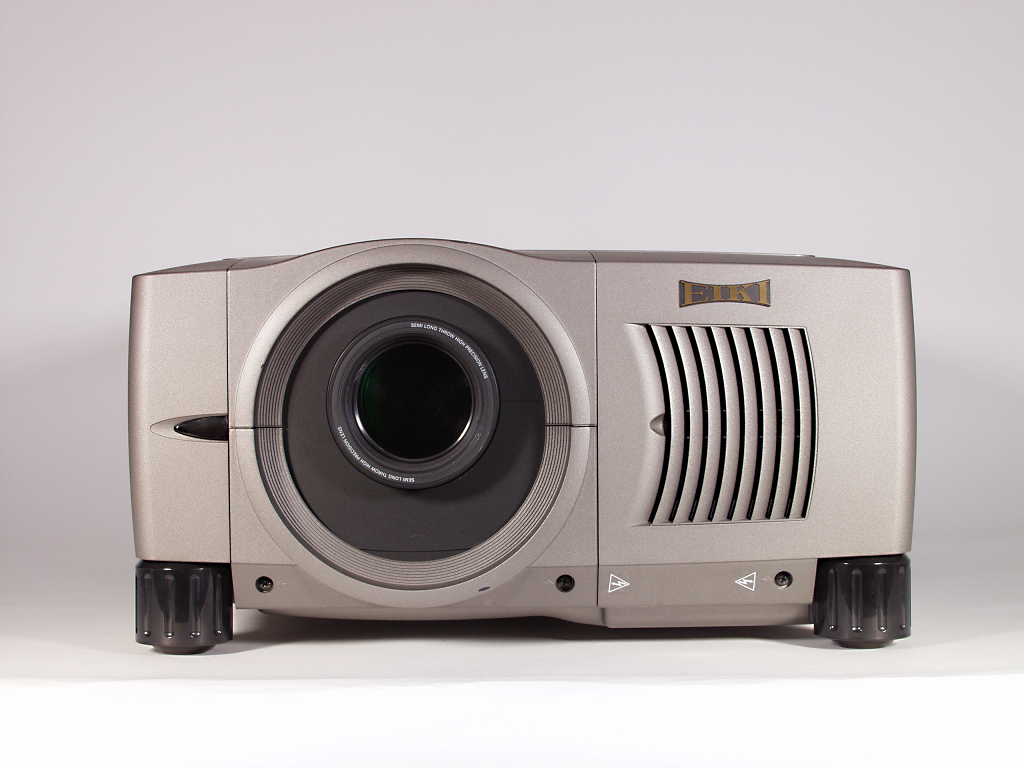

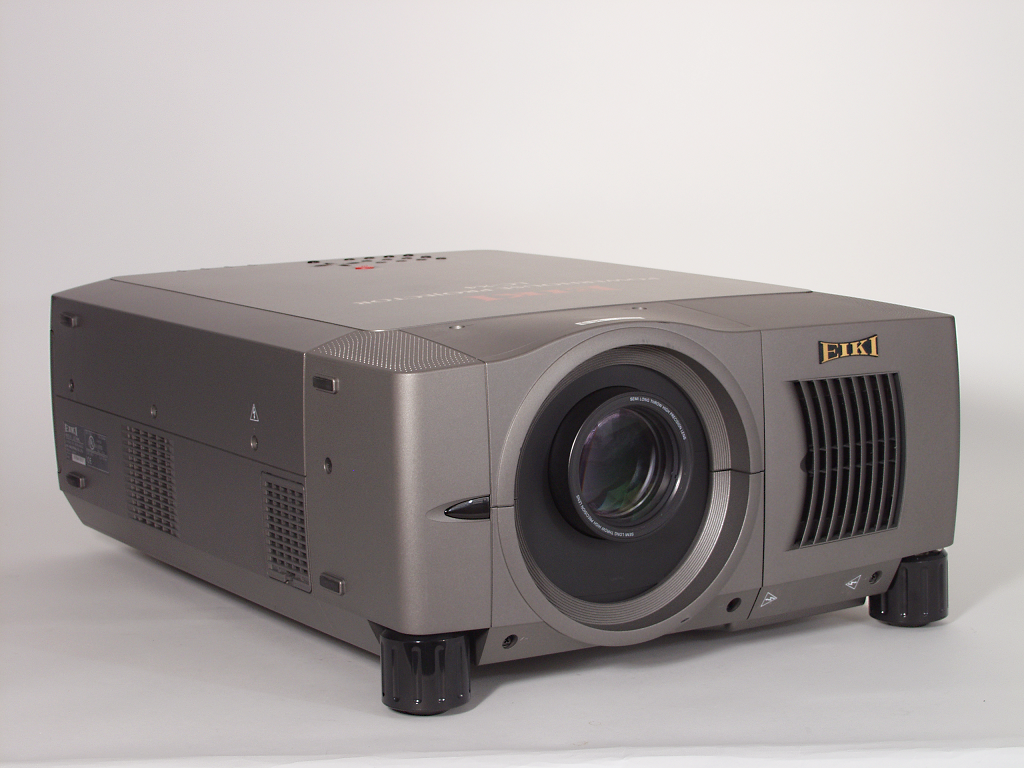

LC-SX4LA LCD Projector

Key Features

  • 5800 ANSI Lumens at 90% uniformity with a 900:1 contrast ratio.
  • Native SXGA resolution. Compatible with UXGA through VGA. Video scaling.
  • Works on 120V AC power (15 amp circuit). No special wiring required.
  • Projects images up to 40' wide (600" diagonal). Wide choice of lenses.
  • New Quick Change Lens Installation System. Improved Power Lens Shift.
  • Compatible with most video signal input, including DVI, RGB, Y/C, DVD, HDTV.
  • Displays video 4:3 & 16:9 in NTSC/PAL/SECAM/NTSC 4.43/PAL-M/PAL-N.
  • Improved progressive scan with HDTV at 1080i and 2-3 pulldown support.
  • 3 input channels. Interchangeable input modules permit reconfiguration.
  • Supplied software permits the preconfiguring of color adjustments.
  • Optional Network Control module permits network monitoring and control.
  • 3 Year / 6000 Hr.Warranty

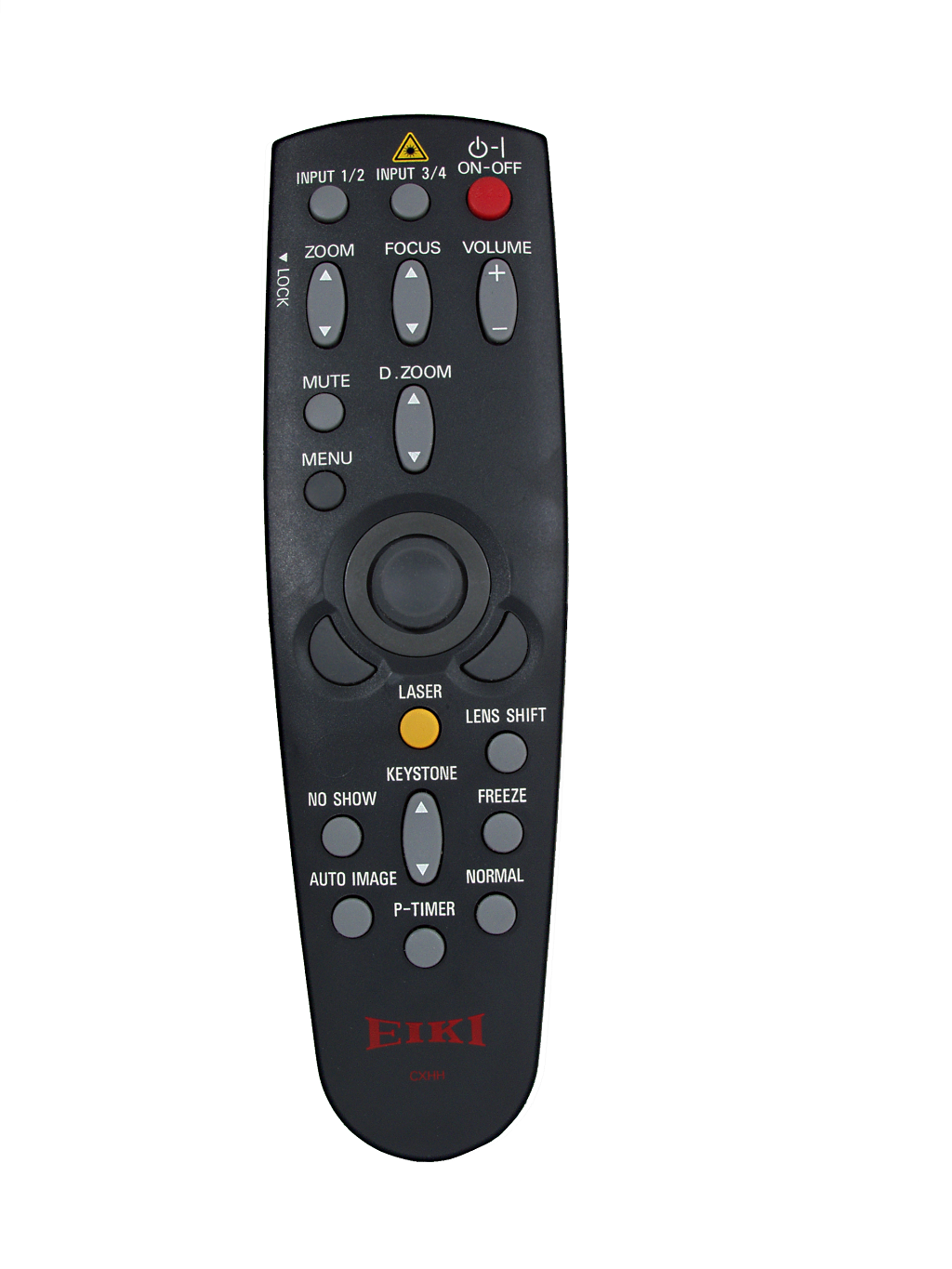

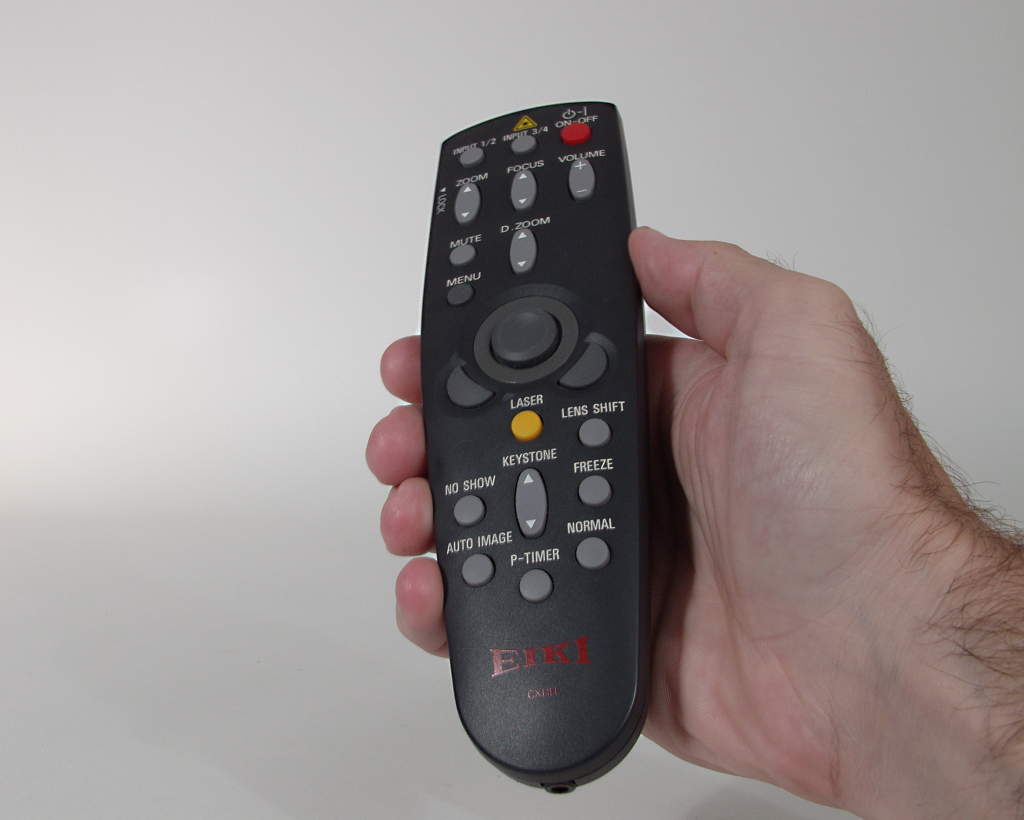

Included Accessories: Owner's Manual. AC Power Cord 10’ (3.m), Lens Cover. Computer Input Cable 6’ (1.8m) HD-15~HD-15. DVI Input Cable. DVI~HD15 Adapter, MAC Adapter. Wireless/wired Remote with Mouse Control and Laser Pointer & 2 x AA batteries and 1.5M wired remote cable. Mouse cables 9’ (2.75m) each for PS/2, Serial Port, ADB Port. Dust Cover. Color Management Software.

Optional Accessories: - Telephoto, Midrange and Wideangle Lenses. Replacement Lamps. Additional DVI, 5 BNC and Y/C Input Modules. VGA (HD15) Input Module. HD-SDI input module. Upconverter Input Module. Network Control Module. SD-SDi input module. Hard Shipping Case with wheels & telescoping Handle. Ceiling Mount and Post & Plate.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)
()

Display Technology 3LCD
Brightness (ANSI) 5,800 lumens
Native Resolution SXGA (1280x1024)
Max. Computer Input UXGA
Max. Video Input --
Contrast Ratio 900:1
Panel Size 1.8" PolySilicon active matrix TFT Panels
Lens (Throw:Width) Changeable - Does not come with Lens
Power Lens Shift Ratio (T:B) 10:0~0:10;
Keystone Correction Digital: U/D up-to 40º;

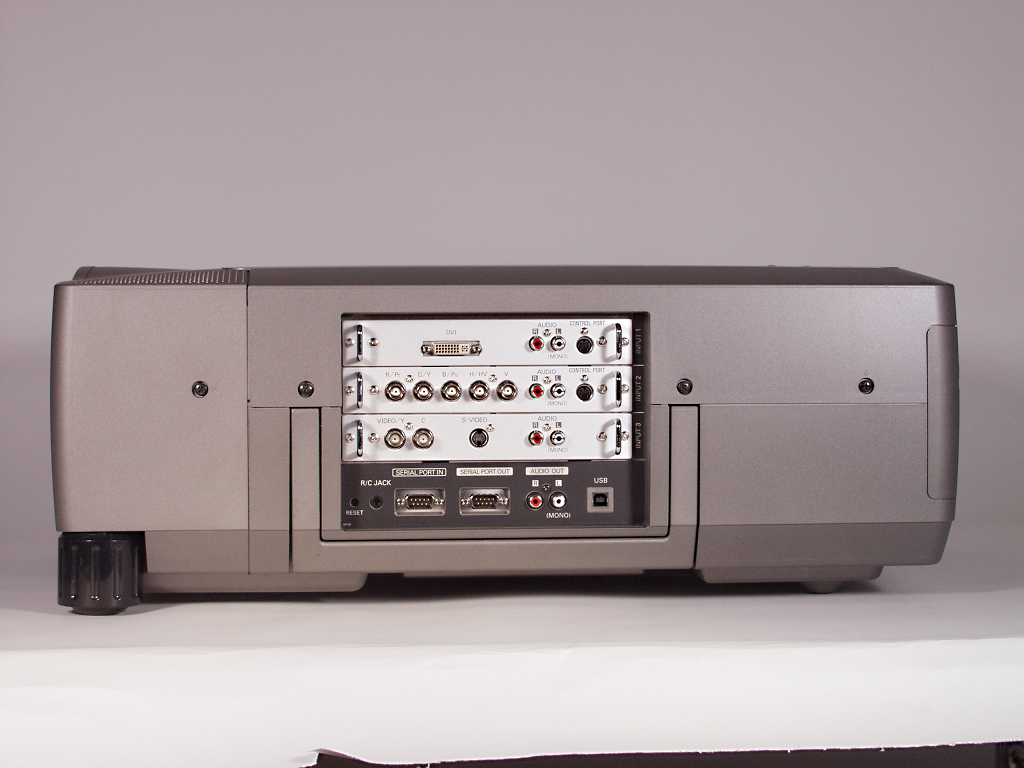

Inputs Dsub15 x 1; DVI x 1; RCA x 6; 8-pin DIN x 2; BNC x 5; 3BNC; 1BNC; S-Video x 1;
Outputs   (Stereo) RCA x 2 (L & R);
Sound System ---
Network Control  Optional Network Control module permits network monitoring and control.
Warranty 3 year/6000 hrs. (whichever comes first) projector warranty.
Lamp Life Up to 2,000 hours per lamp

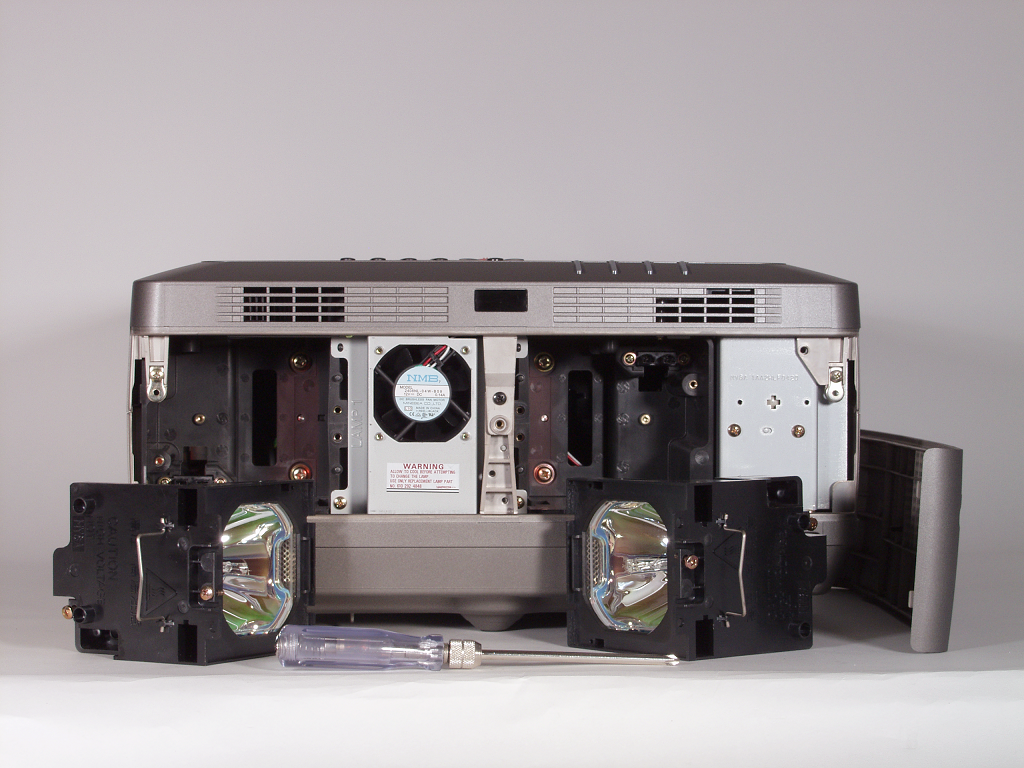

Lamp Part # 610 292 4848 (2)
Fan Noise 45 in Eco mode

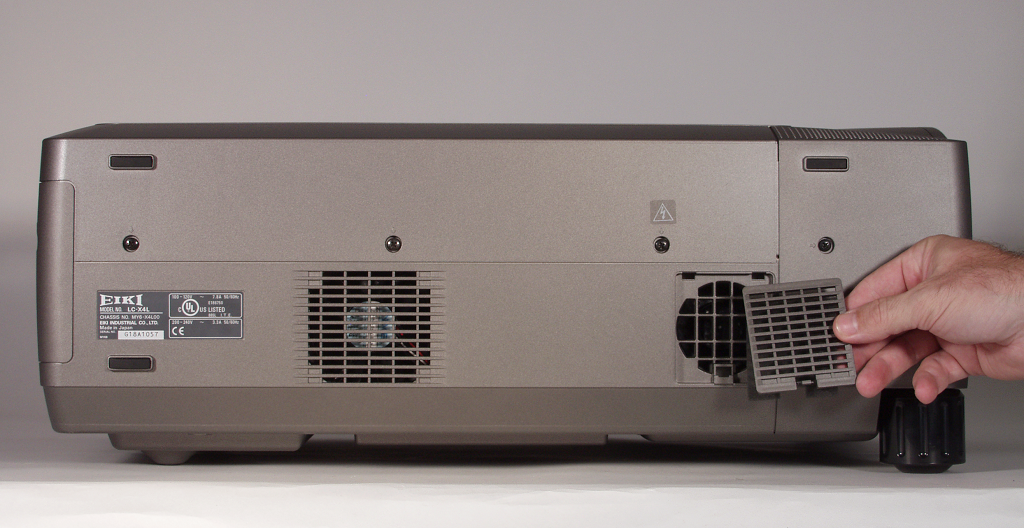

Air Filter --
Maximum Pitch ---
Weight  46.3 lbs. (21.0 kg)
Ceiling Mount Part # --
 NameDescriptionSizeType
Icon of LC-SX4LA Cad DrawingLC-SX4LA Cad Drawing115.8 KB
Icon of LC-SX4LA Cad Drawing DxfLC-SX4LA Cad Drawing Dxf169.5 KB
Icon of LC-SX4LA Cad Drawing Opt Lens ProtrusionsLC-SX4LA Cad Drawing Opt Lens Protrusions96.3 KB
Icon of LC-SX4LA Color Data SheetLC-SX4LA Color Data Sheet331.8 KB
Icon of LC-SX4LA Lens ChartLC-SX4LA Lens ChartLC-SX4LA Lens Chart14.8 KBPDF
Icon of LC-SX4LA Owners ManualLC-SX4LA Owners ManualLC-SX4LA Owners Manual1.2 MBPDF
Icon of LC-SX4LA Remote Control CodesLC-SX4LA Remote Control CodesLC-SX4LA Remote Control Codes18.4 KBPDF
Icon of LC-SX4LA RS-232 Control SoftwareLC-SX4LA RS-232 Control Software1.5 MB
Icon of LC-SX4LA SpecificationsLC-SX4LA SpecificationsLC-SX4LA Specifications33.2 KBPDF

Related Products

0001-4260 Lens
0001-4260 Lens
Manual Zoom & Focus FL: 4.49″ ~ 7.72″ ( 114 ~ 196mm ) f:2.00
0001-4261 Lens
0001-4261 Lens
Manual Zoom & Focus FL: 7.25″~12.38″ ( 184 ~ 314mm ) f:2.8
0001-4297 Lens
0001-4297 Lens
Manual Zoom & Focus FL: 2.75" ~ 5.00" ( 70.0 ~ 125.0mm ) f:2.0
945 044 0978 Lens
945 044 0978 Lens
Power Zoom & Focus FL:2.98″ ~ 3.84″ ( 75.7 ~ 97.5mm ) f:2.00 ~ 2.30
AH-21023 Lens
AH-21023 Lens
Power Zoom & Focus FL: 4.90″ ~ 6.37″ ( 124.5 ~ 161.8mm ) f:2.00 ~ 2.60
AH-21031 Lens
AH-21031 Lens
LC-XT6
LC-XT5A
LC-XT5
LC-XT4U
LC-XT9
LC-XT3
LC-X5L
LC-X4L
LC-X4LA
LC-SX4LA
AH-21092 Lens
AH-21092 Lens
Power Zoom & Focus FL: 6.22″~ 8.7″ ( 158.0 ~ 221.0mm ) f:2.00 ~ 2.80
AH-21202 Lens
AH-21202 Lens
Power Zoom & Focus FL: 2.06″ ~ 2.67″ ( 52.2 ~ 67.9mm ) f:2.53 ~ 2.95
AH-22051 Lens
AH-22051 Lens
Power Zoom & Focus FL: 3.82″ ~ 5.16″ ( 97.0 ~ 131mm ) f:1.70 ~ 2.70
AH-32022 Lens
AH-32022 Lens
Fixed Focus FL: 1.18″ (30.0 mm) f:2.5 On-Axis only!
AH-32401 Lens
AH-32401 Lens
Power Zoom & Focus FL: 2.28″ ~ 2.99″ ( 58 ~ 76mm ) f:1.7 ~ 2.3
AH-32581 Lens
AH-32581 Lens
Manual Zoom & Focus FL: 8.82″~ 12.8″ ( 224 ~ 325mm ) f:2.20 ~ 2.50
AH-32601 Lens
AH-32601 Lens
Power Zoom & Focus FL: 1.77″ ~ 2.25″ ( 45 ~ 57mm ) f:2.3 ~ 2.8
610 292 4848 Lamp
610 292 4848 Lamp
Rated Power: 200W
Lamp type: UHP
Life Expectancy: 2000h
Lamp Warranty: 90 Days (Pro-Rata)
(2) used in each projector
