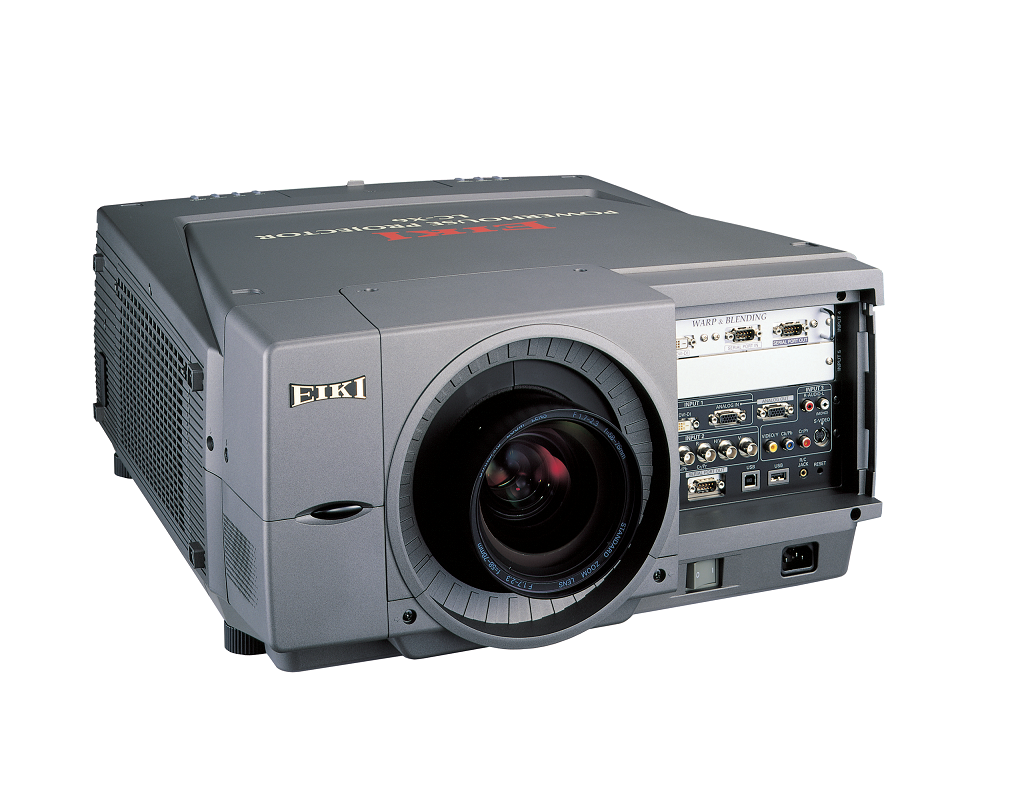

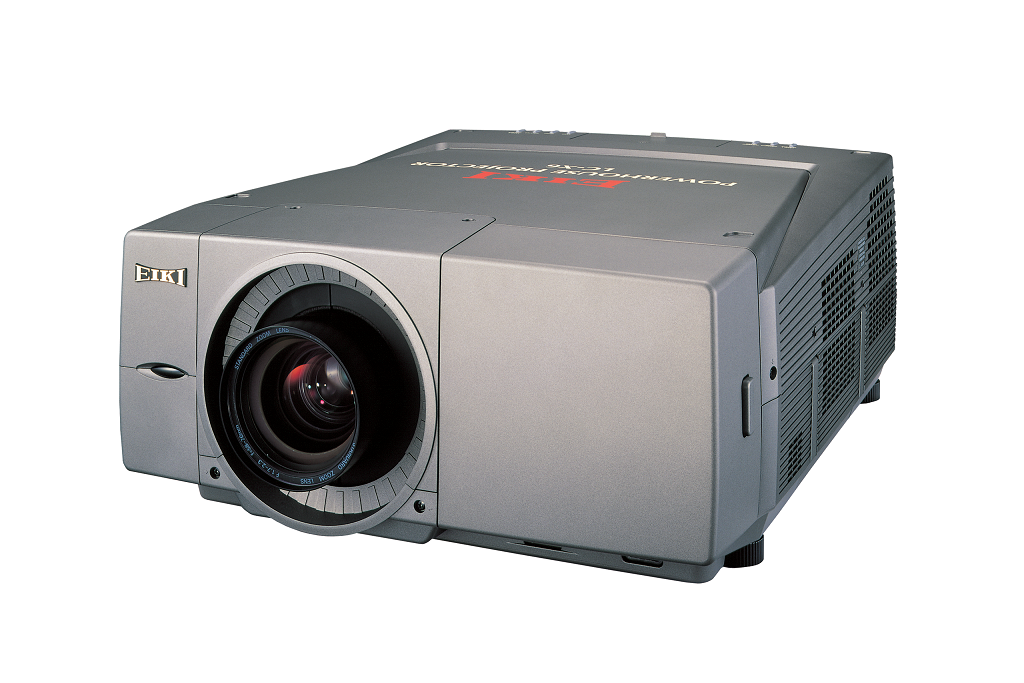

LC-SX6A LCD Projector

Key Features

  • 5,800 ANSI Lumens bright at 90% uniformity with a 1300:1 contrast ratio.
  • Native SXGA+. Compatible with UXGA through VGA. Video Scaling.
  • Works on 120V AC power (15 amp circuit). No special wiring needed.
  • Projects images up to 33.3' wide (500" diagonal). Wide choice of lenses.
  • Some lenses feature memory. Improved Lens Installation System.
  • Compatible with most video signal input, including DVI, RGB, Y/C, DVD, HDTV.
  • Displays video 4:3 & 16:9 in NTSC/PAL/SECAM/NTSC 4.43/PAL-M/PAL-N.
  • Improved progressive scan with HDTV at 1080i and 2-3 pulldown support.
  • 3 fixed inputs, two modular bays. Wide range of available modules.
  • Supplied software permits the preconfiguring of color adjustments.
  • Optional Network Control module permits network monitoring and control.
  • Stackable Cabinet Design.
  • 3 Year / 6000 Hr.* Warranty!

Outstanding Features

  1. Compatibility up to UXGA (1600x1200) & HDCP

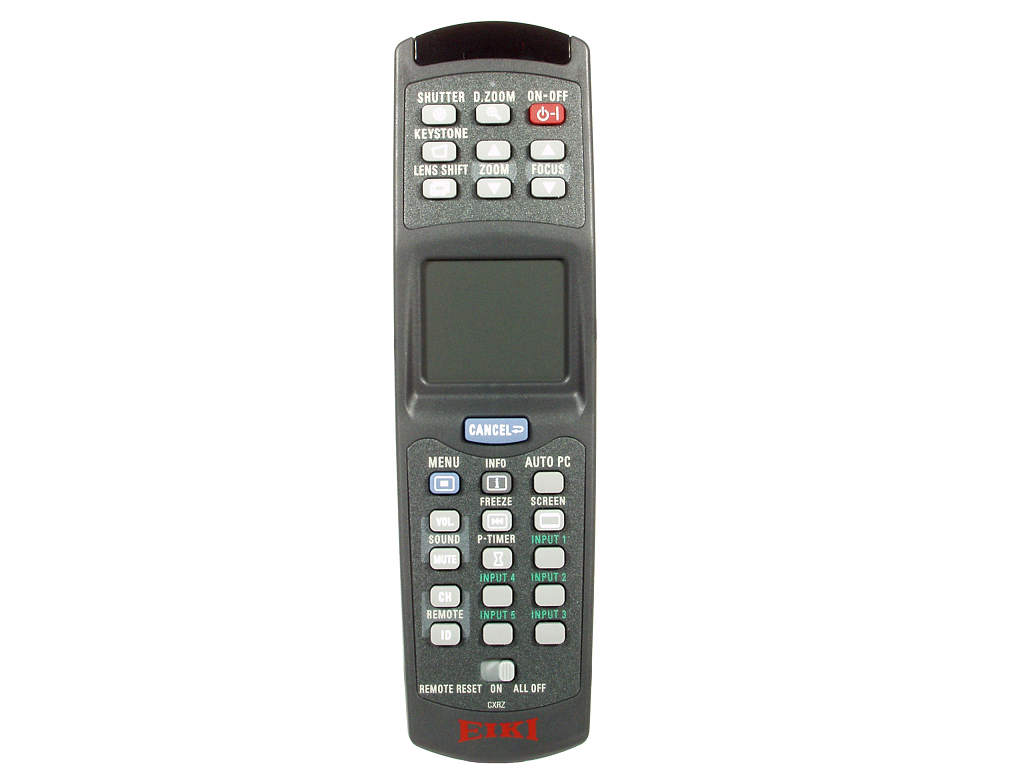

  2. Touch-pad menu navigation on remote control
  3. Accepts computer USB Mouse for projector control
  4. 3 fixed inputs, 2 module bays
  5. Operable through 360° pitch rotation
  6. RF Wireless / Wired remote control
  7. Built-in mechanical shutter. Custom warm-up screen image option
  8. PIN code security for Remote and Local control
  9. Key Lock, PJ Lock and USB Lock Security
  10. Utilizes existing Powerhouse lenses (but different Throw:Width)

Note: Compared to the LC-SX6, the LC-SX6A lacks the following: * Warp and Blending Module * Audio Input and Output * Local Control Touch Pad * Some Accessories

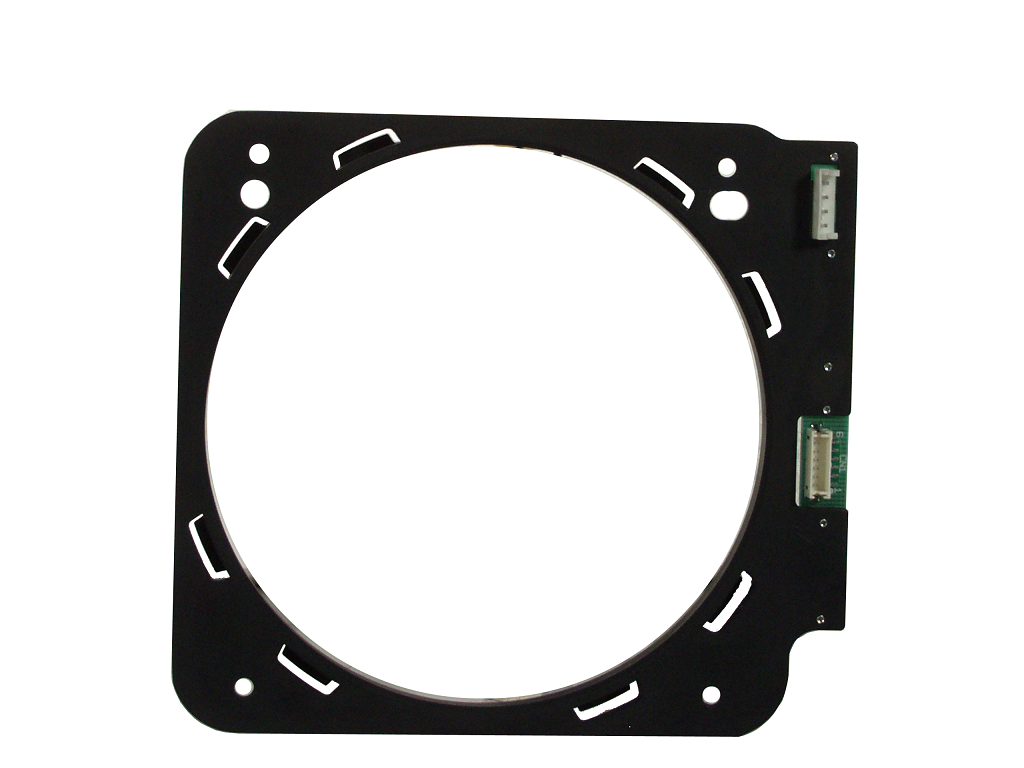

Included Accessories: Owner's Manual CD. Quick Start Manual. AC Power Cord 10’ (3.m). VGA type Input Cable 6’ (1.8m) HD-15~HD-15. Wireless/wired Remote with Mouse Control & 2 x AA batteries. Lens Adapter Ring x 2. Lens light shield x 2. Real Color Management Software CD.

Optional Accessories: Telephoto, Midrange and Wideangle Lenses. Replacement Lamps. DVI-D Module. 5 BNC Module and Y/C Input Modules. PC (HD15) Input Module. Dual (SD & HD) SDI Module. Network Module. Warp & Blending Module. Projector USB Key. Smoke Resist Box. Hard Shipping Case with wheels and telescoping handle. Ceiling Mount and Post & Plate. Long Life Lamp & Ballast Kit. Extra Long Life Lamp & Ballast Kit. Eztrol Local Control. NPC-1 Network Control.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)
()

Display Technology 3LCD
Brightness (ANSI) 5,800 lumens
Native Resolution SXGA+ (1400x1050)
Max. Computer Input UXGA
Max. Video Input --
Contrast Ratio 1300:1
Panel Size   1.4" PolySilicon active matrix TFT Panels
Lens (Throw:Width) Changeable - Does not come with Lens
Power Lens Shift  Ratio (T:B) 10:0~0:10;  Ratio (L:R) 3:2~2:3
Keystone Correction Digital: U/D up-to 40º; L/R up-to 30º

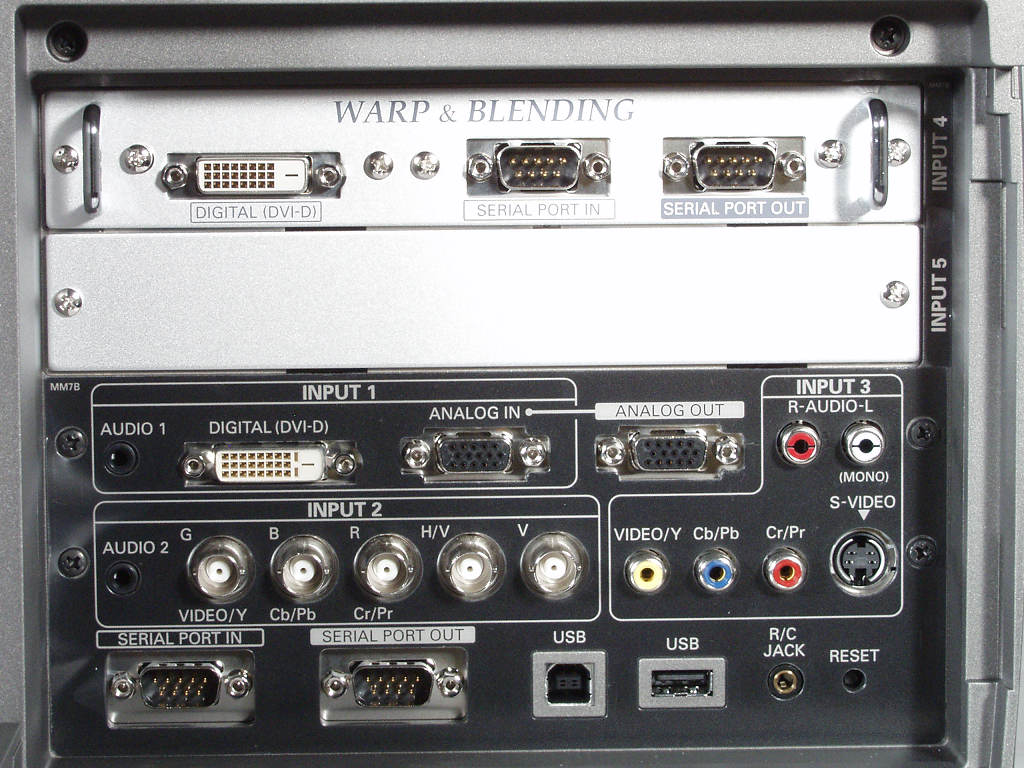

Inputs Dsub15 x 1; DVI-D (w/ HDCP) x 1; BNC x 5; 3BNC; 1BNC; S-Video x 1;Empty module bay x 2;
Outputs Dsub15 x 1;
Sound System ---
Network Control --
Warranty 3 year/6000 hrs. (whichever comes first) projector warranty.

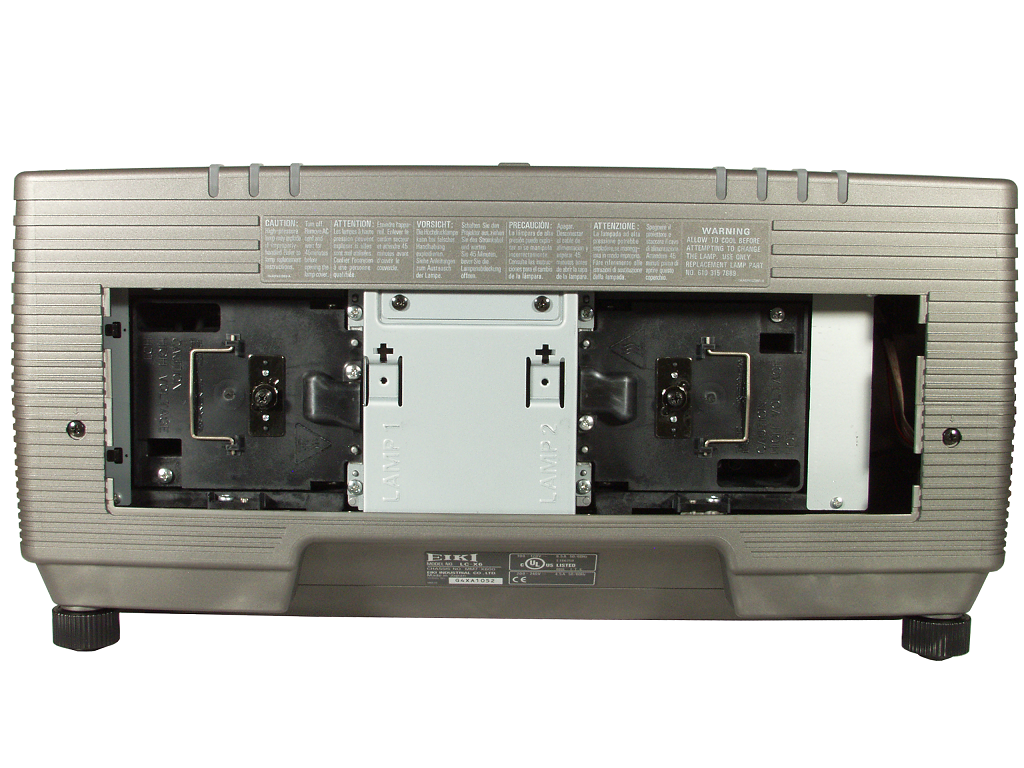

Lamp Life Up to 3,000 hours per lamp
Lamp Part # 610 315 7689 (2)
Fan Noise  42 dBA, 39 in Eco mode
Air Filter --
Maximum Pitch up-to 360°  (max 20° tilt)
Weight   52.9 lbs. (24 kg)
Ceiling Mount Part # --
 NameDescriptionSizeType
Icon of LC-SX6A Cad DrawingLC-SX6A Cad Drawing363.6 KB
Icon of LC-SX6A Cad Drawing DxfLC-SX6A Cad Drawing Dxf1.8 MB
Icon of LC-SX6A Cad Drawing Opt Lens ProtrusionsLC-SX6A Cad Drawing Opt Lens Protrusions462.4 KB
Icon of LC-SX6A Cad Drawing Opt Lens Protrusions DxfLC-SX6A Cad Drawing Opt Lens Protrusions Dxf4.3 MB
Icon of LC-SX6A Color Data SheetLC-SX6A Color Data Sheet796.7 KB
Icon of LC-SX6A Lens ChartLC-SX6A Lens ChartLC-SX6A Lens Chart49.3 KBPDF
Icon of LC-SX6A RS-232 Control SoftwareLC-SX6A RS-232 Control Software1.5 MB
Icon of LC-SX6A RS-232 Basic Serial CommandsLC-SX6A RS-232 Basic Serial CommandsLC-SX6A RS-232 Basic Serial Commands843.4 KBPDF
Icon of LC-SX6A RS-232 Extended Serial CommandsLC-SX6A RS-232 Extended Serial CommandsLC-SX6A RS-232 Extended Serial Commands2.8 MBPDF
Icon of LC-SX6A SpecificationsLC-SX6A SpecificationsLC-SX6A Specifications25.2 KBPDF

Related Products

645 068 1608 Remote
645 068 1608 Remote
Radio Freq. & Wired Remote Projector and Mouse Control w/ Laser Pointer
AH-21023 Lens
AH-21023 Lens
Power Zoom & Focus FL: 4.90″ ~ 6.37″ ( 124.5 ~ 161.8mm ) f:2.00 ~ 2.60
AH-21092 Lens
AH-21092 Lens
Power Zoom & Focus FL: 6.22″~ 8.7″ ( 158.0 ~ 221.0mm ) f:2.00 ~ 2.80
AH-21401 Lens
AH-21401 Lens
Power Zoom & Focus FL: 2.99″ ~ 3.86″ ( 76 ~ 98mm ) f:2.0 ~ 2.6
AH-21202 Lens
AH-21202 Lens
Power Zoom & Focus FL: 2.06″ ~ 2.67″ ( 52.2 ~ 67.9mm ) f:2.53 ~ 2.95
AH-22221 Lens
AH-22221 Lens
Power Zoom & Focus FL: 4.92″ ~ 6.38″ ( 125 ~ 162mm ) f:2.1 ~ 2.7
AH-32401 Lens
AH-32401 Lens
Power Zoom & Focus FL: 2.28″ ~ 2.99″ ( 58 ~ 76mm ) f:1.7 ~ 2.3
AH-32501 Lens
AH-32501 Lens
LC-W5
LC-X6
LC-X6A
LC-SX6
LC-SX6A
AH-32601 Lens
AH-32601 Lens
Power Zoom & Focus FL: 1.77″ ~ 2.25″ ( 45 ~ 57mm ) f:2.3 ~ 2.8

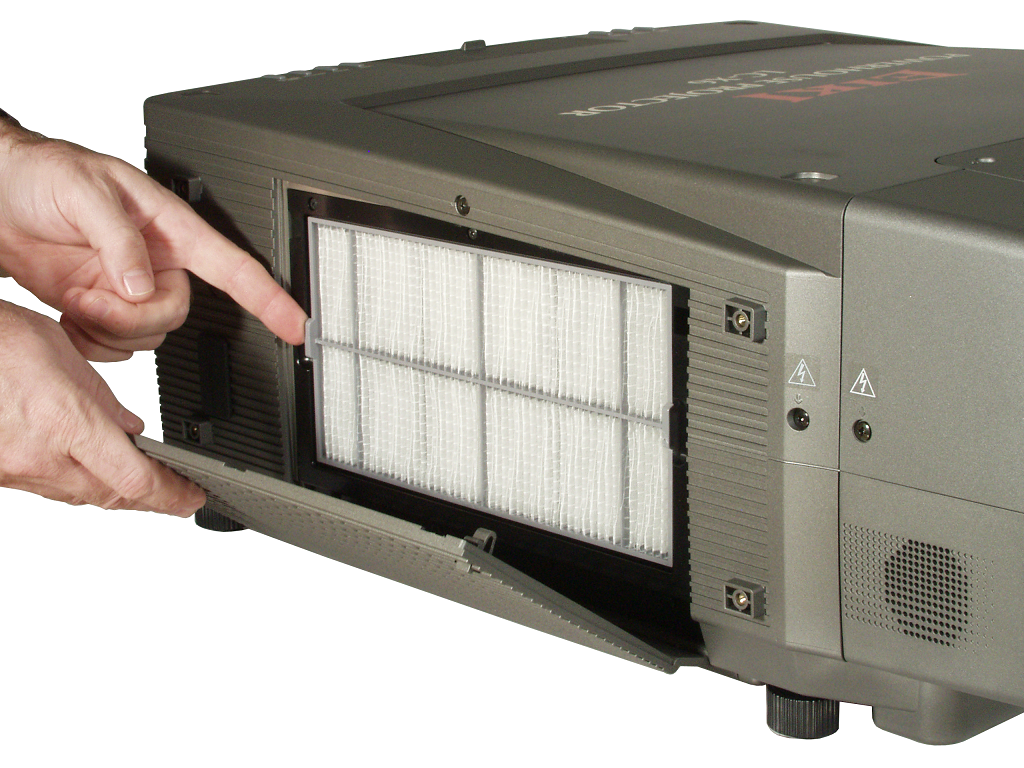

910 315 1589 Filter
