LC-UXT1 LCD Projector
Key Features
- 7700 ANSI Lumens at 90% uniformity and a 700:1 contrast ratio.
- Projects 1600 x 1200 pixels, for real UXGA resolution.
- Supplied without lens. Choice of lenses available.
- Projects images up to 40' wide (600" diagonal).
- Power Lens Shift offsets the image up & down and left & right.
- 230 MHz dot clock for compatibility with most workstations.
- Smart data compression/expansion: compatibility with UXGA~VGA, MAC.
- Compatible with most signal input, including DVI, RGB, Y/C, DVD, HDTV.
- Displays video 4:3 & 16:9 in NTSC/PAL/SECAM/NTSC 4.43/PAL-M/PAL-N.
- Video scaling. Progressive scan optimizes HD stills and animation.
- Digital Video Noise Reduction optimizes video image.
- 4 input channels. Interchangeable input modules permit reconfiguration.
- Wireless/wired remote with mouse control and laser pointer.
- 3 Year Warranty.*
Included Accessories: Owner's Manual. AC Power Cord 10’ (3.m), Lens Cap. Computer Input Cable 6’(1.8m). HD-15~HD-15. DVI Input Cable. DVI~HD15 Adapter, MAC Adapter. Wireless/wired Remote with Mouse Control and Laser Pointer & 2 x AA batteries and 1.5M wired remote cable. Mouse cables 9’(2.75m) each for PS/2, Serial Port, ADB Port. Dust Cover.
Optional Accessories: Telephoto, Midrange & Wideangle Lenses. Replacement Lamps. Additional DVI, 5 BNC, Y/C & HD15 Input Modules. HD-SDI Input Module. Upconverter Input Module. Hard Shipping Case with wheels and telescoping handle. Ceiling Mount and Post & Plate. Stacker Stand.
Specifications Overview
| Display Technology | 3LCD |
| Brightness (ANSI) | 7,700 lumens |
| Native Resolution | UXGA (1600x1200) |
| Max. Computer Input | UXGA |
| Max. Video Input | 1080i |
| Contrast Ratio | 700:1 |
| Panel Size | 1.8" |
| Lens Type (Throw:Width) | Supplied without lens |
| Power Lens Shift | T:B 10:0~0:10; L:R 11:9~9:11 |
| Keystone Correction | Variable Adjustment +40°~ -40° |
| Inputs | DVI-I x 1 data/video, RCA x 2 audio, 8-pin DIN x 1 control BNC x 5 video, RCA x 2 audio, 8-pin DIN x 1 control BNC x 2 & S-Video x 1 video, RCA x 2 audio HD15 x 1 data, RCA x 2 audio, 8-pin DIN x 1 control |
| Outputs | Audio: Output - Line (Stereo) RCA x 2 (L & R) |
| Sound System | 3 Watts Stereo; Speakers 8 cm. (3.1") x 2 |
| Network Control | Wired LAN monitor & control & system management with optional module |
| Warranty | 3 Yr / 6000 Hr |
| Lamp Life | Up to 2,000 hours per lamp |
| Lamp Part # | 610 292 4831 (4) |
| Fan Noise | As low as 46 dBA |
| Air Filter | Standard |
| Maximum Pitch | up to 5.7° up |
| Weight | 78.3 lbs.(35.5 kg ) |
| Ceiling Mount Part # | 0173-4222 |
-

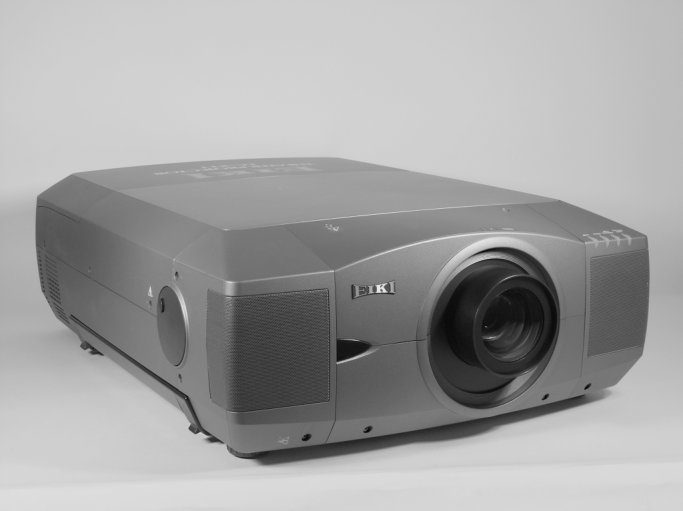

- LC UXT1 image beauty2
-

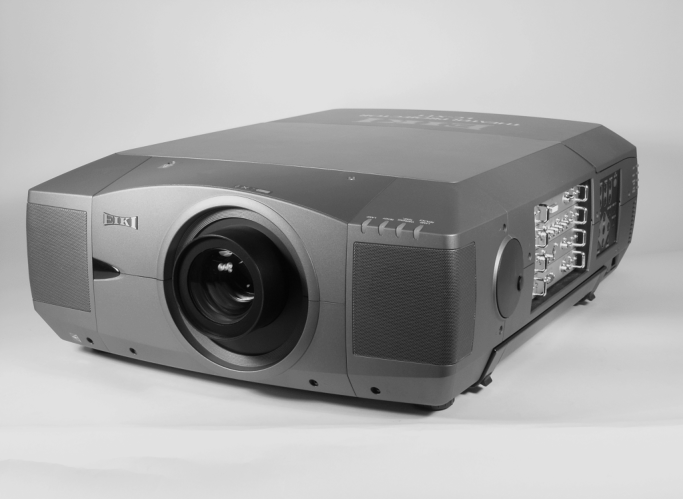

- LC UXT1 image beauty
-

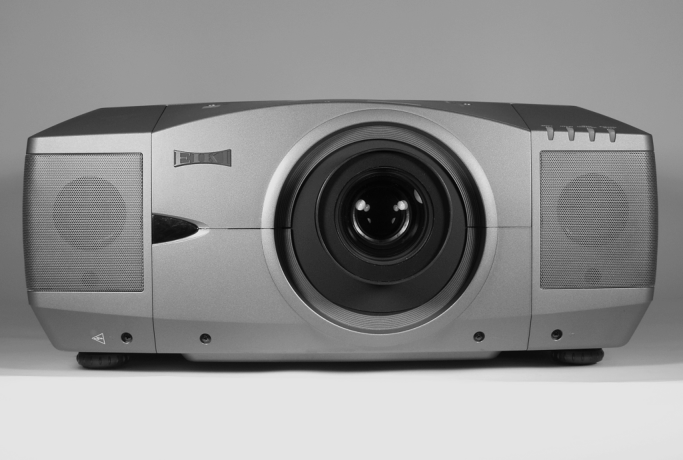

- LC UXT1 image front
-

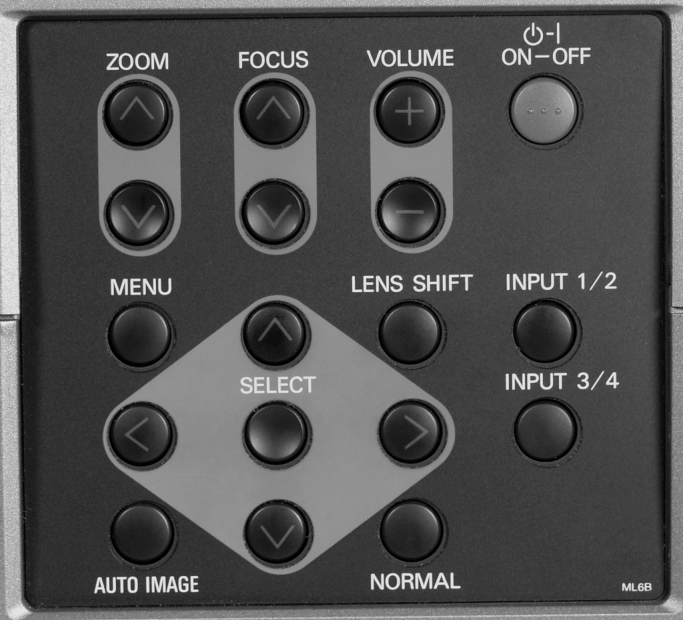

- LC UXT1 image controls
-

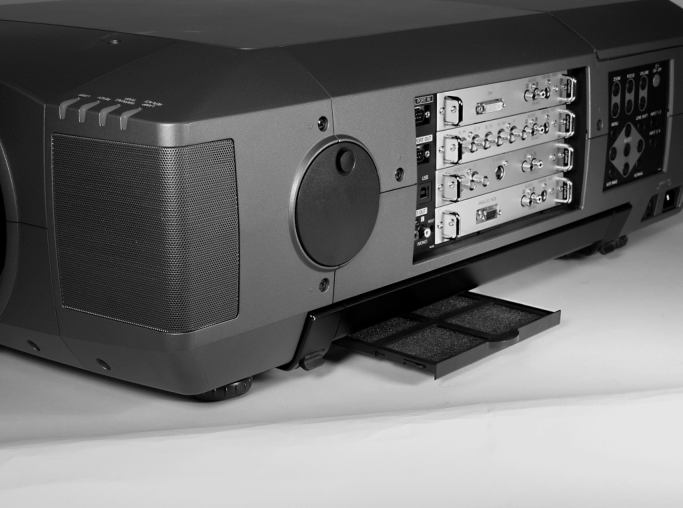

- LC UXT1 image filter
-

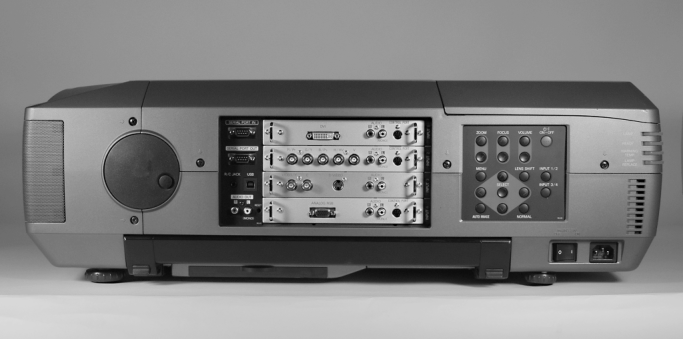

- LC UXT1 image side1
-

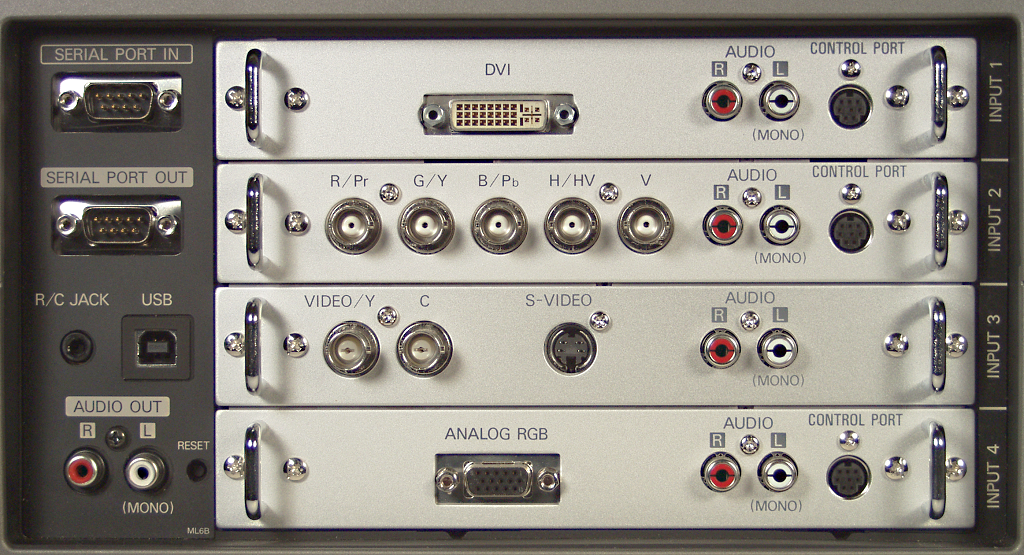

- LC UXT1 image connections
-

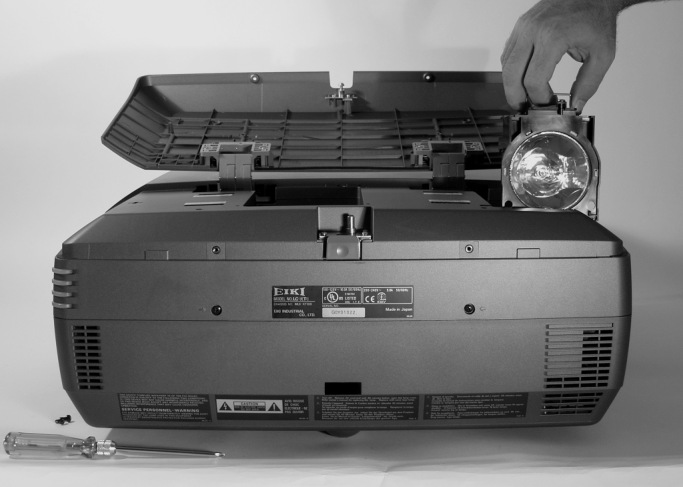

- LC UXT1 image lamp
-

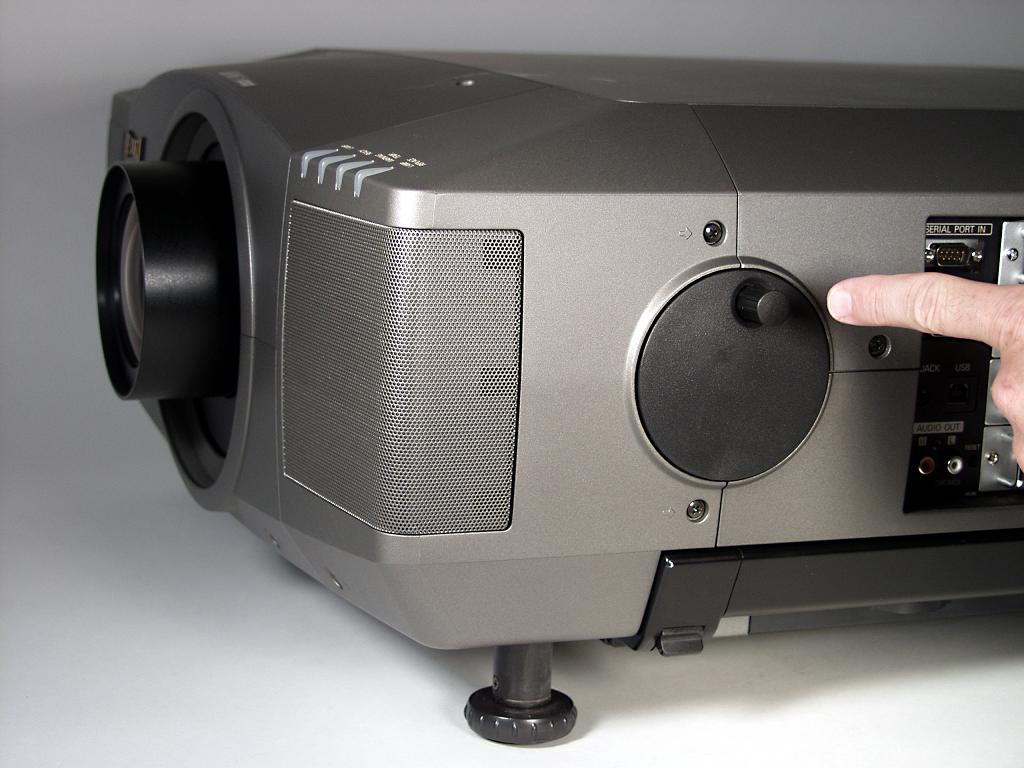

- LC UXT1 image height adjust
-

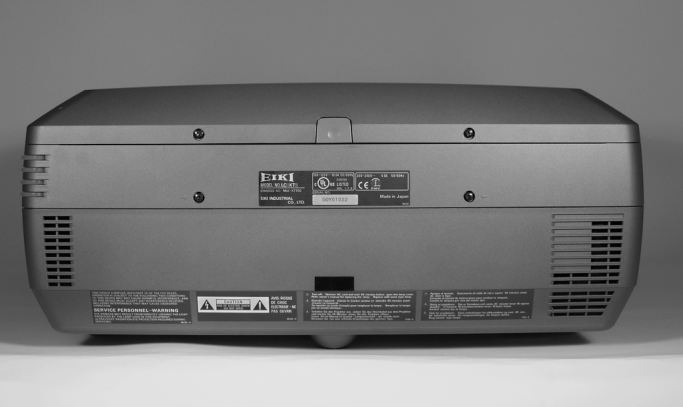

- LC UXT1 image rear
-

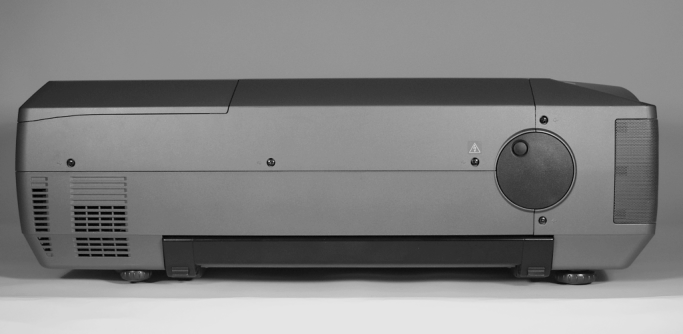

- LC UXT1 image side2
