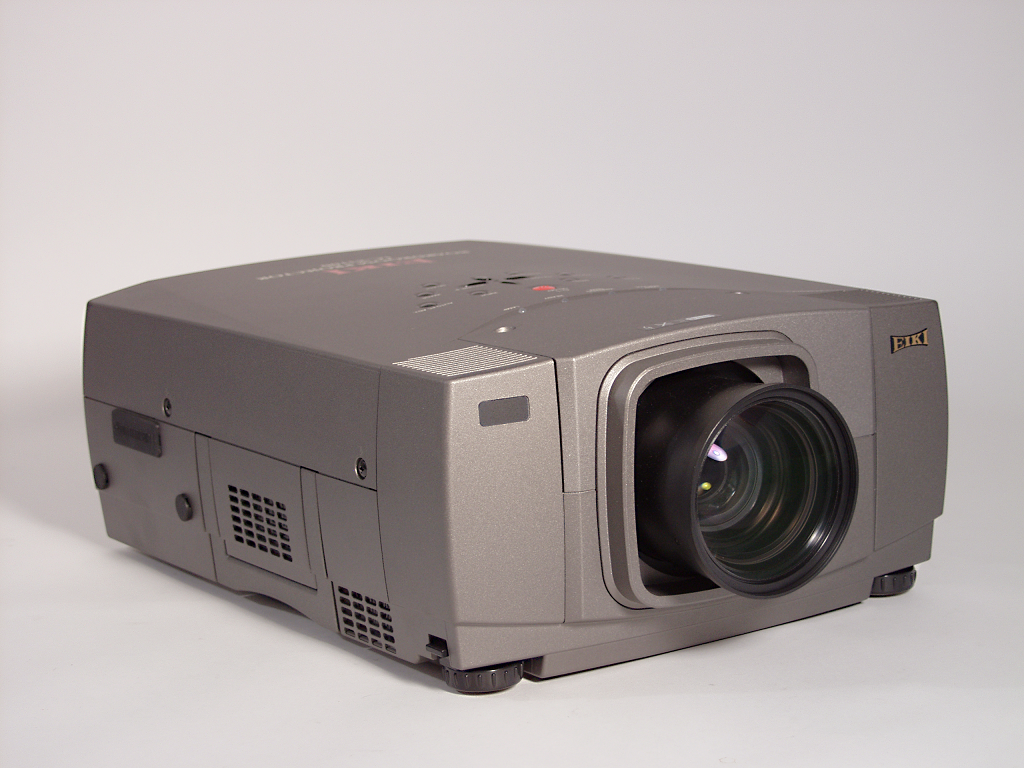

LC-W3 LCD Projector

Here's true widescreen data and video projection, with high brightness and contrast, and all the color only 3 panel LCD imaging can provide.

Breakthrough Features

Native WXGA resolution with high brightness and contrast. Supports WXGA and XGA computer input, compatible up to UXGA. Wide range of interchangeable lenses available. Compatible with analog video inputs up to 1080i. Compatible with HDCP and 1080psf/24/25/30 digital video input. Built-in i/p conversion and 3:2 pulldown support.

Key Features

  • 3,000 ANSI Lumens bright, at 90%+ uniformity, and a 1000:1 contrast ratio.
  • True WXGA resolution. UXGA ~ VGA and MAC compatible.
  • Compatible with HDCP and video input resolutions up to 1080p.
  • Supports NTSC/PAL/SECAM/NTSC 4.43/PAL-M/PAL-N video standards.
  • Accepts a wide range of interchangeable lenses.
  • 3 panel LCD imaging for rich, color saturated visuals.
  • Projects images up to 29' wide (400" diagonal) at 16:9.
  • Power zoom and focus. Power lens shift.
  • Advanced color adjustment software built-in.
  • Wireless\wired remote control. Optional local and network control systems.
  • 3 Year* Projector Warranty!

Included Accessories: Owner's manual on CD-ROM. Quick Setup manual. AC Power Cord. Lens Cover. Wireless/Wired Remote Control and 2 x AA batteries. Serial (DB9~8DIN) Control Cable (RS-232).

Optional Accessories: VGA-type Computer input cable. MAC Adapter. 1.5 M wired remote cable. Replacement Lamp. DVI Cable. Soft Carry Bag. Luggage Style Carry Case with Wheels and Telescoping Handle, and Detachable Computer Compartment. ATA-Style Shipping Case with Wheels and Telescoping Handle. Wideangle and Telephoto Lenses. Ceiling Mount, Ceiling Post and Plate. 33' (10M ) Mouse Extension Cable. Pj-to-NetDirector interface. EZ-250 Local Control. NPC-1 Network Control.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)
()

Display Technology 3LCD
Brightness (ANSI) 3000 ANSI Lumens
Native Resolution 1366 x 768 (WXGA)
Max. Computer Input UXGA
Max. Video Input 1080p
Contrast Ratio 1000:1
Panel Size 1.21"
Lens Type (Throw:Width) 1.81~2.36:1
Power Lens Shift Ratio (Top:Bottom) 7:-1~1:1
Keystone Correction Digital: up tp 30° up or down, up to 20° left or right
Inputs HD15 x 1 or DVI-D x 1 data, MiniStereo x 1 audio;
BNC x 5 or BNC x 3 video, MiniStereo x 1 audio
RCA x 3 & S-Video x 1 video, RCA x 2 audio
Outputs ---
Sound System 2 Watt; 2 in. (5 cm) x 2 speaker
Network Control Wired LAN monitor & control and system management with optional module
Warranty 3 years
Lamp Life Up to 1,500 hours
Lamp Part # 610 325 2957
Fan Noise As low as 33 dBa
Air Filter Standard
Maximum Pitch up to 10.5°up
Weight 27.6 lb. (12.5 kg.)
