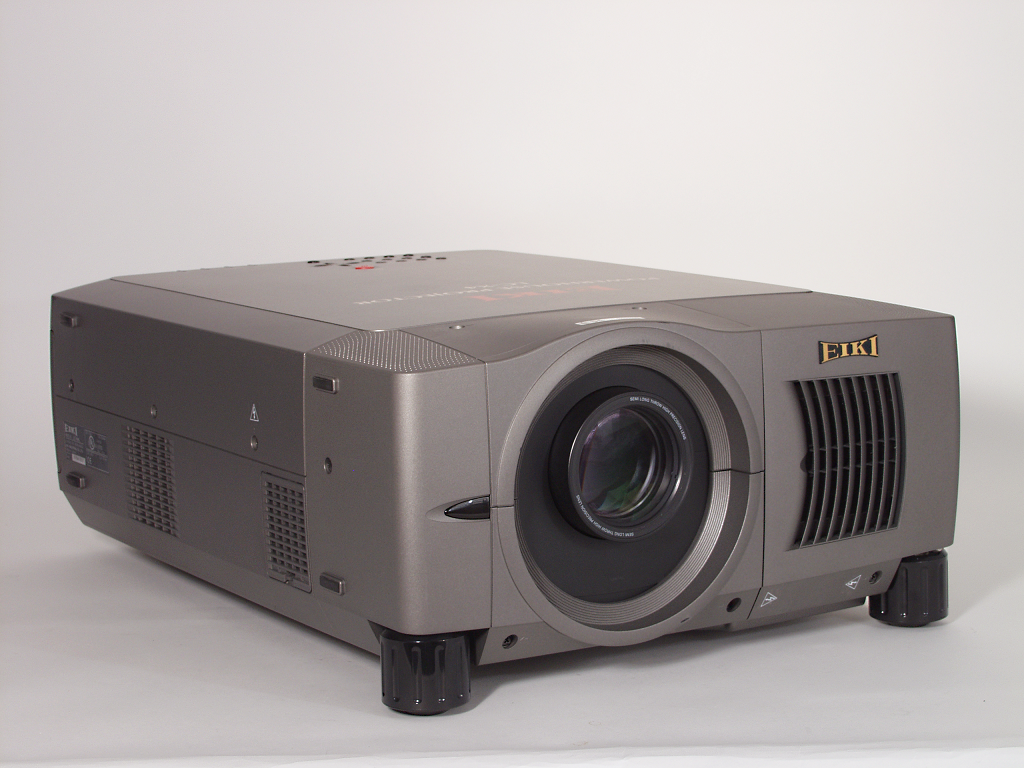

LC-W4 LCD Projector

Here's true widescreen data and video projection, with high brightness and contrast, and all the color only 3 panel LCD imaging can provide.

Breakthrough Features

Native WXGA resolution with high brightness and contrast. Reconfigurable: choice of input modules available. Supports WXGA and XGA computer input, compatible up to UXGA. Wide range of interchangeable lenses available. Compatible with analog video inputs up to 1080i. Built-in i/p conversion and 3:2 pulldown support.

Key Features

  • 4,700* ANSI Lumens bright, at 90%+ uniformity, and a 900:1 contrast ratio.
  • True WXGA resolution. UXGA ~ VGA and MAC compatible.
  • Compatible with video input resolutions up to 1080i.
  • Supports NTSC/PAL/SECAM/NTSC 4.43/PAL-M/PAL-N video standards.
  • Accepts a wide range of interchangeable lenses and input modules.
  • 3 panel LCD imaging for rich, color saturated visuals.
  • Projects images up to 29' wide (400" diagonal) at 16:9.
  • Quick Change Lens Installation. Supports power lenses. Power lens shift.
  • Supplied software permits the preconfiguring of color adjustments.

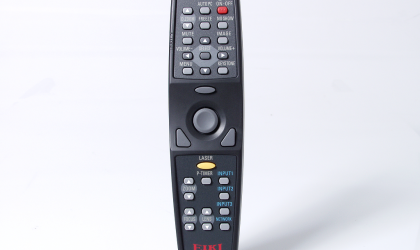

  • Wireless\wired remote control. Optional local and network control systems.
  • 3 Year* Projector Warranty!

Included Accessories: Owner's Manual. AC Power Cord 10’ (3.m). Lens Aperture Cover. DVI Input Cable. DVI~HD15 Cable. MAC Adapter. Wireless/wired Remote with Mouse Control and Laser Pointer & 2 x AA batteries and 1.5M wired remote cable. Mouse cables 9’ (2.75m) each for PS/2, Serial Port, ADB Port. Dust Cover. Color Management Software. Light Block Sheet x 3. Lens Adapter x 2.

Optional Accessories: Telephoto, Midrange and Wideangle Lenses. Replacement Lamps. Additional DVI, 5 BNC and Y/C Input Modules. DVI Input Module with HDCP support. PC (HD15) Input Module. Dual SDI (HD & SD) Input Module. SD-SDI Module. Upconverter Input Module. Network Control Module. Hard Shipping Case with wheels and telescoping handle. Ceiling Mount and Post & Plate. EZ-250 Local Control. NPC-1 Network Control.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Detailed black & white pdf specification sheet)
()

Display Technology 3LCD
Brightness (ANSI) 4700* ANSI Lumens (with optional AH-22051 lens)
Native Resolution 1366 x 768 (WXGA)
Max. Computer Input UXGA
Max. Video Input 1080i
Contrast Ratio 900:1
Panel Size 1.21"
Lens Type (Throw:Width) lens not included
Power Lens Shift Max Ratio (T:B) 10:-3~-3:10
Keystone Correction Digital: Variable 10° L ∼ 10°R
Inputs DVI x 1 data, RCA x 2 audio, 8-pin DIN x 1 control;
BNC x 5 video, RCA x 2 audio, 8-pin DIN x 1 control
BNC x 2 & S-Video x 1 video, RCA x 2 audio
Outputs (Stereo) RCA x 2 (L & R)(variable)
Sound System 3 Watt; 2 x 3.5 in. (5 x 9 cm) x 2 speaker
Network Control Wired LAN monitor & control and system management with optional module
Warranty 3 years
Lamp Life Up to 1,500 hours
Lamp Part # 610 309 3802
Fan Noise As low as 46 dBa
Air Filter Standard
Maximum Pitch up to 6.9° up
Weight 46.3 lbs. (21.0 kg)
