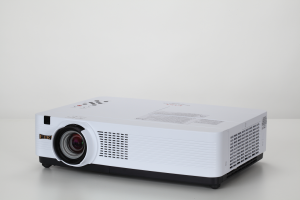

LC-WB200A HD Widescreen Projector

Outstanding Features:

  1. Cost effective projector with zoom lens and network monitoring and control.
  2. Fast, wide-range zoom. Screen filling brightness. 10 Watts of sound.
  3. Quiet operation. Long-life lamp. Power saving features. CC decoding.
  4. Auto Setup: Keystone correction, Input search, PC adjust
  5. UXGA & WXGA compatible. Interlace to Progressive conversion.
  6. Includes Picture-in-Picture and Picture-by-Picture functions.
  7. Turn ON and Show! (”instant” ON) Turn OFF and Go! (no cooldown).

Key Features

  • Native WXGA resolution brightness. Compatible with inputs up-to UXGA & WUXGA.
  • Supports both analog and digital computer and video input in all color standards up-to 1080p.
  • 3 panel LCD imaging delivers a rich, color saturated picture.
  • Quiet operation: fan noise as low as 29 dBA.
  • Smart data compression / expansion, and video scaling.
  • Preset image offset. Vertical digital keystone correction.
  • Accepts Composite, Component and S-Video in all major standards.
  • Displays both 4:3 and 16:9 formats. Supports most HDTV resolutions.
  • Converts Interlace to Progressive scan. 3-2 / 2-2 Pulldown support
  • Built-in 10 Watt sound system. Closed caption decoding (NTSC).
  • Wired Network Monitoring and Control. Digital Zoom: 50%~400%..
  • Variable Power Management option. Optional local or remote keylock.
  • Custom warm-up screen option. Colorboard modes.
  • Wireless remote control.
  • 3 year/6000 hrs. (whichever comes first) projector warranty.

Included Accessories: Owner's Manual on CD-ROM, Quick Start Guide, AC Power Cord, Lens Cover, VGA-type Computer Input Cable (Dsub15), Wireless Remote Control & Batteries (2 x AAA batteries), Network Software on CD-Rom, Filter Cover for Ceiling Mount, Soft Carry Bag.

Optional Accessories: Replacement Lamp, Component Video Input Cable (Dsub15~3-RCA), Ceiling Mount, Ceiling Post & Plate.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Detailed black & white pdf specification sheet)

Display Technology 3 LCD
Brightness (ANSI) up to 3,000 Lumens
Native Resolution WXGA (1280x800)
Max. Computer Input UXGA/WUXGA
Max. Video Input 1080p
Contrast Ratio 2000:1
Panel Size 0.59in
Lens Type (Throw:Width) 1.18 ~ 1.91:1
Fixed Image Offset Preset
Keystone Correction 30° Up or Down
Inputs DSub15 x 2; HDMI x 1; RCA x 1 or S-Video x 1; MiniStereo x 1; RCA (audio) x 2
Outputs Dsub15 x 1;Variable, Stereo: MiniStereo x 1
Sound System 10 Watt; 1.4in (3.7cm) x 1 (Mono)
Network Control Wired LAN for projector monitoring and control
Warranty 3 year/6000 hrs. (whichever comes first) projector warranty.
Lamp Life Up to 5,000 hours
Lamp Part # 610 352 7949
Fan Noise As low as 29 dBa
Air Filter Standard
Maximum Pitch Up-to 360º
Weight 7.5lb (3.4 kg)
Ceiling Mount Part # 0173-4359
Closed Caption Yes
LC-WB200A Color Data Sheet766.3 KB
LC-WB200A Hi-res Image Beauty1LC-WB200A Hi-res Image Beauty11.9 MBJPG, ZIP
LC-WB200A Hi-res Image Beauty2LC-WB200A Hi-res Image Beauty22.1 MBJPG, ZIP
LC-WB200A Hi-res Image BottomLC-WB200A Hi-res Image Bottom3.4 MBJPG, ZIP
LC-WB200A Hi-res Image ConnectionsLC-WB200A Hi-res Image Connections1.8 MBJPG, ZIP
LC-WB200A Hi-res Image FrontLC-WB200A Hi-res Image Front1.8 MBJPG, ZIP
LC-WB200A Hi-res Image LampLC-WB200A Hi-res Image Lamp108.6 KBJPG, ZIP
LC-WB200A Hi-res Image MicLC-WB200A Hi-res Image Mic85.7 KBJPG, ZIP
LC-WB200A Hi-res Image RemoteLC-WB200A Hi-res Image Remote2.1 MBJPG, ZIP
LC-WB200A Hi-res Image Side1LC-WB200A Hi-res Image Side11.7 MBJPG, ZIP
LC-WB200A Hi-res Image Side2LC-WB200A Hi-res Image Side21.7 MBJPG, ZIP
LC-WB200A Hi-res Image TopLC-WB200A Hi-res Image Top1.7 MBJPG, ZIP
LC-WB200A Lens ChartLC-WB200A Lens Chart50.6 KBPDF
LC-WB200A Owners ManualLC-WB200A Owners Manual6.7 MBPDF
LC-WB200A RS-232 Basic Serial CommandsLC-WB200A RS-232 Basic Serial Commands189.9 KBPDF
LC-WB200A RS-232 Expand Serial CommandLC-WB200A RS-232 Expand Serial Command464.1 KBPDF
LC-WB200A SpecificationsLC-WB200A Specifications32.4 KBPDF
