LC-WB40N LCD Projector

Get the rich color imaging of 3-panel LCD technology in a compact, lightweight projector. More than's Brilliant!

Key Features

  • 3700 ANSI Lumens brightness, 500:1 contrast ratio, 10-bit color processing.
  • Real high-definition resolution - 1280 x 800 pixels (16:10) - covers XGA and 720p.
  • Compatible with Normal and Widescreen input resolutions up to UXGA and 1080i.
  • Supports both analog and digital computer and video input in all color standards.
  • Built-in RJ45 Wired Network projector and control & content delivery (PC only).
  • Built-in 802.11b/g Wireless Network projector control & content delivery (PC only).
  • Built-in SD Card Memory Viewer for computerless slide shows (PC only).
  • Lightweight: about 8 lbs! Low-profile: about 3" high! Quiet: as low as 30 dBA.
  • Convenient wideangle wide-range manual zoom and focus lens.
  • Fixed image offset. Automatic (vertical) digital keystone correction.
  • Antitheft alarm, and projector control security locks.
  • Two computer inputs, plus one VGA computer monitor output.
  • Wireless/wired remote with mouse and laser pointer.
  • 3 year projector warranty.

Outstanding Features:

  1. Native 1280x800 resolution with 3700 ANSI Lumens brightness.
  2. Compatible with Normal and Widescreen, up to UXGA and 1080i.
  3. Supports analog & digital computer & video in all color standards.
  4. Wired & wireless network projector controls & content delivery (PC only).
  5. Computerless slideshow using optional SD memory adapter (PC only).
  6. Antitheft alarm, and projector control security locks.

Included Accessories: Quick Start Guide. Owner’s Manual on CD-ROM. AC Power Cord. PC Application Software and Manual on CD ROM. VGA type Computer Input Cable (HD15 ~ HD15). Wireless/wired Remote Control with Mouse Control & Laser Pointer & Batteries (AAA x 2). Wired Remote Cable (MiniStereo~MiniStereo) x 1. RS-232 Serial Cable (Dsub9~8 pin DIN) x 1. Soft Carry Bag.

Optional Accessories: Replacement Lamp. USB mouse cable (USB-A~USB-B). Component Video Input Cable*** (HD15~3-RCA). Scart Video Input Cable (HD15~Scart). DVI-I~HD15 Adapter**. Luggage-Style "wheelie" Carrying Case with Wheels,Telescoping Handle, and Detachable Computer Compartment. ATA-Style Shipping Case with Wheels and Telescoping Handle. Ceiling Mount. Ceiling Post and Plate.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)

Display Technology 3LCD
Brightness (ANSI) up to 3,700 Lumens
Native Resolution WXGA (1280x800)
Max. Computer Input UXGA
Max. Video Input 1080i
Contrast Ratio 500:1
Panel Size 0.74"
Lens Type (Throw:Width) 1.18~1.86:1
Power Lens Shift 49% Up
Keystone Correction 40° Up or Down
Inputs DSub15 x 1; DVI-I x 1; RCA x 1; S-Video x 1;
MiniStereo x 1; RCA (audio) x 2; USB-B x 1;
Outputs Dsub15 x 1; MiniStereo x 1
Sound System 1 Watt; 1.1" (2.8 cm) speaker x 1
Network Control Wired/Wireless LAN monitoring, control & content delivery
Warranty 3 years
Lamp Life Up to 3,000 hours
Lamp Part # 610 333 9740
Fan Noise As low as 31 dBa
Air Filter Standard
Maximum Pitch Up-to 360º
Weight 8.2 lb (3.7 kg)
Ceiling Mount Part # 0173-4305
Closed Caption Yes
LC-WB40N Cad Drawing64.4 KB
LC-WB40N Cad Drawing Dxf196.6 KB
LC-WB40N Color Data Sheet720.4 KB

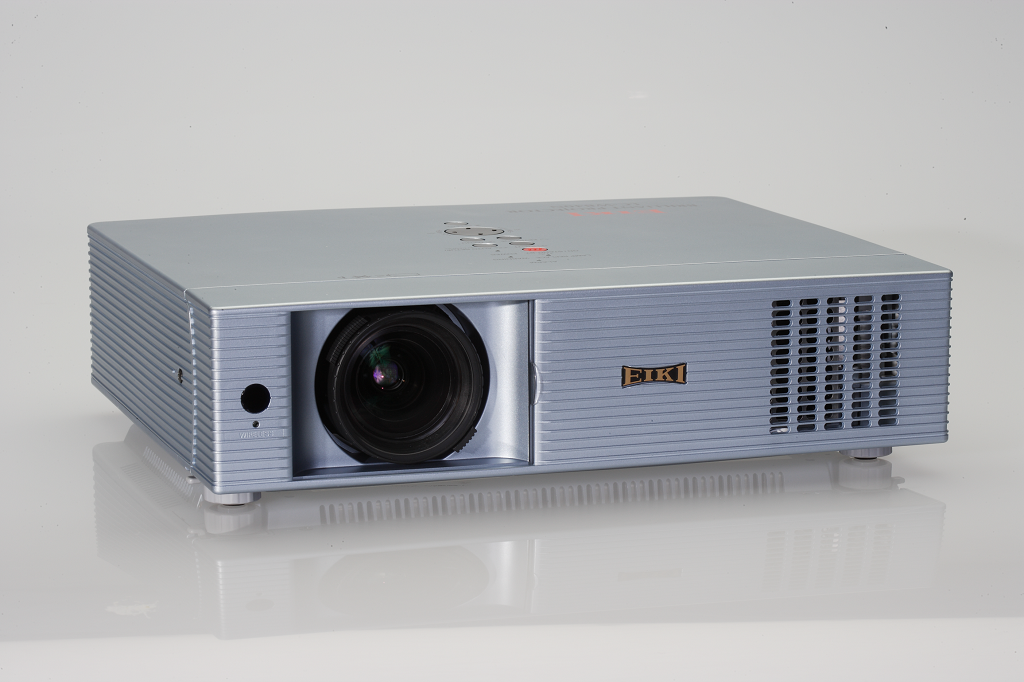

LC-WB40N Hi-res Image Beauty1LC-WB40N Hi-res Image Beauty14.9 MBZIP

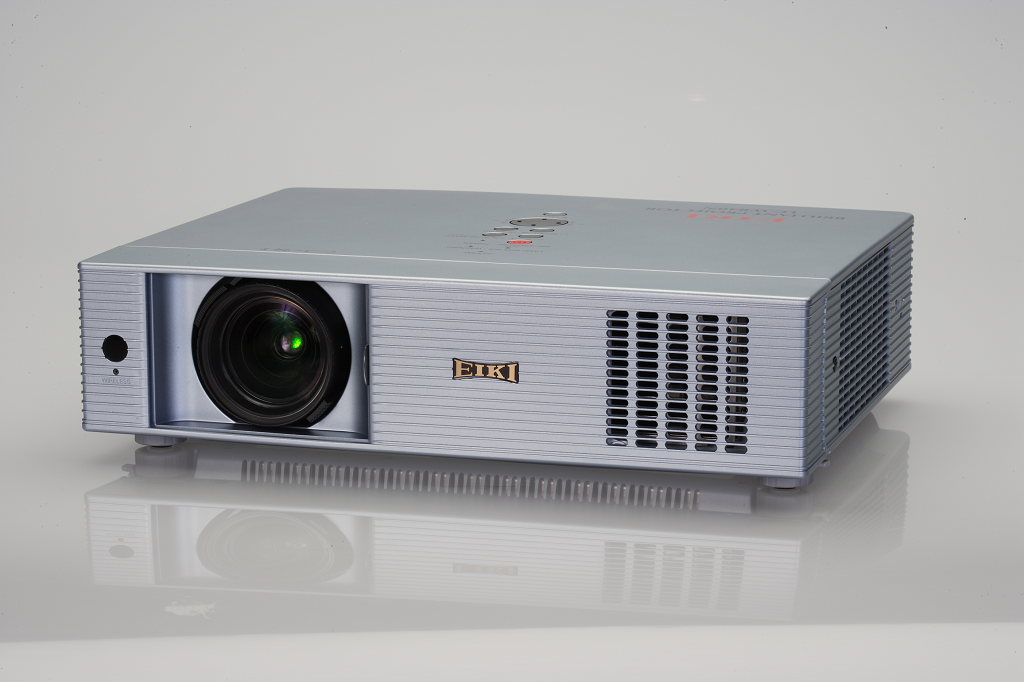

LC-WB40N Hi-res Image Beauty2LC-WB40N Hi-res Image Beauty25.1 MBZIP

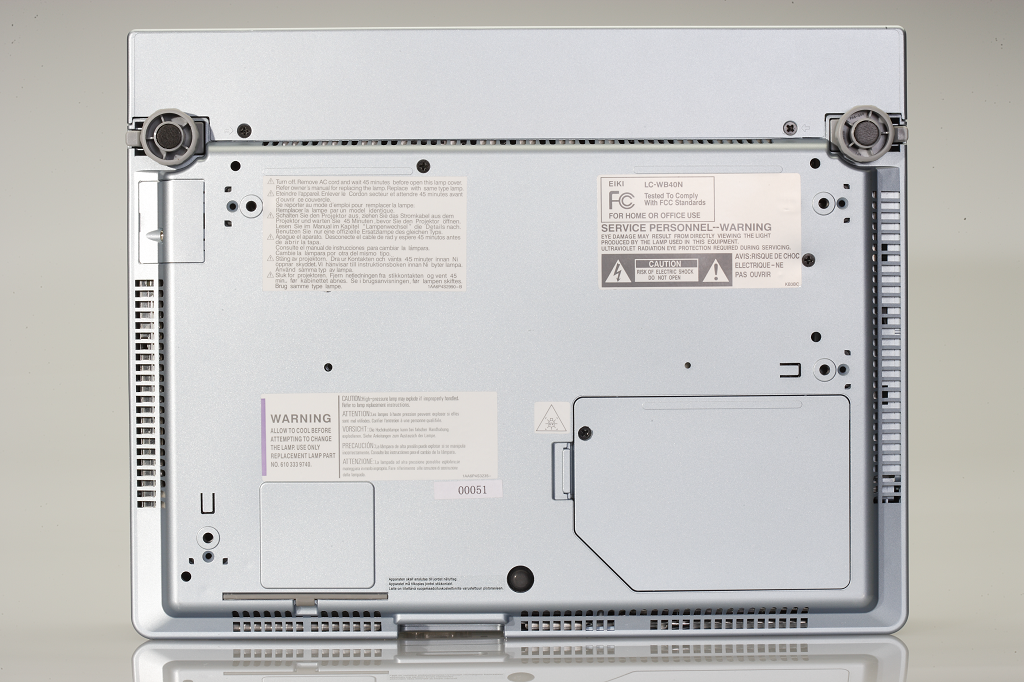

LC-WB40N Hi-res Image BottomLC-WB40N Hi-res Image Bottom7.1 MBZIP

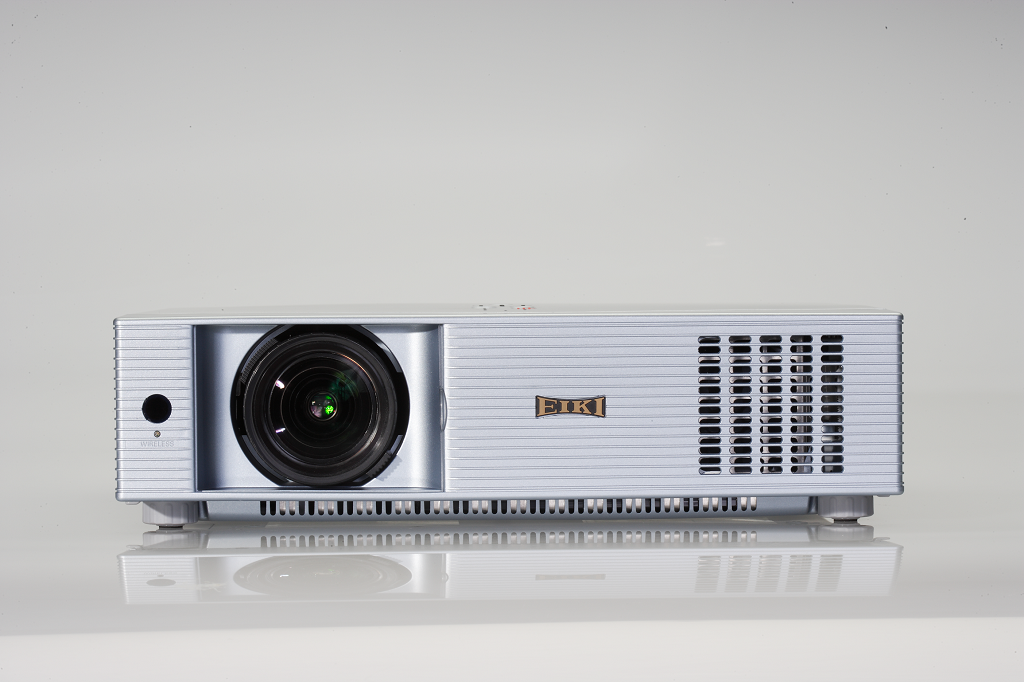

LC-WB40N Hi-res Image FrontLC-WB40N Hi-res Image Front4.8 MBZIP

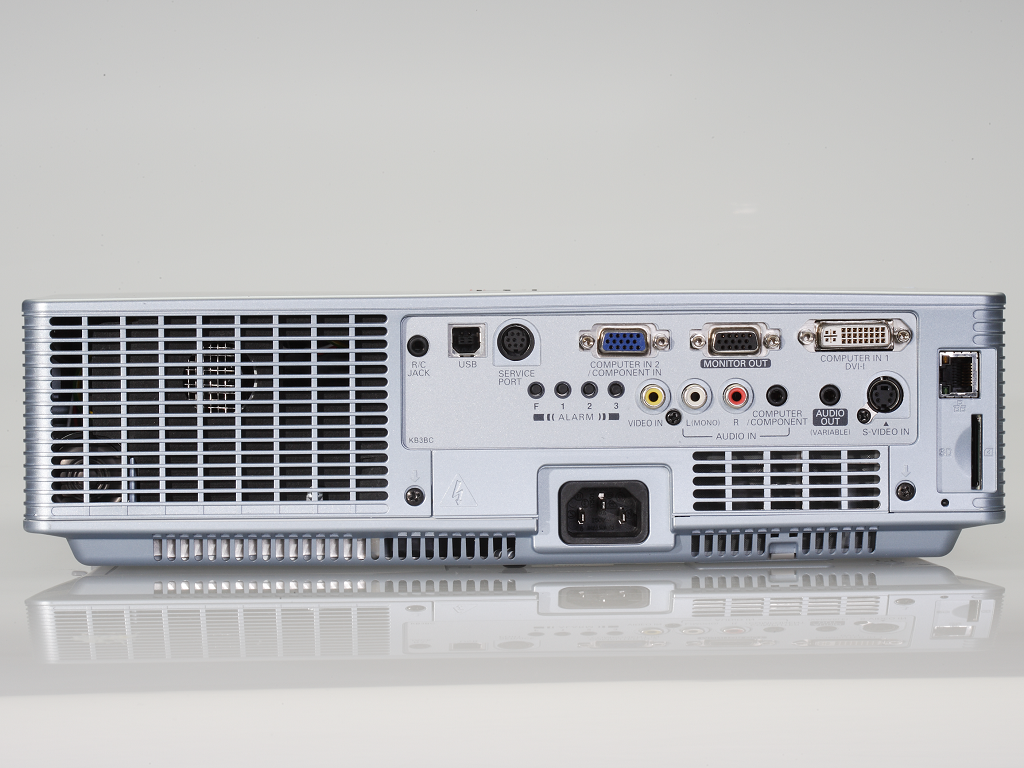

LC-WB40N Hi-res Image RearLC-WB40N Hi-res Image Rear6.1 MBZIP

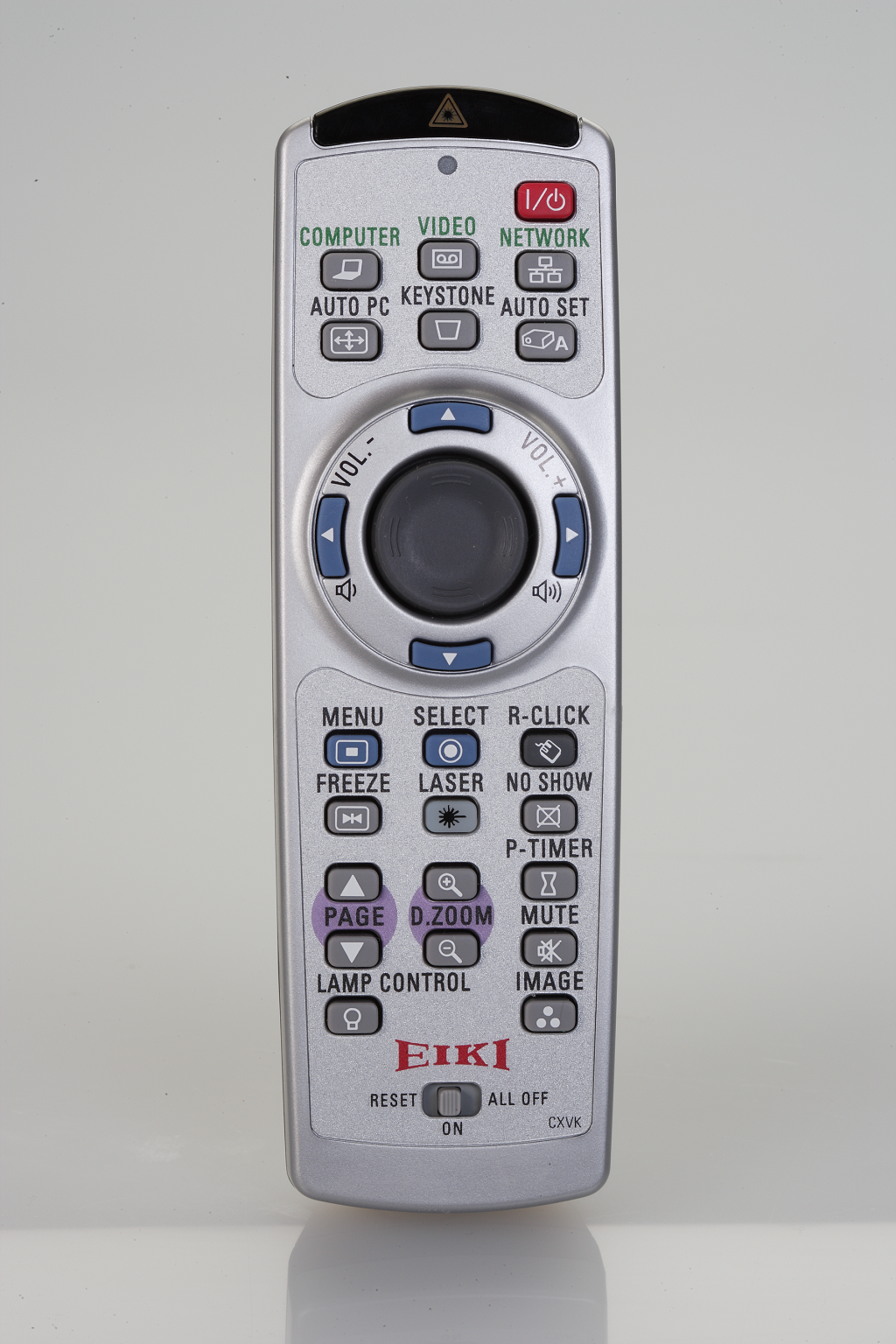

LC-WB40N Hi-res Image RemoteLC-WB40N Hi-res Image Remote6.3 MBZIP

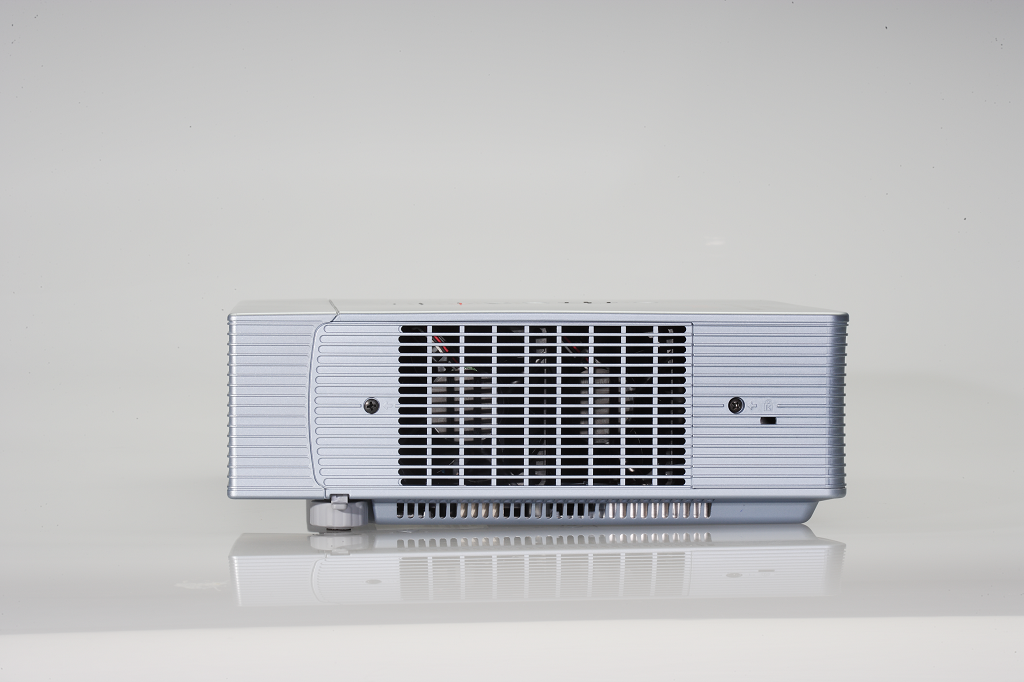

LC-WB40N Hi-res Image Side1LC-WB40N Hi-res Image Side14.5 MBZIP

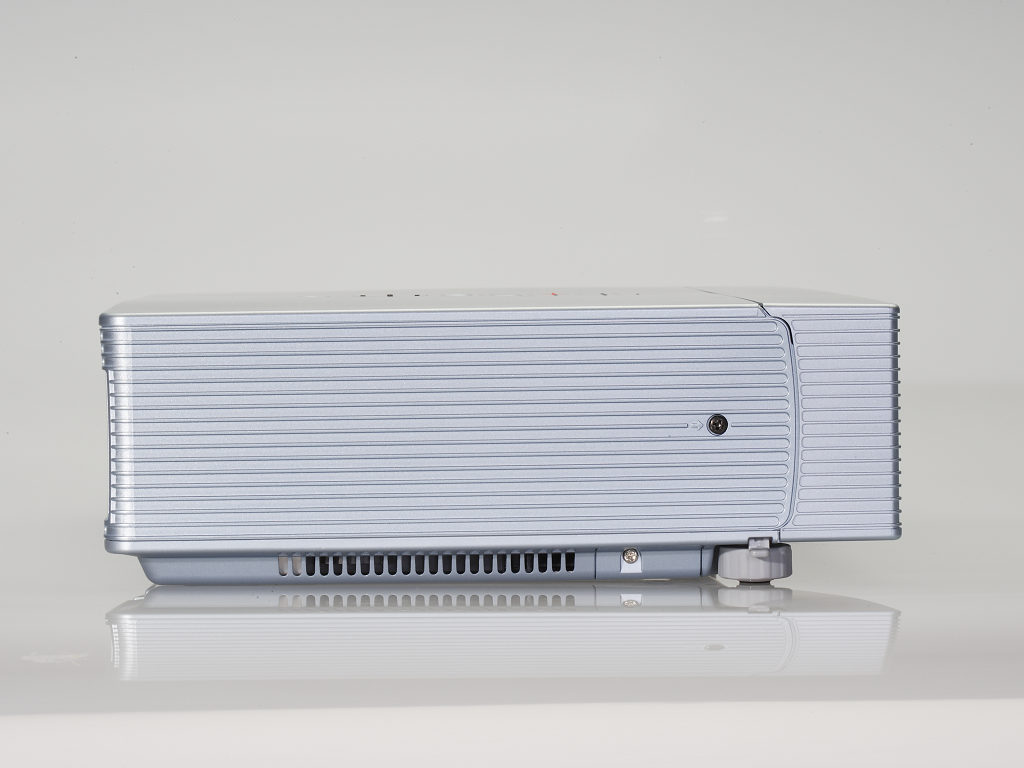

LC-WB40N Hi-res Image Side2LC-WB40N Hi-res Image Side25.4 MBZIP

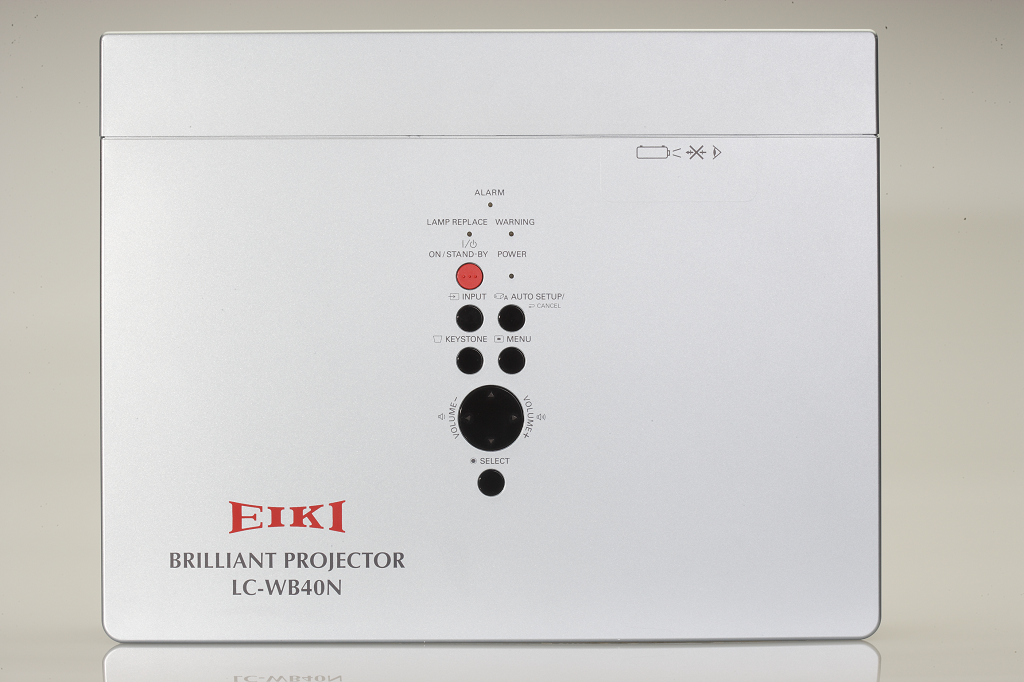

LC-WB40N Hi-res Image TopLC-WB40N Hi-res Image Top6.3 MBZIP
LC-WB40N Lens ChartLC-WB40N Lens Chart20.3 KBPDF
Network Viewer Capture 4 Software V1-03LC-XB33N, LC-WB40N Network Viewer Capture 4 Software V1-0312.9 MB
LC-WB40N Owners ManualLC-WB40N Owners Manual7.8 MBPDF
LC-WB40N Remote Control CodesLC-WB40N Remote Control Codes70.8 KBPDF
LC-WB40N RS-232 Control SoftwareLC-WB40N RS-232 Control Software1.4 MB
LC-WB40N RS-232 Basic Serial CommandsLC-WB40N RS-232 Basic Serial Commands189.5 KBPDF
LC-WB40N RS-232 Extended Serial CommandsLC-WB40N RS-232 Extended Serial Commands425.3 KBPDF
LC-WB40N SpecificationsLC-WB40N Specifications181.8 KBPDF
