LC-WBS500 LCD Projector

LC-WBS500 Key Features

  • 5,100 ANSI lumens bright with 80% uniformity and a 4000:1 contrast ratio.
  • Native WXGA resolution. Compatible with inputs up-to UXGA and WUXGA.
  • Supports analog and digital video input in all color standards up-to 1080p.
  • HDMI Digital connectivity with HDCP compliance.
  • Convenient mid-range (1.65:1) manual zoom and focus lens.
  • Fixed image offset. Automatic vertical digital keystone correction.
  • Accepts composite, component, and S-Video in all major standards.
  • Displays both 4:3 and 16:9 aspect ratios. Supports most HDTV resolutions.
  • Built-in 10 Watt sound system. Closed Caption decoding (NTSC).
  • Wired network control. Optical zoom: 1.65X.
  • Side-accessed air filter & top accessed lamp for ease of maintenance.
  • Color board modes. Custom warm-up screen.
  • Built-in Image Warping. Manual Horiz.& Vert. lens shift.
  • Security bar. Kensington® MicroSaver® security slot. PIN lock.
  • 3 year/6000 hrs. (whichever comes first) projector warranty.

Included Accessories: Quick Start Guide, Owner's Manual on CD-ROM, VGA Computer Input Cable (Dsub15 to Dsub15), 6.0 ft (1.8 m) Detachable Power Cord, Remote Control (with 2 AAA Batteries). Optional Accessories: Replacement Lamp, Ceiling Mount, Ceiling Post and Plate, Soft Carry Bag.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
()
(Color Data Sheet)

Display Technology 3 LCD
Brightness (ANSI) up-to 5,100 ANSI Lumens
Native Resolution WXGA (1280x800)
Max. Computer Input UXGA/WUXGA
Max. Video Input 1080p
Contrast Ratio up-to 4000:1
Panel Size 0.59 in (15 mm)
Lens Type (Throw:Width) Attached - Manual Zoom and Focus
Anti Keystone Fixed Image Offset, Ratio (Top/Bottom) 6:1
Vert/Horiz Keystone Correction Digital: V: +/- 30° (Auto) H: +/- 15° (Manual) Corner Keystone
Inputs DSub15 x 2; HDMI x 1; RCA x 1 or S-Video x 1; USB-Type A x 1; USB-Type B x 1 (display);  RJ45 x 1; Dsub9 x 1; MiniStereo x 2; RCA (video audio) x 2
Outputs Dsub15 x 1 (switchable Monitor Out); Variable, Stereo: MiniStereo x 1
Sound System 10 Watt; 1.4 in (3.7 cm) x 1 (Mono)
Network Control Wired network control
Warranty 3 year/6000 hrs. (whichever comes first) projector warranty.
Lamp Life 3,000h standard / 4000h eco
Lamp Part # 23040049
Fan Noise 36 dBA normal / 32 dBA eco
Air Filter Filter & Frame Assy
Maximum Pitch Up-to 30° Up or Down
Weight 10.1 lb (4.6 kg)
Ceiling Mount Part # TBA
Closed Caption Yes

 NameDescriptionSizeType
Icon of LC-WBS500 CAD DrawingLC-WBS500 CAD DrawingLC-WBS500 Cad Drawing28.6 MBDXF
Icon of LC-WBS500 Color Data SheetLC-WBS500 Color Data SheetLC-WBS500 Color Data Sheet3.0 MBPDF
Icon of LC-WBS500 Hi-res Beauty1LC-WBS500 Hi-res Beauty1LC-WBS500 hires Beauty1 image6.5 MBZIP
Icon of LC-WBS500 Hi-res Beauty2LC-WBS500 Hi-res Beauty2LC-WBS500 hires Beauty2 image6.7 MBJPG, ZIP
Icon of LC-WBS500 Hi-res BottomLC-WBS500 Hi-res BottomLC-WBS500 hires Bottom image7.8 MBJPG, ZIP
Icon of LC-WBS500 Hi-res ConnectionsLC-WBS500 Hi-res ConnectionsLC-WBS500 hires Connections image7.9 MBJPG, ZIP
Icon of LC-WBS500 Hi-res ControlsLC-WBS500 Hi-res ControlsLC-WBS500 hires Controls image8.0 MBJPG, ZIP
Icon of LC-WBS500 Hi-res Filter1LC-WBS500 Hi-res Filter1LC-WBS500 hires Filter1 image9.5 MBJPG, ZIP
Icon of LC-WBS500 Hi-res Filter2LC-WBS500 Hi-res Filter2LC-WBS500 hires Filter2 image7.3 MBJPG, ZIP
Icon of LC-WBS500 Hi-res FrontLC-WBS500 Hi-res FrontLC-WBS500 hires Front image7.6 MBJPG, ZIP
Icon of LC-WBS500 Hi-res LampLC-WBS500 Hi-res LampLC-WBS500 hires Lamp image8.0 MBJPG, ZIP

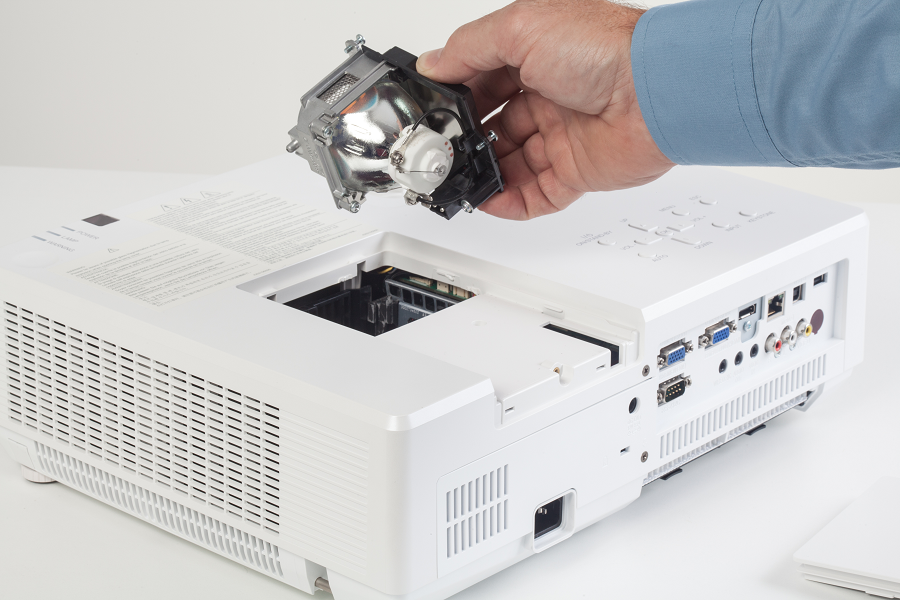

Icon of LC-WBS500 Hi-res Lamp InstallLC-WBS500 Hi-res Lamp InstallLC-WBS500 hires Lamp Install image7.9 MBJPG, ZIP
Icon of LC-WBS500 Hi-res Lens ShiftLC-WBS500 Hi-res Lens ShiftLC-WBS500 hires Lens Shift image8.1 MBJPG, ZIP

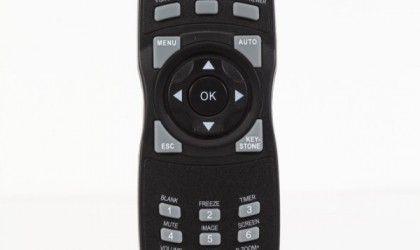

Icon of LC-WBS500 Hi-res RemoteLC-WBS500 Hi-res RemoteLC-WBS500 hires Remote image8.0 MBJPG, ZIP
Icon of LC-WBS500 Hi-res Side1LC-WBS500 Hi-res Side1LC-WBS500 hires Side1 image8.4 MBJPG, ZIP
Icon of LC-WBS500 Hi-res Side2LC-WBS500 Hi-res Side2LC-WBS500 hires Side2 image8.1 MBPDF, JPG
Icon of LC-WBS500 Lens ChartLC-WBS500 Lens ChartLC-WBS500 Lens Chart73.9 KBPDF
Icon of LC-WBS500 Owners ManualLC-WBS500 Owners ManualLC-WBS500 Owners Manual40.1 MBPDF
Icon of LC-WBS500 Remote Control CodesLC-WBS500 Remote Control CodesLC-WBS500 Remote Control Codes105.8 KBPDF
Icon of LC-WBS500 RS232 Basic Serial CommandsLC-WBS500 RS232 Basic Serial CommandsLC-WBS500 RS232 Basic Serial Commands437.9 KBPDF
Icon of LC-WBS500 SpecificationsLC-WBS500 SpecificationsLC-WBS500 Specifications272.0 KBPDF
