LC-X4 LCD Projector
LC-X4L (no lens) LCD Projector

Key Features

  • Projects 1024 x 768 pixels, for real XGA / MAC19 resolution.
  • 5200 ANSI Lumens at 90% uniformity with a 700:1 contrast ratio.
  • Projects images up to 40' wide (600" diagonal).
  • 230 MHz dot clock for compatibility with most workstations.
  • Smart data compression/expansion: compatibility up to UXGA / down to VGA.
  • Digital Connectivity: DVI data input and Panel Link™ technology.
  • HDTV Compatibility: 1080i, 1035i, 720p 575i/p, 480i/p.
  • Video scaling. Progressive scan optimizes HD stills and animation.
  • Digital Video Noise Reduction optimizes video image.
  • Accepts Composite, Component, and S-Video Input. Displays 4:3 and 16:9.
  • Multi-Format Video: NTSC / PA L / SECAM / NTSC 4.43 / PAL-M / PAL-N.
  • Power Lens Shift offsets the image in both directions: up & down.
  • Optional Telephoto, Midrange and WideAngle Lenses available.
  • 3 Year* Projector Warranty!

Included Accessories: Owner's Manual. AC Power Cord 10’ (3.m), Lens Cap. Computer Input Cable 6’ (1.8m) HD15~HD15. DVI Input Cable. DVI~HD15 A d a p t e r, MAC A d a p t e r. Wireless/wired Remote with Mouse Control and Laser Pointer & 2 x A A batteries and 1.5M wired remote cable. Mouse cables 9’ (2.75m) each for PS/2, Serial Port, ADB Port. Dust Cover.

Optional Accessories: Telephoto, Midrange and Wideangle Lenses. Replacement Lamps. Additional DVI, 5 BNC and Y/C Modules. PC (HD15) Input Module. HD-SDI Input Module. Upconverter Input Module. Hard Shipping Case with wheels and telescoping handle. Ceiling Mount and Post & Plate. Stacker Stand.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)

Display Technology 3LCD
Brightness (ANSI) 5,200 lumens
Native Resolution XGA (1024x768)
Max. Computer Input UXGA
Max. Video Input 1080i
Contrast Ratio 700:1
Panel Size 1.8" PolySilicon active matrix TFT Panels
Lens Type (Throw:Width) 2.1~2.6:1 (supplied lens)
Power Lens Shift Power Lens Shift, Ratio (T:B) >10:0~0:10
Keystone Correction U/D 40º;
Inputs 1. DVI: DVI x 1 data, RCA x 2 audio, 8-pin DIN x 1 control
2. RGB/DVD/HDTV: BNC x 5 video, RCA x 2 audio, 8-pin DIN x 1 control (RGB G-sync, RGB H+V, RGBHV, Component and Y, Pb/Cb, Pr/Cr)
3. Y/C: BNC x 2 & S-Video x 1 video, RCA x 2 audio
Outputs Audio: Output - Line (Stereo) RCA x 2 (L & R)
Sound System Audio: Output - Amplifier 3 Watts RMS (each L&R) Stereo
Audio: Output - Speakers 2 x 3.5 in. (5 x 9 cm) x 2
Network Control ---
Warranty 3 Yr./ 6000 Hr.*(Parts/Labor to Correct Defects)
Lamp Life 2,000 hours
Lamp Part # 610 292 4848 (2)
Fan Noise 45 dBA
Air Filter ---
Maximum Pitch ---
Weight 45.2 lbs. (20.5 kg.)
Ceiling Mount Part # ---
 NameDescriptionSizeType
Icon of LC-X4 Cad DrawingLC-X4 Cad Drawing115.8 KB
Icon of LC-X4 Cad Drawing AH-21012LC-X4 Cad Drawing AH-2101221.4 KB
Icon of LC-X4 Cad Drawing AH-21012 DxfLC-X4 Cad Drawing AH-21012 Dxf5.3 KB
Icon of LC-X4 Cad Drawing AH-21022LC-X4 Cad Drawing AH-2102222.2 KB
Icon of LC-X4 Cad Drawing AH-21022 DxfLC-X4 Cad Drawing AH-21022 Dxf7.0 KB
Icon of LC-X4 Cad Drawing AH-21031LC-X4 Cad Drawing AH-2103121.1 KB
Icon of LC-X4 Cad Drawing AH-21031 DxfLC-X4 Cad Drawing AH-21031 Dxf5.3 KB
Icon of LC-X4 Cad Drawing AH-21041LC-X4 Cad Drawing AH-2104122.5 KB
Icon of LC-X4 Cad Drawing AH-21041 DxfLC-X4 Cad Drawing AH-21041 Dxf6.7 KB
Icon of LC-X4 Cad Drawing AH-21091LC-X4 Cad Drawing AH-2109124.0 KB
Icon of LC-X4 Cad Drawing AH-21091 DxfLC-X4 Cad Drawing AH-21091 Dxf8.1 KB
Icon of LC-X4 Cad Drawing AH-21102LC-X4 Cad Drawing AH-2110224.3 KB
Icon of LC-X4 Cad Drawing AH-21102 DxfLC-X4 Cad Drawing AH-21102 Dxf7.9 KB
Icon of LC-X4 Cad Drawing AH-21202LC-X4 Cad Drawing AH-2120223.7 KB
Icon of LC-X4 Cad Drawing AH-21202 DxfLC-X4 Cad Drawing AH-21202 Dxf7.4 KB
Icon of LC-X4 Cad Drawing AH-22051LC-X4 Cad Drawing AH-2205122.7 KB
Icon of LC-X4 Cad Drawing AH-22051 DxfLC-X4 Cad Drawing AH-22051 Dxf7.1 KB
Icon of LC-X4 Cad Drawing AH-32021LC-X4 Cad Drawing AH-3202123.6 KB
Icon of LC-X4 Cad Drawing AH-32021 DxfLC-X4 Cad Drawing AH-32021 Dxf8.3 KB
Icon of LC-X4 Cad Drawing DxfLC-X4 Cad Drawing Dxf169.5 KB
Icon of LC-X4 Cad Drawing Opt Lens ProtrusionsLC-X4 Cad Drawing Opt Lens Protrusions96.3 KB

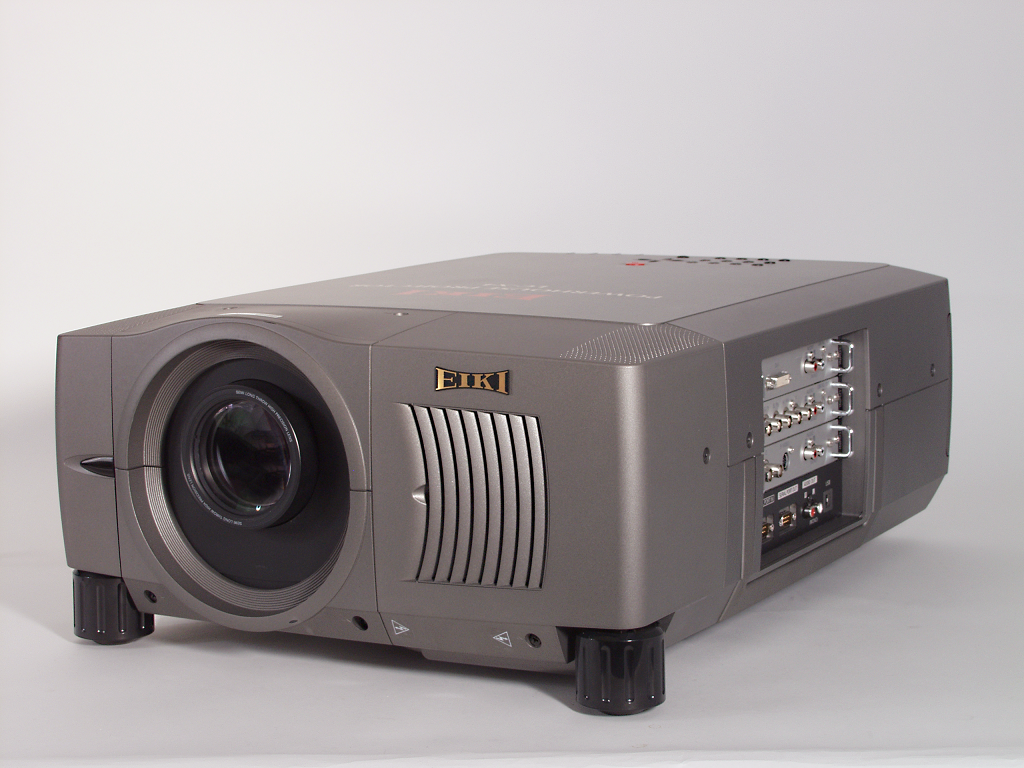

Icon of LC-X4 Hi-res Image BeautyLC-X4 Hi-res Image BeautyLC-X4 Hi-res Image Beauty7.8 MBZIP, TIF

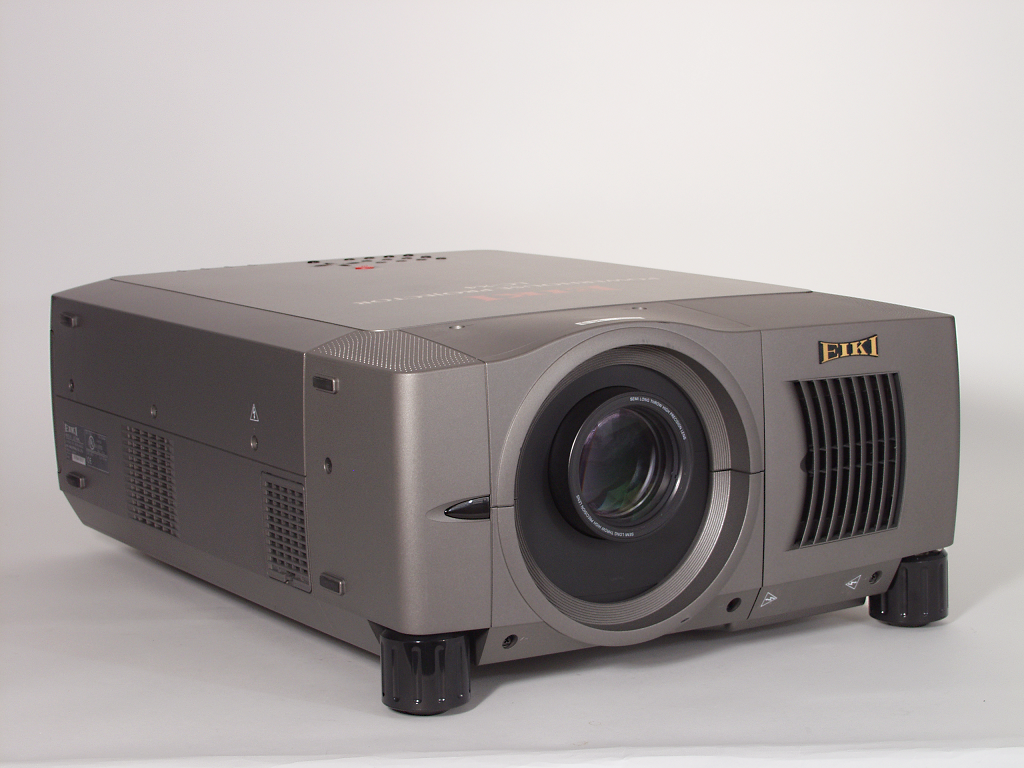

Icon of LC-X4 Hi-res Image Beauty2LC-X4 Hi-res Image Beauty2LC-X4 Hi-res Image Beauty27.8 MBZIP, TIF

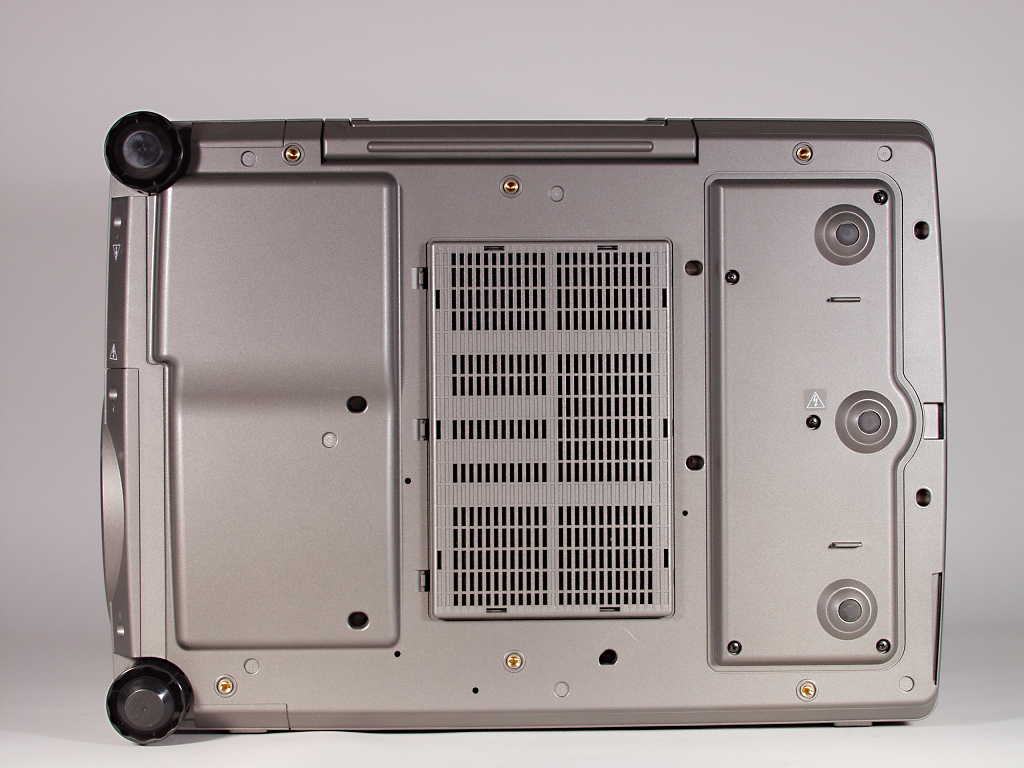

Icon of LC-X4 Hi-res Image BottomLC-X4 Hi-res Image BottomLC-X4 Hi-res Image Bottom9.6 MBZIP, TIF

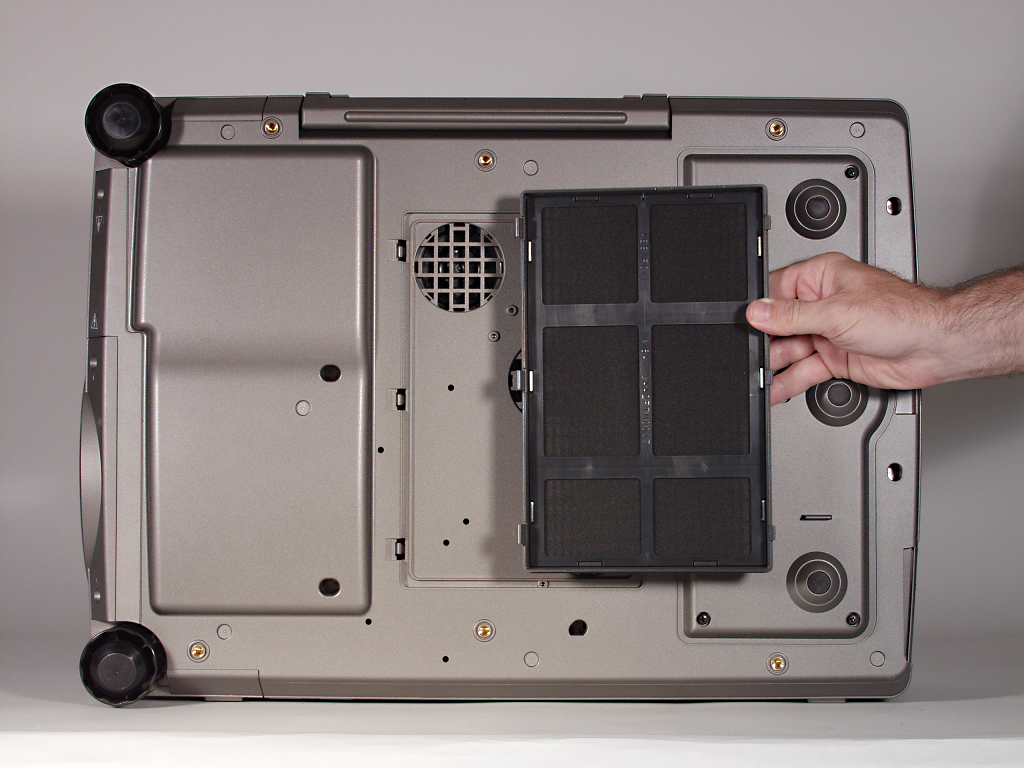

Icon of LC-X4 Hi-res Image Filters1LC-X4 Hi-res Image Filters1LC-X4 Hi-res Image Filters19.6 MBZIP, TIF

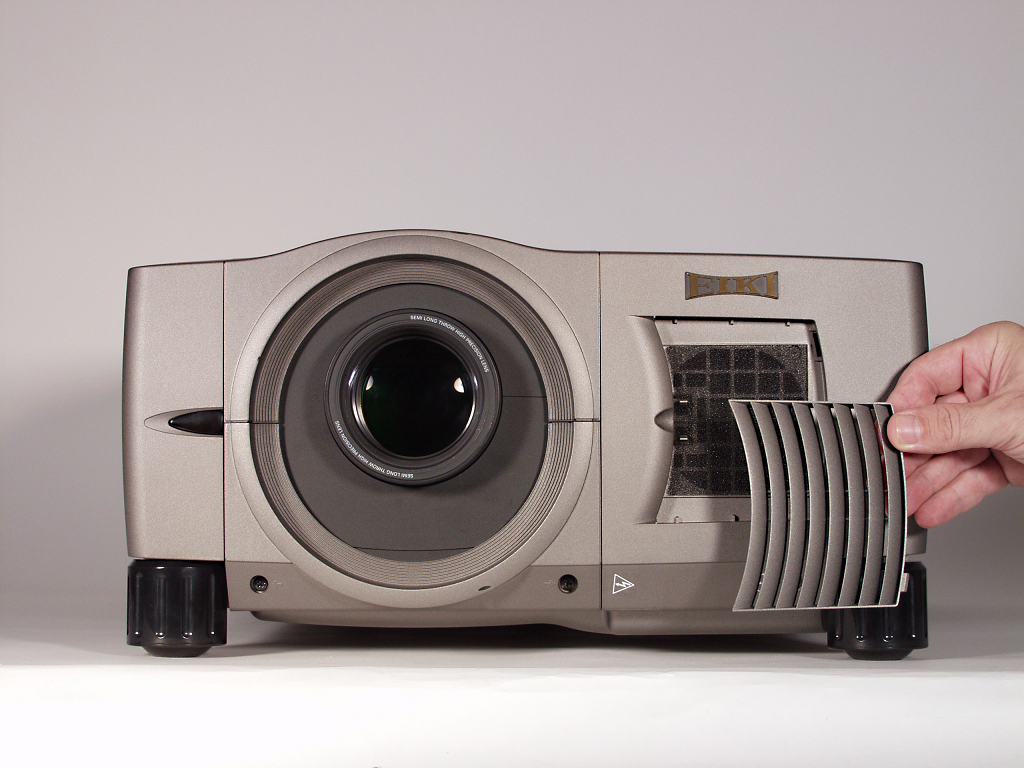

Icon of LC-X4 Hi-res Image Filters2LC-X4 Hi-res Image Filters2LC-X4 Hi-res Image Filters28.5 MBZIP, TIF

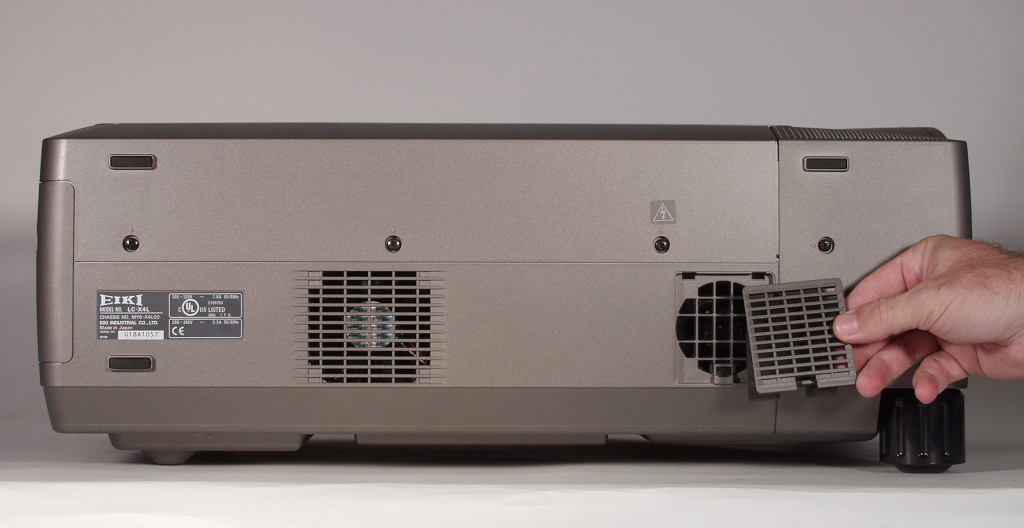

Icon of LC-X4 Hi-res Image Filters3LC-X4 Hi-res Image Filters3LC-X4 Hi-res Image Filters312.0 MBZIP, TIF

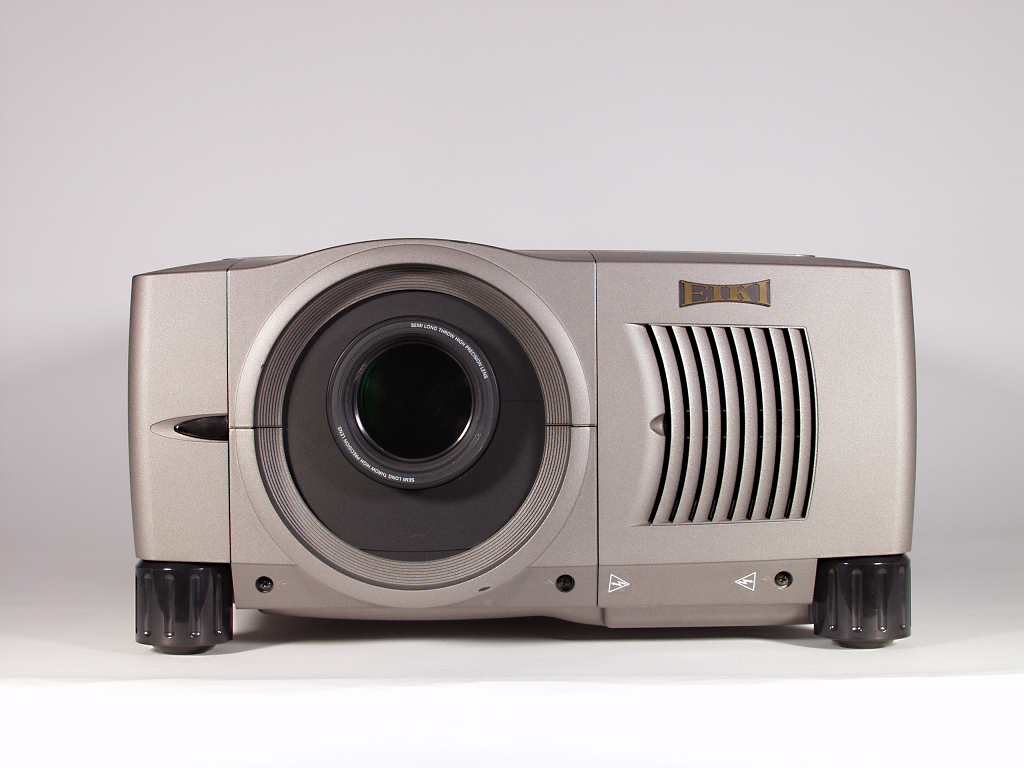

Icon of LC-X4 Hi-res Image FrontLC-X4 Hi-res Image FrontLC-X4 Hi-res Image Front7.4 MBZIP, TIF

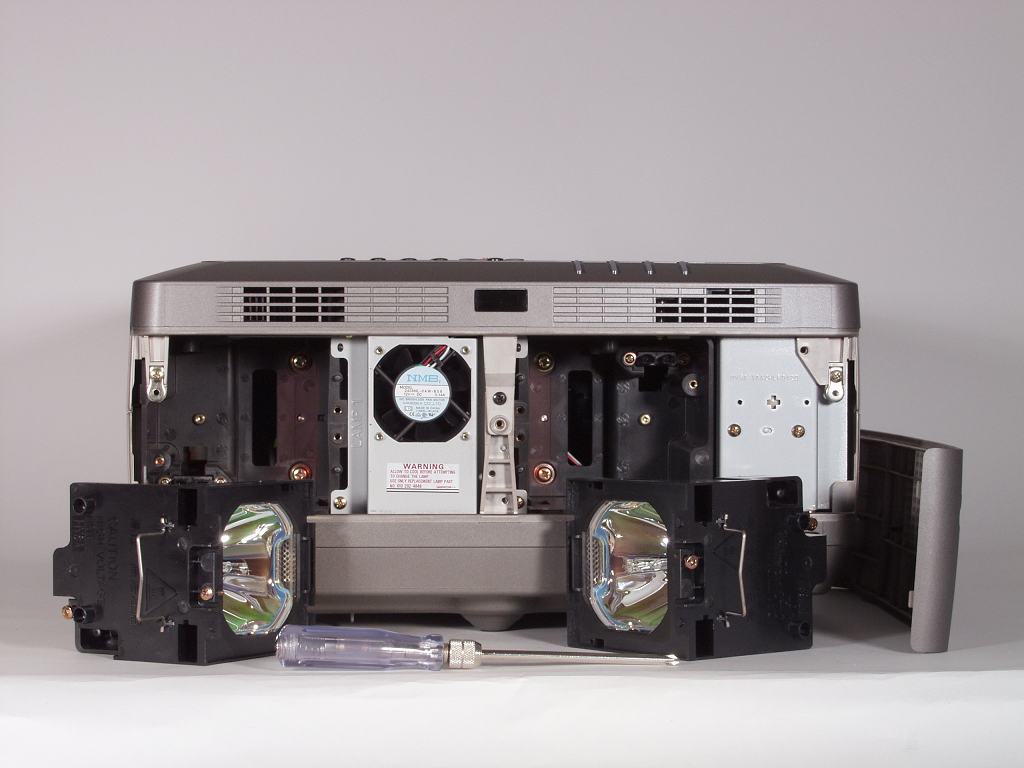

Icon of LC-X4 Hi-res Image LampLC-X4 Hi-res Image LampLC-X4 Hi-res Image Lamp8.1 MBZIP, TIF

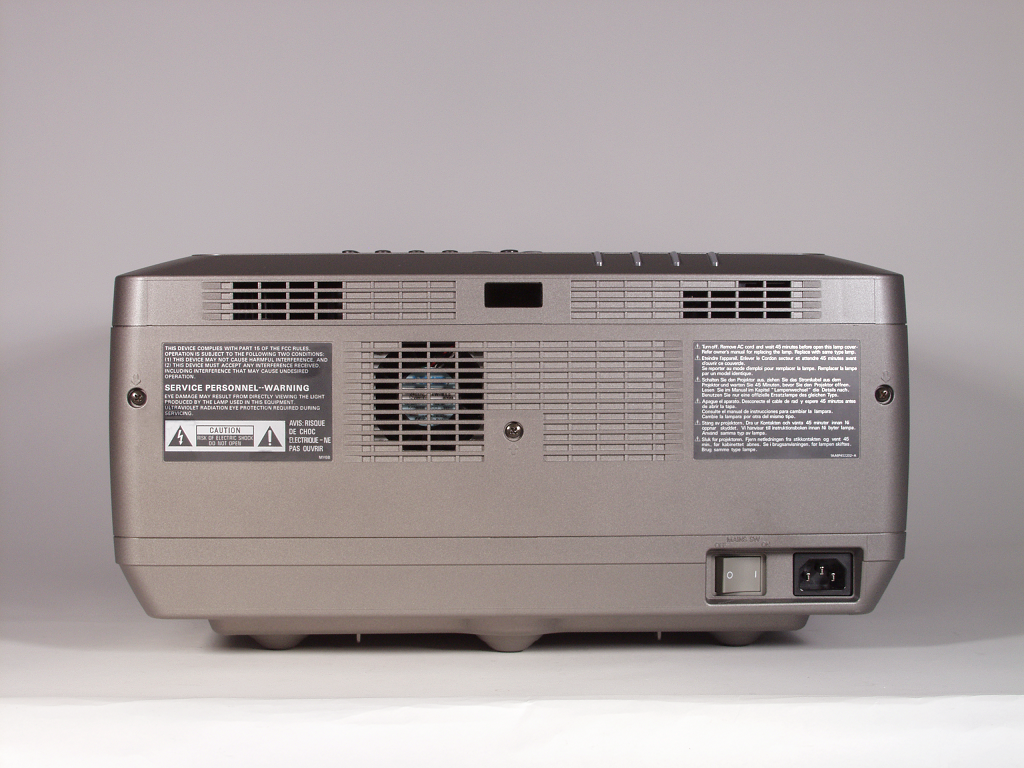

Icon of LC-X4 Hi-res Image RearLC-X4 Hi-res Image RearLC-X4 Hi-res Image Rear7.8 MBZIP, TIF
Icon of LC-X4 Hi-res Image RemoteLC-X4 Hi-res Image RemoteLC-X4 Hi-res Image Remote2.6 MBZIP, TIF

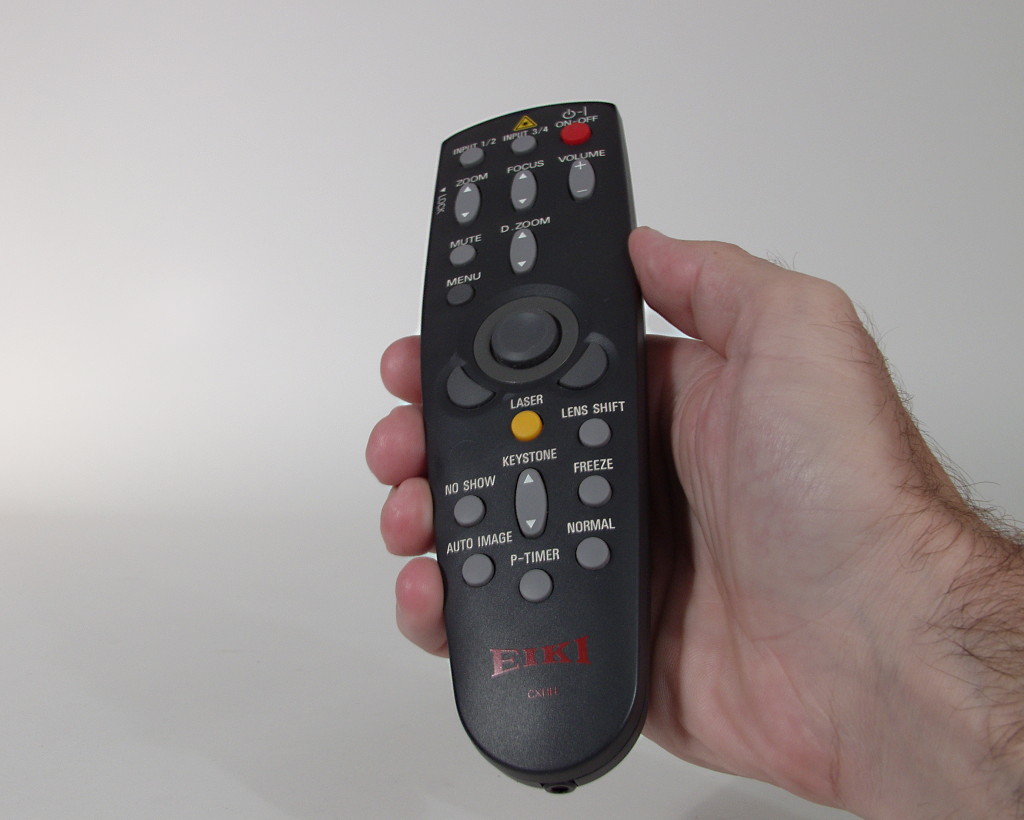

Icon of LC-X4 Hi-res Image Remote HandLC-X4 Hi-res Image Remote HandLC-X4 Hi-res Image Remote Hand7.7 MBZIP, TIF

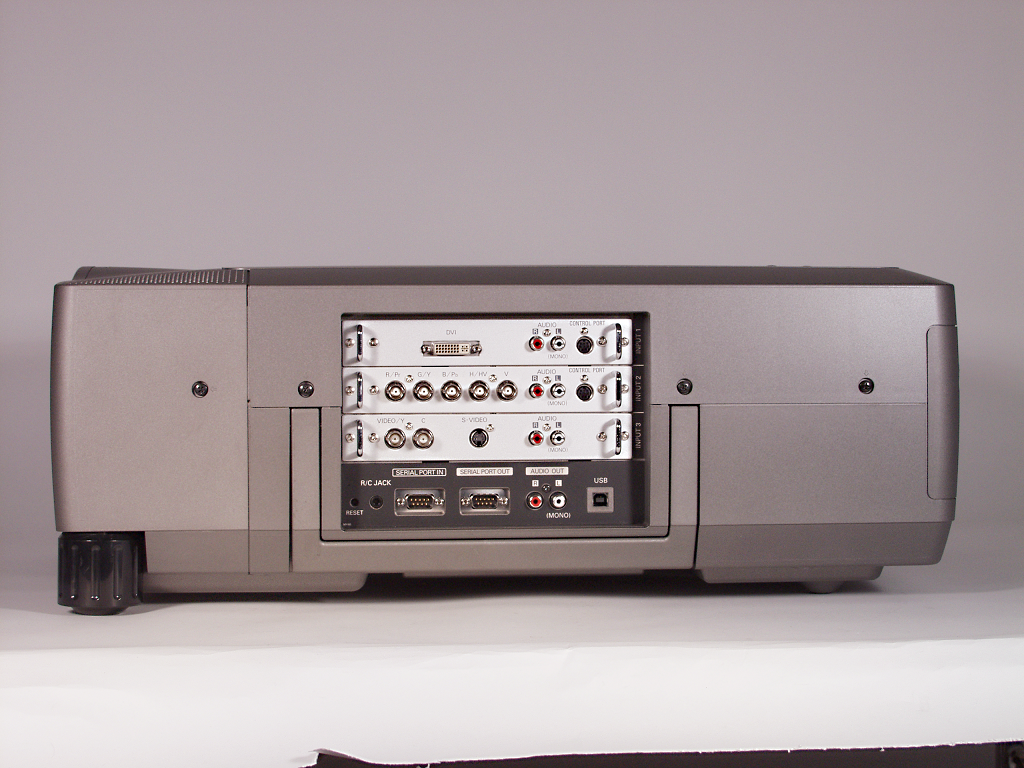

Icon of LC-X4 Hi-res Image Side1LC-X4 Hi-res Image Side1LC-X4 Hi-res Image Side17.8 MBZIP, TIF

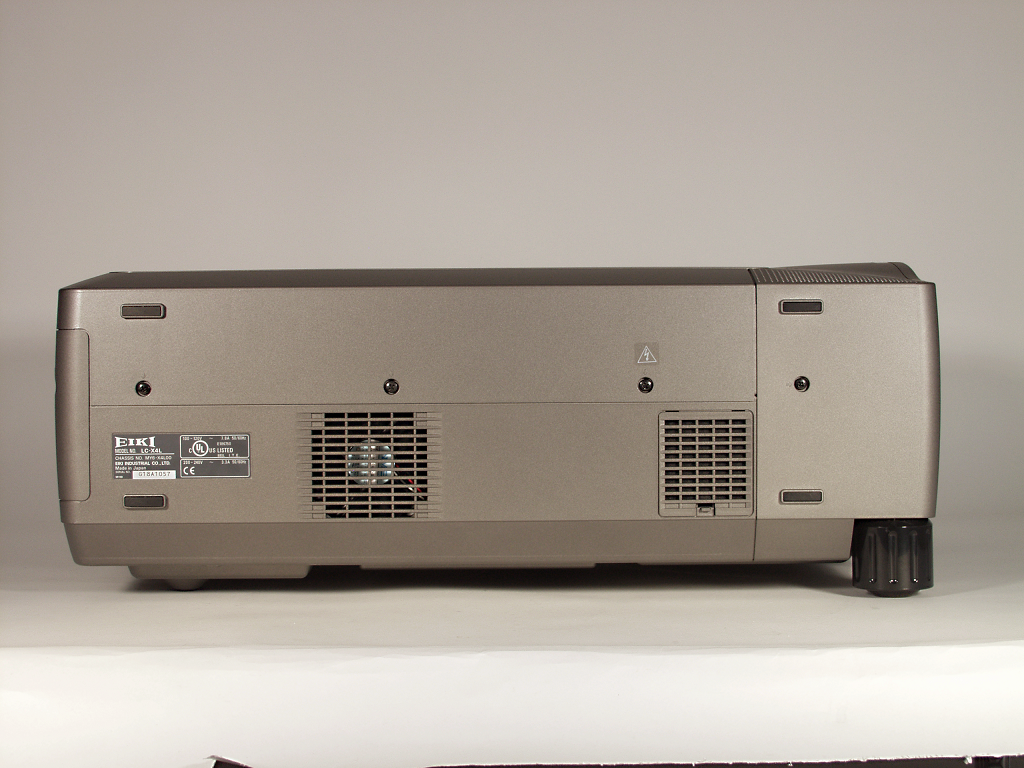

Icon of LC-X4 Hi-res Image Side2LC-X4 Hi-res Image Side2LC-X4 Hi-res Image Side216.4 MBZIP, TIF

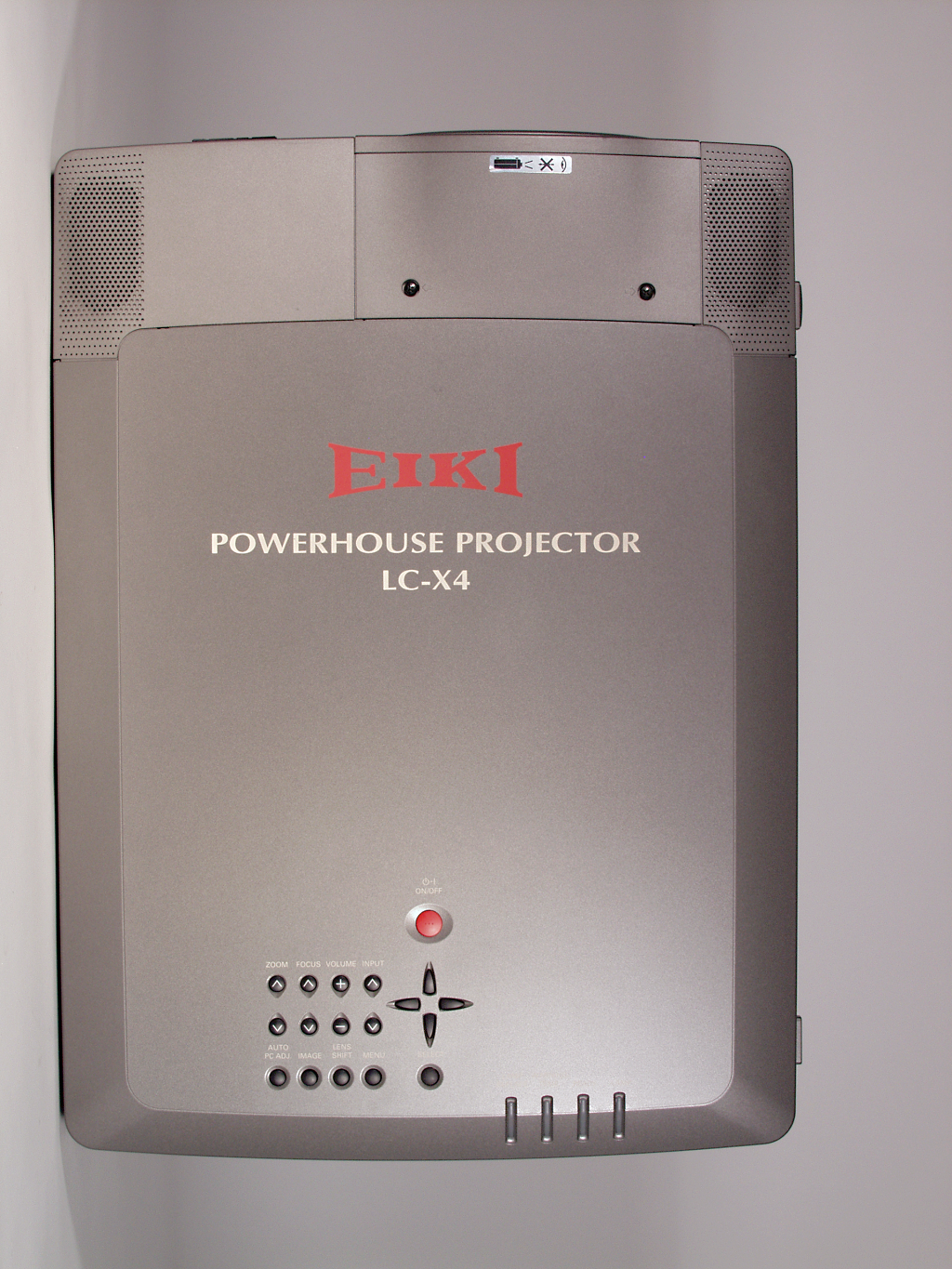

Icon of LC-X4 Hi-res Image TopLC-X4 Hi-res Image TopLC-X4 Hi-res Image Top9.3 MBZIP, TIF
Icon of LC-X4 Lens ChartLC-X4 Lens ChartLC-X4 Lens Chart57.6 KBPDF
Icon of LC-X4 Owners ManualLC-X4 Owners ManualLC-X4 Owners Manual940.4 KBPDF
Icon of LC-X4 Remote Control CodesLC-X4 Remote Control CodesLC-X4 Remote Control Codes18.4 KBPDF
Icon of LC-X4 RS-232 Basic Serial CommandsLC-X4 RS-232 Basic Serial CommandsLC-X4 RS-232 Basic Serial Commands79.5 KBPDF
Icon of LC-X4 RS-232 Extended Serial CommandsLC-X4 RS-232 Extended Serial CommandsLC-X4 RS-232 Extended Serial Commands314.2 KBPDF
Icon of LC-X4 SpecificationsLC-X4 SpecificationsLC-X4 Specifications66.2 KBPDF

Related Products

945 047 7875 Remote
945 047 7875 Remote
Infrared & Wired w/ Laser Pointer and Mouse Control
0001-4260 Lens
0001-4260 Lens
Manual Zoom & Focus FL: 4.49″ ~ 7.72″ ( 114 ~ 196mm ) f:2.00
0001-4261 Lens
0001-4261 Lens
Manual Zoom & Focus FL: 7.25″~12.38″ ( 184 ~ 314mm ) f:2.8

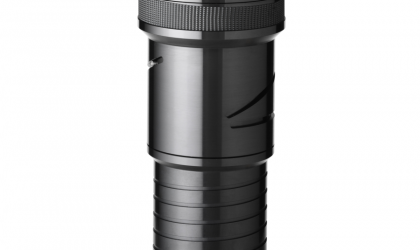

0001-4297 Lens
0001-4297 Lens
Manual Zoom & Focus FL: 2.75" ~ 5.00" ( 70.0 ~ 125.0mm ) f:2.0
945 044 0978 Lens
945 044 0978 Lens
Power Zoom & Focus FL:2.98″ ~ 3.84″ ( 75.7 ~ 97.5mm ) f:2.00 ~ 2.30
AH-21023 Lens
AH-21023 Lens
Power Zoom & Focus FL: 4.90″ ~ 6.37″ ( 124.5 ~ 161.8mm ) f:2.00 ~ 2.60
AH-21092 Lens
AH-21092 Lens
Power Zoom & Focus FL: 6.22″~ 8.7″ ( 158.0 ~ 221.0mm ) f:2.00 ~ 2.80
AH-21401 Lens
AH-21401 Lens
Power Zoom & Focus FL: 2.99″ ~ 3.86″ ( 76 ~ 98mm ) f:2.0 ~ 2.6
AH-21202 Lens
AH-21202 Lens
Power Zoom & Focus FL: 2.06″ ~ 2.67″ ( 52.2 ~ 67.9mm ) f:2.53 ~ 2.95
AH-22051 Lens
AH-22051 Lens
Power Zoom & Focus FL: 3.82″ ~ 5.16″ ( 97.0 ~ 131mm ) f:1.70 ~ 2.70
AH-32022 Lens
AH-32022 Lens
Fixed Focus FL: 1.18″ (30.0 mm) f:2.5 On-Axis only!
AH-32581 Lens
AH-32581 Lens
Manual Zoom & Focus FL: 8.82″~ 12.8″ ( 224 ~ 325mm ) f:2.20 ~ 2.50
AH-32601 Lens
AH-32601 Lens
Power Zoom & Focus FL: 1.77″ ~ 2.25″ ( 45 ~ 57mm ) f:2.3 ~ 2.8
910 292 3187 Filter
910 292 3187 Filter
Replacement Filter Net - c (Foam -Side)
910 292 3163 Filter
910 292 3163 Filter
Replacement Filter Net - a (Foam - Bottom)
610 292 4848 Lamp
610 292 4848 Lamp
Rated Power: 200W
Lamp type: UHP
Life Expectancy: 2000h
Lamp Warranty: 90 Days (Pro-Rata)
(2) used in each projector
