LC-X6 LCD Projector

Key Features

  • 6,500 ANSI Lumens at 90% uniformity with a 1300:1 contrast ratio.
  • Native XGA. Compatible with UXGA through VGA. Video Scaling.
  • Works on 120V AC power (15 amp circuit). No special wiring needed.
  • Projects images up to 33.3' wide (500" diagonal). Wide choice of lenses.
  • Some lenses feature memory. Improved Lens Installation System.
  • Compatible with most video signal input, including DVI, RGB, Y/C, DVD, HDTV.
  • Displays video 4:3 & 16:9 in NTSC/PAL/SECAM/NTSC 4.43/PAL-M/PAL-N.
  • Improved progressive scan with HDTV at 1080i and 2-3 pulldown support.
  • 3 fixed inputs, two modular bays. Wide range of available modules.
  • Supplied software permits the preconfiguring of color adjustments.
  • Optional Network Control module permits network monitoring and control.
  • Stackable Cabinet Design.
  • 3 Year / 6000 Hr.* Warranty!

New Features

  1. Compatibility up to UXGA (1600x1200) & HDCP
  2. Touch-pad menu navigation on remote control
  3. Accepts computer USB Mouse for projector control
  4. 3 fixed inputs, 2 module bays
  5. Included Image Warp & Blending module
  6. RF Wireless / Wired remote control
  7. Built-in mechanical shutter. Custom warm-up screen image option
  8. PIN code security for Remote and Local control
  9. Key Lock, PJ Lock and USB Lock Security
  10. Advanced Network optional interface module
  11. Lens memory for shift, zoom, and focus with selected lenses
  12. Utilizes existing Powerhouse lenses (but different Throw:Width)

Included Accessories: Owner's Manual. AC Power Cord 10’ (3.m). VGA type Input Cable 6’ (1.8m) HD-15~HD-15. DVI Input Cable. DVI-D input cable 6' (1.8m). Wireless/wired Remote with Mouse Control & 2 x AA batteries and 1.5M wired remote cable. Lens light shield x 2. Dust Cover. Real Color Management Software. Advanced Screen Manger Software.

Optional Accessories: Telephoto, Midrange and Wideangle Lenses. Replacement Lamps. Additional DVI, 5 BNC and Y/C Input Modules. PC(HD15) Input Module. HD-SDI Input Module. SD-SDI Module. Dual SDI Module. Faroudja Upconverter Input Module. Advanced Network Module. Projector USB Key. Smoke Resist Box. Hard Shipping Case with wheels and telescoping handle. Ceiling Mount and Post & Plate. Long Life Lamp & Ballast Kit. Extra Long Life Lamp & Ballast Kit. Eztrol Local Control. NPC-1 Network Cantrol

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)
()

Display Technology 3LCD
Brightness (ANSI) 6,500 lumens
Native Resolution SXGA+ (1400x1050)
Max. Computer Input UXGA
Max. Video Input --
Contrast Ratio 1300:1
Panel Size 1.4" PolySilicon active matrix TFT Panels
Lens (Throw:Width) Changeable - Does not come with Lens
Power Lens Shift Ratio (T:B) 10:0~0:10; Ratio (L:R) 3:2~2:3
Keystone Correction Digital: U/D up-to 35º; L/R up-to 20º
Inputs Dsub15 x 1; DVI-D (w/ HDCP) x 1; BNC x 5; 3BNC; 1BNC; S-Video x 1; RCA x 2; Empty module bay x 2;
Outputs Dsub15 x 1;
Sound System ---
Network Control Optional Network Control module permits network monitoring and control.
Warranty 3 year/6000 hrs. (whichever comes first) projector warranty.
Lamp Life Up to 3,000 hours per lamp
Lamp Part # 610 315 7689 (2)
Fan Noise 42 dBA, 39 in Eco mode
Air Filter --
Maximum Pitch up-to 360° (max 20° tilt)
Weight   54.3 lbs. (24.7kg)
Ceiling Mount Part # --
 NameDescriptionSizeType
Icon of LC-X6 Cad Drawing DxfLC-X6 Cad Drawing Dxf4.2 MB
Icon of LC-X6 Cad Drawing Opt Lens ProtrusionsLC-X6 Cad Drawing Opt Lens Protrusions462.4 KB
Icon of LC-X6 Cad Drawing Opt Lens Protrusions DxfLC-X6 Cad Drawing Opt Lens Protrusions Dxf4.3 MB
Icon of LC-X6 Cad Drawing Smoke Resistant BoxLC-X6 Cad Drawing Smoke Resistant Box174.1 KB
Icon of LC-X6 Cad Drawing Terminals CoveredLC-X6 Cad Drawing Terminals Covered279.8 KB
Icon of LC-X6 Cad Drawing Terminals ExposedLC-X6 Cad Drawing Terminals Exposed360.6 KB
Icon of LC-X60 Cad DrawingLC-X60 Cad Drawing119.9 KB
Icon of LC-X60 Cad Drawing DxfLC-X60 Cad Drawing Dxf303.6 KB
Icon of LC-X6 Color Data SheetLC-X6 Color Data Sheet250.7 KB
Icon of LC-X60 Color Data SheetLC-X60 Color Data Sheet975.6 KB

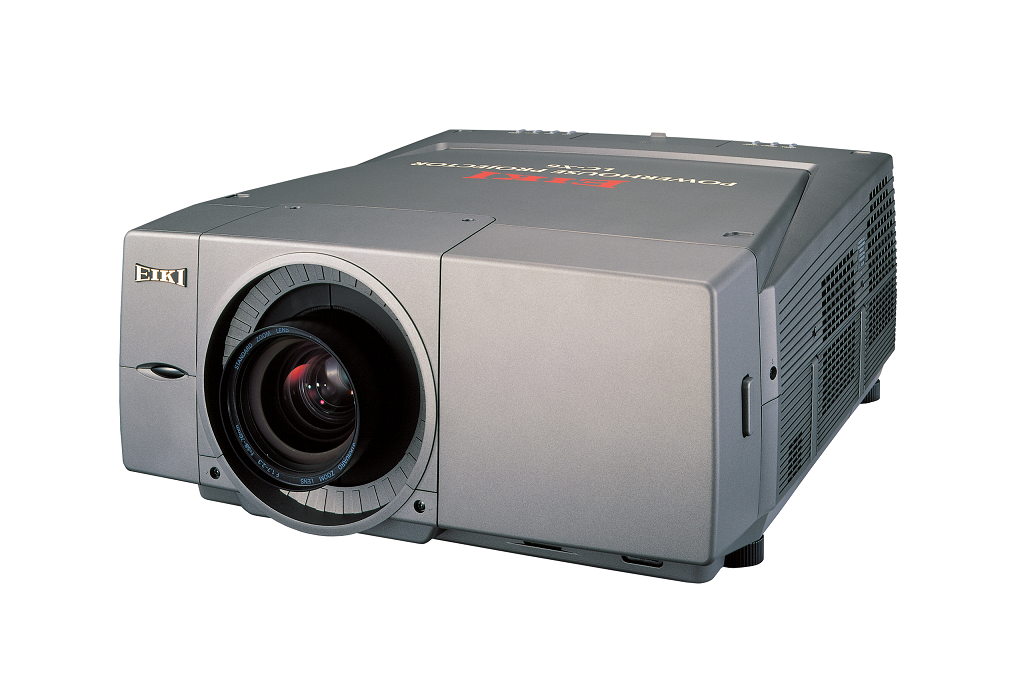

Icon of LC-X6 Hi-res Image BeautyLC-X6 Hi-res Image BeautyLC-X6 Hi-res Image Beauty4.0 MBZIP, TIF

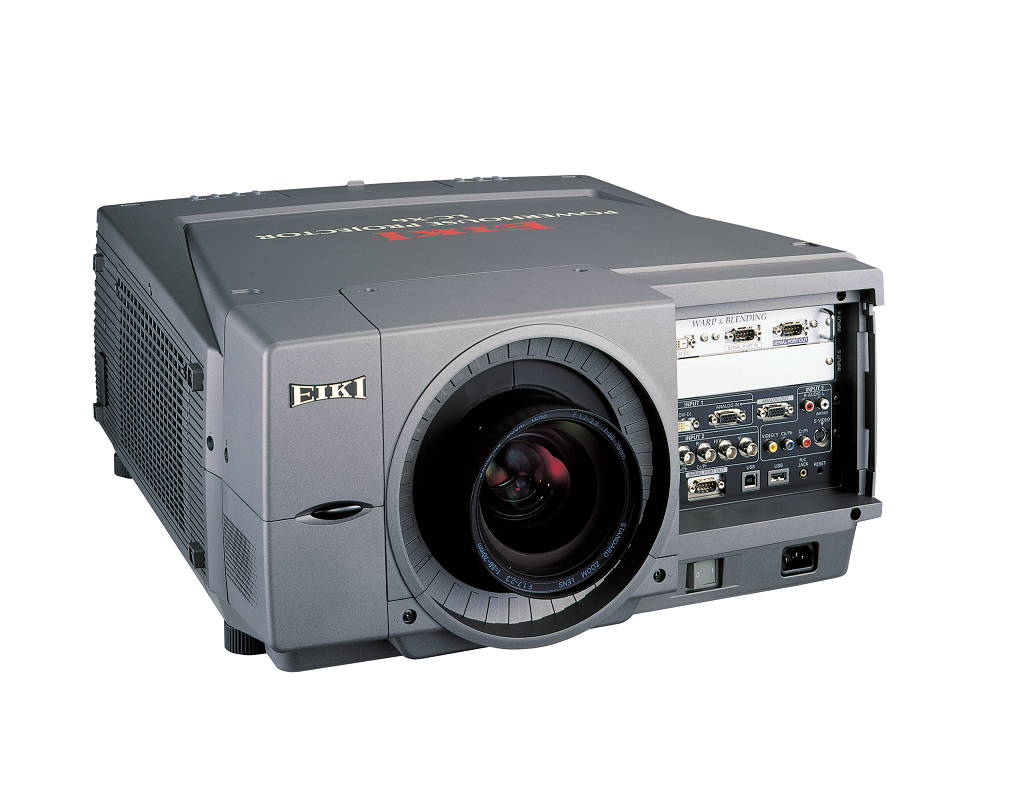

Icon of LC-X6 Hi-res Image Beauty2LC-X6 Hi-res Image Beauty2LC-X6 Hi-res Image Beauty24.4 MBZIP, TIF

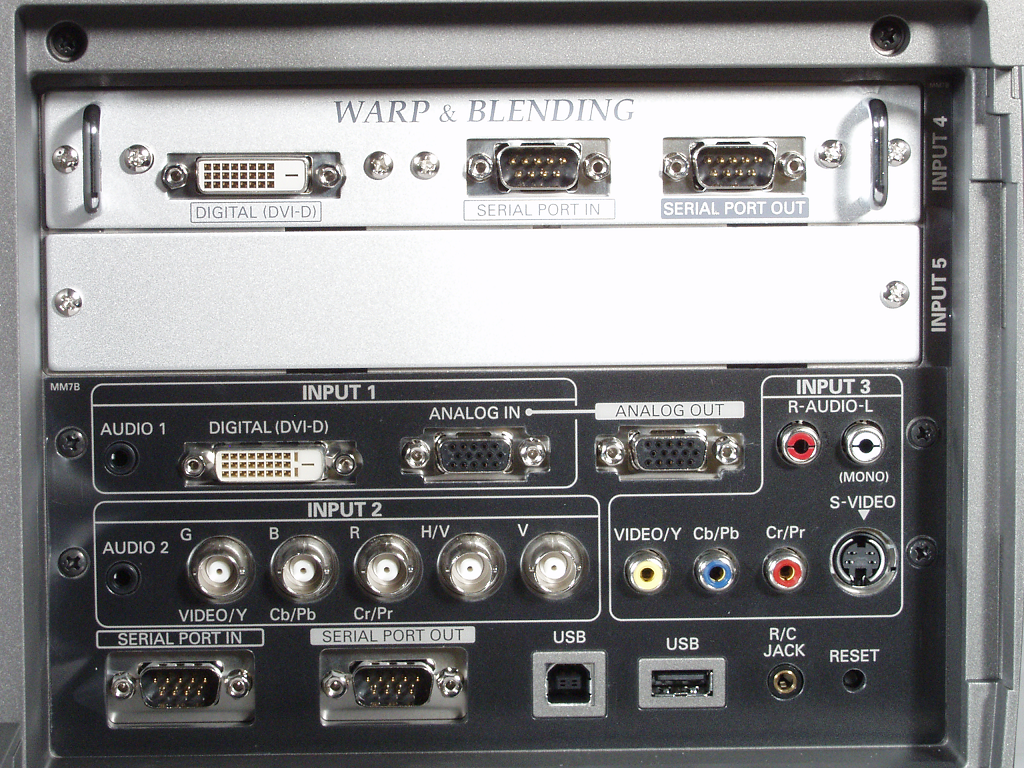

Icon of LC-X6 Hi-res Image ConnectionsLC-X6 Hi-res Image ConnectionsLC-X6 Hi-res Image Connections8.6 MBZIP, TIF

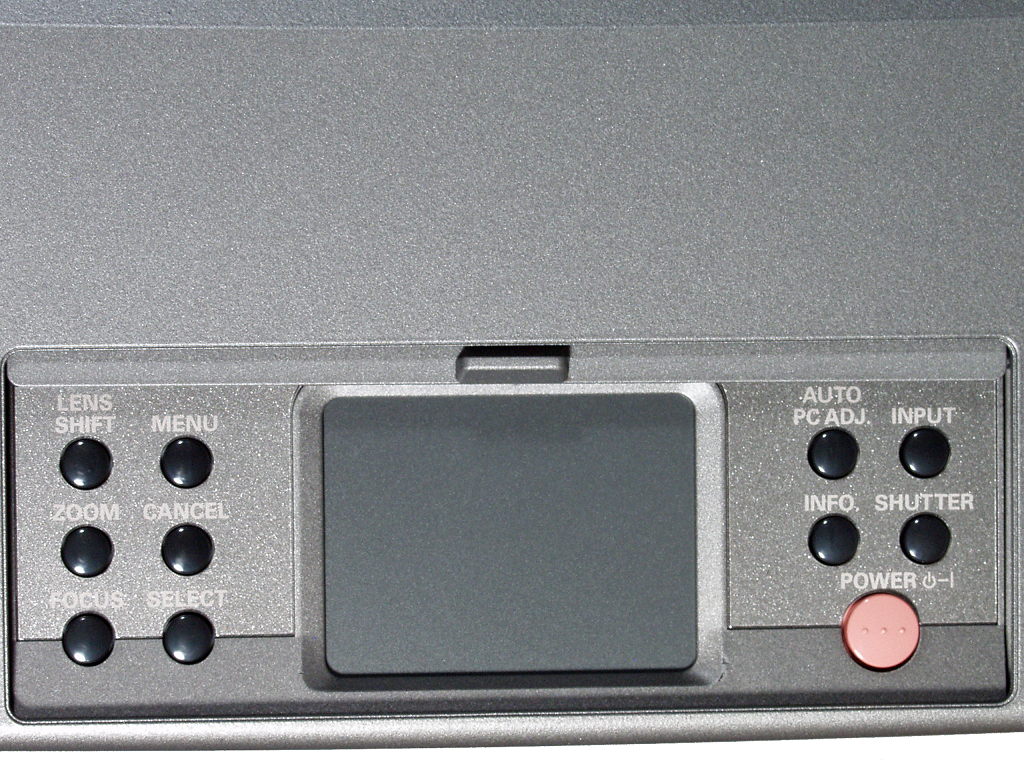

Icon of LC-X6 Hi-res Image ControlsLC-X6 Hi-res Image ControlsLC-X6 Hi-res Image Controls9.6 MBZIP, TIF

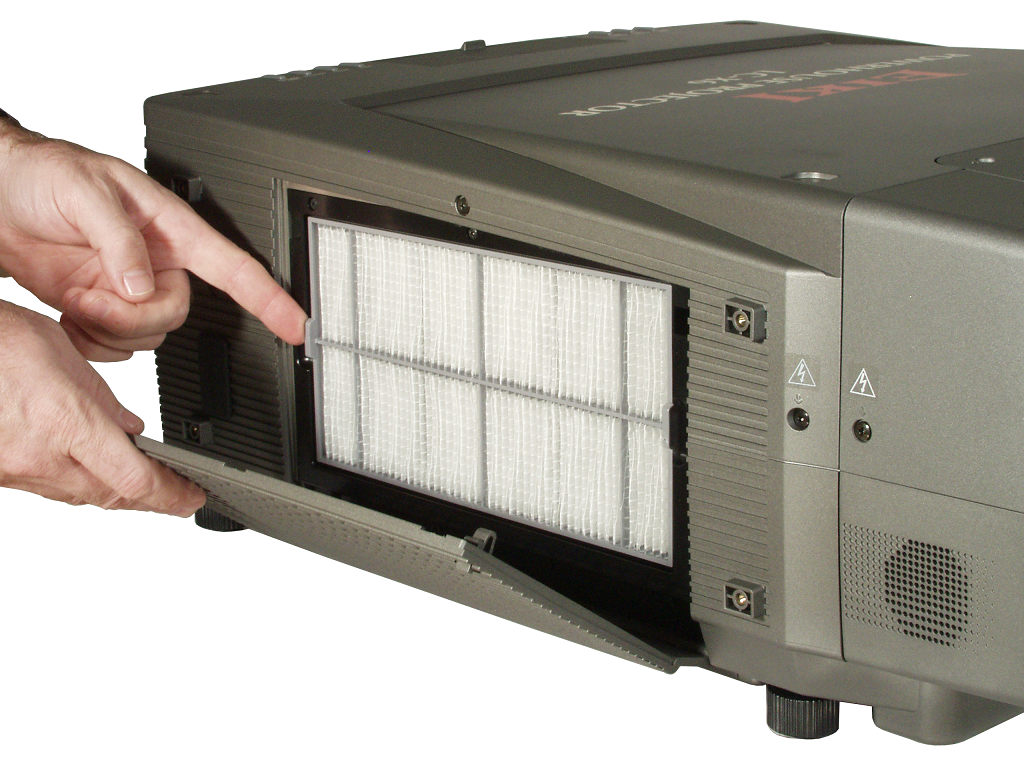

Icon of LC-X6 Hi-res Image FilterLC-X6 Hi-res Image FilterLC-X6 Hi-res Image Filter6.4 MBZIP, TIF

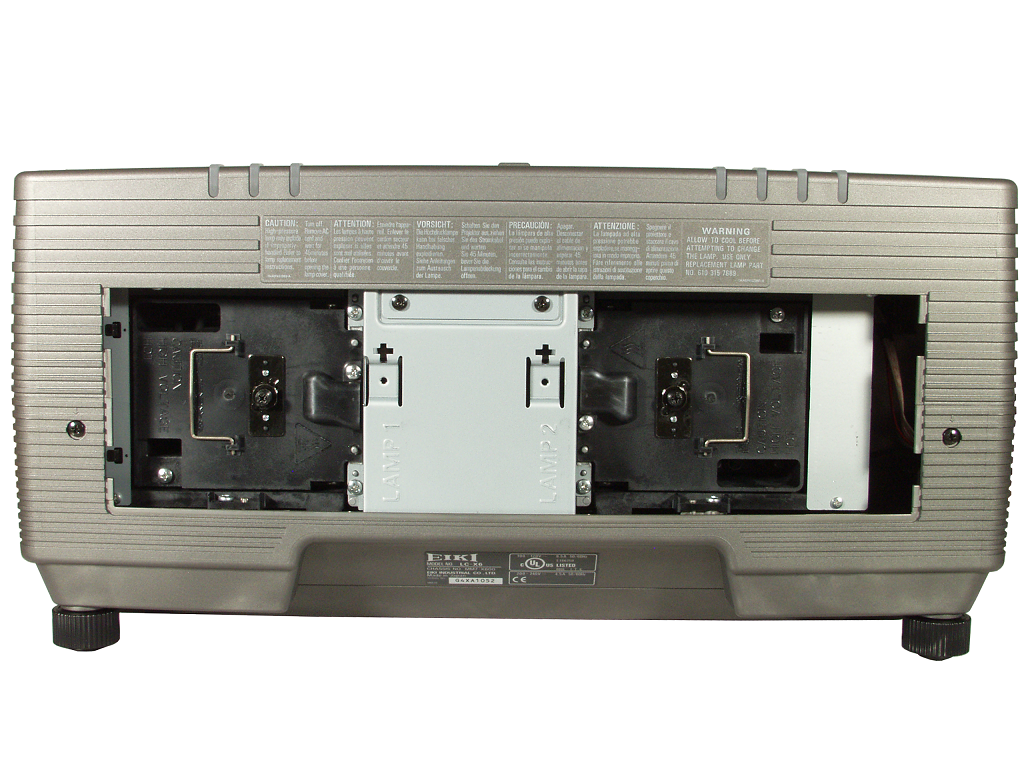

Icon of LC-X6 Hi-res Image LampLC-X6 Hi-res Image LampLC-X6 Hi-res Image Lamp5.3 MBZIP, TIF

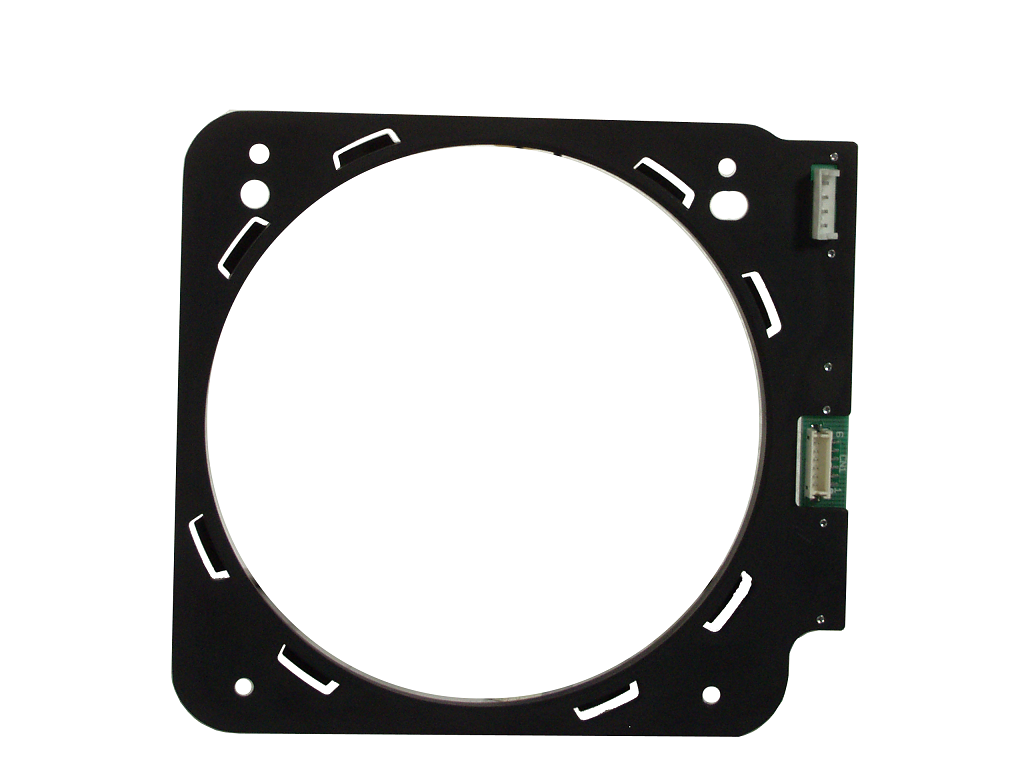

Icon of LC-X6 Hi-res Image Lens AdapterLC-X6 Hi-res Image Lens AdapterLC-X6 Hi-res Image Lens Adapter1.7 MBZIP, TIF

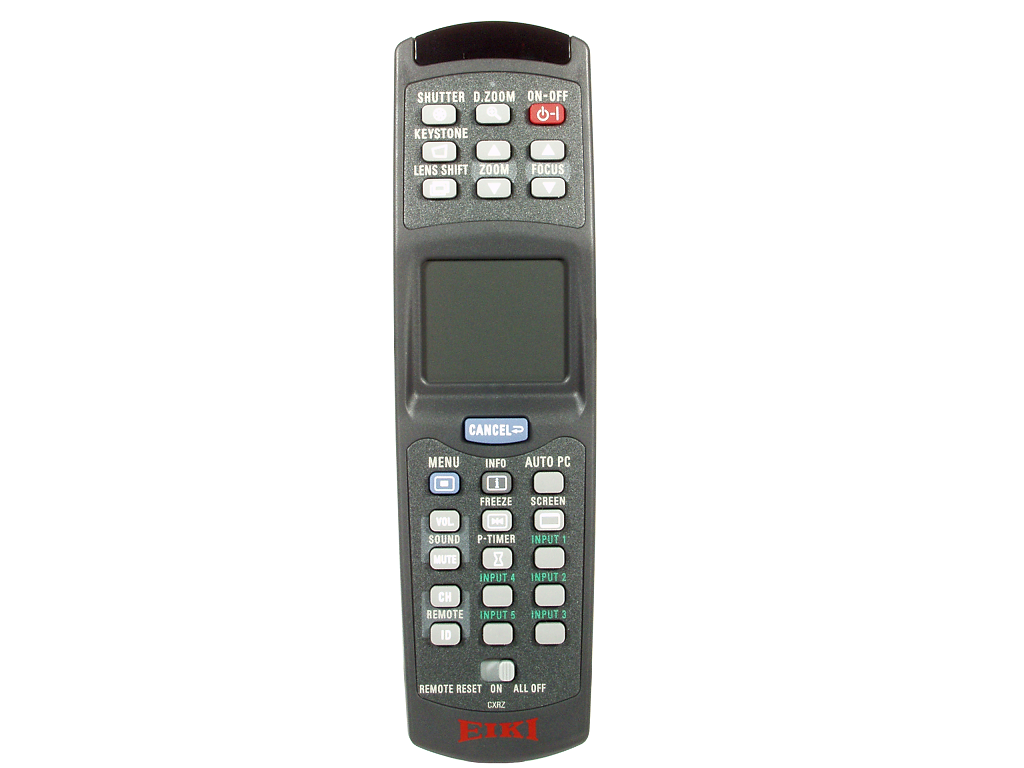

Icon of LC-X6 Hi-res Image RemoteLC-X6 Hi-res Image RemoteLC-X6 Hi-res Image Remote2.1 MBZIP, TIF

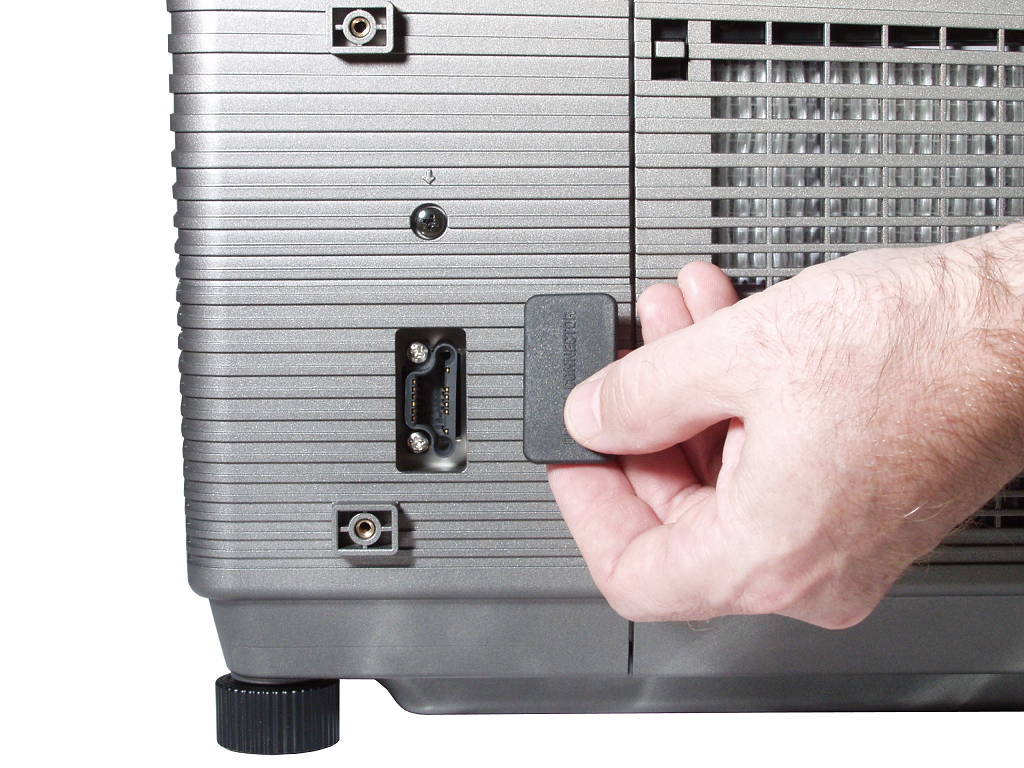

Icon of LC-X6 Hi-res Image Side ConnectorLC-X6 Hi-res Image Side ConnectorLC-X6 Hi-res Image Side Connector7.5 MBZIP, TIF
Icon of LC-X60 Hi-res Image BeautyLC-X60 Hi-res Image BeautyLC-X60 Hi-res Image Beauty5.5 MBZIP, TIF
Icon of LC-X60 Hi-res Image Beauty2LC-X60 Hi-res Image Beauty2LC-X60 Hi-res Image Beauty212.2 MBZIP, TIF
Icon of LC-X60 Hi-res Image ConnectionLC-X60 Hi-res Image ConnectionLC-X60 Hi-res Image Connection11.5 MBZIP, TIF
Icon of LC-X60 Hi-res Image FrontLC-X60 Hi-res Image FrontLC-X60 Hi-res Image Front4.9 MBZIP, TIF
Icon of LC-X60 Hi-res Image RemoteLC-X60 Hi-res Image RemoteLC-X60 Hi-res Image Remote3.3 MBZIP, TIF
Icon of LC-X6 Lens ChartLC-X6 Lens ChartLC-X6 Lens Chart49.3 KBPDF
Icon of LC-X60 Lens ChartLC-X60 Lens ChartLC-X60 Lens Chart32.4 KBPDF
Icon of LC-X6 Owners ManualLC-X6 Owners ManualLC-X6 Owners Manual4.4 MBPDF
Icon of LC-X60 Owners ManualLC-X60 Owners ManualLC-X60 Owners Manual2.0 MBPDF
Icon of LC-X6 RS-232 Basic Serial CommandsLC-X6 RS-232 Basic Serial CommandsLC-X6 RS-232 Basic Serial Commands843.4 KBPDF
Icon of LC-X6 RS-232 Extended Serial CommandsLC-X6 RS-232 Extended Serial CommandsLC-X6 RS-232 Extended Serial Commands2.8 MBPDF
Icon of LC-X60 RS-232 Basic Serial CommandsLC-X60 RS-232 Basic Serial CommandsLC-X60 RS-232 Basic Serial Commands896.4 KBPDF
Icon of LC-X60 RS-232 Extended Serial CommandsLC-X60 RS-232 Extended Serial CommandsLC-X60 RS-232 Extended Serial Commands2.1 MBPDF
Icon of LC-X6 SpecificationsLC-X6 SpecificationsLC-X6 Specifications36.3 KBPDF
Icon of LC-X60 SpecificationsLC-X60 SpecificationsLC-X60 Specifications35.4 KBPDF
