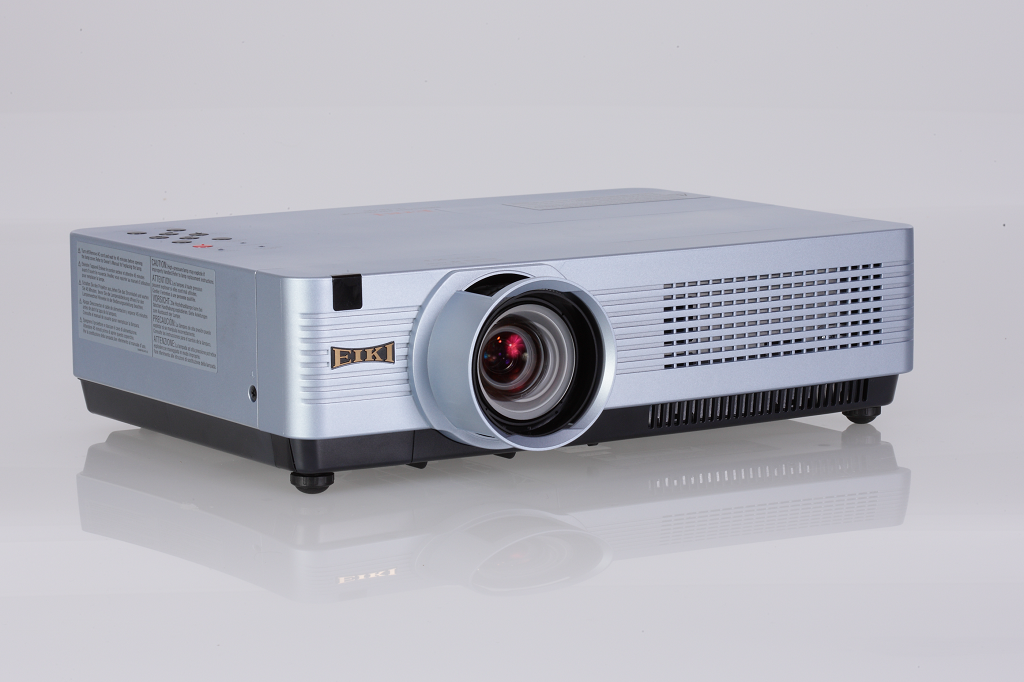

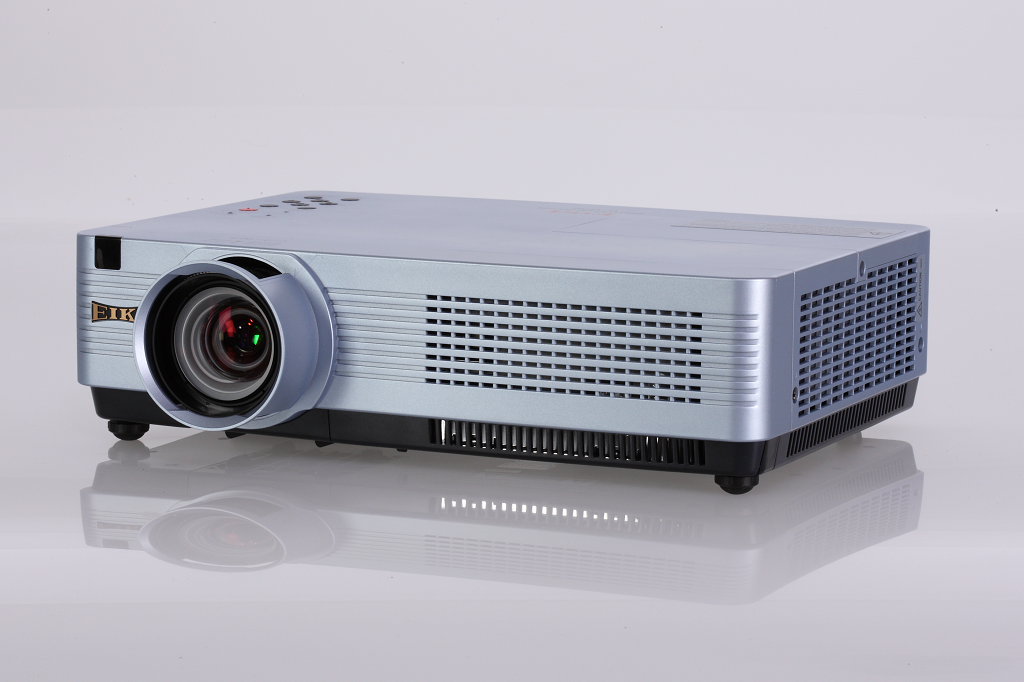

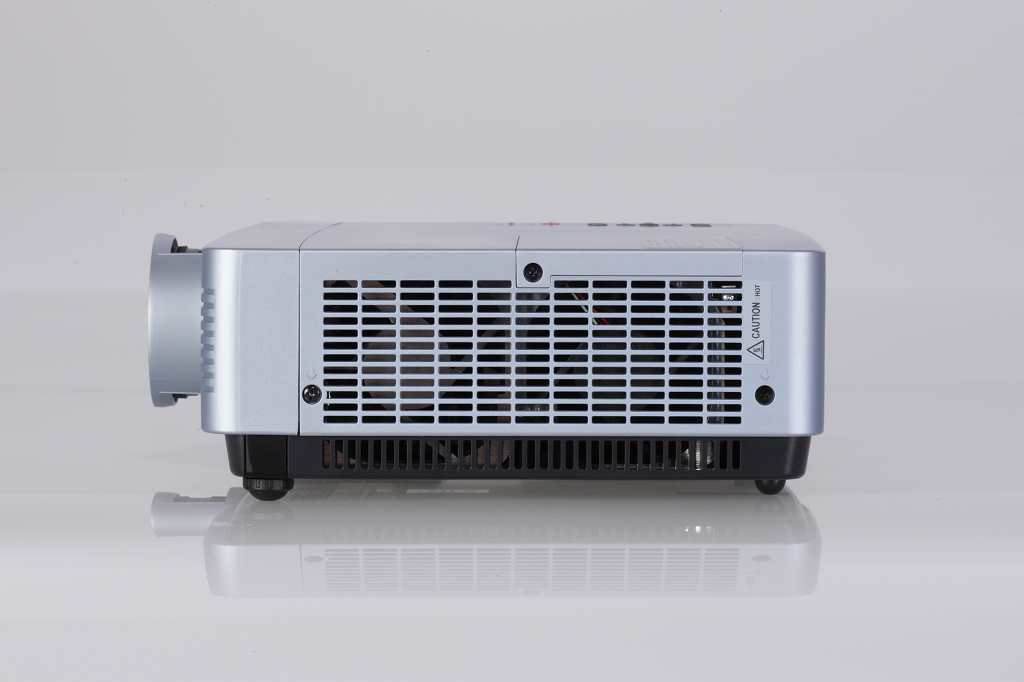

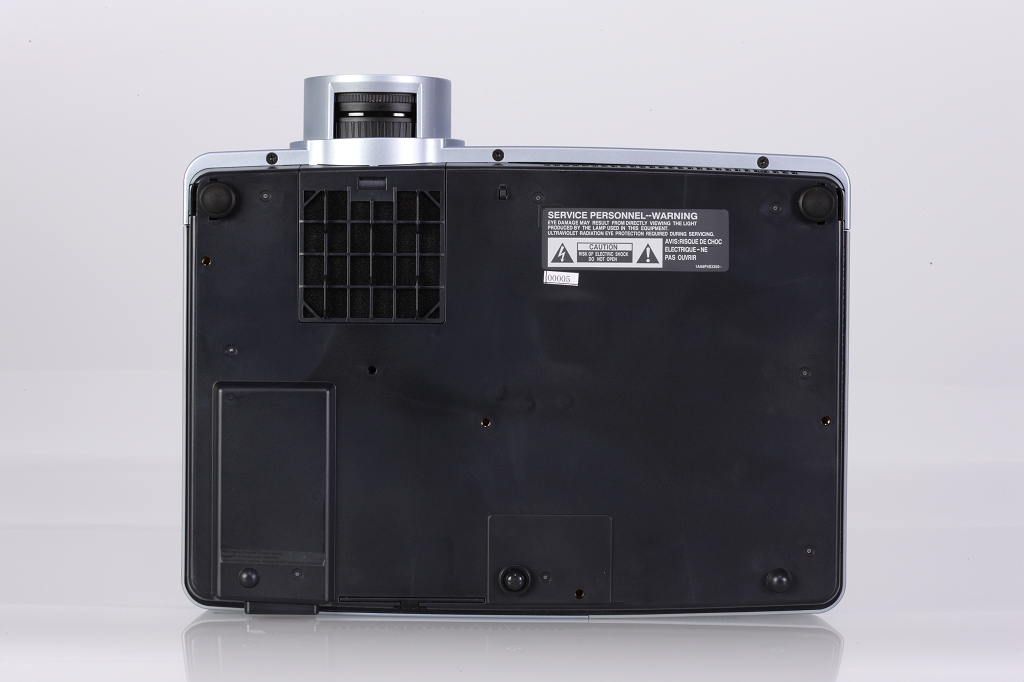

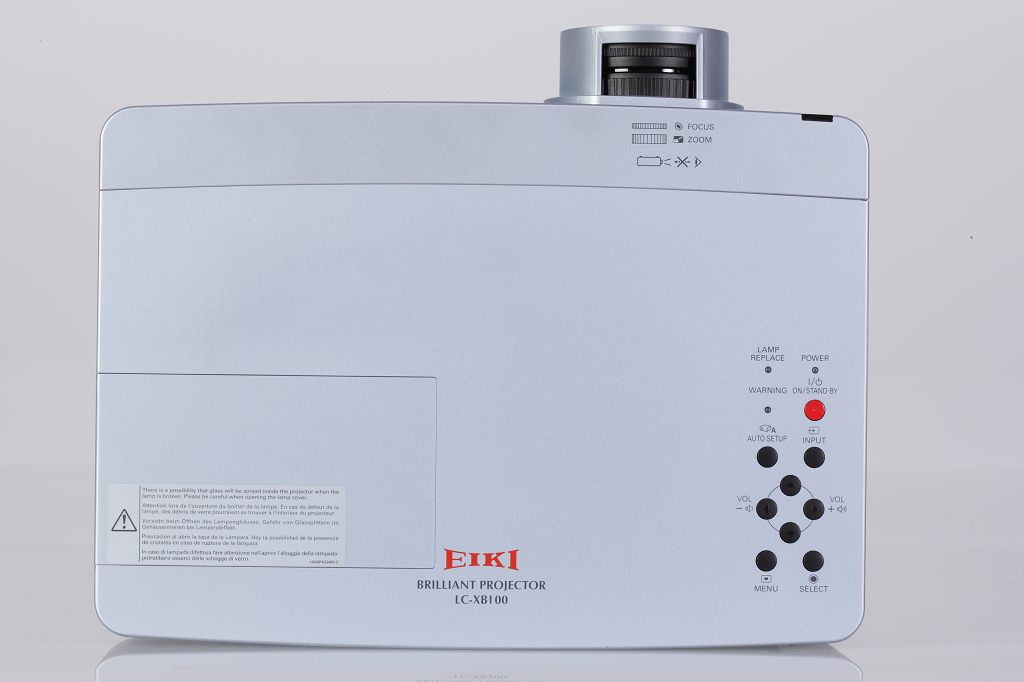

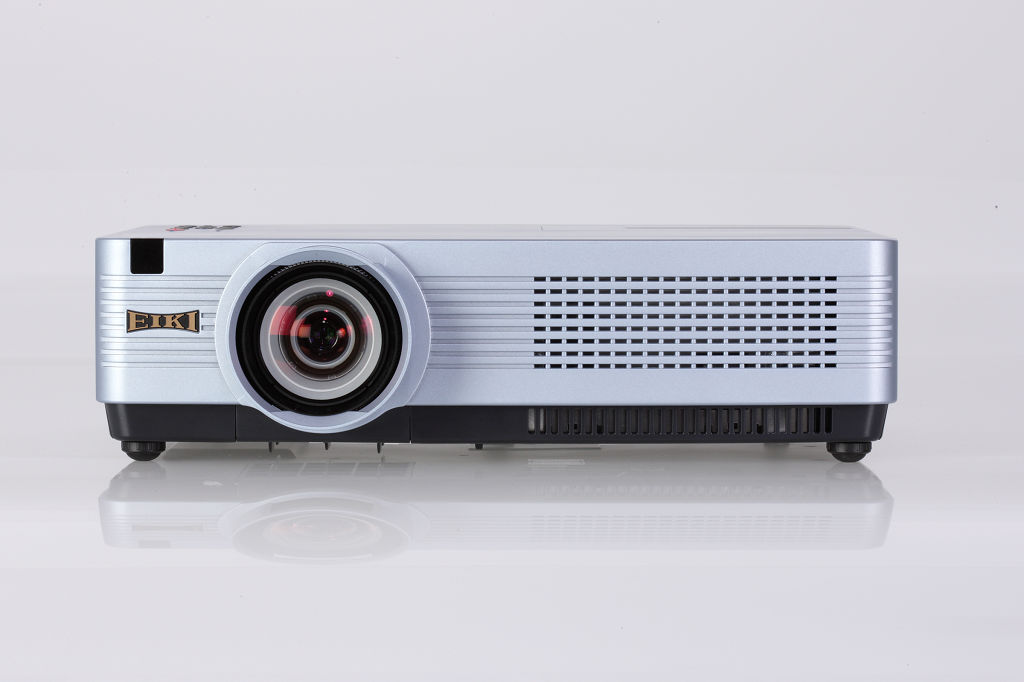

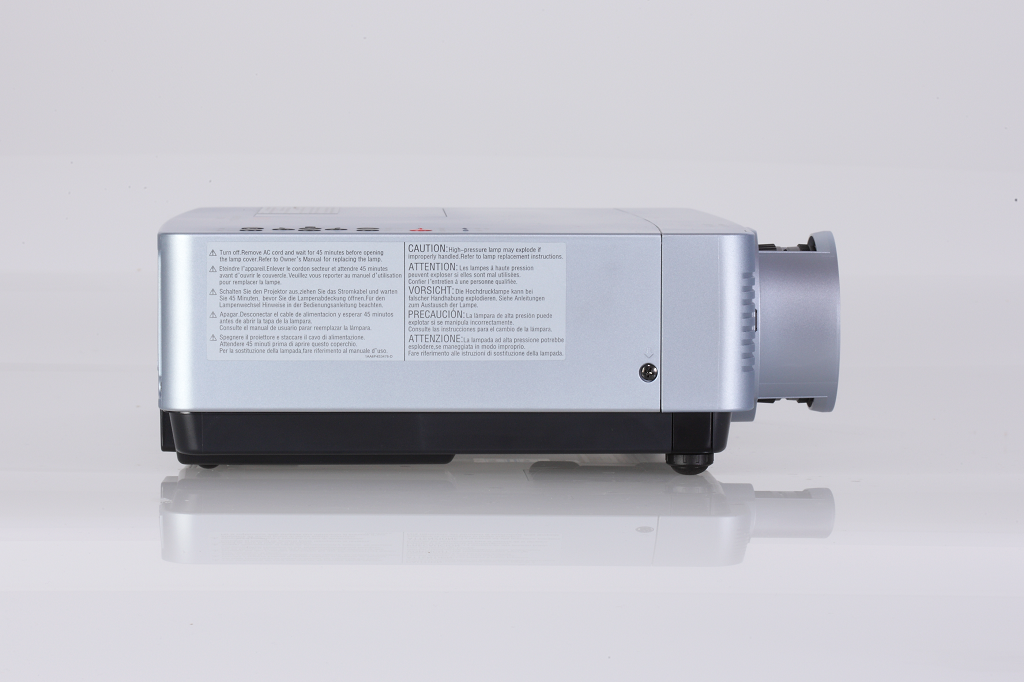

LC-XB100A LCD Projector

Outstanding Features:

Inexpensive projector with zoom lens and network monitoring and control • Fast, wide-range zoom • Screen filling brightness • 7 Watts of sound • Quiet operation • Long-life lamp • Power saving features • Closed Caption Decoding • Auto Setup: Keystone correction, Input search, PC adjust • UXGA & WXGA compatible • Interlace to Progressive conversion • Turn ON and Show! ("instant" ON). Turn OFF and Go! (no cooldown).

Key Features

3,000 ANSI lumens bright with 85% uniformity and a 500:1 contrast ratio.
Native XGA resolution. Compatible with inputs up-to UXGA and WUXGA.
Supports analog and digital video input in all color standards up-to 1080i.
Convenient midrange (1.6:1) manual zoom and focus lens.
Fixed image offset. Automatic vertical digital keystone correction.
Accepts composite, component, and S-Video in all major standards.
Displays both 4:3 and 16:9 aspect ratios. Supports most HDTV resolutions.
Built-in 7 Watt sound system. Closed Caption decoding (NTSC).
Wired network monitoring and control. Digital zoom: 50% to 400%.
Variable power management option. Optional local or remote keylock.
VGA and DVI-I computer inputs, and VGA computer monitor output.
Wireless remote control with mouse control and laser pointer.
Quiet operation: fan noise as low as 29 dBA.
3 year projector warranty.

Included Accessories: Quick Start Guide, Owner's Manual on CD-ROM, Power Cord, VGA Computer Input Cable (Dsub15 to Dsub15), Wireless Remote Control (with 2 AAA Batteries), USB IR Receiver, Network Software on CD-ROM, Soft Carry Bag, Lens Cover.

Optional Accessories: Replacement Lamp, Component Video Input Cable (Dsub15 to 3RCA), Ceiling Mount, Ceiling Post & Plate.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)
()

Display Technology 3 panel LCD
Brightness (ANSI) Up to 4000 Lumens
Native Resolution XGA (1024 x 768)
Max. Computer Input UXGA~VGA and MAC compatible
Max. Video Input 1080i
Contrast Ratio 2000:1
Panel Size 0.63 in (16 mm)
Lens Type (Throw:Width) 1.18~1.91:1
Power Lens Shift Manual Zoom and Focus
Keystone Correction Digital: up-to 30° Up or Down

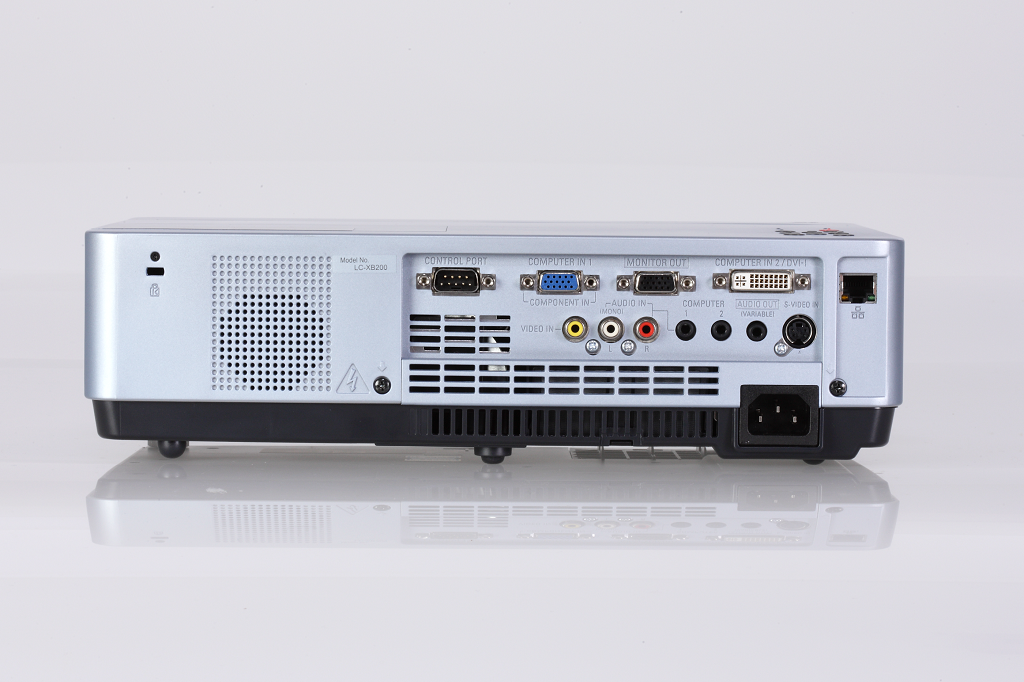

Inputs DSub15 x 1; DVI-I x 1 or  RCA x 1 (Composite) and S-Video x 1 (Y/C); Stereo: MiniStereo x 2; Stereo: RCA x 2
Outputs Stereo: Ministereo x 1 (Variable); Dsub15 x 1
Sound System Mono: 10 Watt; 1.4 in (3.7 cm) x 1
Network Control Full Function.
Warranty 3 years
Lamp Life Up to 5,000 hours
Lamp Part # 610 352 7949 (2)
Fan Noise As low as 29 dBa
Air Filter User-Clean Filter
Maximum Pitch Up-to 360º
Weight 7.5 lbs (3.4 kg)
Ceiling Mount Part # 0173-4359
 NameDescriptionSizeType
Icon of LC-XB100A Cad DrawingLC-XB100A Cad Drawing69 KB
Icon of LC-XB100A Cad Drawing DxfLC-XB100A Cad Drawing Dxf0.2 MB
Icon of LC-XB100A Color Data SheetLC-XB100A Color Data SheetLC-XB100A Color Data Sheet0.7 MBPDF
Icon of LC-XB100A Lens ChartLC-XB100A Lens ChartLC-XB100A Lens Chart13 KBPDF
Icon of LC-XB100A Owners ManualLC-XB100A Owners ManualLC-XB100A Owners Manual10.6 MBPDF
Icon of LC-XB100A PjNet Manager manualLC-XB100A PjNet Manager manualLC-XB100A PjNet Manager manual1.0 MBPDF
Icon of LC-XB100A Remote Control CodesLC-XB100A Remote Control CodesLC-XB100A Remote Control Codes25 KBPDF
Icon of LC-XB100A RS-232 Control SoftwareLC-XB100A RS-232 Control Software1.4 MB
Icon of LC-XB100A RS-232 Basic Serial CommandsLC-XB100A RS-232 Basic Serial CommandsLC-XB100A RS-232 Basic Serial Commands0.2 MBPDF
Icon of LC-XB100A RS-232 Extended Serial CommandsLC-XB100A RS-232 Extended Serial CommandsLC-XB100A RS-232 Extended Serial Commands0.5 MBPDF
Icon of LC-XB100A SpecificationsLC-XB100A SpecificationsLC-XB100A Specifications0.2 MBPDF
