LC-XB250 LCD Projector

Outstanding Features

Cost effective projector with zoom lens and network monitoring and control • Fast, wide-range zoom • Screen filling brightness • 10 watts of sound • Quiet operation. Long-life lamp • Turn ON and Show! ("instant" ON) Turn OFF and Go! (no cool down).

Key Features

  • 4,000 ANSI lumens bright with 85% uniformity and a 2000:1 contrast ratio.
  • Native XGA resolution. Compatible with inputs up-to UXGA and WUXGA.
  • Supports analog and digital video input in all color standards up-to 1080i.
  • Convenient midrange (1.6:1) manual zoom and focus lens.
  • Fixed image offset. Automatic vertical digital keystone correction.
  • Accepts composite, component, and S-Video in all major standards.
  • Displays both 4:3 and 16:9 aspect ratios. Supports most HDTV resolutions.
  • Built-in 10 Watt sound system. Closed Caption decoding (NTSC).
  • Wired network monitoring and control. Digital zoom: 50% to 400%.
  • Variable power management option. Optional local or remote keylock.
  • VGA and DVI-I computer inputs, and VGA computer monitor output.
  • Wireless remote control.
  • Quiet operation: fan noise as low as 29 dBA.
  • 3 year projector warranty.

Included Accessories: Quick Start Guide, Owner's Manual on CD-ROM, Power Cord, VGA Computer Input Cable (Dsub15 to Dsub15), Wireless Remote Control (with 2 AAA Batteries) Network Software on CD-ROM, Soft Carry Bag, Lens Cover, Filter cover for ceiling mount.

Optional Accessories: Replacement Lamp, Component Video Input Cable (Dsub15 to 3RCA), Ceiling Mount, Ceiling Post & Plate.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)
()

Display Technology inorganic LCD Panels x 3
Brightness (ANSI) Up to 4000 Lumens
Native Resolution XGA (1024x768), 4:3
Max. Computer Input UXGA~VGA and MAC compatible
Max. Video Input 1080i
Contrast Ratio up to 2000:1
Panel Size 0.63 in (16 mm)
Lens Type (Throw:Width) 1.18~1.91:1
Power Lens Shift Manual Zoom and Focus
Keystone Correction Digital: up-to 30° Up or Down
Inputs DSub15 x 1; DVI-I x 1 or  RCA x 1 and S-Video x 1; Stereo: MiniStereo x 2; Stereo: RCA x 2
Outputs Stereo: Ministereo x 1 (Variable); Dsub15 x 1
Sound System Mono: 10 Watt; 1.4 in (3.7 cm) x 1
Network Control Full Function.
Warranty 3 years
Lamp Life Up to 5,000 hours
Lamp Part # 610 352 7949 (2)
Fan Noise As low as 29 dBa
Air Filter User-Clean Filter
Maximum Pitch up-to 30° Up or Down
Weight 7.5 lbs (3.4 kg)
Ceiling Mount Part # 0173-4359
 NameDescriptionSizeType
Icon of LC-XB250 Cad DrawingLC-XB250 Cad Drawing153.4 KB
Icon of LC-XB250 Cad Drawing DxfLC-XB250 Cad Drawing Dxf333.5 KB
Icon of LC-XB250 Color Data SheetLC-XB250 Color Data Sheet1.0 MB

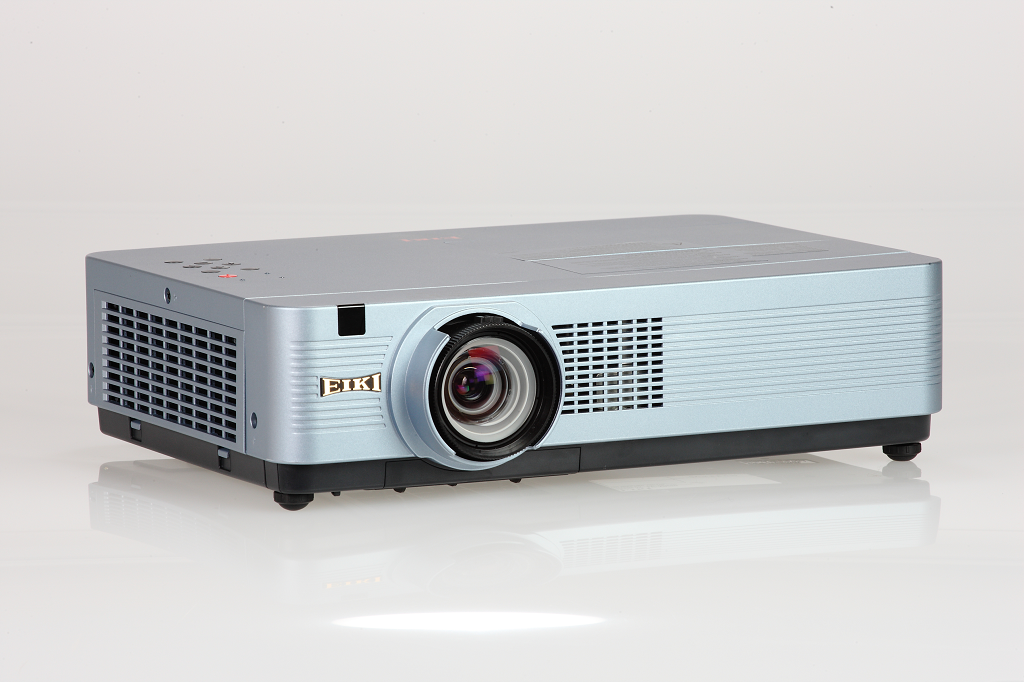

Icon of LC-XB250 Hi-res Image Beauty1LC-XB250 Hi-res Image Beauty1LC-XB250 Hi-res Image Beauty14.3 MBJPG, ZIP
Icon of LC-XB250 Hi-res Image Beauty2LC-XB250 Hi-res Image Beauty2LC-XB250 Hi-res Image Beauty24.1 MBJPG, ZIP

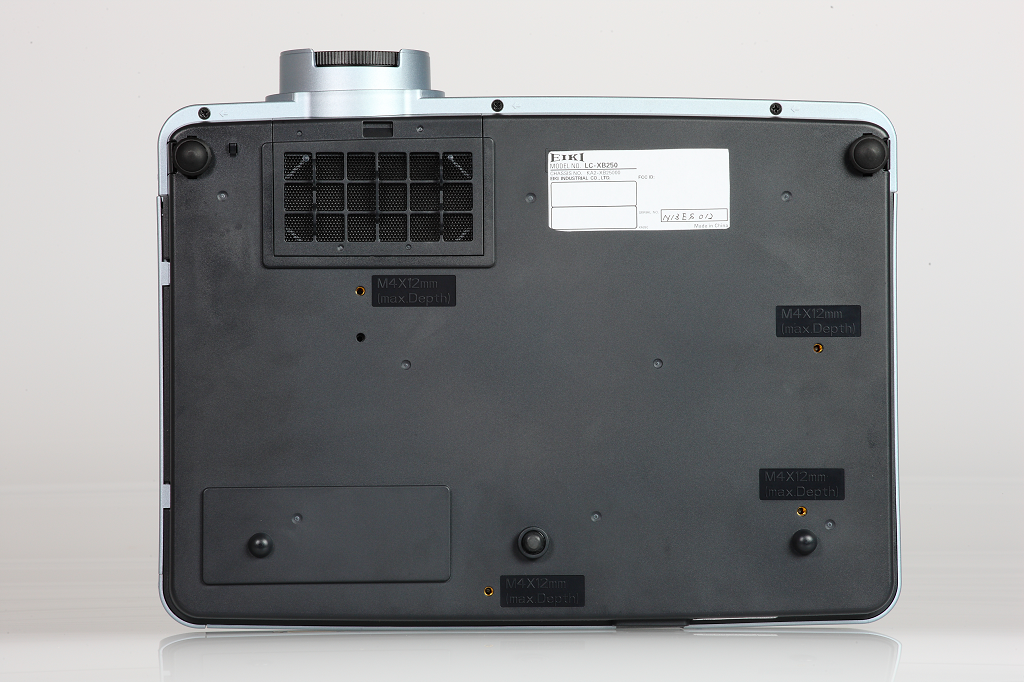

Icon of LC-XB250 Hi-res Image BottomLC-XB250 Hi-res Image BottomLC-XB250 Hi-res Image Bottom5.8 MBJPG, ZIP
Icon of LC-XB250 Hi-res Image ConnectionsLC-XB250 Hi-res Image ConnectionsLC-XB250 Hi-res Image Connections4.4 MBJPG, ZIP
Icon of LC-XB250 Hi-res Image FrontLC-XB250 Hi-res Image FrontLC-XB250 Hi-res Image Front4.3 MBJPG, ZIP

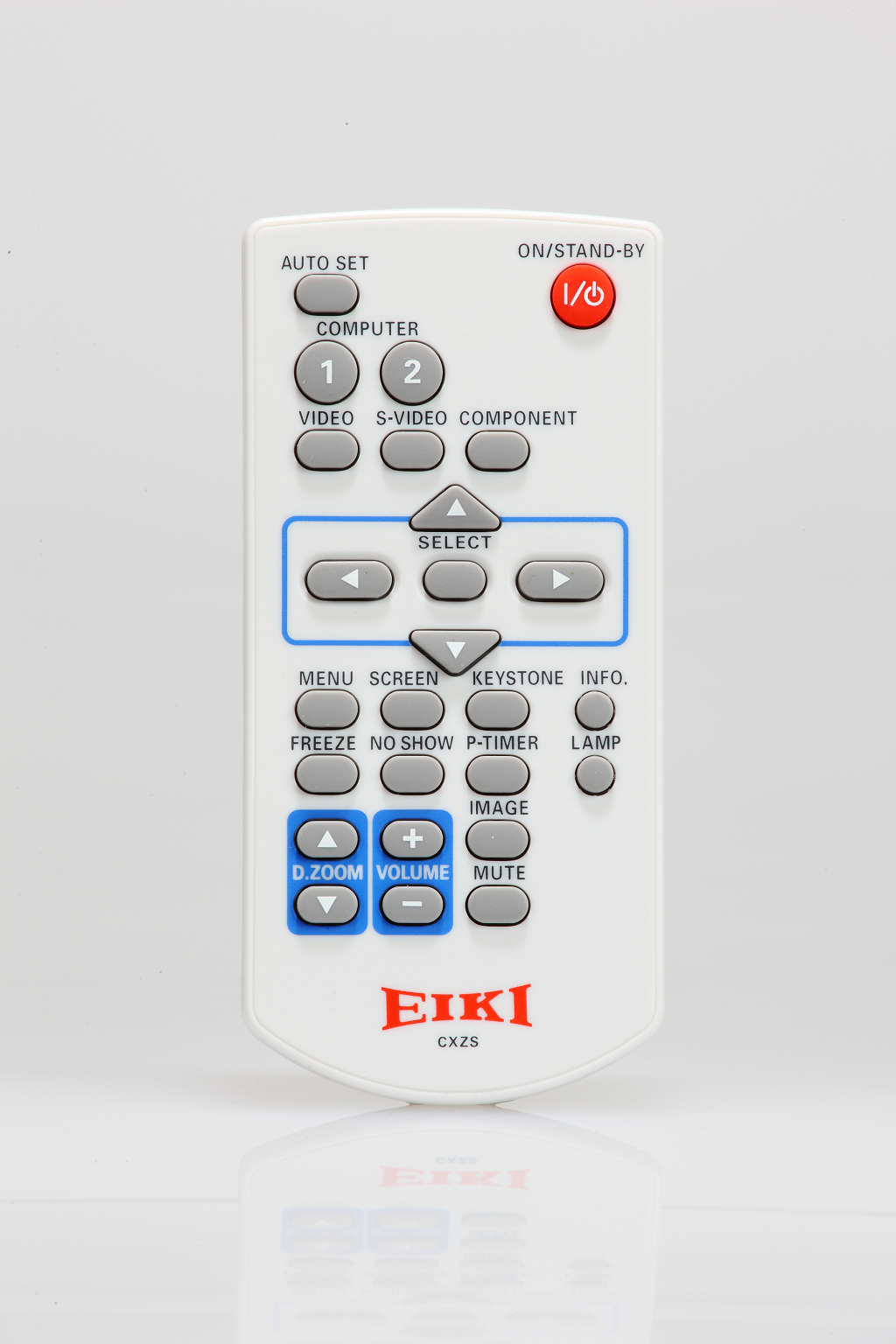

Icon of LC-XB250 Hi-res Image RemoteLC-XB250 Hi-res Image RemoteLC-XB250 Hi-res Image Remote3.1 MBJPG, ZIP

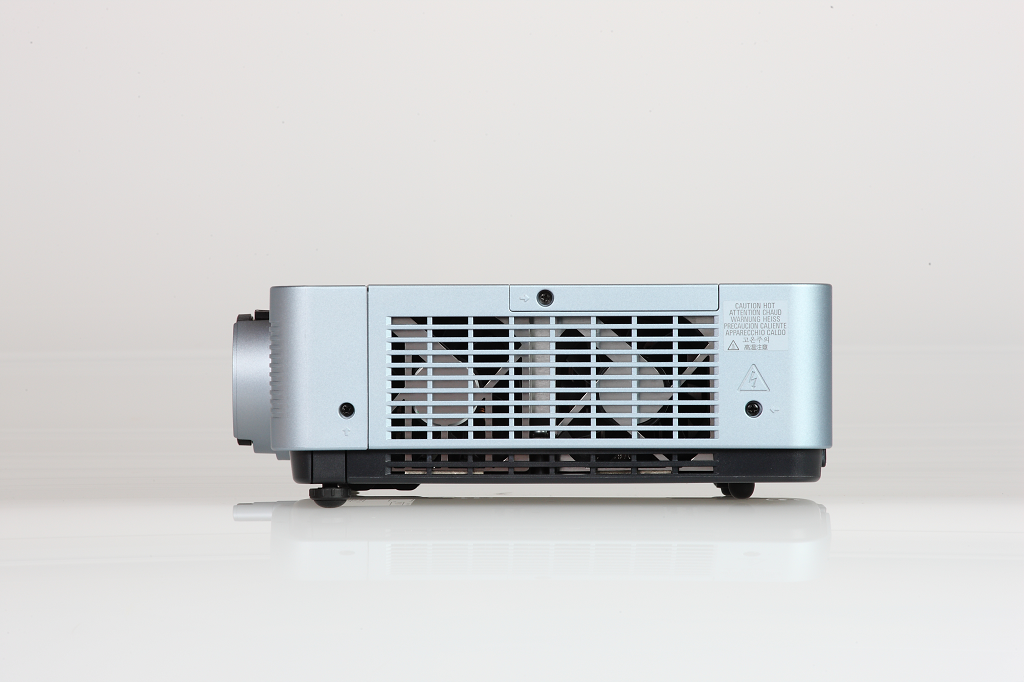

Icon of LC-XB250 Hi-res Image Side1LC-XB250 Hi-res Image Side1LC-XB250 Hi-res Image Side13.9 MBJPG, ZIP
Icon of LC-XB250 Hi-res Image Side2LC-XB250 Hi-res Image Side2LC-XB250 Hi-res Image Side24.1 MBJPG, ZIP

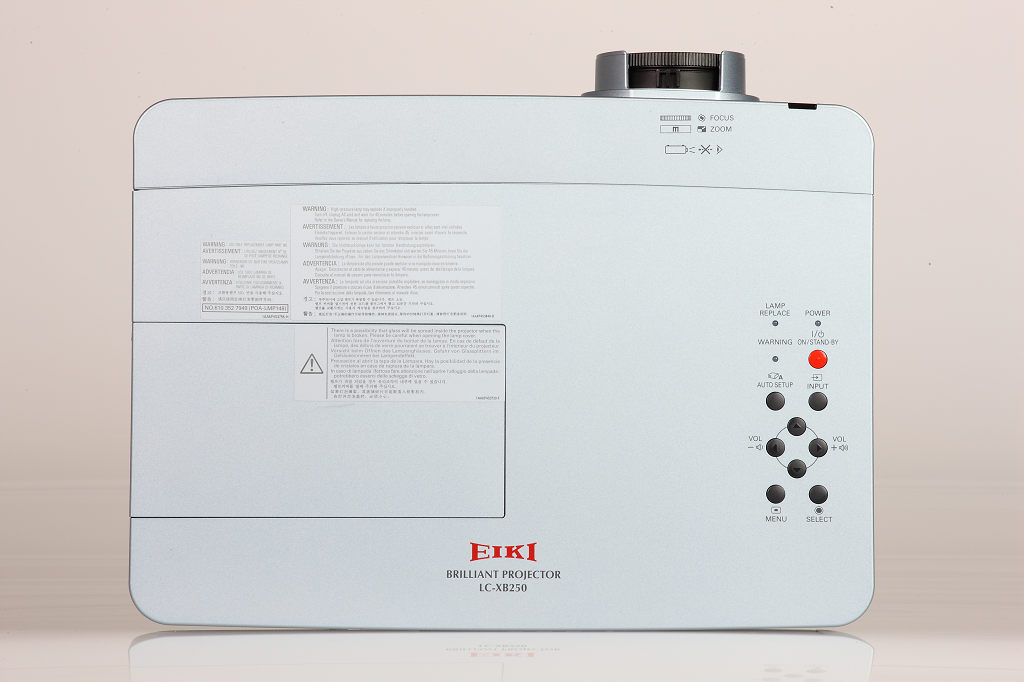

Icon of LC-XB250 Hi-res Image TopLC-XB250 Hi-res Image TopLC-XB250 Hi-res Image Top5.2 MBJPG, ZIP
Icon of LC-XB250 Lens ChartLC-XB250 Lens ChartLC-XB250 Lens Chart12.6 KBPDF
Icon of LC-XB250 Owners ManualLC-XB250 Owners ManualLC-XB250 Owners Manual6.7 MBPDF
Icon of LC-XB250 Remote Control CodesLC-XB250 Remote Control CodesLC-XB250 Remote Control Codes23.3 KBPDF
Icon of LC-XB250 RS-232 Basic Serial CommandsLC-XB250 RS-232 Basic Serial CommandsLC-XB250 RS-232 Basic Serial Commands191.7 KBPDF
Icon of LC-XB250 RS-232 Extended Serial CommandsLC-XB250 RS-232 Extended Serial CommandsLC-XB250 RS-232 Extended Serial Commands434.1 KBPDF
Icon of LC-XB250 SpecificationsLC-XB250 SpecificationsLC-XB250 Specifications44.5 KBPDF

Related Products

0173-4359 Ceiling Mount
0173-4359 Ceiling Mount
Custom Ceiling Projector Mount (Black)
610 353 7009 Filter
610 353 7009 Filter
Replacement Filter (Bottom)
610 358 1484 Filter
610 358 1484 Filter
Replacement Filter Box (Side)
610 352 7949 Lamp
610 352 7949 Lamp
Rated Power: 245W
Lamp type: UHP
Life Expectancy: 5000h
Lamp Warranty: 6 months / 500h (whichever comes first)
