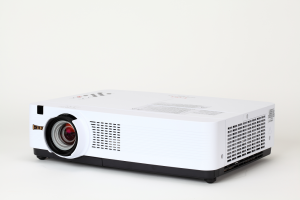

LC-XB250A LCD Projector

Outstanding Features

Cost effective projector with zoom lens and network monitoring and control • Fast, wide-range zoom • Screen filling brightness • 10 watts of sound • Quiet operation. Long-life lamp • Turn ON and Show! ("instant" ON) Turn OFF and Go! (no cool down).

Key Features

  • 4,000 ANSI lumens bright with 85% uniformity and a 2000:1 contrast ratio.
  • Native XGA resolution. Compatible with inputs up-to UXGA and WUXGA.
  • Supports analog and digital video input in all color standards up-to 1080i.
  • Convenient midrange (1.6:1) manual zoom and focus lens.
  • Fixed image offset. Automatic vertical digital keystone correction.
  • Accepts composite, component, and S-Video in all major standards.
  • Displays both 4:3 and 16:9 aspect ratios. Supports most HDTV resolutions.
  • Built-in 10 Watt sound system. Closed Caption decoding (NTSC).
  • Wired network monitoring and control. Digital zoom: 50% to 400%.
  • Variable power management option. Optional local or remote keylock.
  • VGA and DVI-I computer inputs, and VGA computer monitor output.
  • Wireless remote control.
  • Quiet operation: fan noise as low as 29 dBA.
  • 3 year/6000 hrs. (whichever comes first) projector warranty.

Included Accessories: Quick Start Guide, Owner's Manual on CD-ROM, Power Cord, VGA Computer Input Cable (Dsub15 to Dsub15), Wireless Remote Control (with 2 AAA Batteries) Network Software on CD-ROM, Soft Carry Bag, Lens Cover, Filter cover for ceiling mount.

Optional Accessories: Replacement Lamp, Component Video Input Cable (Dsub15 to 3RCA), Ceiling Mount, Ceiling Post & Plate.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
()
()

Display Technology 3LCD
Brightness (ANSI) 4,000 lumens
Native Resolution XGA (1024x768)
Max. Computer Input UXGA
Max. Video Input 1080i
Contrast Ratio 2000:1
Panel Size 0.63" (inorganic)
Lens Type (Throw:Width) 1.18-1.91:1
Fixed Image Offset Ratio (Top:Bottom) 9:1
Keystone Correction U/D 30°
Inputs Dsub15 x 1; DVI-I x 1; RCA x 1 or S-Video x 1;MiniStereo x 2; RCA (audio) x 2;
Outputs Dsub15 x 1; MiniStereo x 1
Sound System 10 Watt; 1.46" dia. speaker x 1
Network Control Wired LAN with content delivery
Warranty 3 year/6000 hrs. (whichever comes first) projector warranty.
Lamp Life Up to 5,000 hours
Lamp Part # 610 352 7949
Fan Noise As low as 31 dBa
Air Filter Standard
Maximum Pitch up-to 30° Up or Down
Weight 7.5 lb (3.4 kg)
Ceiling Mount Part # 0173-4359
 NameDescriptionSizeType
Icon of LC-XB250A Color Data SheetLC-XB250A Color Data Sheet764.1 KB
Icon of LC-XB250A Hi-res Image Beauty1LC-XB250A Hi-res Image Beauty1LC-XB250A Hi-res Image Beauty11.6 MBJPG, ZIP
Icon of LC-XB250A Hi-res Image Beauty2LC-XB250A Hi-res Image Beauty2LC-XB250A Hi-res Image Beauty21.6 MBJPG, ZIP
Icon of LC-XB250A Hi-res Image BottomLC-XB250A Hi-res Image BottomLC-XB250A Hi-res Image Bottom2.3 MBJPG, ZIP
Icon of LC-XB250A Hi-res Image FrontLC-XB250A Hi-res Image FrontLC-XB250A Hi-res Image Front1.3 MBJPG, ZIP
Icon of LC-XB250A Hi-res Image MicLC-XB250A Hi-res Image MicLC-XB250A Hi-res Image Mic2.1 MBJPG, ZIP
Icon of LC-XB250A Hi-res Image RearLC-XB250A Hi-res Image RearLC-XB250A Hi-res Image Rear1.7 MBJPG, ZIP
Icon of LC-XB250A Hi-res Image RemoteLC-XB250A Hi-res Image RemoteLC-XB250A Hi-res Image Remote1.9 MBJPG, ZIP
Icon of LC-XB250A Hi-res Image Side1LC-XB250A Hi-res Image Side1LC-XB250A Hi-res Image Side11.3 MBJPG, ZIP
Icon of LC-XB250A Hi-res Image Side2LC-XB250A Hi-res Image Side2LC-XB250A Hi-res Image Side21.4 MBJPG, ZIP
Icon of LC-XB250A Lens ChartLC-XB250A Lens ChartLC-XB250A Lens Chart82.6 KBPDF
Icon of LC-XB250A Network ManualLC-XB250A Network ManualLC-XB250A Network Manual5.1 MBPDF
Icon of LC-XB250A Owners ManualLC-XB250A Owners ManualLC-XB250A Owner's Manual6.7 MBPDF
Icon of LC-XB250A Pj Network Manager ManualLC-XB250A Pj Network Manager Manual Pj Network Manager Manual1.1 MBPDF
Icon of LC-XB250A Remote Control CodesLC-XB250A Remote Control CodesLC-XB250A Remote Control Codes23.3 KBPDF
Icon of LC-XB250A RS-232 Basic Serial CommandsLC-XB250A RS-232 Basic Serial CommandsLC-XB250A RS-232 Basic Serial Commands191.7 KBPDF
Icon of LC-XB250A RS-232 Expand Serial CommandsLC-XB250A RS-232 Expand Serial CommandsLC-XB250A RS-232 Expand Serial Commands434.1 KBPDF
Icon of LC-XB250A SpecificationsLC-XB250A SpecificationsLC-XB250A Specifications102.9 KBPDF

Related Products

0173-4359 Ceiling Mount
0173-4359 Ceiling Mount
Custom Ceiling Projector Mount (Black)
AH-98771 Cable Adaptor
AH-98771 Cable Adaptor
Component Video (3 RCA) to HD-15 (Input Cable Adaptor - 12" length)
610 353 7009 Filter
610 353 7009 Filter
Replacement Filter (Bottom)

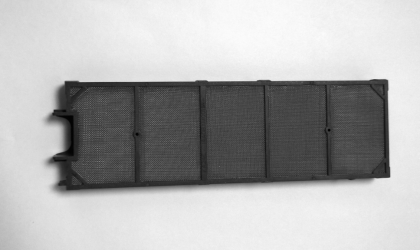

610 358 1484 Filter
610 358 1484 Filter
Replacement Filter Box (Side)
610 352 7949 Lamp
610 352 7949 Lamp
Rated Power: 245W
Lamp type: UHP
Life Expectancy: 5000h
Lamp Warranty: 6 months / 500h (whichever comes first)
