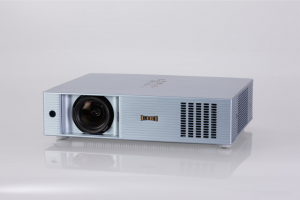

LC-XB43 LCD Projector

Outstanding Features

Bright enough for use in conference rooms and lecture theaters with the lights on, the EIKI LC-XB43 is among our brightest attached lens projectors. A cost-effective ultraportable, the LC-XB43 offers high contrast inorganic 3LCD imaging and great analog connectivity. For digital connections and wired/wireless network control and content delivery, consider the XGA LC-XB43N or WXGA/720p LC-WB42NA.

Key Features

  • 4,500 ANSI Lumens bright, with 85% uniformity and a 1000:1 contrast ratio.
  • Native XGA resolution. Compatible with inputs up-to UXGA and WUXGA.
  • Supports analog video input in all color standards up-to 1080i.
  • Durable inorganic 3-panel LCD imaging engine with a high contrast ratio.
  • 8-bit color processing yields a 16.7 million color palette.
  • Convenient midrange (1.6:1) manual zoom and focus lens.
  • Fixed image offset. Automatic vertical & horizontal digital keystone correction.
  • Accepts composite, component, and S-Video in all major standards.
  • Two Dsub15 computer inputs, plus one Dsub15 computer monitor output.
  • Built-in wired LAN connection for projector monitoring and control.
  • Built-in 1 Watt amplifier and speaker system. Closed Caption decoding.
  • Color board modes. Auto input search. Auto setup. 16x digital zoom.
  • Kensington® security slot. Optional local or remote keylock.
  • Variable Power Management option.
  • 3 year/6000 hrs. (whichever comes first) projector warranty.

Included Accessories: Quick Start Guide, Owner's Manual on CD-ROM, Power Cord, VGA Computer Input Cable (Dsub15 to Dsub15), Wireless Remote Control (with 2 AAA Batteries), Network Software on CD-ROM, Soft Carry Bag.

Optional Accessories: Replacement Lamp, Component Video Input Cable (Dsub15 to 3RCA), Ceiling Mount, Ceiling Post & Plate.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Detailed black & white pdf specification sheet)
()

Display Technology 3LCD
Brightness (ANSI) 4,500 lumens
Native Resolution XGA (1024x768)
Max. Computer Input UXGA
Max. Video Input 1080i
Contrast Ratio 1000:1
Panel Size 0.8" (inorganic)
Lens Type (Throw:Width) 1.15-1.85:1
Power Lens Shift Up 40%
Keystone Correction U/D 40°
Inputs Dsub15 x 2; RCA x 1 or S-Video x 1; MiniStereo x 1; RCA (audio) x 2;
Outputs Dsub15 x 1; MiniStereo x 1
Sound System 1 Watt; 1.1" dia. speaker x 1
Network Control Wired LAN with content delivery
Warranty 3 years/6000 hrs (whichever comes first)
Lamp Life Up to 3,000 hours
Lamp Part # 610 333 9740
Fan Noise As low as 31 dBa
Air Filter Standard
Maximum Pitch Up to 360°
Weight 7.7 lb (3.6 kg)
Ceiling Mount Part # 0173-4305
 NameDescriptionSizeType
Icon of LC-XB43 Cad DrawingLC-XB43 Cad Drawing117.9 KB
Icon of LC-XB43 Color Data SheetLC-XB43 Color Data Sheet795.9 KB
Icon of LC-XB43 Hi-res Images Beauty1LC-XB43 Hi-res Images Beauty1LC-XB43 Hi-res Images Beauty1205.6 KBJPG, ZIP
Icon of LC-XB43 Hi-res Images Beauty2LC-XB43 Hi-res Images Beauty2LC-XB43 Hi-res Images Beauty2197.5 KBJPG, ZIP
Icon of LC-XB43 Hi-res Images RearLC-XB43 Hi-res Images RearLC-XB43 Hi-res Images Rear195.0 KBJPG, ZIP
Icon of LC-XB43 Hi-res Images RemoteLC-XB43 Hi-res Images RemoteLC-XB43 Hi-res Images Remote323.3 KBJPG, ZIP
Icon of LC-XB43 Hi-res Images TopLC-XB43 Hi-res Images TopLC-XB43 Hi-res Images Top205.5 KBJPG, ZIP
Icon of LC-XB43 Lens ChartLC-XB43 Lens ChartLC-XB43 Lens Chart12.6 KBPDF
Icon of LC-XB43 Network-manual 31-08-2009 EnglishLC-XB43 Network-manual 31-08-2009 EnglishLC-XB43 Network Manual3.7 MBPDF
Icon of LC-XB43 Owners ManualLC-XB43 Owners ManualLC-XB43 Owners Manual7.6 MBPDF
Icon of LC-XB43 Pj-network-manual 31-08-2009 EnglishLC-XB43 Pj-network-manual 31-08-2009 EnglishLC-XB43 PJ-Network Manual1.2 MBPDF
Icon of LC-XB43 Remote Control CodesLC-XB43 Remote Control CodesLC-XB43 Remote Control Codes23.6 KBPDF
Icon of LC-XB43 RS-232 Basic Serial CommandsLC-XB43 RS-232 Basic Serial CommandsLC-XB43 RS-232 Basic Serial Commands206.0 KBPDF
Icon of LC-XB43 RS-232 Extended Serial CommandsLC-XB43 RS-232 Extended Serial CommandsLC-XB43 RS-232 Extended Serial Commands480.0 KBPDF
Icon of LC-XB43 SpecificationsLC-XB43 SpecificationsLC-XB43 Specifications366.9 KBPDF
