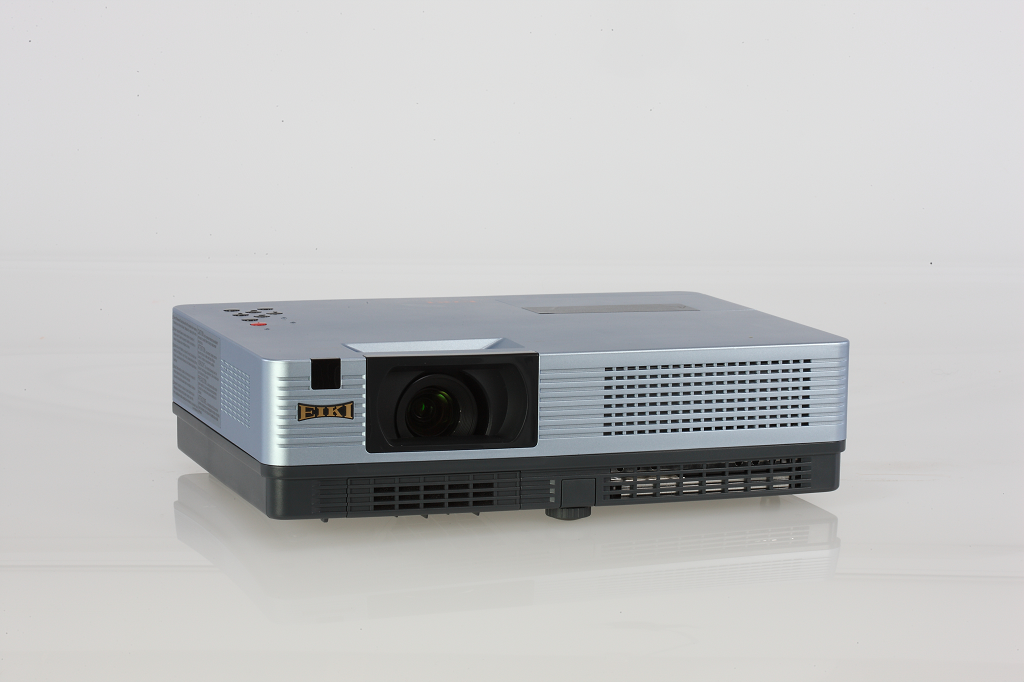

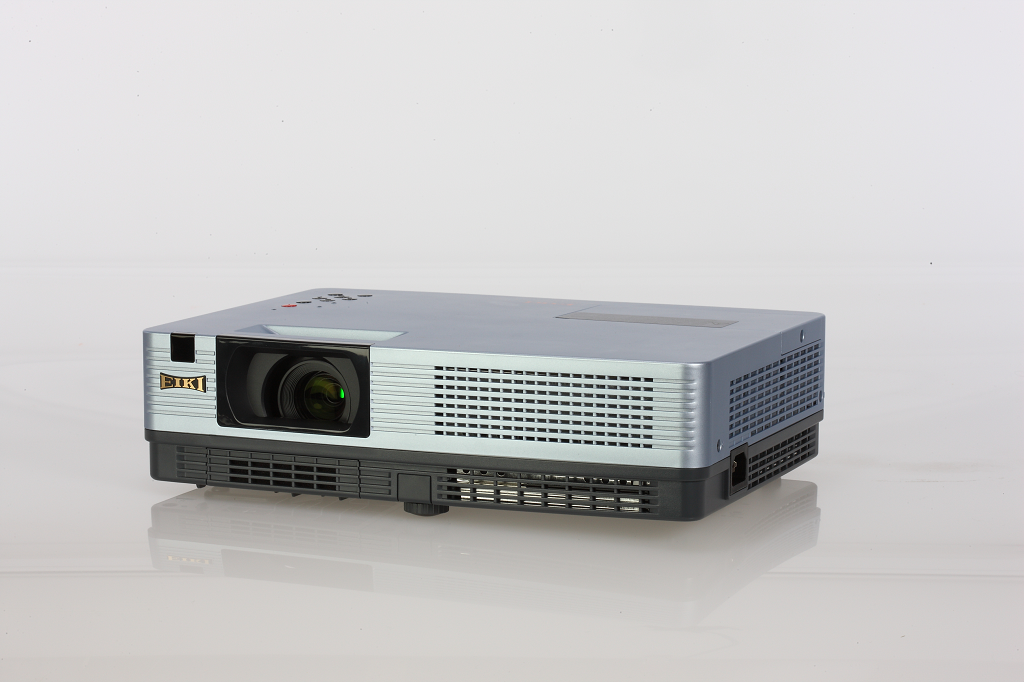

LC-XBL26 LCD Projector

Outstanding Features

Low-cost, yet feature-rich, the LC-XBL26 has been designed for affordable performance with classrooms in mind. Get 2,600 lumens of 3LCD imaging at XGA resolution. Or, for less demanding rooms, consider the 2,200 lumen LC-XBL21. For brighter rooms, consider the 3,000 lumen LC-XBL30 (which provides slightly shorter throw ratios).

Key Features

  • 2,600 ANSI lumens bright with 85% uniformity and a 500:1 contrast ratio.
  • Native XGA resolution. Compatible with inputs up-to UXGA and WUXGA.
  • Supports analog video input in all color standards up-to 1080i.
  • 3 panel LCD imaging delivers a rich, color-saturated picture.
  • 8-bit color processing yields a 16.7 million color palette.
  • Convenient midrange (1.2:1) manual zoom and focus lens.
  • Fixed image offset. Automatic vertical digital keystone correction.
  • Two Dsub15 computer inputs. Switchable monitor output.
  • Built-in 1 Watt amplifier and speaker system. Closed Caption decoding.
  • Built-in wired LAN connection for projector monitoring and control.
  • Power management and Eco mode help prolong lamp life.

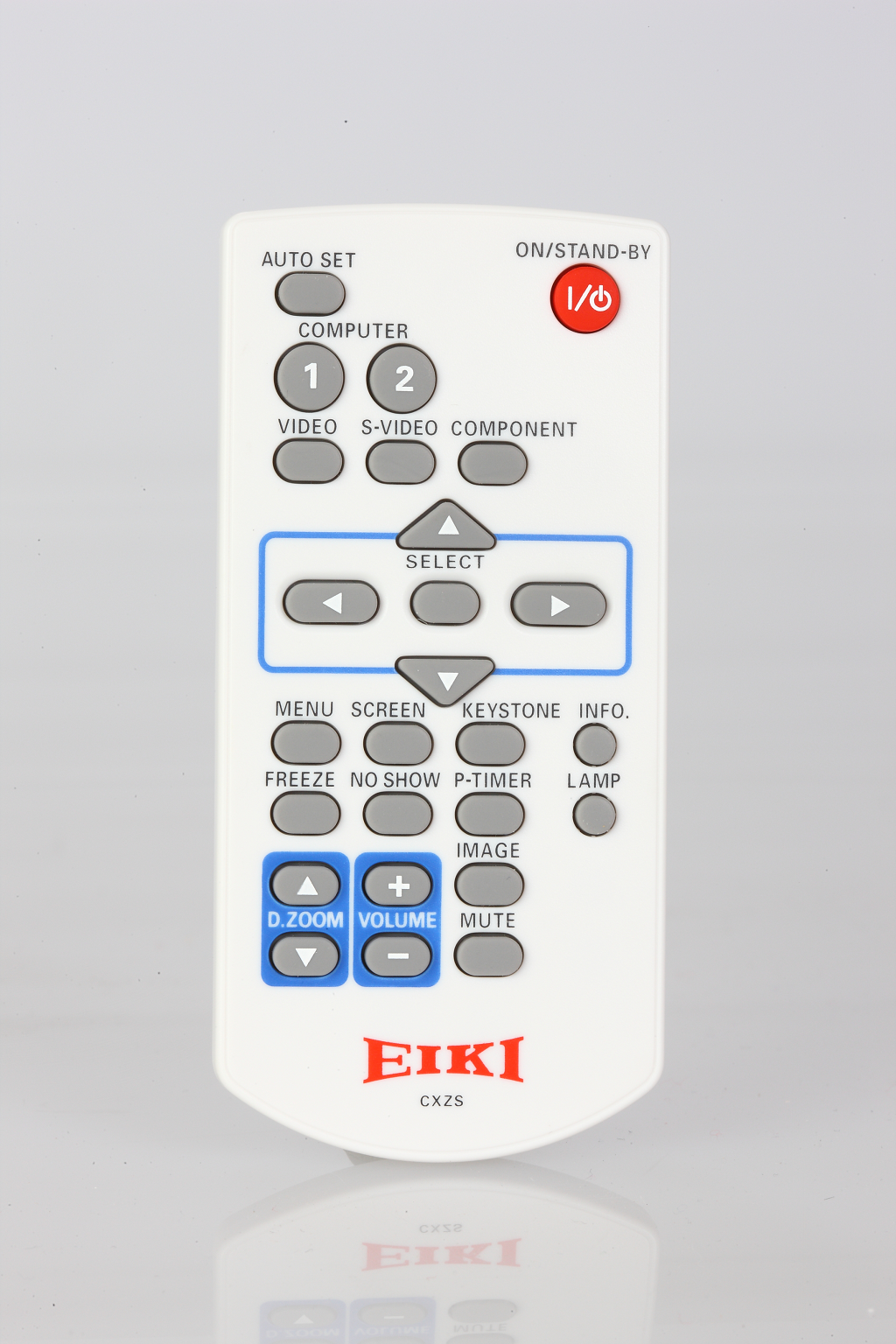

  • Wireless remote control. Digital zoom 50-400%.
  • Kensington® security slot. Local or remote keylock functions.
  • 3 year projector warranty.

Included Accessories: Quick Start Guide, Owner's Manual on CD-ROM, Network Software on CD-ROM, Power Cord, Lens Cover, S-Video Input Cable (Dsub15 to S-Video), VGA Computer Input Cable (Dsub15 to Dsub15), Wireless Remote Control (with 2 AAA Batteries).

Optional Accessories: Soft Carry Bag, Replacement Lamp, Component Video Input Cable (Dsub15 to 3RCA), Ceiling Mount, Ceiling Post & Plate.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)
()

Display Technology LCD Panels x 3
Brightness (ANSI) up-to 2,600 ANSI lumens
Native Resolution XGA (1024x768)
Max. Computer Input WUXGA
Max. Video Input 1080i
Contrast Ratio 500:1
Panel Size 0.55'' (14 mm)
Lens Type (Throw:Width) 1.62-1.92:1
Vertical Lens Shift Fixed: 36% Up
Keystone Correction Digital: up-to 30° Up or Down

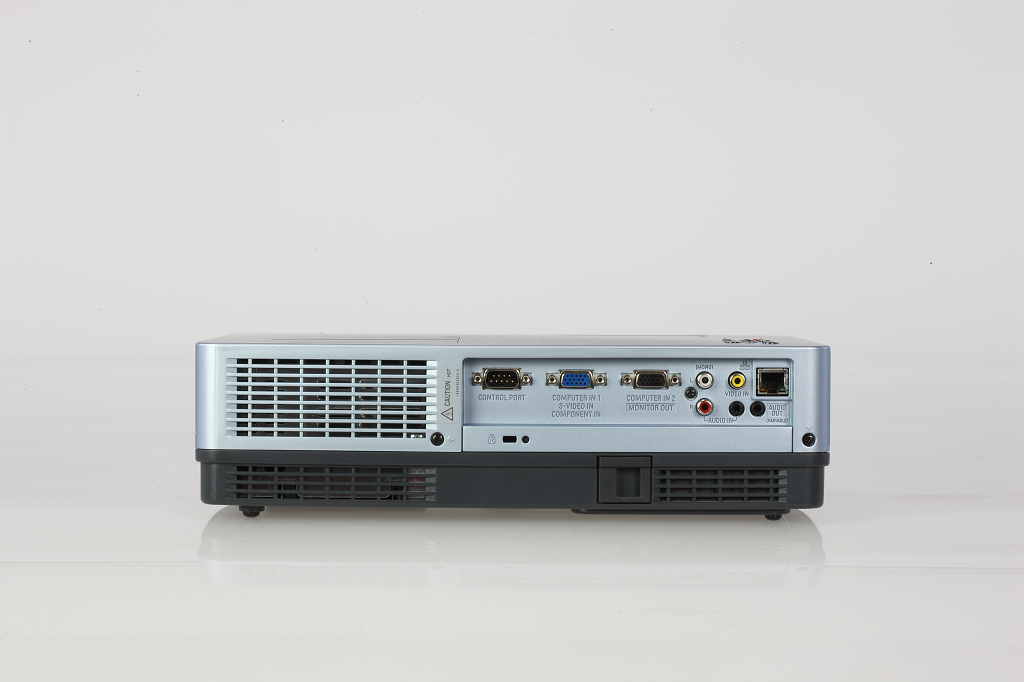

Inputs Video: Dsub15 x 2; S-Video x 1; RCA x 1;
Audio: MiniStereo x 1; Stereo RCA x 2;
Outputs Video: Dsub15 x 1 (switchable); Audio: variable, Ministereo x 1;
Sound System 1 Watt; 1.1'' (2.8 cm) speaker x 1
Network Control Wired LAN monitor & control
Warranty 3 years
Lamp Life Up to 6,000 hours
Lamp Part # 610 349 7518
Fan Noise As low as 29 dBa
Air Filter Replaceable, up-to 5,500 Hours
Maximum Pitch up-to 30° Up or Down
Weight 5.7 lb (2.6 kg)
Ceiling Mount Part # 0173-4341
 NameDescriptionSizeType
Icon of LC-XBL26 Cad DrawingLC-XBL26 Cad Drawing0.1 MB
Icon of LC-XBL26 Cad Drawing DxfLC-XBL26 Cad Drawing Dxf0.3 MB
Icon of LC-XBL26 Color Data SheetLC-XBL26 Color Data SheetLC-XBL26 Color Data Sheet1.1 MBPDF
Icon of LC-XBL26 Lens ChartLC-XBL26 Lens ChartLC-XBL26 Lens Chart13 KBPDF
Icon of LC-XB26 Owners ManualLC-XB26 Owners ManualLC-XBL26 owners manual1.8 MBPDF
Icon of LC-XBL26 Owners ManualLC-XBL26 Owners ManualLC-XBL26 Owners Manual9.4 MBPDF
Icon of LC-XBL26 Remote Control CodesLC-XBL26 Remote Control CodesLC-XBL26 Remote Control Codes24 KBPDF
Icon of LC-XBL26 RS-232 Basic Serial CommandsLC-XBL26 RS-232 Basic Serial CommandsLC-XBL26 RS-232 Basic Serial Commands0.2 MBPDF
Icon of LC-XBL26 RS-232 Extended Serial CommandsLC-XBL26 RS-232 Extended Serial CommandsLC-XBL26 RS-232 Extended Serial Commands0.5 MBPDF
Icon of LC-XBL26 SpecificationsLC-XBL26 SpecificationsLC-XBL26 Specifications0.1 MBPDF

Related Products

0173-4341 Ceiling Mount
Custom Ceiling Projector Mount (Black)
0183-4328 Moulded Case
Molded Travel Case Outer Dim: 21" x 14.5" x 9.5" Net Weight: 12 lbs.
610 349 7518 Lamp
610 349 7518 Lamp
Rated Power: 215W
Lamp type: UHP
Life Expectancy: 6000h
Lamp Warranty: 6 months / 500h (whichever comes first)
