LC-XBM21W LCD Projector

Outstanding Features

  • 2,200 ANSI lumens bright with 85% uniformity and a 2000:1 contrast ratio.
  • Native XGA resolution. Compatible with inputs up-to UXGA and WUXGA.
  • Supports analog video input in all color standards up-to 1080i.
  • 3 panel LCD imaging delivers a rich, color-saturated picture.
  • 8-bit color processing yields a 16.7 million color palette.
  • Convenient midrange (1.2:1) manual zoom and focus lens.
  • Fixed image offset. Automatic vertical digital keystone correction.
  • Two Dsub15 computer inputs. Switchable monitor output.
  • 10 W sound system. Mic input for PA. Closed Caption decoding (NTSC).
  • Built-in wired LAN connection for projector monitoring and control.
  • Power management and Eco mode help prolong lamp life.

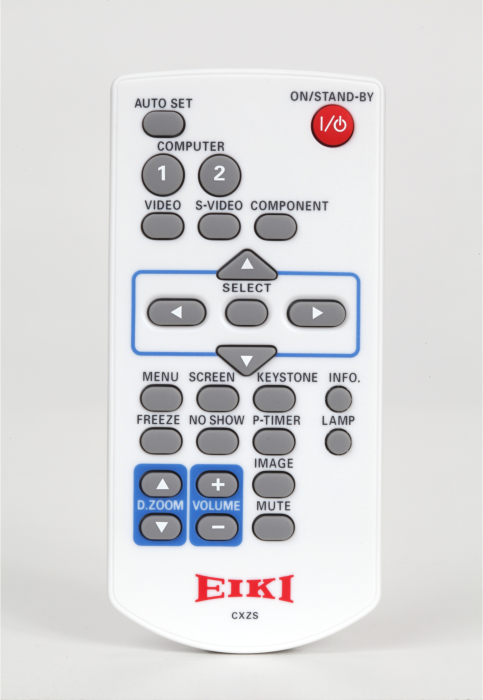

  • Wireless remote control. Digital zoom 50-400%.
  • Color board modes. Custom warm-up screen option. Auto input selection.
  • Kensington® security slot. Local or remote keylock functions.
  • Warranties. Projector: 3 year/6000 hrs. (whichever comes first) projector warranty.
    Air Filter: 2 years. Lamp: 1 year.

Included Accessories: Quick Start Guide, Owner's Manual on CD-ROM, Network Software on CD-ROM, Power Cord, VGA Computer Input Cable (Dsub15 to Dsub15), Wireless Remote Control (with 2 AAA Batteries), Lens Cap, S-Video Input Cable (Dsub15 to S-Video).

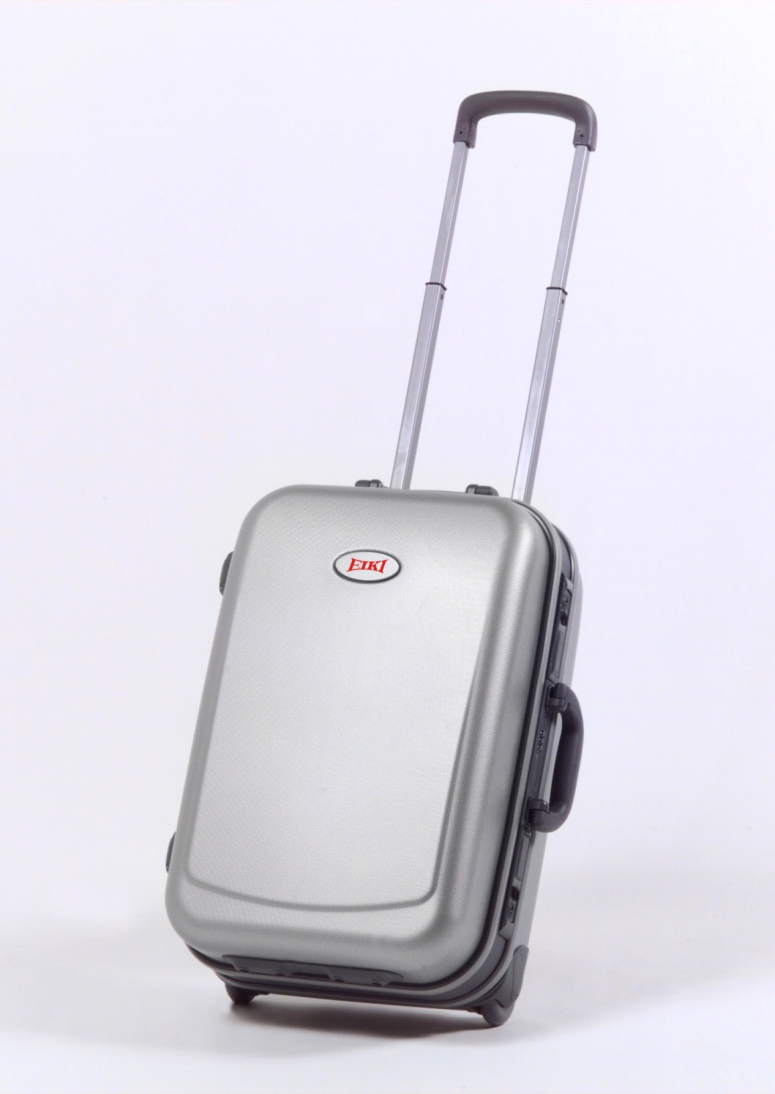

Optional Accessories: Replacement Lamp, Replacement Filter, Component Video Input Adapter Cable (Dsub15 to 3 RCA), RS-232 Control Cable (Dsub9 to Dsub9), Soft Carry Bag, Ceiling Mount Post & Plate.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)

Display Technology 3LCD
Brightness (ANSI) up-to 2,200 ANSI lumens
Native Resolution XGA (1024x768)
Max. Computer Input WUXGA
Max. Video Input 1080i
Contrast Ratio 2000:1
Panel Size 0.55'' (14mm)
Lens Type (Throw:Width) 1.62-1.92:1
Power Lens Shift Fixed: 36% Up
Keystone Correction Digital: up-to 30° Up or Down
Inputs Dsub15 x 2; S-Video x 1; RCA x 1; Component Video with optional adapters
Audio: MiniStereo x 1; Stereo RCA x 2;
Outputs Dsub15 x 1 (Computer Monitor switchable); Audio: variable, Ministereo x 1;
Sound System 10 Watt; 1.6'' (4cm) speaker x 1
Network Control Wired LAN monitor & control
Warranty 3 year/6000 hrs. (whichever comes first) projector warranty.
Lamp Life Up to 6,000 hours per lamp
Lamp Part # 610 349 7518
Fan Noise As low as 29 dBa
Air Filter Replaceable, up-to 5,500 Hours
Maximum Pitch up-to 30° Up or Down
Weight 6.4 lb (2.9 kg)
Ceiling Mount Part # 0173-4353
NameDescriptionSizeType

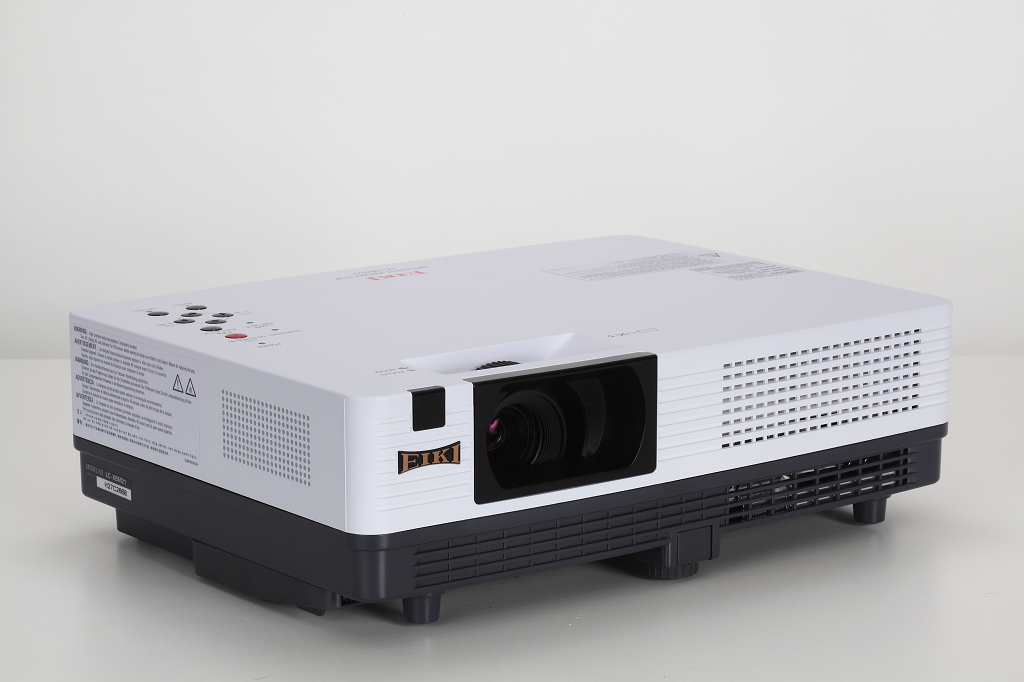

LC-XBM21W Hi-res Image Beauty1LC-XBM21W Hi-res Image Beauty13.1 MBJPG, ZIP

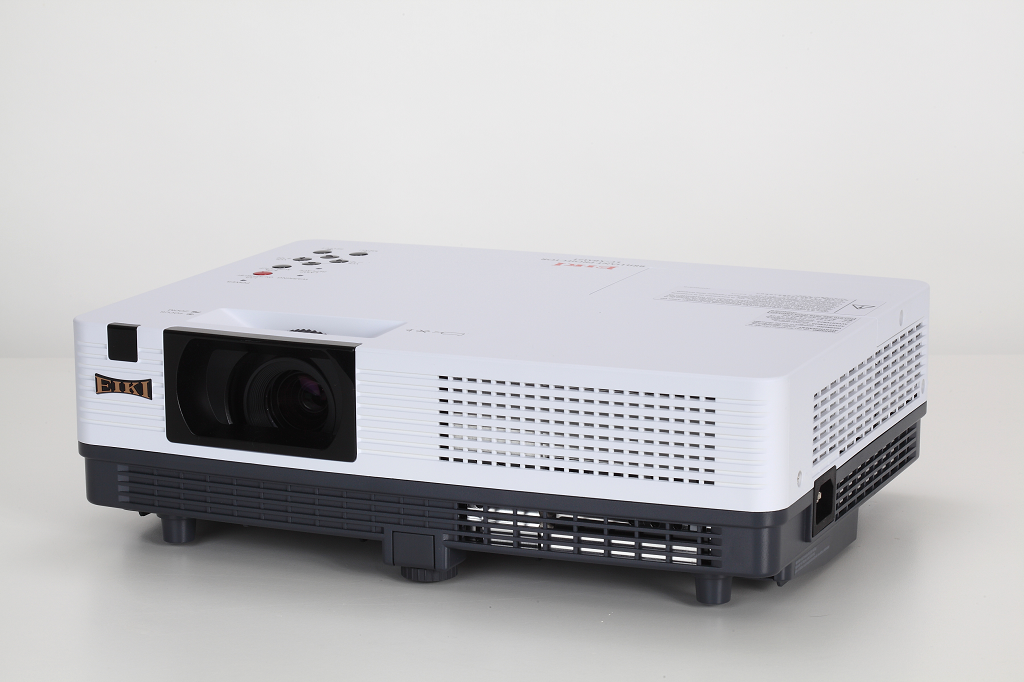

LC-XBM21W Hi-res Image Beauty2LC-XBM21W Hi-res Image Beauty23.0 MBJPG, ZIP

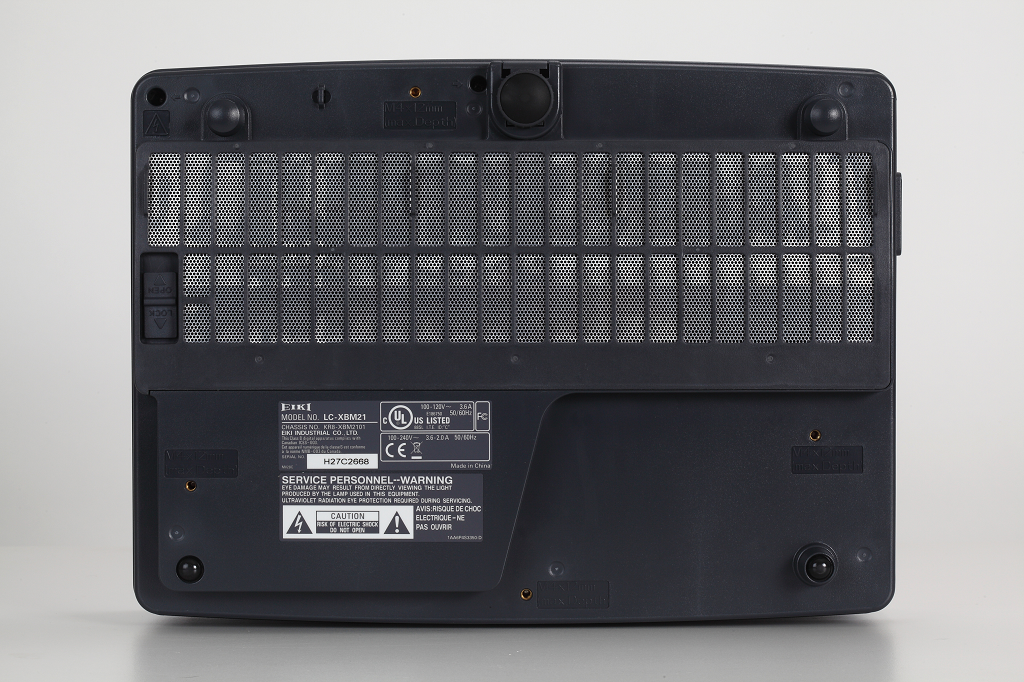

LC-XBM21W Hi-res Image BottomLC-XBM21W Hi-res Image Bottom5.1 MBJPG, ZIP

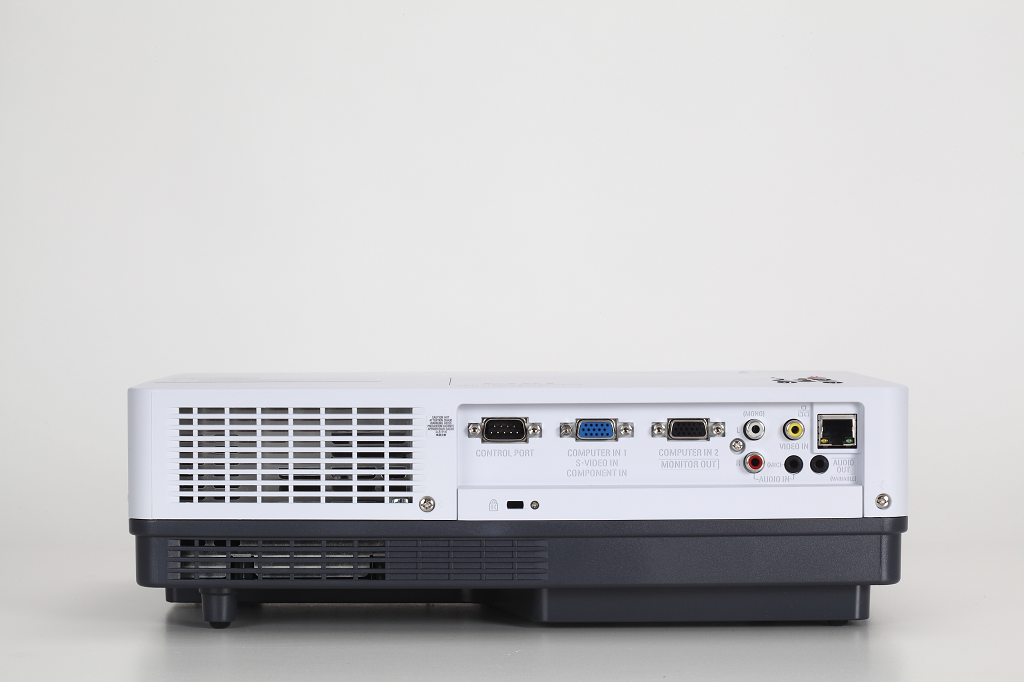

LC-XBM21W Hi-res Image ConnectionsLC-XBM21W Hi-res Image Connections2.9 MBJPG, ZIP

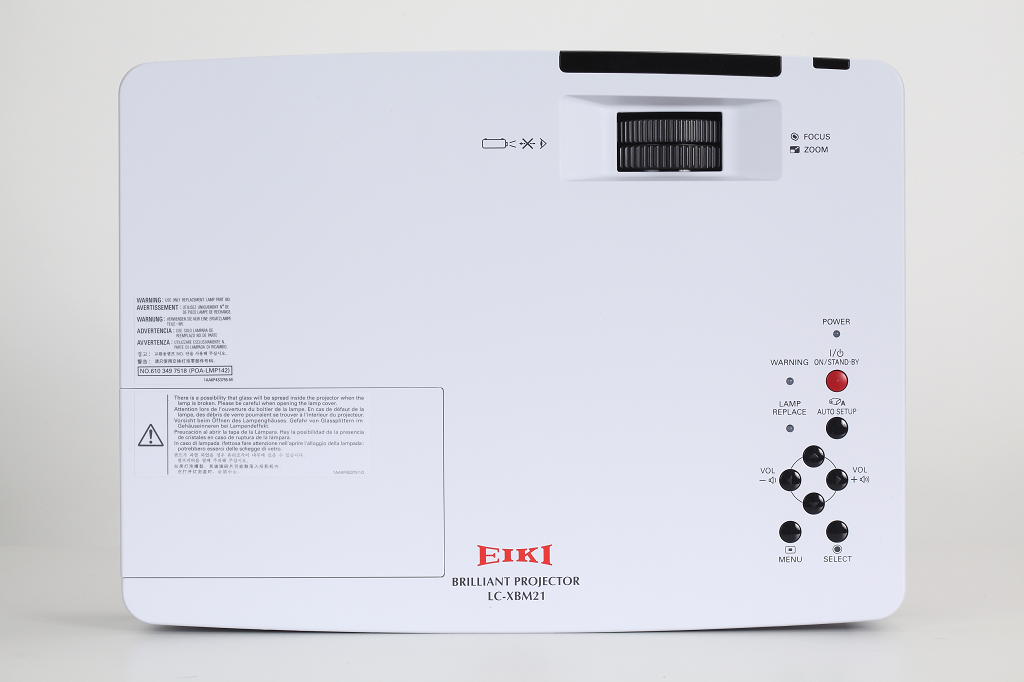

LC-XBM21W Hi-res Image Control PanelLC-XBM21W Hi-res Image Control Panel2.7 MBJPG, ZIP

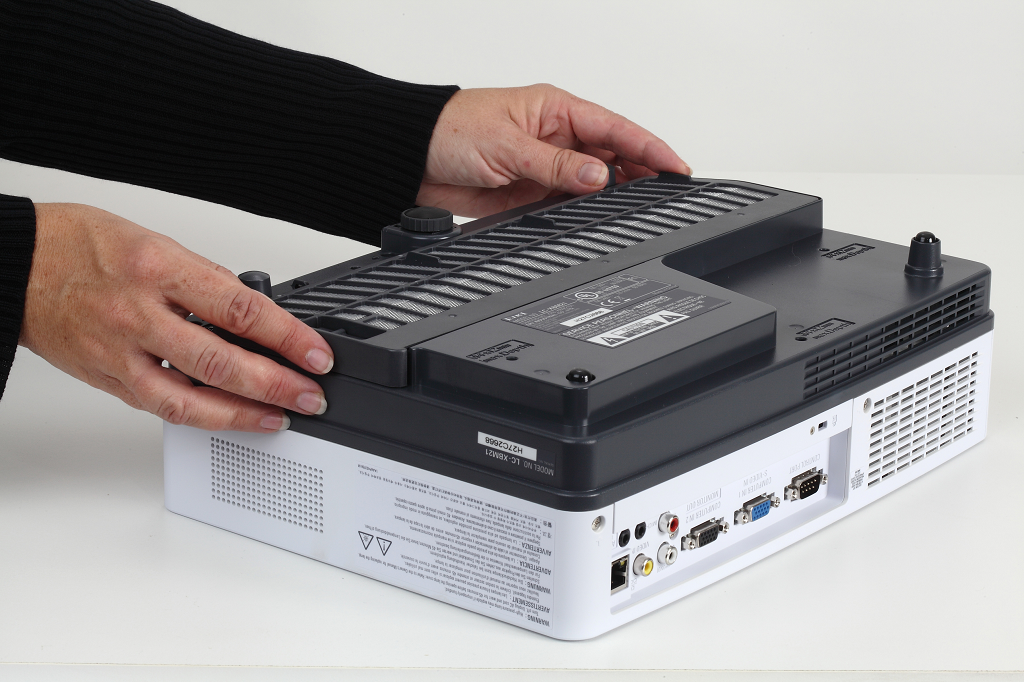

LC-XBM21W Hi-res Image Filter1LC-XBM21W Hi-res Image Filter13.7 MBJPG, ZIP

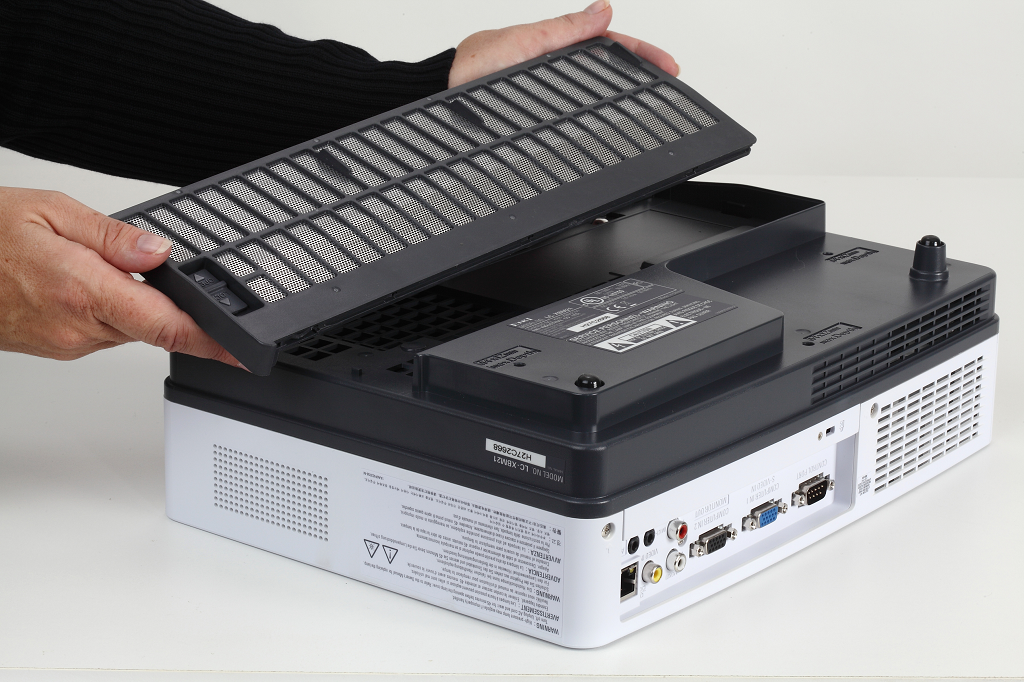

LC-XBM21W Hi-res Image Filter2LC-XBM21W Hi-res Image Filter24.0 MBJPG, ZIP

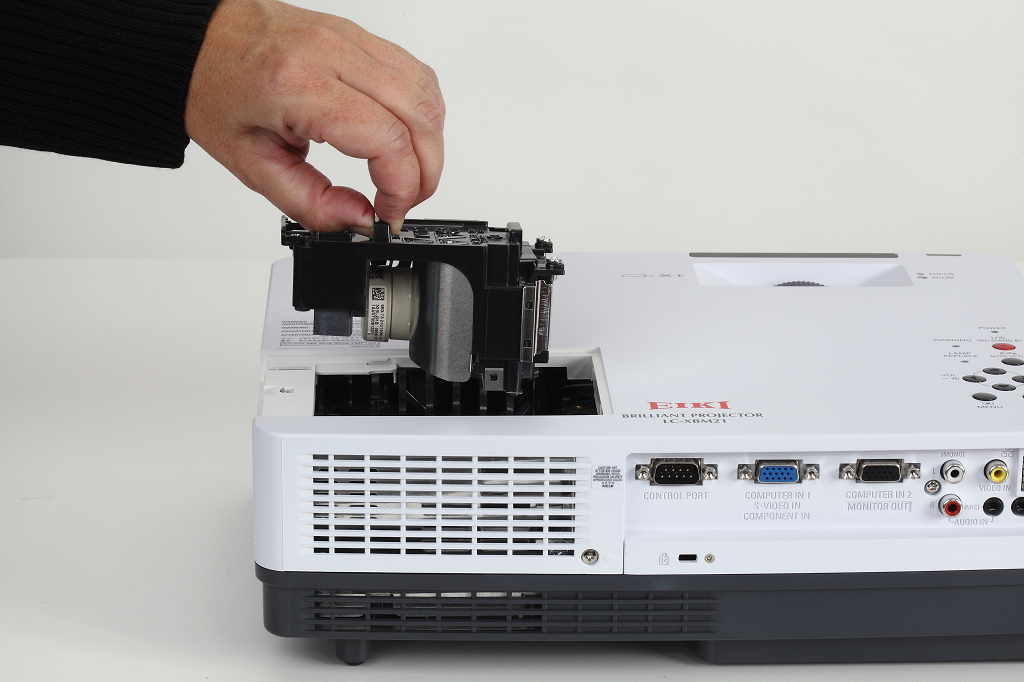

LC-XBM21W Hi-res Image LampLC-XBM21W Hi-res Image Lamp3.3 MBJPG, ZIP
LC-XBM21W Lens ChartLC-XBM21W Lens Chart12.6 KBPDF
LC-XBM21W Remote Control CodesLC-XBM21W Remote Control Codes29.3 KBPDF
LC-XBM21W RS-232 Basic Serial CommandsLC-XBM21W RS-232 Basic Serial Commands179.6 KBPDF
LC-XBM21W RS-232 Extended Serial CommandsLC-XBM21W RS-232 Extended Serial Commands437.3 KBPDF
LC-XBM21W SpecificationsLC-XBM21W Specifications40.8 KBPDF
