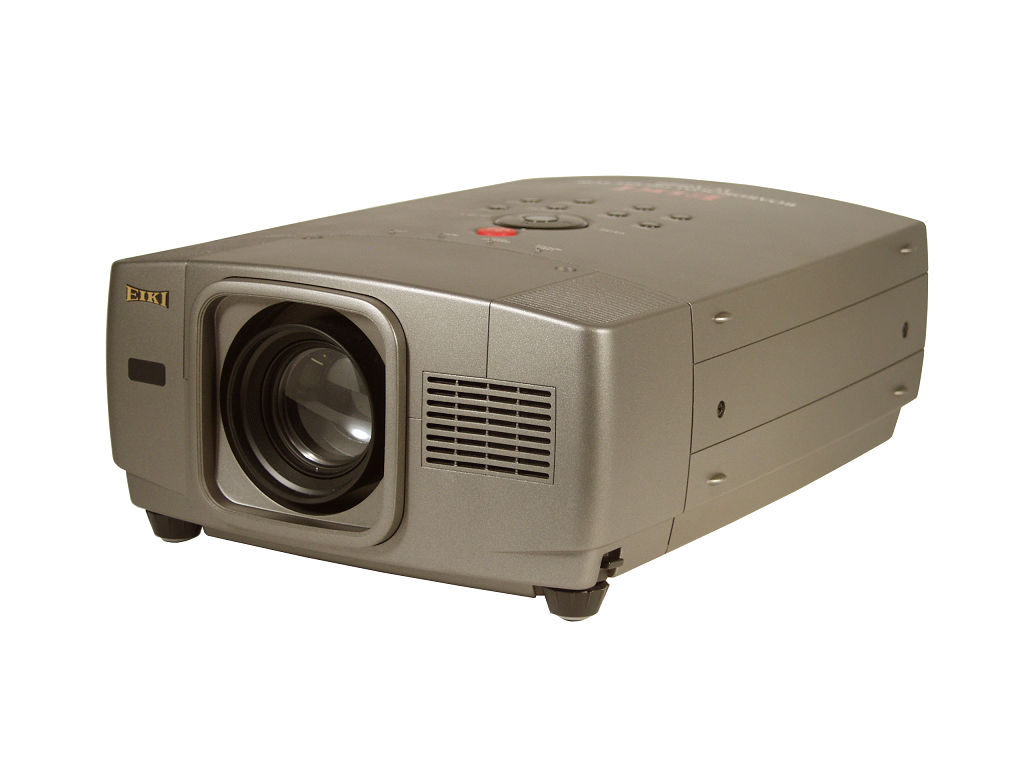

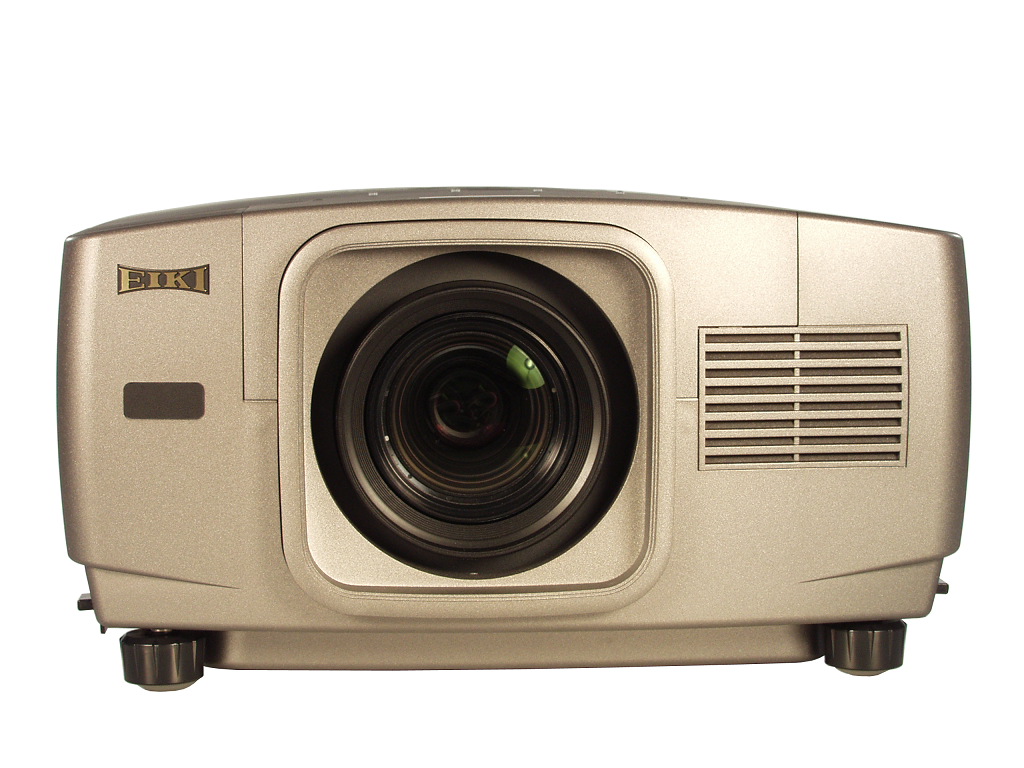

LC-XG110 LCD Projector

Key Features

  • 2700 ANSI Lumens, at a 700:1 contrast ratio.
  • Extremely quiet operation: fan noise as low as 31 dBA in Eco-Mode.
  • 3 panel LCD imaging for rich, color saturated visuals.
  • Weighs only 17.2 lb! Compact and easy to carry and store.
  • True XGA Resolution. SXGA~VGA compatible. Two data inputs.
  • Smart data compression / expansion, and video scaling.
  • Power zoom and focus. Power lens shift. Digital keystone correction.

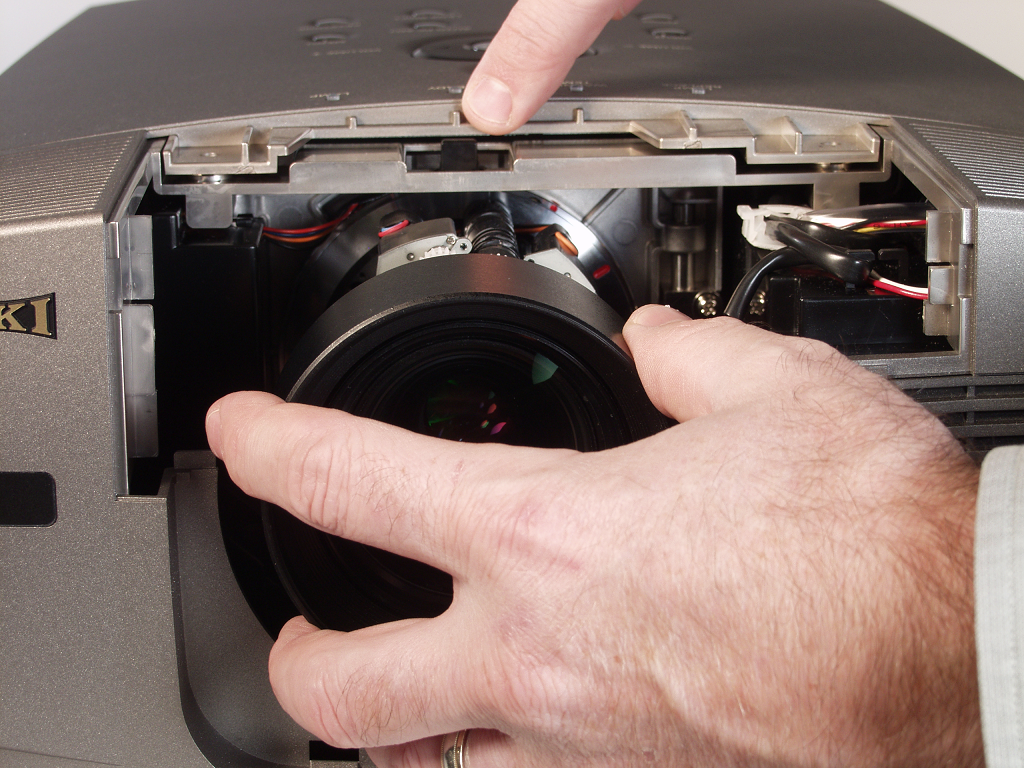

  • Optional WideAngle & Telephoto Zoom Lenses. Quick Lens Change System.

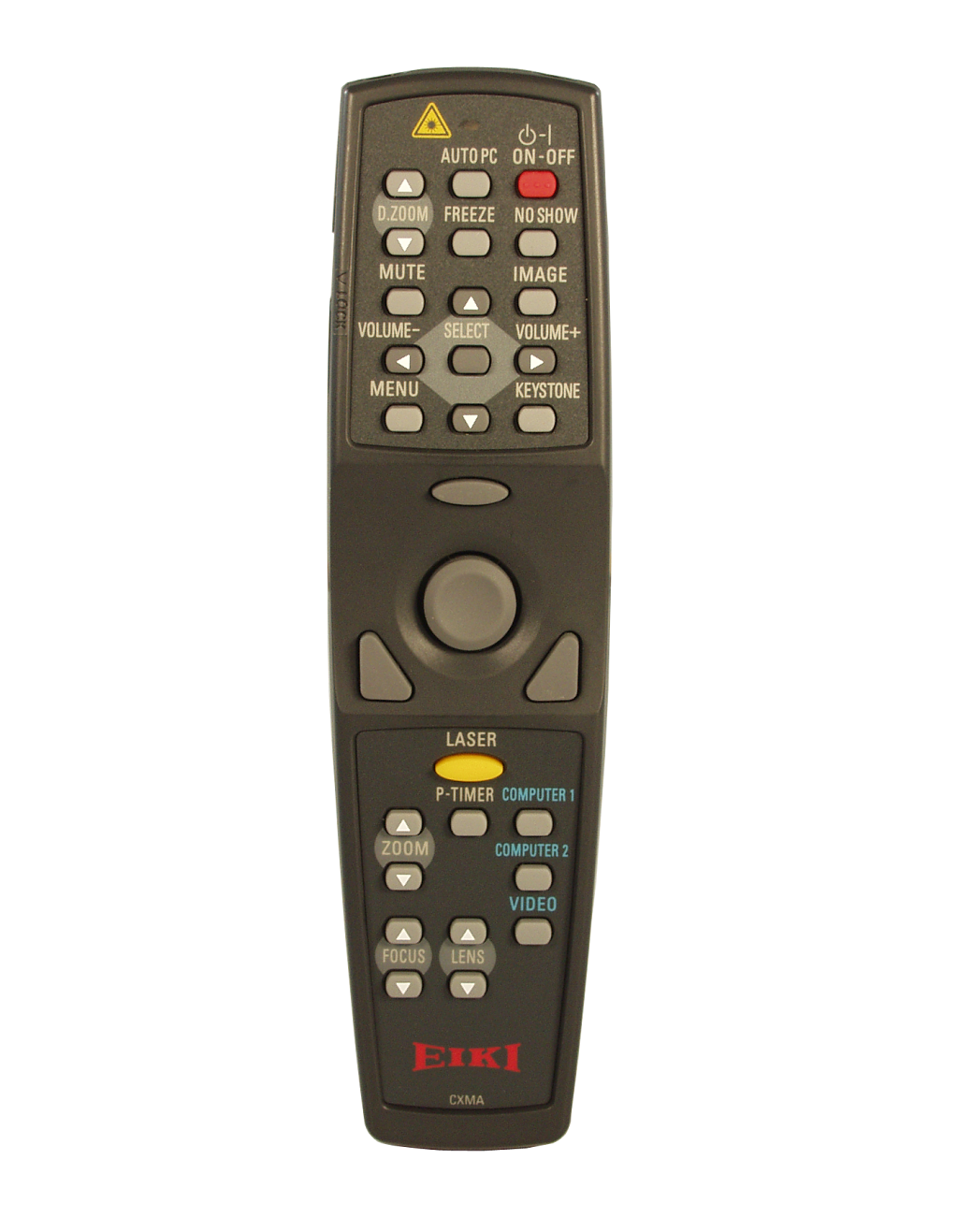

  • Wireless remote with mouse and laser pointer. 7-power digital zoom.
  • Accepts DVD & HDTV Component Video, plus Composite, and S-Video Input.
  • Displays all video color standards, in both 4:3 and 16:9 aspect ratio.
  • Enhanced progressive scan up to 1080i, and 2-3 pulldown support.
  • Optional Media Card Imager and Wireless Imager attachments.
  • 3 Year* Projector Warranty!

Included Accessories: Owner's Manual. AC Power Cord 10' (3.m), Lens Cover. HD15 (VGA-type) Computer Input Cable. DVI~HD15 (VGA) Adapter. Wireless Remote with Mouse Control and Laser Pointer & Batteries (AAx2). Mouse cables for computer USB and Serial/RS-232. Dust Cover.

Optional Accessories: Replacement Lamp. DVI~HD15 (VGA) Input Cable. Soft Carry Bag. Luggage-Style Carrying Case with Wheels and Telescoping Handle and Detachable Computer Compartment. ATA-Style Shipping Case with wheels and Telescoping Handle. Ceiling Mount. Ceiling Post & Plate. 33’ (10m) Mouse Extension Cable. Media Card Imager (Compact Flash Computerless Slide Show System). Wireless Imager (Wi-Fi Content Delivery and Projector Control System). Wideangle and Telephoto Lenses. EZtrol Local Control. Pj-to-NetDirector Interface. NPC-1 Network Control.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)
()

Display Technology 3LCD
Brightness (ANSI) 2700 ANSI Lumens / 2200 in Eco-Mode
Native Resolution 1024x768 (XGA)
Max. Computer Input SXGA
Max. Video Input 1080i
Contrast Ratio 700:1
Panel Size 0.99"
Lens Type (Throw:Width) 1.69~2.19:1
Power Lens Shift Ratio (Top:Bottom) 10:0~1:1
Keystone Correction Digital: up to 30° up or down; up to 10° left or right
Inputs HD15 x 1 data, MiniStereo x 1 audio;
DVI-I x 1 data, MiniStereo x 1 audio;
RCA x 1 or S-Video x 1 or RCA x 3 video, RCA x 2 audio
Outputs HD15 x 1, Speaker Output (Stereo) MiniStereo x 1 (8 Ohm)
Sound System 2 Watt; speakers Stereo: 1.8 in. (4.5cm.) x 2
Network Control Wired LAN monitor & control and system management with optional module
Warranty 3 years

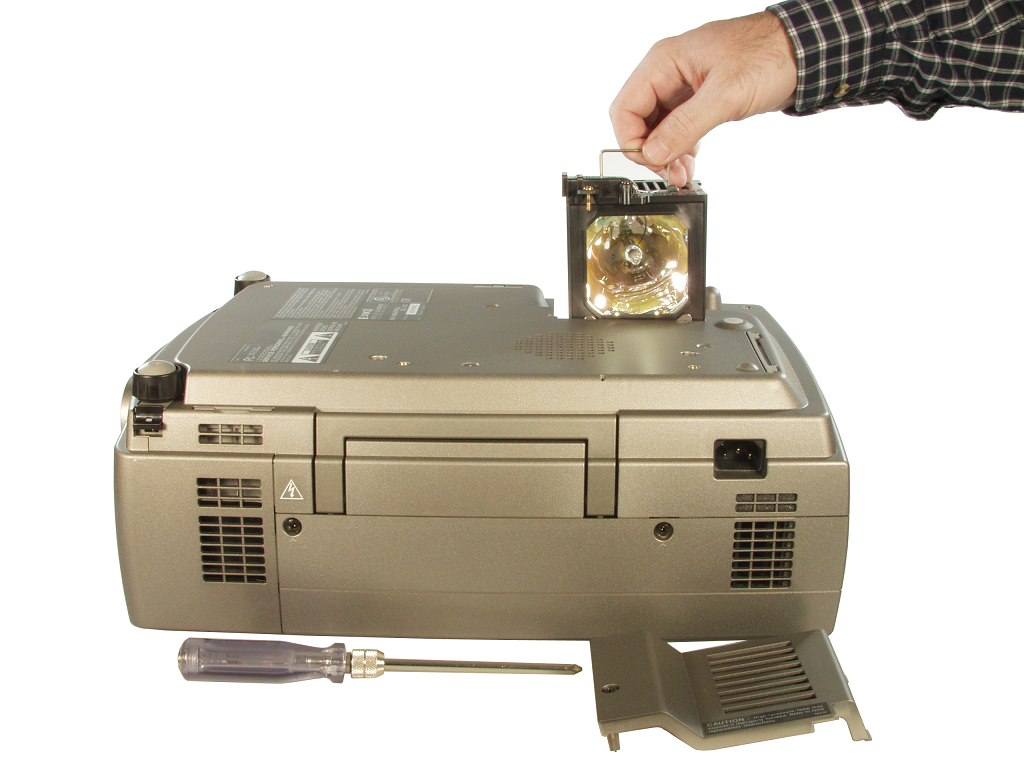

Lamp Life 2,000 hours
Lamp Part # 610 305 5602
Fan Noise 36 dBA / 31 dBA in Eco-Mode

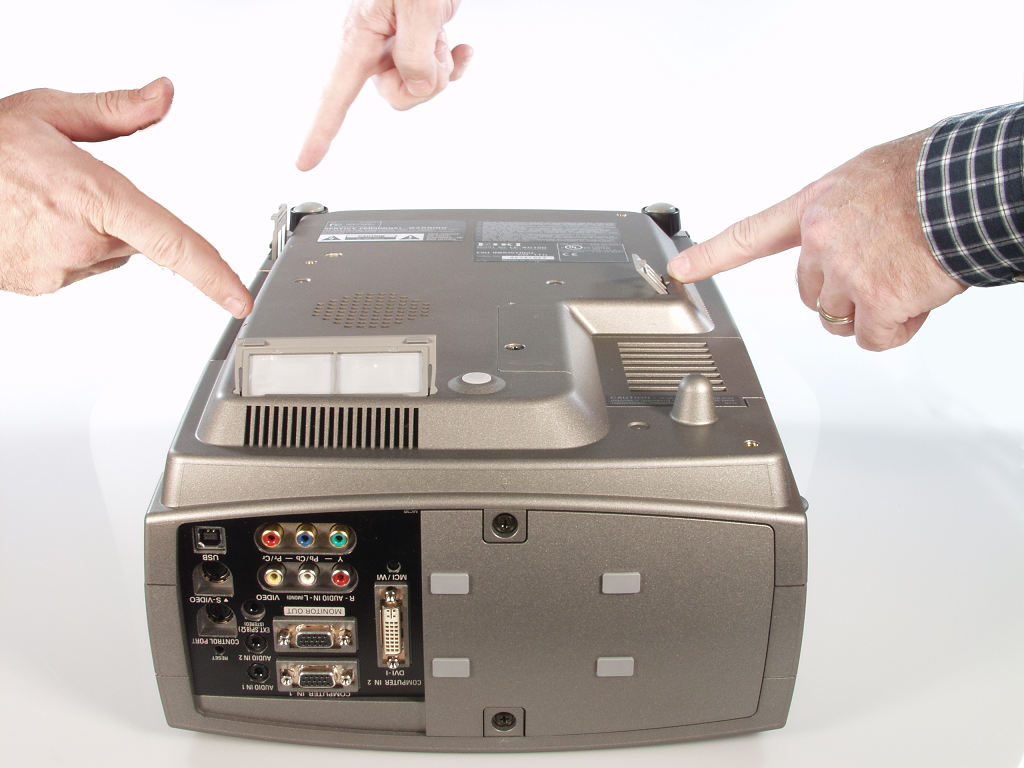

Air Filter Standard
Maximum Pitch +/- 20°
Weight 17.2 lb. (7.8kg)
Ceiling Mount Part # 0173-4263
NameDescriptionSizeType
LC-XG110 Cad Drawing443.2 KB
LC-XG110 Cad Drawing Dxf2.3 MB
LC-XG110 Cad Drawing Opt Lens91.1 KB
LC-XG110 Color Data Sheet775.7 KB
LC-XG110 Lens ChartLC-XG110 Lens Chart14.8 KBPDF
LC-XG110 Owners ManualLC-XG110 Owners Manual1.3 MBPDF
LC-XG110 RS-232 Control SoftwareLC-XG110 RS-232 Control Software1.6 MB
LC-XG110 RS-232 Basic Serial CommandsLC-XG110 RS-232 Basic Serial Commands8.0 KBPDF
LC-XG110 RS-232 Extended Serial CommandsLC-XG110 RS-232 Extended Serial Commands27.0 KBPDF
LC-XG110 SpecificationsLC-XG110 Specifications35.3 KBPDF
