LC-XG200 LCD Projector

Key Features

  • 3200 ANSI Lumens, at a 800:1 contrast ratio, thanks to MicroLens Array.
  • Extremely quiet operation: fan noise as low as 31 dBA in Eco-Mode.
  • 3 panel LCD imaging for rich, color saturated visuals.
  • Weighs only 17.2 lb! Compact and easy to carry and store.
  • True XGA Resolution. SXGA~VGA compatible. Two data inputs.
  • Smart data compression / expansion, and video scaling.
  • Power zoom and focus. Power lens shift. Digital keystone correction.

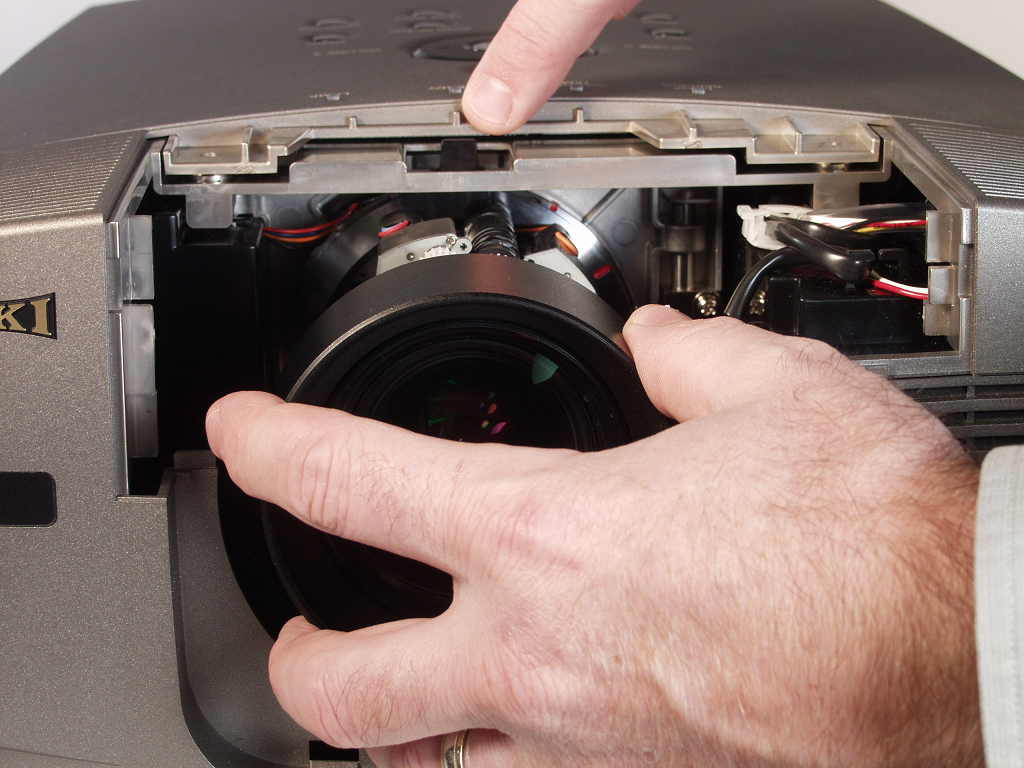

  • Optional WideAngle & Telephoto Zoom Lenses. Quick Lens Change System.

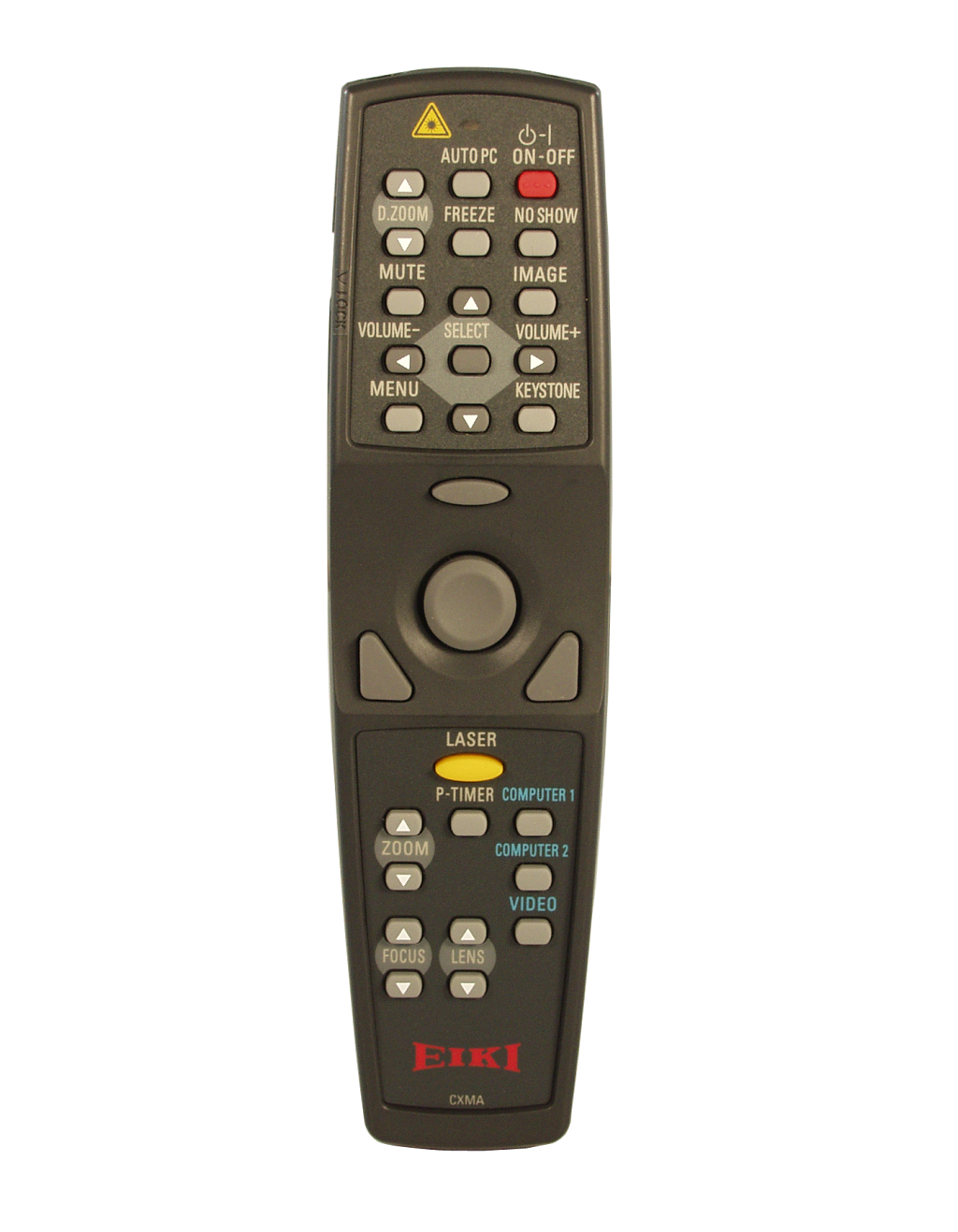

  • Wireless remote with mouse and laser pointer. 7-power digital zoom.
  • Accepts DVD & HDTV Component Video, plus Composite, and S-Video Input.
  • Displays all video color standards, in both 4:3 and 16:9 aspect ratio.
  • Enhanced progressive scan up to 1080i, and 2-3 pulldown support.
  • Optional Media Card Imager and Wireless Imager attachments.
  • 3 Year* Projector Warranty!

Included Accessories: Owner's Manual. AC Power Cord 10' (3.m), Lens Cover. HD15 (VGA-type) Computer Input Cable. DVI~HD15 (VGA) Adapter. Wireless Remote with Mouse Control and Laser Pointer & Batteries (AAx2). Mouse cables for computer USB and Serial/RS-232. Dust Cover.

Optional Accessories: Replacement Lamp. DVI~HD15 (VGA) Input Cable. Soft Carry Bag. Luggage-Style Carrying Case with Wheels and Telescoping Handle and Detachable Computer Compartment. ATA-Style Shipping Case with wheels and Telescoping Handle. Ceiling Mount. Ceiling Post & Plate. 33’ (10m) Mouse Extension Cable. Media Card Imager (Compact Flash Computerless Slide Show System). Wireless Imager (Wi-Fi Content Delivery and Projector Control System). Wideangle and Telephoto Lenses. EZtrol Local Control. Pj-to-NetDirector Interface. NPC-1 Network Control.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)
()

Display Technology 3LCD
Brightness (ANSI) 3200 ANSI Lumens / 2560 in Eco-Mode
Native Resolution 1024x768 (XGA)
Max. Computer Input SXGA
Max. Video Input 1080i
Contrast Ratio 800:1
Panel Size 0.99"
Lens Type (Throw:Width) 1.69~2.19:1
Power Lens Shift Ratio (Top:Bottom) 10:0~1:1
Keystone Correction Digital: up to 30° up or down; up to 10° left or right

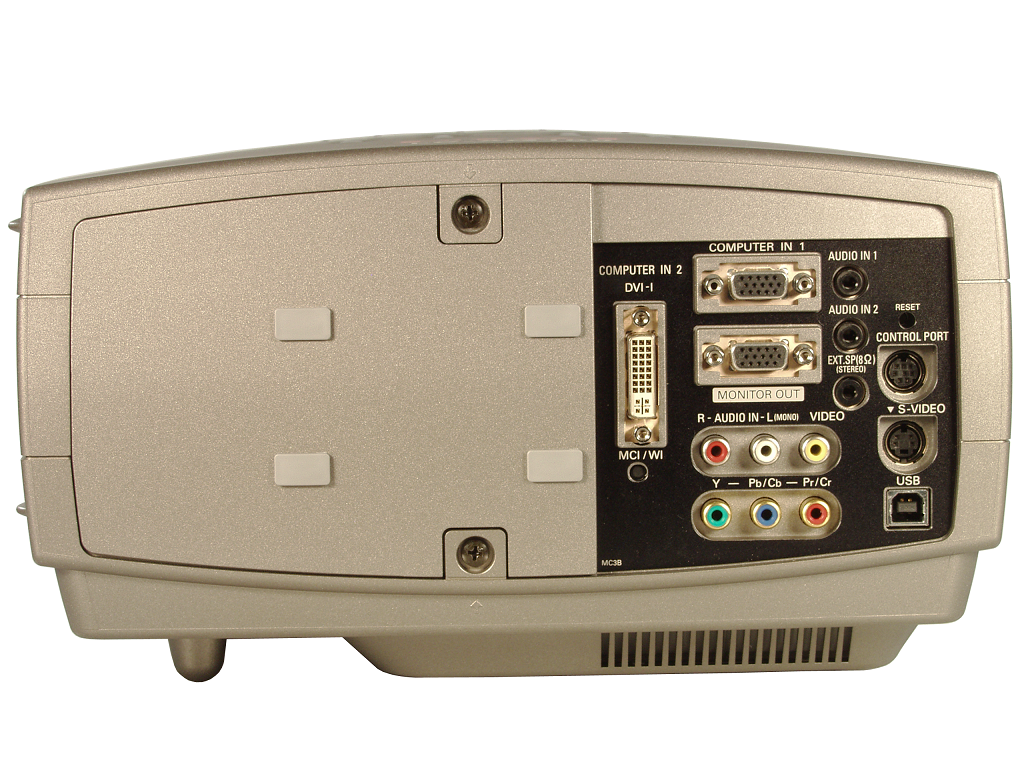

Inputs HD15 x 1 data, MiniStereo x 1 audio;
DVI-I x 1 data, MiniStereo x 1 audio;
RCA x 1 or S-Video x 1 or RCA x 3 video, RCA x 2 audio
Outputs HD15 x 1, Speaker Output (Stereo) MiniStereo x 1 (8 Ohm)
Sound System 2 Watt; speakers Stereo: 1.8 in. (4.5cm.) x 2
Network Control Wired LAN monitor & control and system management with optional module
Warranty 3 years
Lamp Life 2,000 hours
Lamp Part # 610 301 7167
Fan Noise 36 dBA / 31 dBA in Eco-Mode
Air Filter Standard
Maximum Pitch +/- 20°
Weight 17.2 lb. (7.8kg)
Ceiling Mount Part # 0173-4263
 NameDescriptionSizeType
Icon of LC-XG200 Cad Drawing DxfLC-XG200 Cad Drawing Dxf2.3 MB
Icon of LC-XG200 Cad Drawing Opt LensLC-XG200 Cad Drawing Opt Lens91 KB
Icon of LC-XG200 Color Data SheetLC-XG200 Color Data SheetLC-XG200 Color Data Sheet0.8 MBPDF
Icon of LC-XG200 Lens ChartLC-XG200 Lens ChartLC-XG200 Lens Chart15 KBPDF
Icon of LC-XG200 Owners ManualLC-XG200 Owners ManualLC-XG200 Owners Manual1.0 MBPDF
Icon of LC-XG200 RS-232 Control SoftwareLC-XG200 RS-232 Control Software1.6 MB
Icon of LC-XG200 RS-232 Basic Serial CommandsLC-XG200 RS-232 Basic Serial CommandsLC-XG200 RS-232 Basic Serial Commands8 KBPDF
Icon of LC-XG200 RS-232 Extended Serial CommandsLC-XG200 RS-232 Extended Serial CommandsLC-XG200 RS-232 Extended Serial Commands27 KBPDF
Icon of LC-XG200 SpecificationsLC-XG200 SpecificationsLC-XG200 Specifications33 KBPDF

Related Products

0001-4264 Lens
LC-WGC500A
LC-WGC500LA
LC-XGC500
LC-XGC500L
0001-4266 Lens
LC-WGC500A
LC-WGC500LA
LC-XGC500
LC-XGC500L
0001-4267 Lens
Manual Zoom & Focus FL: 5.20"~8.70" (132~220 mm) f:3.0
0001-4268 Lens
LC-WGC500A
LC-WGC500LA
LC-XGC500
LC-XGC500L
0001-4298 Lens
LC-WGC500A
LC-WGC500LA
LC-XGC500
LC-XGC500L
0001-4300 Lens
LC-WGC500A
LC-WGC500LA
LC-XGC500
LC-XGC500L
AH-23511 Lens
LC-WGC500A
LC-WGC500LA
LC-XGC500
LC-XGC500L
AH-23541 Lens
LC-WGC500A
LC-WGC500LA
LC-XGC500
LC-XGC500L
AH-23631 Lens
LC-WGC500A
LC-WGC500LA
LC-XGC500
LC-XGC500L
AH-23661 Lens
LC-WGC500A
LC-WGC500LA
LC-XGC500
LC-XGC500L

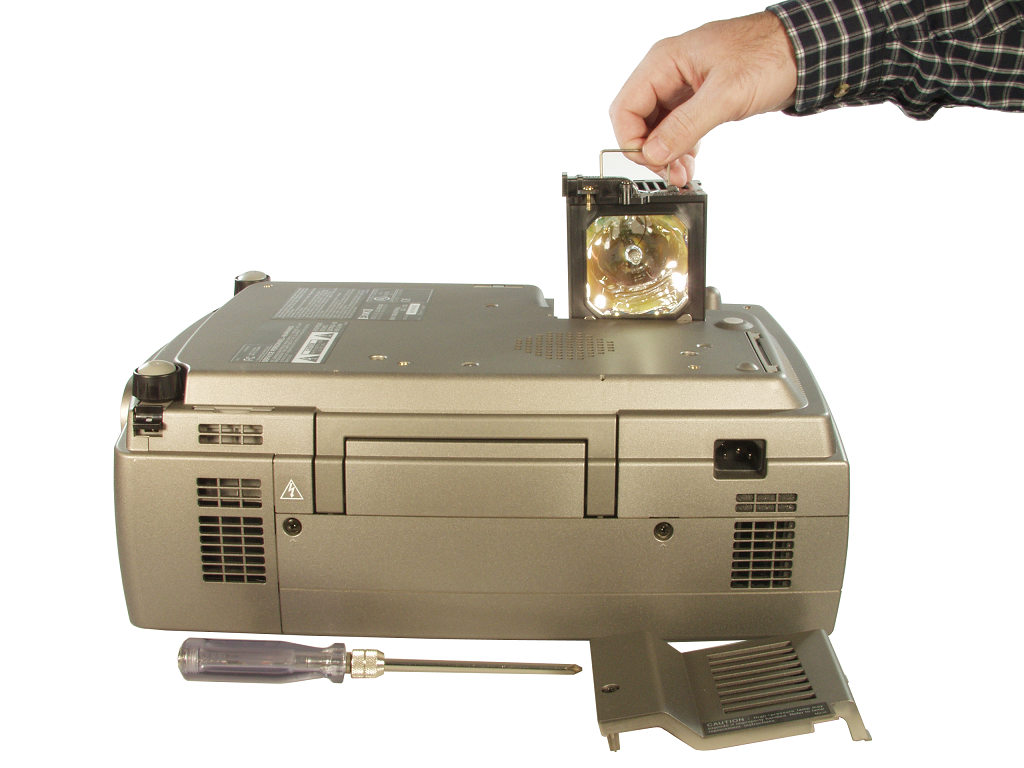

610 301 7167 Lamp
Rated Power: 250W
Lamp type: UHP
Life Expectancy: 2000h
Lamp Warranty: 90 days (Pro-Rata)

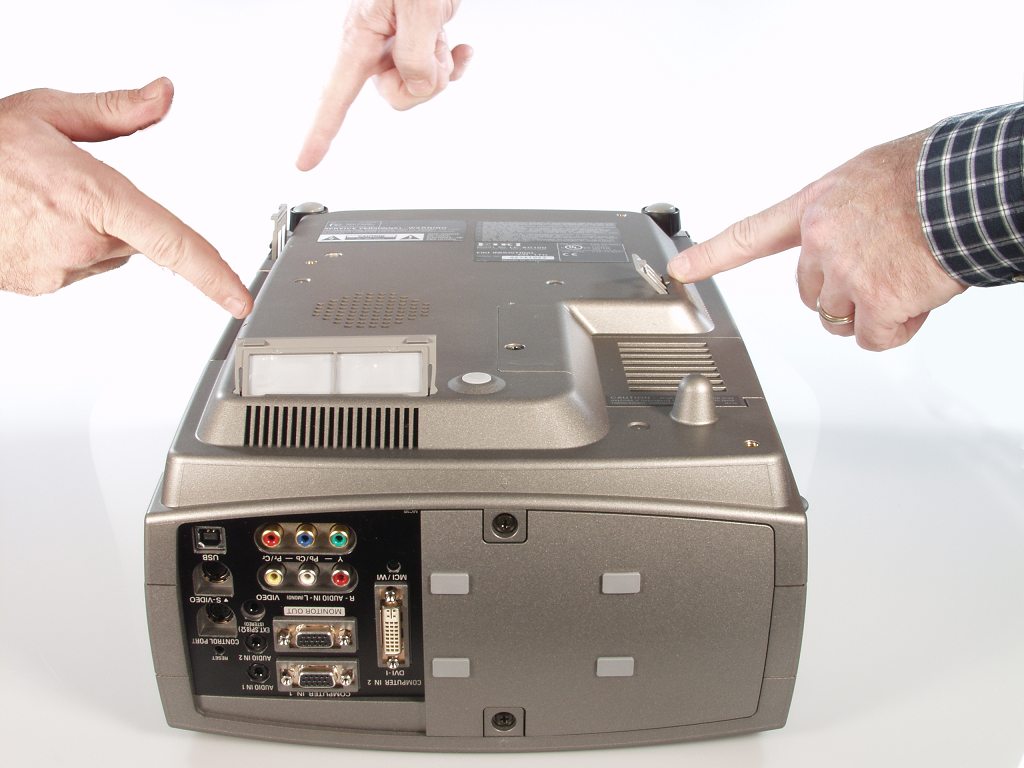

910 307 6332 Filter
910 307 6332 Filter
Replacement Filter Base - a
910 301 5096 Filter
910 301 5096 Filter
Replacement Filter Base - b
910 308 2821 Filter
910 308 2821 Filter
Replacement Filter Base - Lamp
