LC-XGC500 LCD Projector
LC-XGC500L (no lens) LCD Projector

Outstanding Features

Mechanical shutter for true black screen. Lamp changer system automatically installs a fresh lamp. High Brightness and Contrast. Range of optional lens 0.8~11.3:1. Cartridge air filter system automatically advances to a fresh filter. Physically centered lens. Projector supports pitch through 360°. Top-accessed lamp and filter make maintenance easy. Power Lens shift Up 50%, Left or Right 15%. 3W stereo amplifier and 2 x 3.5” speakers. Push-button lens replacement (no dismantling required).

Key Features

  • 5000 ANSI Lumens bright, at 90%+ uniformity and a 1100:1 contrast ratio.
  • 3 panel LCD imaging for rich color saturated computer and video projection.
  • XGA resolution. Smart data compression / expansion, and video scaling.
  • Lamp changer & cartridge air filter for mission critical / hard-to-reach installs.
  • Includes most professional input configurations, including 5 BNC and DVI.
  • Accepts analog and digital computer, and analog & digital video (HDCP) input.
  • Compatible: Computer up to SXGA+ & WUXGA, Video up to 1080i.
  • Power zoom & focus. V & H Power lens shift. Digital keystone correction.
  • Optional Wideangle and Telephoto lenses. Instant Lens Change System.
  • Converts Interlace to Progressive scan. 3-2 (and 2-2) pulldown support.
  • Variable Power Management Option. Optional Local or Remote Keylock.
  • Custom Warmup Screen Image Option. Built-in Color Auto Picture Control.
  • Wireless/wired remote w/mouse and laser pointer. -50%~+700% digital zoom.
  • 3 year/6000 hrs. (whichever comes first) projector warranty.

Included Accessories: Quick Start Guide. Owner's Manual on CD-ROM. AC Power Cord 10' (3m) Type 3 Detachable. Lens Cover. VGA-type (Dsub15~Dsub15) Computer Input Cable. Wireless/wired Remote with Mouse Control and Laser Pointer & 2 x AAA batteries. USB Cable for Computer Mouse control. Serial (DB9~8DIN) control cable (RS-232).

Optional Accessories: Replacement Lamp. ATA-Style Shipping Case with Wheels and Telescoping Handle. A Range of Wideangle and Telephoto Lenses. Ceiling Mount. Ceiling Post & Plate. PjNet Network Interface.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)
()

Display Technology 3LCD
Brightness (ANSI) 5,000 lumens
Native Resolution XGA (1024x768)
Max. Computer Input SXGA+
Max. Video Input 1080i
Contrast Ratio 1100:1
Panel Size 1.0"
Lens Type (Throw:Width) 1.64-2.14:1
Power Lens Shift U/D 50%; L/R 15%
Keystone Correction U/D 40º; L/R 20º

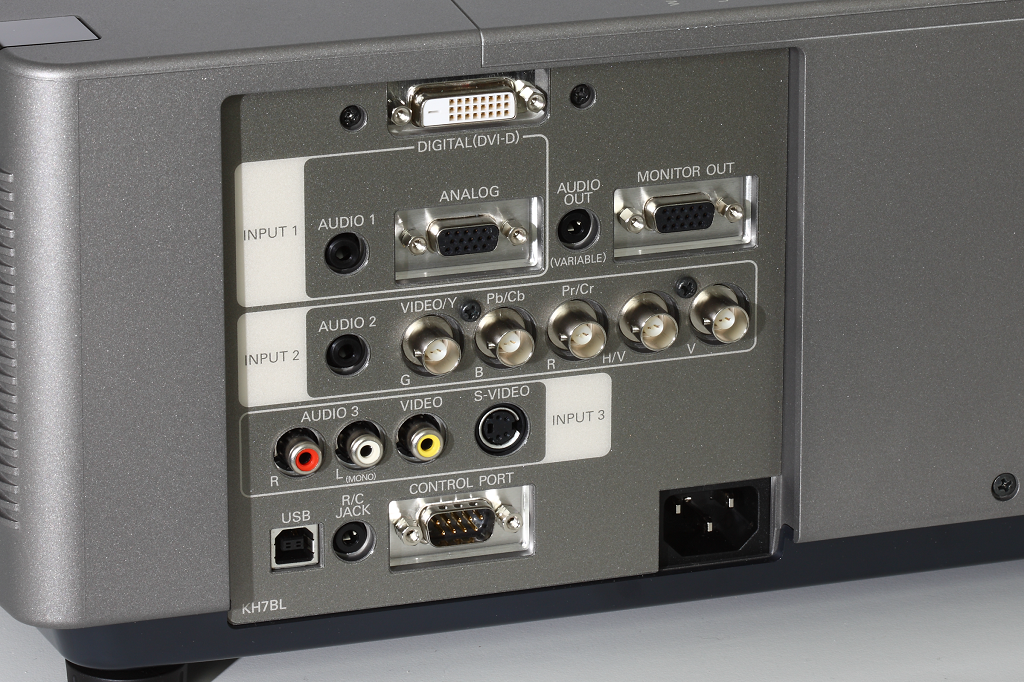

Inputs Dsub15 x 1 or DVI-D (w/HDCP); BNC x 5 or BNC x 3;
RCA x 1 or S-Video x 1; RCA (audio) x 2; MiniStereo x 1
Outputs Dsub15 x 1; MiniStereo x 1
Sound System
Network Control Wired LAN monitor & control and system management with optional module
Warranty 3 year/6000 hrs. (whichever comes first) projector warranty.
Lamp Life Up to 3,000 hours per lamp
Lamp Part # 610 342 2626 (2)
Fan Noise As low as 32 dBA
Air Filter Cartridge (10,000 hours)
Maximum Pitch Up to 360°
Weight 34 lb (15.4 kg)
Ceiling Mount Part # 0173-4304
NameDescriptionSizeType
LC-XGC500 Cad Drawing238.2 KB
LC-XGC500 Color Data Sheet1.5 MB
LC-XGC500 Hi-res Image Beauty1LC-XGC500 Hi-res Image Beauty13.6 MBZIP, TIF
LC-XGC500 Hi-res Image Beauty2LC-XGC500 Hi-res Image Beauty23.6 MBZIP, TIF
LC-XGC500 Hi-res Image ConnectionsLC-XGC500 Hi-res Image Connections6.3 MBZIP, TIF
LC-XGC500 Hi-res Image FilterLC-XGC500 Hi-res Image Filter3.8 MBZIP, TIF
LC-XGC500 Hi-res Image FrontLC-XGC500 Hi-res Image Front3.9 MBZIP, TIF
LC-XGC500 Hi-res Image Lamp RemovalLC-XGC500 Hi-res Image Lamp Removal5.8 MBZIP, TIF
LC-XGC500 Hi-res Image RearLC-XGC500 Hi-res Image Rear3.6 MBZIP, TIF
LC-XGC500 Hi-res Image RemoteLC-XGC500 Hi-res Image Remote3.9 MBZIP, TIF
LC-XGC500 Hi-res Image Side1LC-XGC500 Hi-res Image Side13.8 MBZIP, TIF
LC-XGC500 Hi-res Image Side2LC-XGC500 Hi-res Image Side23.6 MBZIP, TIF
LC-XGC500 Lens ChartLC-XGC500 Lens Chart40.8 KBPDF
LC-XGC500 Owners ManualLC-XGC500 Owners Manual7.3 MBPDF
LC-XGC500 Pjnet-50 ManualLC-XGC500 Pjnet-50 Manual12.0 MBPDF
LC-XGC500 Remote Control CodesLC-XGC500 Remote Control Codes14.8 KBPDF
LC-XGC500 RS-232 Control SoftwareLC-XGC500 RS-232 Control Software1.4 MB
LC-XGC500 RS-232 Basic Serial CommandsLC-XGC500 RS-232 Basic Serial Commands194.2 KBPDF
LC-XGC500 RS-232 Extended Serial CommandsLC-XGC500 RS-232 Extended Serial Commands529.1 KBPDF
LC-XGC500 SpecificationsLC-XGC500 Specifications21.9 KBPDF
