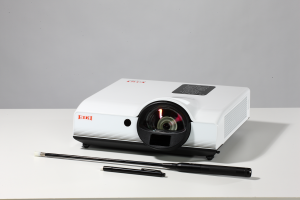

LC-XIP2610 LCD Projector

Outstanding Features

Combining rich color 3LCD imaging technology, XGA resolution, and a short throw optical system, here's a Classroom or Meeting Room projector that delivers maximum picture in minimum space, with Interactive White Board Features

Key Features

  • 2,600 ANSI lumens bright with 85% uniformity and a 500:1 contrast ratio.
  • Native XGA resolution. Compatible with inputs up-to UXGA and WSXGA+.
  • Supports analog and digital video input in all color standards up-to 1080p.
  • 3 panel LCD imaging delivers a rich, color-saturated picture.
  • 8-bit color processing yields a 16.7 million color palette.
  • Short throw, fixed focal length lens with manual focus.
  • Fixed image offset. Vertical digital keystone correction.
  • Accepts composite, component, and S-Video in all major standards.
  • Built-in 8 Watt amplifier. Closed Caption decoding.
  • Built-in wired LAN connection for projector monitoring and control.
  • Long lamp life: up-to to 6,000 hours.
  • Kensington® security slot. Optional local or remote keylock.
  • Compact and lightweight design. Blackboard and colorboard modes.
  • 3 year/6000 hrs. (whichever comes first) projector warranty.

Included Accessories: Quick Start Guide, Owner's Manual on CD-ROM, Power Cord, Network Software on CD-ROM, VGA Computer Input Cable (Dsub15 to Dsub15), Wireless Remote Control (with 2 AAA Batteries), Lens Cover, USB Cable.

Interactive Accessories: Black Baton, Black Light Pen, 2 AAA Batteries, 2 AA Batteries, Soft Bag for Accessories.

Optional Accessories: Replacement Lamp, Replacement Air Filter, Ceiling Mount Post & Plate.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Detailed black & white pdf specification sheet)
()

Display Technology 3LCD
Brightness (ANSI) up to 2,600 lumens
Native Resolution XGA (1024x768)
Max. Computer Input UXGA
Max. Video Input 1080i/p
Contrast Ratio 500:1
Panel Size 0.63" (16 mm)
Lens Type (Throw:Width) 0.61:1
Vertical Lens Shift Fixed: 110% Up
Keystone Correction U/D 30°
Inputs Dsub15 x 1; DVI-I x 1; RCA x 3; S-Video x 1;RCA x 1; MiniStereo x 2; RCA (audio) x 2;
Outputs Dsub15 x 1; MiniStereo x 1
Sound System 8 Watt; 2.0" (5 cm) dia. speaker x 1
Network Control Wired LAN monitor and control
Warranty 3 year/6000 hrs. (whichever comes first) projector warranty.
Lamp Life Up to 6,000 hours
Lamp Part # 230 400 35
Fan Noise As low as 33.5 dBa
Air Filter Standard
Maximum Pitch up-to 360°
Weight 9 lb (4.1 kg)
Ceiling Mount Part # 0173-4360
Wall Mount Part # 0173-4357 - Single stud
Wall Mount Part # 0173-4358 - Dual stud
NameDescriptionSizeType
LC-XIP2610 Cad Drawing249.3 KB
LC-XIP2610 Cad Drawing Dxf147.6 KB
LC-XIP2610 Color Data Sheet960.8 KB
LC-XIP2610 Hi-res Image Beauty1LC-XIP2610 Hi-res Image Beauty13.7 MBJPG, ZIP
LC-XIP2610 Hi-res Image Beauty2LC-XIP2610 Hi-res Image Beauty24.3 MBJPG, ZIP
LC-XIP2610 Hi-res Image ConnectionsLC-XIP2610 Hi-res Image Connections3.8 MBJPG, ZIP
LC-XIP2610 Hi-res Image FrontLC-XIP2610 Hi-res Image Front3.2 MBJPG, ZIP
LC-XIP2610 Hi-res Image RemoteLC-XIP2610 Hi-res Image Remote1.3 MBJPG, ZIP
LC-XIP2610 Hi-res Image Side1LC-XIP2610 Hi-res Image Side13.2 MBJPG, ZIP
LC-XIP2610 Hi-res Image Side2LC-XIP2610 Hi-res Image Side23.3 MBJPG, ZIP
LC-XIP2610 Lens ChartLC-XIP2610 Lens Chart11.8 KBPDF
LC-XIP2610 Owners ManualLC-XIP2610 Owners Manual2.8 MBPDF
LC-XIP2610 Quick Start ManualLC-XIP2610 Quick Start Manual7.9 MBPDF
LC-XIP2610 Remote Control CodesLC-XIP2610 Remote Control Codes61.5 KBPDF
LC-XIP2610 RS-232 Control SoftwareLC-XIP2610 RS-232 Control Software1.4 MB
LC-XIP2610 RS-232 Basic Serial CommandsLC-XIP2610 RS-232 Basic Serial Commands340.2 KBPDF
LC-XIP2610 SpecificationsLC-XIP2610 Specifications44.9 KBPDF
