LC-XN200
LC-XN200L (no lens)

LC-XN200L Key Features

  • 6,500 ANSI lumens bright and a 2000:1 contrast ratio.
  • Native XGA resolution. Compatible with inputs up-to UXGA and WUXGA.
  • Supports analog and digital video input in all color standards up-to 1080p.
  • 10-bit color processing, for superior color reproduction.
  • Optional wide-angle and telephoto lenses.
  • Vertical and Horizontal power lens shift and digital keystone correction.
  • HDMI® input supports digital data, plus digital video with HDCP.
  • Accepts composite, component, and S-Video in all major standards.
  • Wired LAN connection for monitoring and control. Zigbee Control.
  • Built-in Edge Blending. Wireless LAN.
  • Crestron RoomView™ & AMX Device Discovery Compatability.
  • Centered lens with 1-button release. Top-accessed lamp, rear-accessed filter.
  • Variable power management option. Optional local or remote keylock.
  • Corner keystone correction. Wireless/wired remote control.
  • 3 years / 6000 hours projector warranty (whichever occurs first).

Included Accessories: Quick Start Guide, Owner's Manual on CD-ROM, VGA Computer Input Cable (Dsub15 to Dsub15), 10 ft (3 m) Detachable Power Cord, Wireless Remote Control (with 2 AA Batteries), USB Wifi Dongle, USB Zigbee Dongle, Rubber Lens Cover, Zigbee Antenna, Rubber Gasket.

Optional Accessories: Replacement Lamp, Wideangle, Midrange and Telephoto Lenses, ATA-Style Shipping Case with Wheel and Telescoping Handle, Ceiling Mount, Ceiling Post and Plate.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
()
()

Display Technology 3LCD
Brightness (ANSI) 6,500 ANSI lumens
Native Resolution XGA (1024x768)
Max. Computer Input WUXGA
Max. Video Input 1080p
Contrast Ratio 2000:1
Panel Size 0.79" (20 mm) (inorganic)
Lens Type (Throw:Width) Changeable - Power Zoom and Focus, not supplied.
Power Lens Shift U/D ±50%; L/R ±10%
Corner Keystone Correction U/D ±30°; L/R ±15°
Inputs Dsub15 x 2; HDMI (w/HDCP) x 1; DVI-D (w/HDCP) x 1; BNC x 5; BNC x 3; BNC x 1; S-Video x 1;  USB Type B (USB Display) x 1; USB Type A (Wifi Display / Flash Drive) x 1; MiniStereo x 1
Outputs Dsub15 x 1; MiniStereo (Wired Remote) x 1
Sound System 7 Watt Amplifier;
Network Control RJ45 x 1
Warranty 3 year/6000 hrs. (whichever comes first) projector warranty.
Lamp Life Up to 4,000 hours
Lamp Part # 13080024
Fan Noise As low as 32 dBA
Air Filter Replacement Filter Cartridge
Maximum Pitch Up to 360°
Weight (without lens) 21.3 lb (9.69 kg)
Ceiling Mount Part #
 NameDescriptionSizeType
Icon of LC-XN200L CAD DrawingLC-XN200L CAD DrawingLC-XN200L Cad Drawings4.3 MBPDF
Icon of LC-XN200L Color Data SheetLC-XN200L Color Data SheetLC-XN200L Color Data Sheet228.7 KBPDF

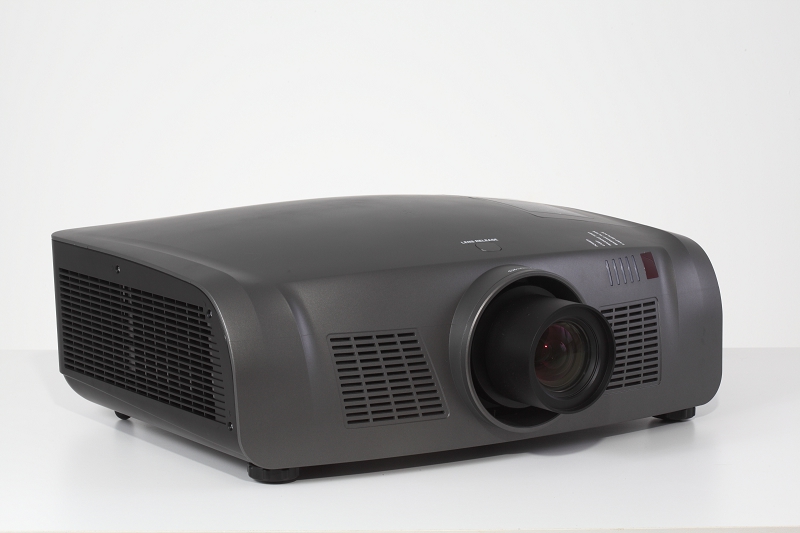

Icon of LC-XN200L Beauty1LC-XN200L Beauty1LC-XN200L Beauty13.8 MBZIP, TIF

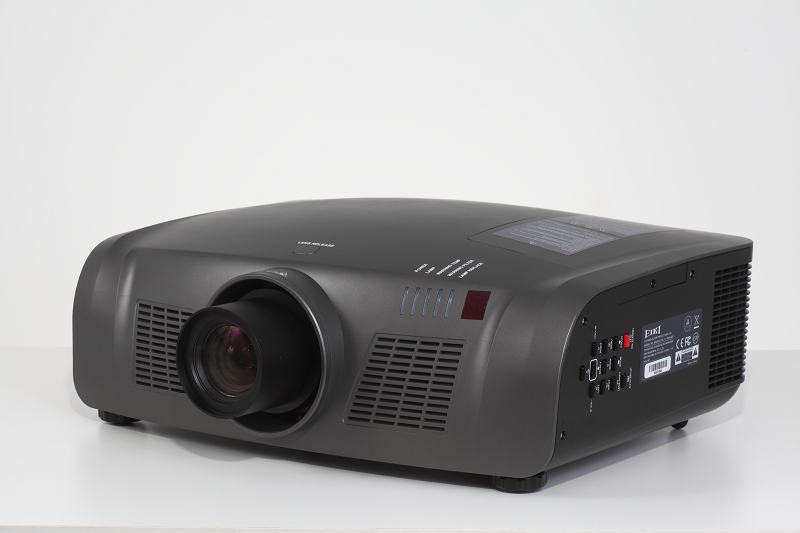

Icon of LC-XN200L Beauty2LC-XN200L Beauty2LC-XN200L Beauty23.9 MBZIP, TIF
Icon of LC-XN200L BottomLC-XN200L BottomLC-XN200L Bottom3.6 MBZIP, TIF

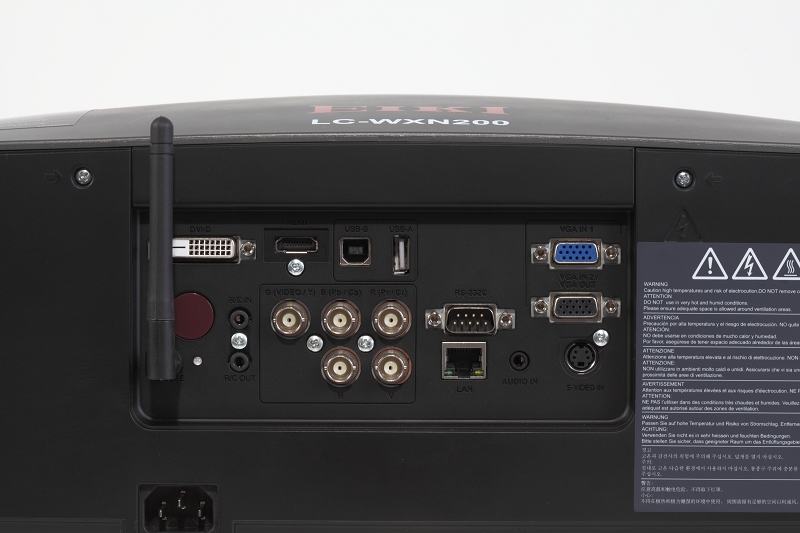

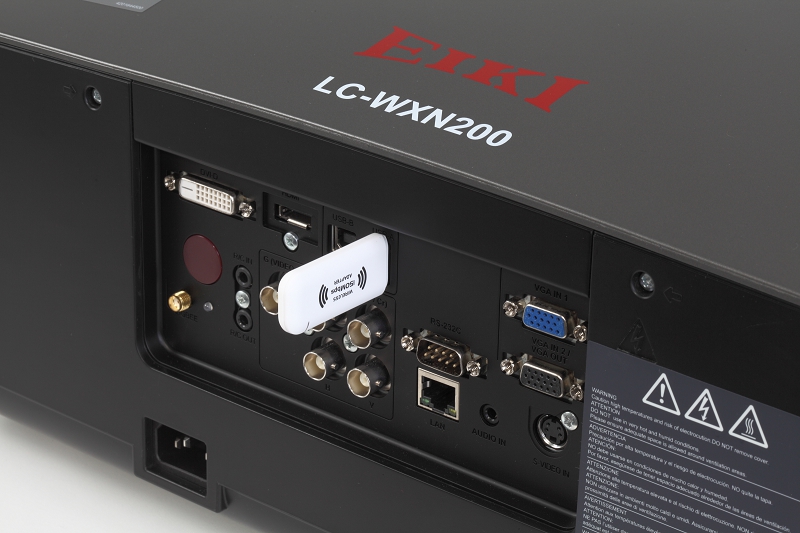

Icon of LC-XN200L Connections Wireless USB AdapterLC-XN200L Connections Wireless USB AdapterLC-XN200L Connections Wireless USB Adapter5.1 MBZIP, TIF
Icon of LC-XN200L Connections Zigbee AntennaLC-XN200L Connections Zigbee AntennaLC-XN200L Connections Zigbee Antenna4.5 MBZIP, TIF

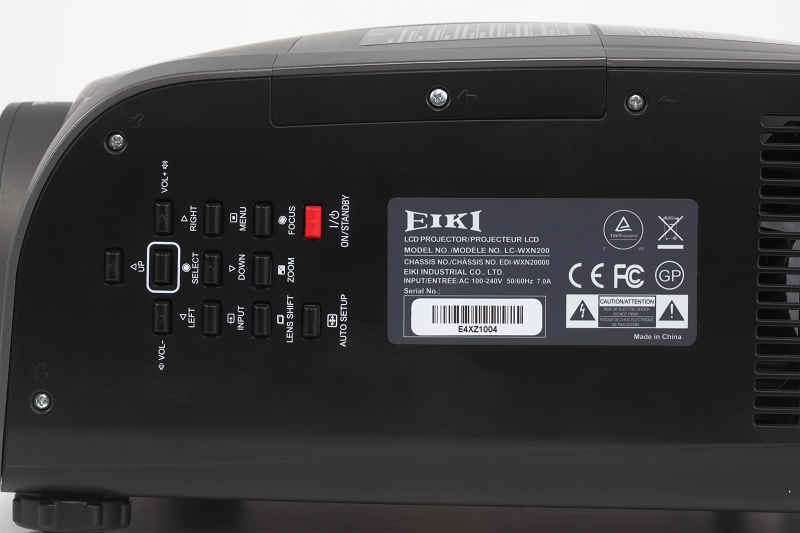

Icon of LC-XN200L Control PanelLC-XN200L Control PanelLC-XN200L Control Panel4.7 MBZIP, TIF

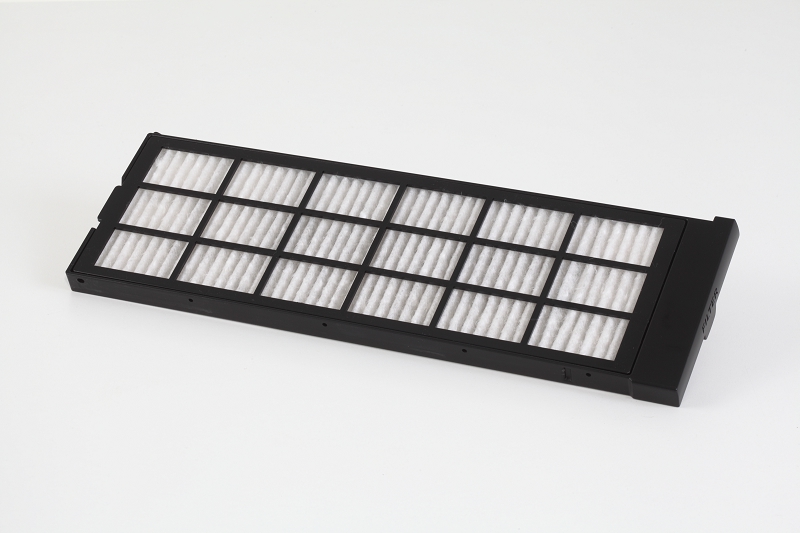

Icon of LC-XN200L FilterLC-XN200L FilterLC-XN200L Filter3.6 MBZIP, TIF

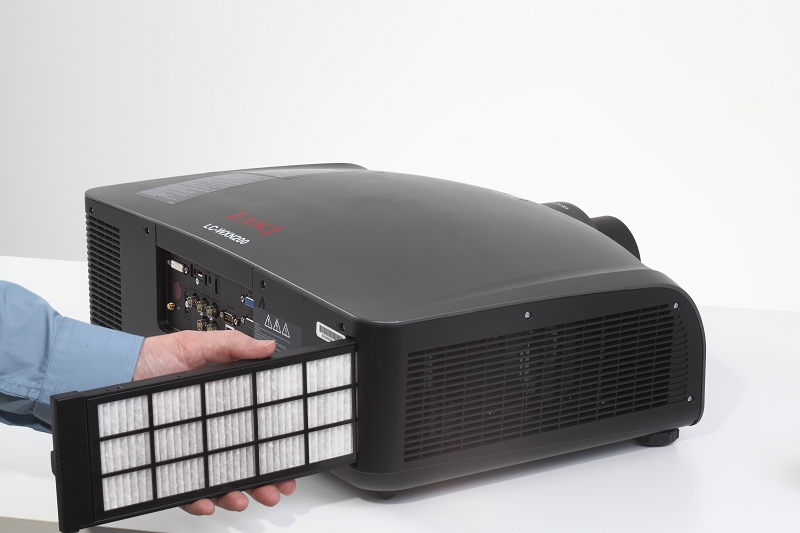

Icon of LC-XN200L Filter InstallLC-XN200L Filter InstallLC-XN200L Filter Install4.6 MBZIP, TIF

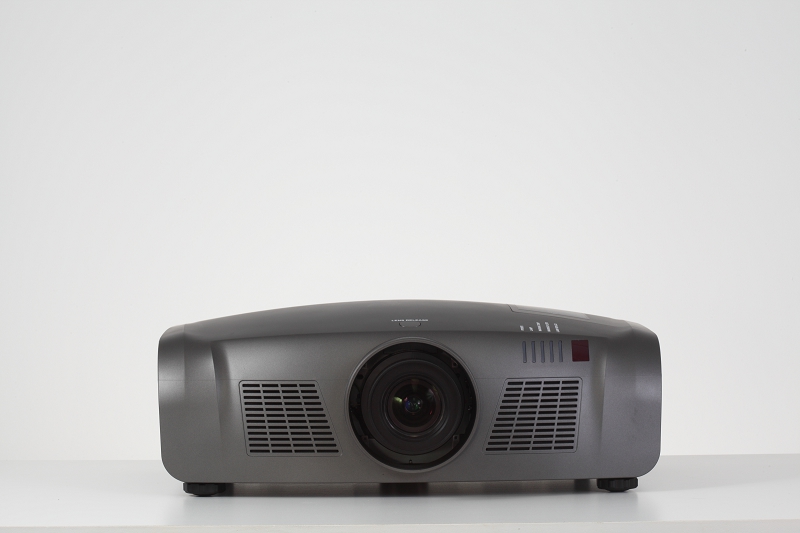

Icon of LC-XN200L FrontLC-XN200L FrontLC-XN200L Front3.4 MBZIP, TIF
Icon of LC-XN200L LampLC-XN200L LampLC-XN200L Lamp4.2 MBZIP, TIF

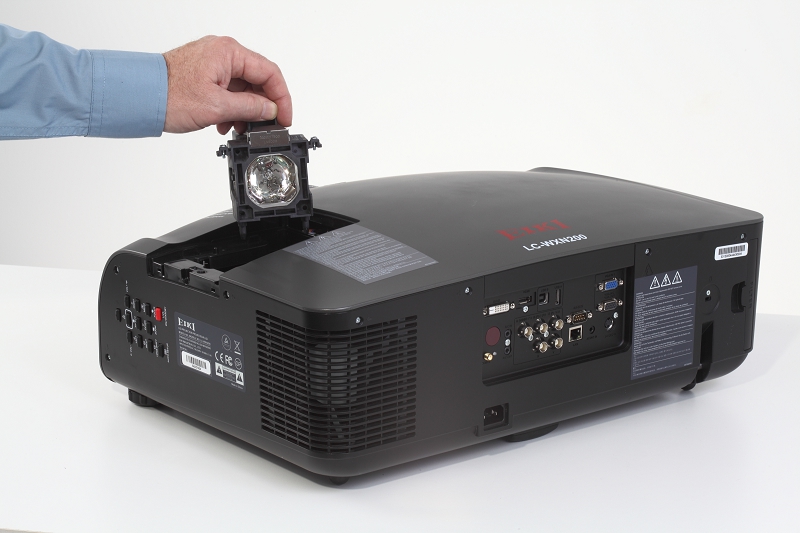

Icon of LC-XN200L Lamp InstallLC-XN200L Lamp InstallLC-XN200L Lamp Install4.6 MBZIP, TIF

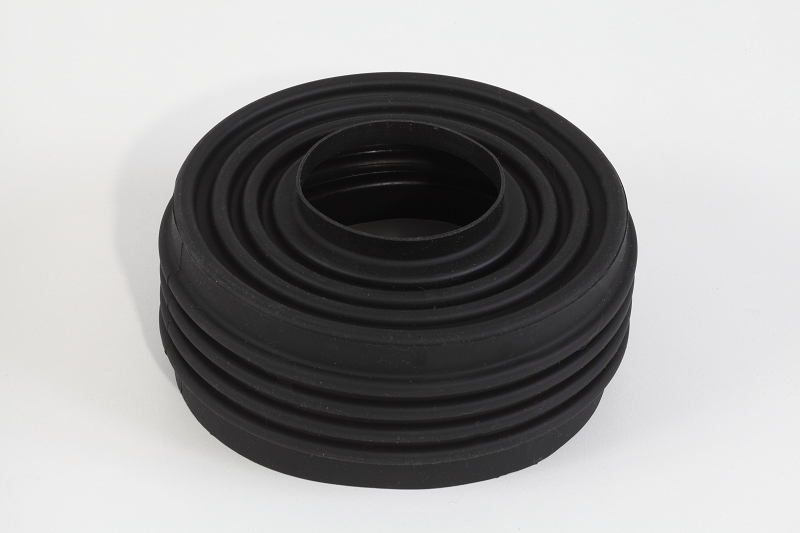

Icon of LC-XN200L Lens ProtectorLC-XN200L Lens ProtectorLC-XN200L Lens Protector4.0 MBZIP, TIF

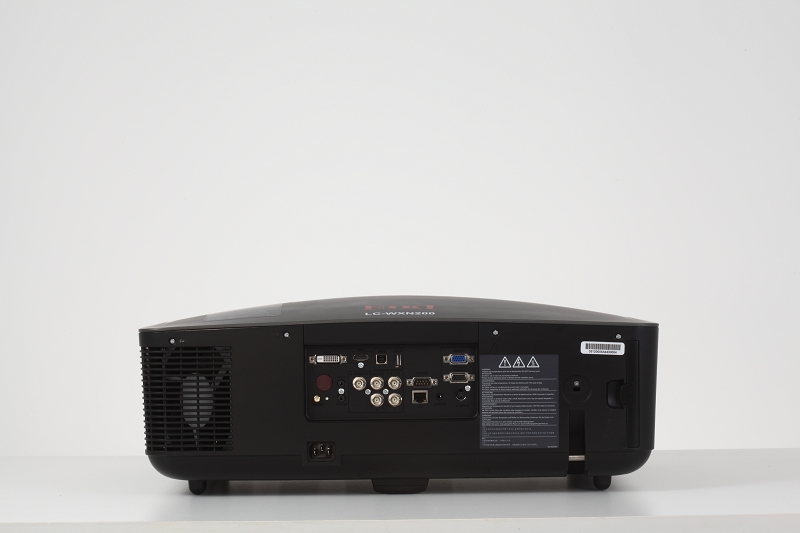

Icon of LC-XN200L RearLC-XN200L RearLC-XN200L Rear3.3 MBZIP, TIF
Icon of LC-XN200L RemoteLC-XN200L RemoteLC-XN200L Remote3.6 MBZIP, TIF

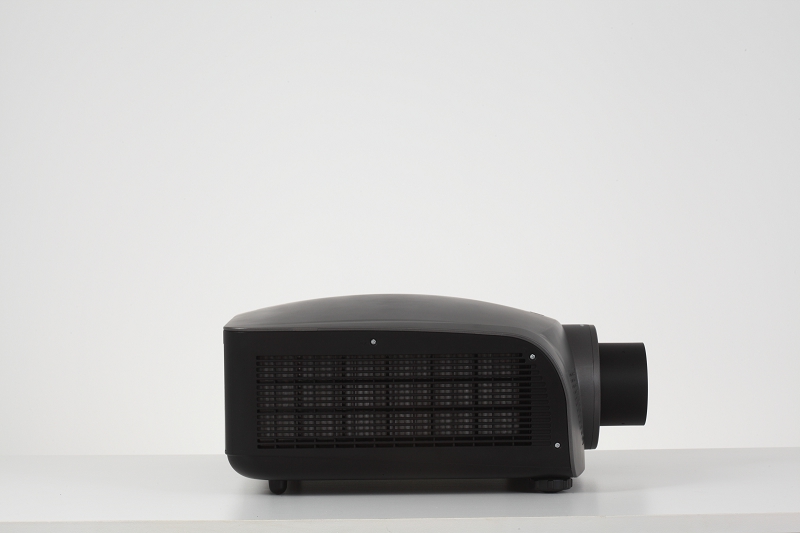

Icon of LC-XN200L Side1LC-XN200L Side1LC-XN200L Side13.2 MBZIP, TIF

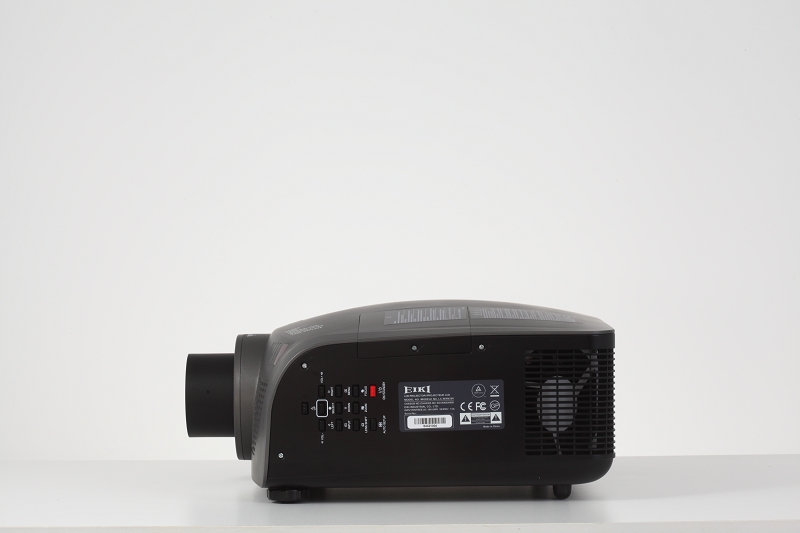

Icon of LC-XN200L Side2LC-XN200L Side2LC-XN200L Side23.2 MBZIP, TIF

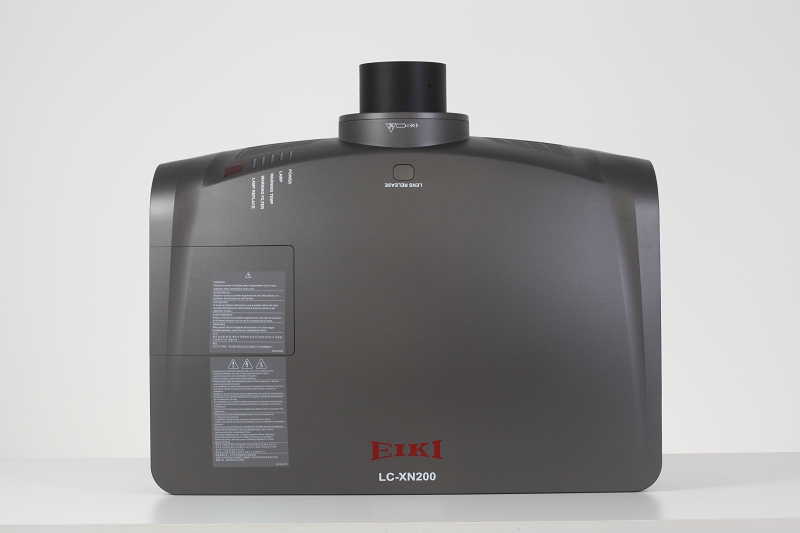

Icon of LC-XN200L TopLC-XN200L TopLC-XN200L Top3.7 MBZIP, TIF

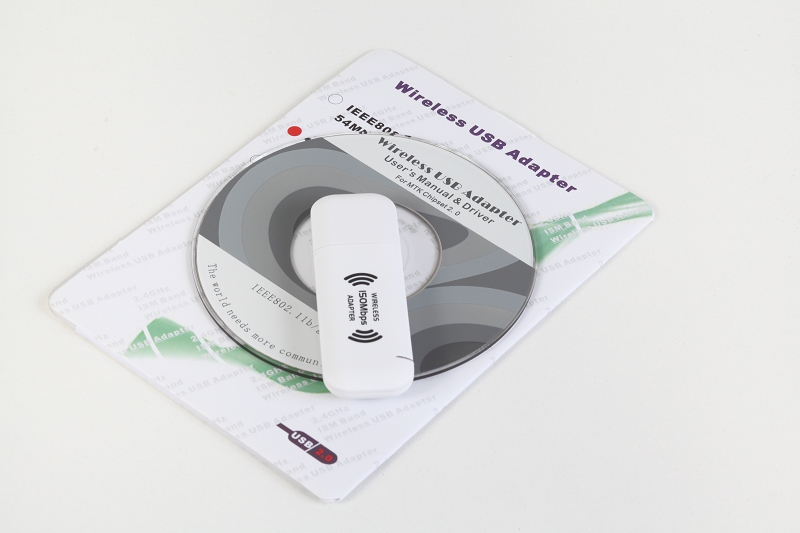

Icon of LC-XN200L USB & CDLC-XN200L USB & CDLC-XN200L USB & CD4.0 MBZIP, TIF

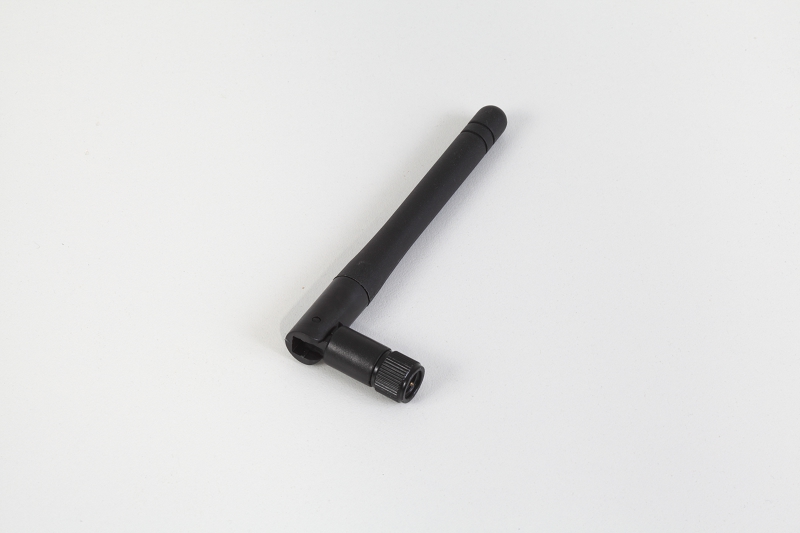

Icon of LC-XN200L Zigbee AntennaLC-XN200L Zigbee AntennaLC-XN200L Zigbee Antenna3.3 MBZIP, TIF

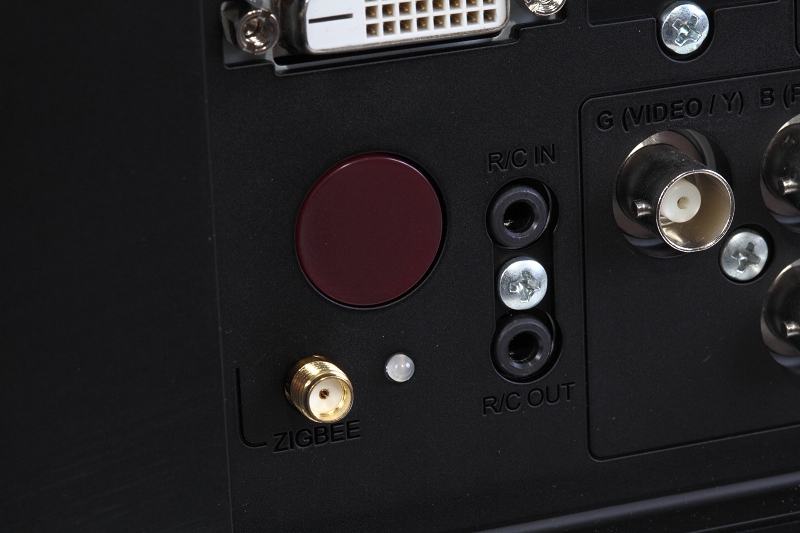

Icon of LC-XN200L Zigbee Antenna ConnectionLC-XN200L Zigbee Antenna ConnectionLC-XN200L Zigbee Antenna Connection6.0 MBZIP, TIF
Icon of LC-XN200L Zigbee RemoteLC-XN200L Zigbee RemoteLC-XN200L Zigbee Remote3.2 MBZIP, TIF
Icon of LC-XN200 Lens ChartLC-XN200 Lens ChartLC-XN200 Lens Chart26.3 KBPDF
Icon of LC-XN200 Owner's ManualLC-XN200 Owner's ManualLC-XN200 Owners Manual25.4 MBPDF
Icon of LC-XN200L Owner's ManualLC-XN200L Owner's ManualLC-XN200L Owners Manual25.4 MBPDF
Icon of LC-XN200L RS232 Serial Basic CommandsLC-XN200L RS232 Serial Basic CommandsLC-XN200L Basic Serial Commands86.2 KBPDF
Icon of LC-XN200 SpecificationsLC-XN200 SpecificationsLC-XN200L Specifications106.4 KBPDF

Related Products

0001-4345 Lens
0001-4345 Lens
Manual Zoom & Focus FL: 2.75″~5.00″ (70~125mm) f:2.8
0001-4346 Lens
0001-4346 Lens
Manual Zoom & Focus FL: 6.00″~9.00″ (150~230mm) f:3.5
0001-4351 Lens
0001-4351 Lens
Manual Zoom & Focus FL: 5.20″~8.70″ (132~220mm) f:3.0
AH-24711 Lens
AH-24711 Lens
Power Zoom & Focus FL: 0.80″~1.09″ (20.35~27.66mm) f: 1.8~2.3
AH-24721 Lens
AH-24721 Lens
Fixed Focus FL: .514″ (13.05mm) f: 2.0 On-Axis
AH-24771 Lens
AH-24771 Lens
Power Zoom & Focus FL: 1.80″~2.91″ (45.6~73.8mm) f: 1.82~2.34
AH-24781 Lens
AH-24781 Lens
Power Zoom & Focus FL: 2.91″~4.61″ (73.9~117.1mm) f:1.83~2.35
63340030 Filter Cartridge
63340030 Filter Cartridge
Replacement Filter Cartridge

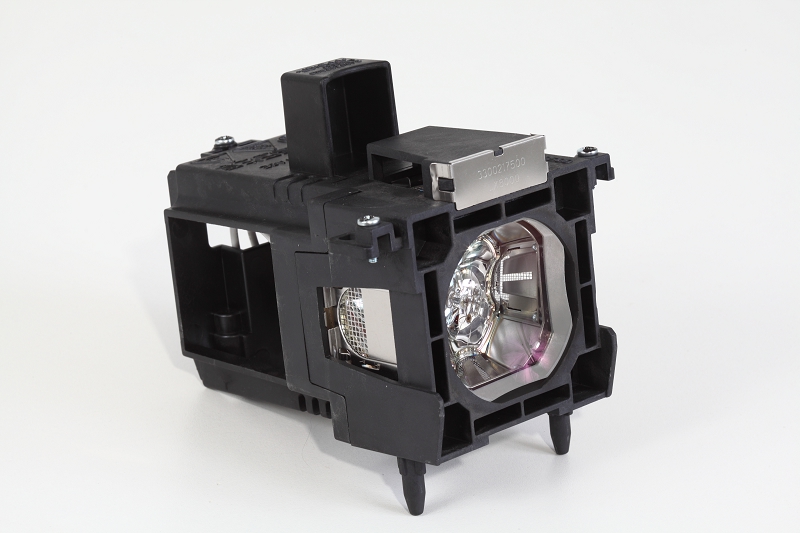

13080024 Lamp
13080024 Lamp
Rated Power: 350W
Lamp type: NSH
Life Expectancy: 4000h
Lamp Warranty: 6 months / 500h (whichever comes first)
