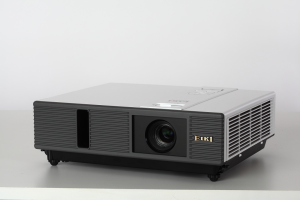

LC-XNB3500N LCD Projector

Key Features

  • 3,500 ANSI lumens bright with 85% uniformity and a 3000:1 contrast ratio.
  • HDMI Digital connectivity with HDCP compliance.
  • Native XGA resolution. Compatible with inputs up-to UXGA and WSXGA+.
  • Supports analog and digital video input in all color standards up-to 1080p.
  • Wi-Fi Display, PC-Free Presentation, USB Display, LAN Display.
  • Wirelessly connect to your Smart phone and Tablet PC.
  • 1.5 Gbytes internal storage for multimedia display.
  • Convenient mid-range (1.2:1) manual zoom and focus lens.
  • Fixed image offset. Automatic vertical digital keystone correction.
  • Accepts composite and S-Video in all major standards.
  • Displays both 4:3 and 16:9 aspect ratios. Supports most HDTV resolutions.
  • Built-in 10 Watt sound system. Closed Caption decoding (NTSC).
  • Wired network monitoring and control. Digital zoom: 50% to 400%.
  • Side-accessed lamp and air filter for ease of maintenance.
  • Color board modes. Custom warm-up screen. Auto input selection.
  • Security bar. Kensington® MicroSaver® security slot. PIN lock.
  • 3 year/6000 hrs. (whichever comes first) projector warranty.

Included Accessories: Quick Start Guide, Owner's Manual on CD-ROM, VGA Computer Input Cable (Dsub15 to Dsub15), 6.0 ft (1.8 m) Detachable Power Cord, Remote Control (with 2 AAA Batteries), Wi-Fi Dongle.

Optional Accessories: Replacement Lamp, Component Video Input Cable (Dsub15 to 3RCA), Ceiling Mount, Ceiling Post and Plate, Soft Carry Bag.

Specifications Overview

Display Technology 3LCD
Brightness (ANSI) up-to 3,500 ANSI Lumens
Native Resolution XGA (1024x768)
Max. Computer Input WSXGA+
Max. Video Input 1080p
Contrast Ratio up-to 3000:1
Panel Size 0.63" (16 mm)
Lens Type (Throw:Width) Attached - Manual Zoom and Focus 1.45-1.73:1
Lens Shift Fixed Image Offset, Ratio (Top/Bottom) 5:1
Keystone Correction Digital: up-to 30° U/D
Inputs Dsub15 x 1; HDMI x 1; RCA x 1 or S-Video x 1; Mini-USB x 1(display); USB-A x 1(wifi); MiniStereo x 2 (audio); RCA x 2 (audio); Dsub9 x 1 (RS-232); RJ45 x 1 (Lan)
Outputs Dsub15 x 1; MiniStereo x 1
Sound System 10 Watt, 1.46 in (3.7 cm) x 1 (Mono)
Network Control Wired network monitoring and control
Warranty 3 year/6000 hrs. (whichever comes first) projector warranty.
Lamp Life Up to 3,000 hours
Lamp Part #
Fan Noise as low as 34 dBA
Air Filter Filter & Frame Assy
Maximum Pitch Up to 360°
Weight 7.5 lb (3.4 kg)
Ceiling Mount Part #
 NameDescriptionSizeType
Icon of LC-XNB3500N Color Data SheetLC-XNB3500N Color Data SheetLC-XNB3500N Color Data Sheet0.2 MBPDF
Icon of LC-XNB3500N Lens ChartLC-XNB3500N Lens ChartLC-XNB3500N Lens Chart12 KBPDF
Icon of LC-XNB3500N Owners ManualLC-XNB3500N Owners ManualLC-XNB3500N Owners Manual7.7 MBPDF
Icon of LC-XNB3500N Remote Control CodesLC-XNB3500N Remote Control CodesLC-XNB3500N remote control codes0.2 MBPDF
Icon of LC-XNB3500N RS-232 Basic Serial CommandsLC-XNB3500N RS-232 Basic Serial CommandsLC-XNB3500N RS-232 Basic Serial Commands3.5 MBPDF
Icon of LC-XNB3500N SpecificationsLC-XNB3500N SpecificationsLC-XNB3500N Specifications62 KBPDF

Related Products

0173-4342 Ceiling Mount
Custom Ceiling Projector Mount (Black)
23390008 Filter
Replacement Filter & Frame Assy (Foam)
23040044 Lamp
Rated Power: 240W
Lamp type: UHP
Life Expectancy: 3,000h
Lamp Warranty: 1yr / 500h (whichever comes first)
