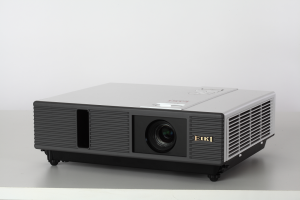

LC-XNB4000N LCD Projector

Key Features

  • 4,000 ANSI lumens bright with 85% uniformity and a 2000:1 contrast ratio.
  • HDMI Digital connectivity with HDCP compliance.
  • Native XGA resolution. Compatible with inputs up-to UXGA and WSXGA+.
  • Supports analog and digital video input in all color standards up-to 1080p.
  • Wi-Fi Display, PC-Free Presentation, USB Display, LAN Display.
  • Wirelessly connect to your Smart phone and Tablet PC.
  • 1.5 Gbytes internal storage for multimedia display.
  • Convenient mid-range (1.2:1) manual zoom and focus lens.
  • Fixed image offset. Automatic vertical digital keystone correction.
  • Accepts composite and S-Video in all major standards.
  • Displays both 4:3 and 16:9 aspect ratios. Supports most HDTV resolutions.
  • Built-in 10 Watt sound system. Closed Caption decoding (NTSC).
  • Wired network monitoring and control. Digital zoom: 50% to 400%.
  • Side-accessed lamp and air filter for ease of maintenance.
  • Color board modes. Custom warm-up screen. Auto input selection.
  • Security bar. Kensington® MicroSaver® security slot. PIN lock.
  • 3 year/6000 hrs. (whichever comes first) projector warranty.

Included Accessories: Quick Start Guide, Owner's Manual on CD-ROM, VGA Computer Input Cable (Dsub15 to Dsub15), 6.0 ft (1.8 m) Detachable Power Cord, Remote Control (with 2 AAA Batteries), Wi-Fi Dongle.

Optional Accessories: Replacement Lamp, Component Video Input Cable (Dsub15 to 3RCA), Ceiling Mount, Ceiling Post and Plate, Soft Carry Bag.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)

Display Technology 3LCD
Brightness (ANSI) up-to 4,000 ANSI Lumens
Native Resolution XGA (1024x768)
Max. Computer Input WSXGA+
Max. Video Input 1080p
Contrast Ratio up-to 2000:1
Panel Size 0.63" (16mm)
Lens Type (Throw:Width) Attached - Manual Zoom and Focus (1.45-1.73:1)
Lens Shift Fixed Image Offset, Ratio (Top/Bottom) 5:1
Keystone Correction Digital: up-to 30° U/D
Inputs Dsub15 x 2; HDMI x 1; RCA x 1; S-Video x 1; Mini-USB x 1 (Display); USB-A x 1 (wifi); MiniStereo x 2 (analog audio); RCA x 2 (video audio); Dsub9 x 1; RJ45 x 1
Outputs Dsub15 x 1; MiniStereo x 1
Sound System 10 Watt; 1.46 in (3.7 cm) (Mono) speaker x 1
Network Control Wired network monitoring and control
Warranty 3 year/6000 hrs. (whichever comes first) projector warranty.
Lamp Life Up to 5,000 hours
Lamp Part # TBA
Fan Noise as low as 34 dBA
Air Filter Filter and Assy.
Maximum Pitch Up to 360°
Weight 7.5 lb (3.4 kg)
Ceiling Mount Part # TBA
LC-XNB4000N Color Data SheetLC-XNB4000N Color Data Sheet185.6 KBPDF
LC-XNB4000N Hi-res Image Beauty1LC-XNB4000N Hi-res Image Beauty19.0 MBJPG, ZIP
LC-XNB4000N Hi-res Image Beauty2LC-XNB4000N Hi-res Image Beauty24.1 MBJPG, ZIP
LC-XNB4000N Hi-res Image BottomLC-XNB4000N Hi-res Image Bottom4.1 MBJPG, ZIP
LC-XNB4000N Hi-res Image ConnectionsLC-XNB4000N Hi-res Image Connections4.1 MBJPG, ZIP
LC-XNB4000N Hi-res Image FilterLC-XNB4000N Hi-res Image Filter5.2 MBJPG, ZIP
LC-XNB4000N Hi-res Image FrontLC-XNB4000N Hi-res Image Front3.9 MBJPG, ZIP
LC-XNB4000N Hi-res Image LampLC-XNB4000N Hi-res Image Lamp5.1 MBJPG, ZIP
LC-XNB4000N Hi-res Image RemoteLC-XNB4000N Hi-res Image Remote4.5 MBJPG, ZIP
LC-XNB4000N Hi-res Image Side1LC-XNB4000N Hi-res Image Side13.9 MBJPG, ZIP
LC-XNB4000N Hi-res Image Side2LC-XNB4000N Hi-res Image Side23.9 MBJPG, ZIP
LC-XNB4000N Hi-res Image TopLC-XNB4000N Hi-res Image Top3.5 MBJPG, ZIP
LC-XNB4000N Lens ChartLC-XNB4000N Lens Chart12.3 KBPDF
LC-XNB4000N Network Control Software MacLC-XNB4000N Network Control Software Mac1.4 MBZIP
LC-XNB4000N Network Control Software WinLC-XNB4000N Network Control Software Win7.7 MBZIP
LC-XNB4000N Owners ManualLC-XNB4000N Owners Manual7.7 MBPDF
LC-XNB4000N Remote Control CodesLC-XNB4000N remote control codes174.8 KBPDF
LC-XNB4000N RS-232 Basic Serial CommandsLC-XNB4000N RS-232 Basic Serial Commands3.5 MBPDF
LC-XNB4000N SpecificationsLC-XNB4000N Specifications61.6 KBPDF

Related Products

23040043 Lamp
23040043 Lamp
Rated Power: 245W
Lamp type: UHP
Life Expectancy: 5,000h
Lamp Warranty: 1yr / 500h (whichever comes first)

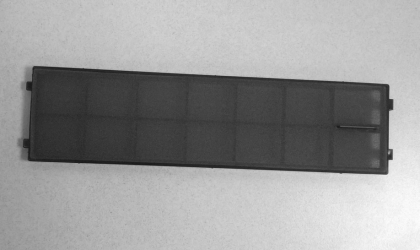

23390008 Filter
