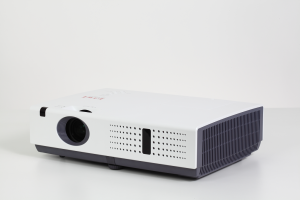

LC-XNS3100 LCD Projector

Key Features

  • 3,300 ANSI lumens bright with 80% uniformity and a 5000:1 contrast ratio.
  • Native XGA resolution. Compatible with inputs up-to UXGA and WUXGA.
  • Supports analog and digital video input in all color standards up-to 1080p.
  • HDMI Digital connectivity with HDCP compliance.
  • Convenient mid-range (1.2:1) manual zoom and focus lens.
  • Fixed image offset. Automatic vertical digital keystone correction.
  • Accepts composite, component, and S-Video in all major standards.
  • Displays both 4:3 and 16:9 aspect ratios. Supports most HDTV resolutions.
  • Built-in 7 Watt sound system. Closed Caption decoding (NTSC).
  • Wired network control. Digital zoom: 50% to 400%.
  • Side-accessed air filter and top-accessed lamp for ease of maintenance.
  • Color board modes. Custom warm-up screen.
  • Auto input selection. Built-in Test Patterns.
  • Security bar. Kensington® MicroSaver® security slot. PIN lock.
  • 3 year/6000 hrs. (whichever comes first) projector warranty.

Included Accessories: Quick Start Guide, Owner's Manual on CD-ROM, VGA Computer Input Cable (Dsub15 to Dsub15), 6.0 ft (1.8 m) Detachable Power Cord, Remote Control (with 2 AAA Batteries).

Optional Accessories: Replacement Lamp, Ceiling Mount, Ceiling Post and Plate, Soft Carry Bag.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)

Display Technology 3 LCD
Brightness (ANSI) up-to 3,300 ANSI Lumens
Native Resolution XGA (1024x768)
Max. Computer Input UXGA/WUXGA
Max. Video Input 1080p
Contrast Ratio up-to 5000:1
Panel Size 0.59 in (15 mm)
Lens Type (Throw:Width) Attached - Manual Zoom and Focus (1.45 ~ 1.74:1)
Fixed Image Offset Fixed Image Offset, Ratio (Top/Bottom) 6:1
Keystone Correction 30° Up or Down
Image Signal Inputs Computer 1 - Dsub15 x 1, Computer 2 - Dsub15 x 1 (Switchable Monitor Output), HDMI (w/HDCP) x 1, S-Video x 1, Component Video RCA x 3, Composite Video RCA x 1
Audio Inputs Computer Audio - Mini-Stereo x 1, Video Audio - RCA x 2 (L/R)
Outputs Computer Monitor (Computer 2) - Dsub15 x 1, Audio Output Variable, Stereo: MiniStereo x 1
Sound System 7 Watt; 1.4 in (3.7 cm) x 1 (Mono) speaker
Network Control Wired LAN for projector control
Warranty 3 year/6000 hrs. (whichever comes first) projector warranty.
Lamp Life Up to 5,000 hours
Lamp Part # 23040047 - 230 Watts UHP
Fan Noise as low as 32 dBA
Air Filter Part # 63220029 - Replacement Filter
Maximum Pitch Up-to 30° Up or Down
Weight 6.7 lb. (3.05 kg)
Ceiling Mount Part # 0173-4363
Closed Caption Yes


LC-XNS3100 Color Data Sheet1.7 MB
LC-XNS3100 Hi-res Image Beauty1LC-XNS3100 Hi-res Image Beauty14.0 MBJPG, ZIP
LC-XNS3100 Hi-res Image Beauty2LC-XNS3100 Hi-res Image Beauty23.6 MBJPG, ZIP
LC-XNS3100 Hi-res Image BottomLC-XNS3100 Hi-res Image Bottom5.4 MBJPG, ZIP
LC-XNS3100 Hi-res Image ConnectionsLC-XNS3100 Hi-res Image Connections3.9 MBJPG, ZIP
LC-XNS3100 Hi-res Image FilterLC-XNS3100 Hi-res Image Filter3.8 MBJPG, ZIP
LC-XNS3100 Hi-res Image FrontLC-XNS3100 Hi-res Image Front3.6 MBJPG, ZIP
LC-XNS3100 Hi-res Image LampLC-XNS3100 Hi-res Image Lamp4.1 MBJPG, ZIP
LC-XNS3100 Hi-res Image RemoteLC-XNS3100 Hi-res Image Remote3.8 MBJPG, ZIP
LC-XNS3100 Hi-res Image Side1LC-XNS3100 Hi-res Image Side13.8 MBJPG, ZIP
LC-XNS3100 Hi-res Image Side2LC-XNS3100 Hi-res Image Side23.8 MBJPG, ZIP
LC-XNS3100 Hi-res Image TopLC-XNS3100 Hi-res Image Top3.4 MBJPG, ZIP
LC-XNS3100 Lens ChartLC-XNS3100 lens chart12.2 KBPDF
LC-XNS3100 Owners ManualLC-XNS3100 Owners Manual14.2 MBPDF
LC-XNS3100 Remote Control CodesLC-XNS3100 remote control codes32.7 KBPDF
LC-XNS3100 Rs-232 Basic Serial CommandsLC-XNS3100 RS-232 Basic Serial Commands 98.9 KBPDF
LC-XNS3100 SpecificationsLC-XNS3100 Specifications102.1 KBPDF
