LC-XS25A LCD Projector

Outstanding Features

Big Sound: 7 Watts of sound power. Closed Caption decoding. (NTSC Composite or S-Video). More Security: Built-in security bar, and key and projector locks. Better cooling: sealed lens housing assures one-way airflow. Low maintenance: up-to 3,000 hour self-advancing cartridge air filter. Easy lamp change: lamp access is from the top. Energy Saving: reduced power consumption in Standby Eco mode. 1 year lamp warranty.

Key Features

  • 2,600 ANSI Lumens bright, with 85% uniformity and a 450:1 contrast ratio.
  • 3 panel LCD imaging for rich, color saturated computer and video projection.
  • Native XGA resolution. Compatible with inputs up-to UXGA and WUXGA.
  • Compatible with Normal and Widescreen video inputs up-to 1080i.
  • Smart data compression / expansion, and video scaling. Displays both 4:3 and 16:9.
  • 7-Watt audio system. Closed Caption decoding.

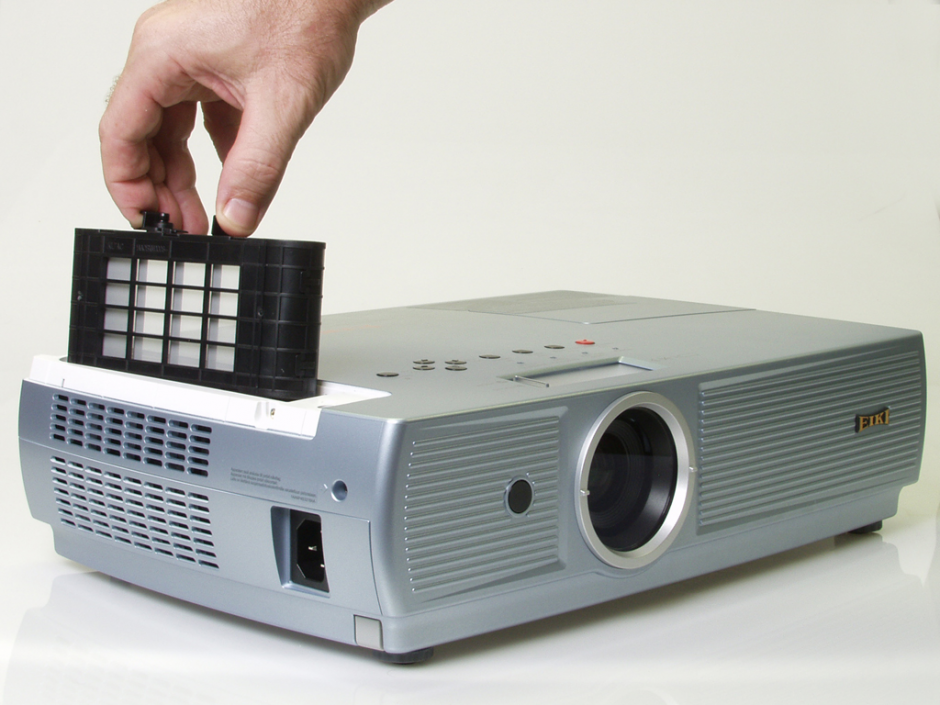

  • Self-advancing cartridge air filter reduces maintenance, up-to 3,000 hours use.
  • Quiet operation: fan noise as low as 28 dBA.
  • Fixed image offset. Automatic vertical digital keystone correction.
  • Convenient midrange (1.2:1) manual zoom and focus lens.
  • Accepts Composite, Component, and S-Video in all major standards.

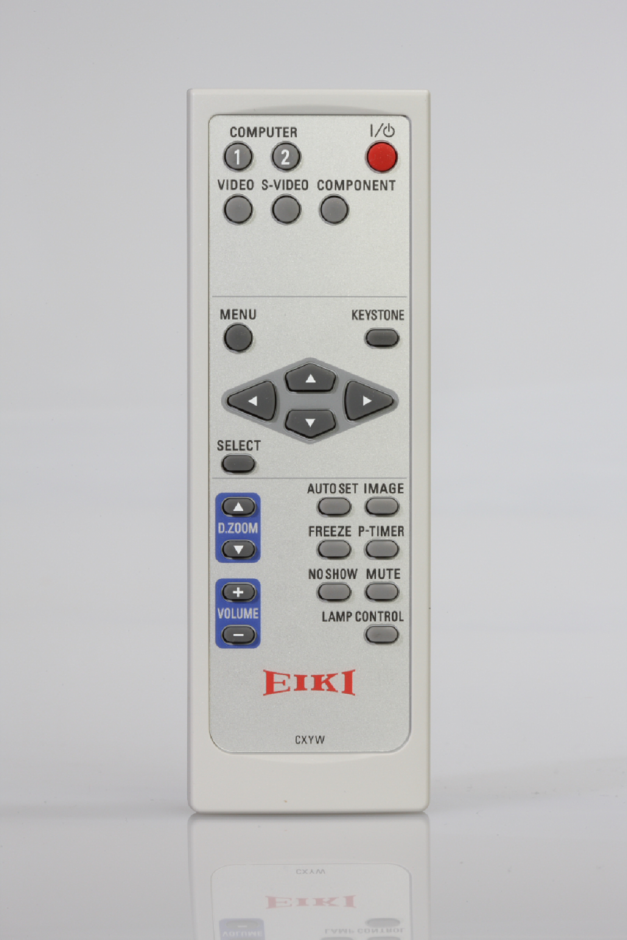

  • Wireless remote control. Digital zoom 50-400%.
  • Variable Power Management option. Optional local or remote keylock.
  • Built-in security bar.
  • 3 year/6000 hrs. (whichever comes first) projector warranty.

Included Accessories: Quick Start Guide. Owner’s Manual on CD-ROM. AC Power Cord. VGA-type Computer Input Cable (D-sub15). Wireless Remote Control & Batteries (AAA x 2).

Optional Accessories: Replacement Lamp. Replacement Air Filter Cartridge. Computer In 1 “VGA” (Analog) Input Cable** (DVI-I ~D-sub15). Computer In 2 Component Video Input Cable*** (D-sub15 ~ 3-RCA). Molded Travel Case. Ceiling Mount. Ceiling Post and Plate.

Specifications Overview

Display Technology LCD Panels x 3
Brightness (ANSI) up-to 2,600 ANSI lumens
Native Resolution XGA (1024x768)
Max. Computer Input UXGA
Max. Video Input 1080i
Contrast Ratio 450:1
Panel Size 0.63'' (16 mm)
Lens Type (Throw:Width) 1.72-2.07:1
Vertical Lens Shift Fixed: 40% Up
Keystone Correction Digital: up-to 20° Up or Down

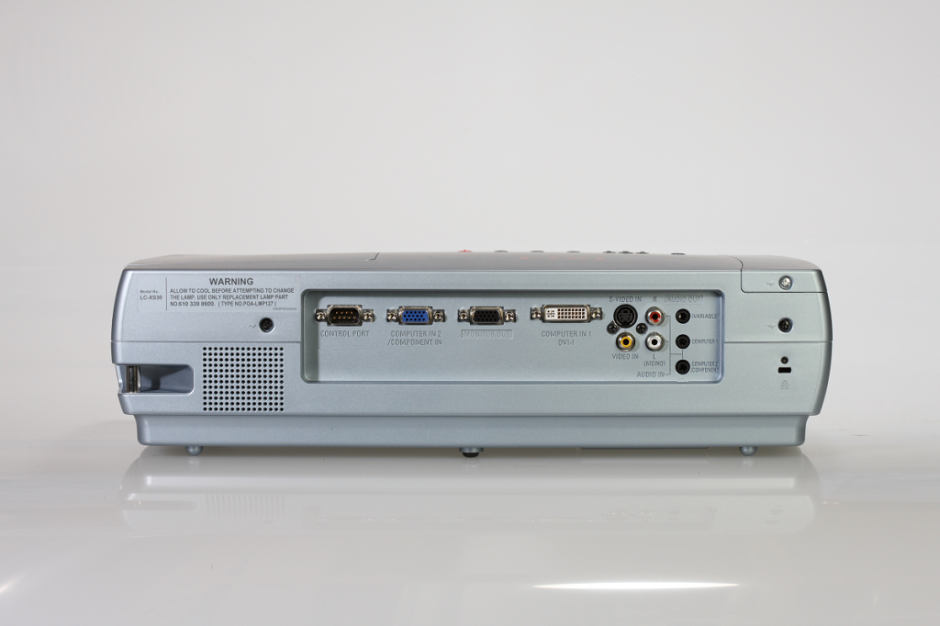

Inputs DVI-I (w/HDCP) x 1; Dsub15 x 1; RCA x 1;S-Video x 1; MiniStereo x 2; RCA (audio) x 2
Outputs Video: Dsub15 x 1 (switchable); Audio: variable, Ministereo x 1;
Sound System 7 Watt; 1.46'' (3.7 cm) speaker x 1
Network Control ---
Warranty 3 year/6000 hrs. (whichever comes first) projector warranty.
Lamp Life Up to 3,000 hours
Lamp Part # 610 339 8600
Fan Noise As low as 28 dBa
Air Filter Cartridge (up to 3,000 hours)
Maximum Pitch up-to 20° Up or Down
Weight 8.82 lb (4.0 kg)
Ceiling Mount Part # 0173-4327
 NameDescriptionSizeType
Icon of LC-XS25A Cad DrawingLC-XS25A Cad Drawing68 KB
Icon of LC-XS25A Cad Drawing DxfLC-XS25A Cad Drawing Dxf0.3 MB
Icon of LC-XS25A Color Data SheetLC-XS25A Color Data SheetLC-XS25A Color Data Sheet1.0 MBPDF
Icon of LC-XS25A Lens ChartLC-XS25A Lens ChartLC-XS25A Lens Chart13 KBPDF
Icon of LC-XS25A Owners ManualLC-XS25A Owners ManualLC-XS25A Owners Manual10.1 MBPDF
Icon of LC-XS25A Remote Control CodesLC-XS25A Remote Control CodesLC-XS25A Remote Control Codes24 KBPDF
Icon of LC-XS25A RS-232 Control SoftwareLC-XS25A RS-232 Control Software1.4 MB
Icon of LC-XS25A RS-232 Basic Serial CommandsLC-XS25A RS-232 Basic Serial CommandsLC-XS25A RS-232 Basic Serial Commands0.2 MBPDF
Icon of LC-XS25A RS-232 Extended Serial CommandsLC-XS25A RS-232 Extended Serial CommandsLC-XS25A RS-232 Extended Serial Commands0.5 MBPDF
Icon of LC-XS25A SpecificationsLC-XS25A SpecificationsLC-XS25A Specifications0.1 MBPDF
