LC-XS30 LCD Projector

New Features:

Big Sound: 7 Watt RMS Audio System. Closed Captioned Support: (NTSC Composite or S-Video). More Security: Built-in security bar, and key and projector lock features. Better Cooling: sealed lens housing assures one-way filtered airflow. Reduced Maintenance: up to 3000 hr. self-advancing cartridge air filter. Easy Lamp Change: lamp access is from the top of cabinet.

Key Features

  • 3100 ANSI Lumens, 85% uniformity, and 450:1 contrast ratio.
  • 3 panel LCD imaging delivers a rich, color saturated picture.
  • XGA resolution. WXGA and UXGA ~ VGA and MAC compatible.
  • 7-Watt audio system. Fan noise as low as 27.5 dBA.
  • One-way airflow. Long life, self-advancing air filter cartridge.
  • Top Cabinet Lamp Access. Transparent, permanent lens cover.
  • Closed Caption decoding. Built-in security bar. Auto Setup.
  • Smart data compression / expansion, and video scaling.
  • Convenient mid-range 1.2:1 manual zoom and focus lens.
  • Preset image offset. Vertical digital keystone correction.
  • Accepts Composite, Component and S-Video in all major standards.
  • Displays both 4:3 and 16:9 formats. Supports most HDTV resolutions.
  • Converts Interlace to Progressive scan. 3-2 / 2-2 Pulldown support.
  • Variable Power Management option. Optional local or remote keylock.
  • Custom warm-up screen option. Green chalkboard projection mode.
  • Wireless remote control. Digital Zoom 50 ~ 400%. Turn OFF and Go!
  • 3 Year* Projector Warranty!

Included Accessories: Quick Start Guide, Owner's Manual on CD-ROM, Power Cord, VGA Computer Input Cable (Dsub15 to Dsub15), Wireless Remote Control (with 2 AAA Batteries).

Optional Accessories: Replacement Lamp, Replacement Air Filter Cartridge, Soft Carry Bag, DVI-I Input Cable (DVI-I to Dsub15), Component Video Input Cable (Dsub15 to 3RCA), Ceiling Mount, Ceiling Post & Plate.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)

Display Technology LCD Panels x 3
Brightness (ANSI) up-to 3,100 ANSI lumens
Native Resolution XGA (1024x768)
Max. Computer Input UXGA
Max. Video Input 1080i
Contrast Ratio 450:1
Panel Size 0.63'' (16 mm)
Lens Type (Throw:Width) 1.72-2.07:1
Vertical Lens Shift Fixed Image Offset, Ratio (Top:Bottom) 9:1
Keystone Correction Digital: up-to 20° Up or Down
Inputs DVI-I (w/HDCP) x 1; Dsub15 x 1; RCA x 1;
S-Video x 1; MiniStereo x 2; RCA (audio) x 2
Outputs Video: Dsub15 x 1 (switchable); Audio: variable, Ministereo x 1;
Sound System 7 Watt; 1.46'' (3.7 cm) speaker x 1
Network Control ---
Warranty 3 years
Lamp Life Up to 3,000 hours
Lamp Part # 610 339 8600
Fan Noise As low as 27.5 dBa
Air Filter Cartridge (up to 3,000 hours)
Maximum Pitch up-to 10° Up or Down
Weight 8.82 lb (4.0 kg)
Ceiling Mount Part # 0173-4327
LC-XS30 Cad Drawing68.3 KB
LC-XS30 Cad Drawing Dxf293.2 KB
LC-XS30 Color Data Sheet508.6 KB
LC-XS30 Hi-res Image Beauty1LC-XS30 Hi-res Image Beauty1543.8 KBJPG, ZIP

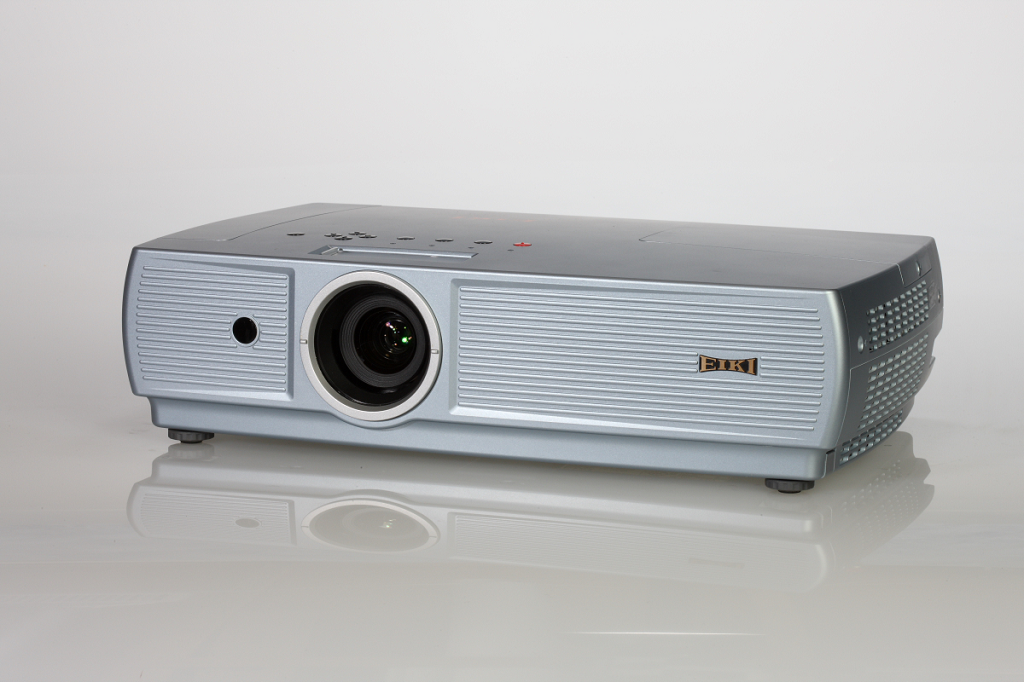

LC-XS30 Hi-res Image Beauty2LC-XS30 Hi-res Image Beauty2544.8 KBJPG, ZIP
LC-XS30 Hi-res Image BottomLC-XS30 Hi-res Image Bottom643.7 KBJPG, ZIP
LC-XS30 Hi-res Image ConnectionsLC-XS30 Hi-res Image Connections528.4 KBJPG, ZIP
LC-XS30 Hi-res Image FilterLC-XS30 Hi-res Image Filter485.6 KBJPG, ZIP
LC-XS30 Hi-res Image FrontLC-XS30 Hi-res Image Front492.8 KBJPG, ZIP
LC-XS30 Hi-res Image RemoteLC-XS30 Hi-res Image Remote539.7 KBJPG, ZIP

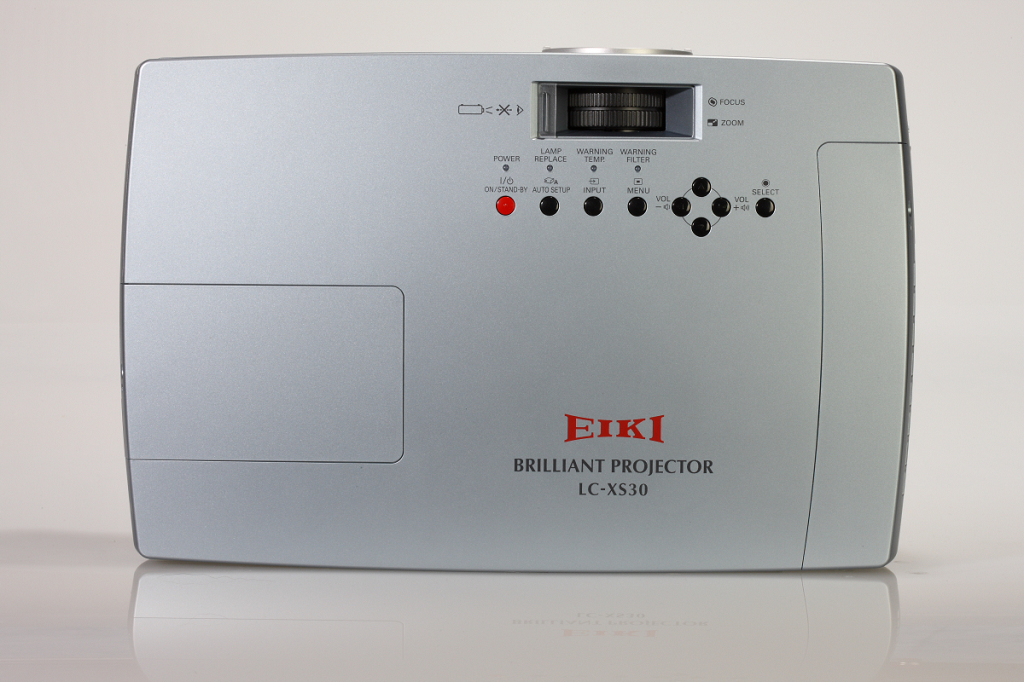

LC-XS30 Hi-res Image TopLC-XS30 Hi-res Image Top634.8 KBJPG, ZIP
LC-XS30 Lens ChartLC-XS30 Lens Chart12.6 KBPDF
LC-XS30 Owners ManualLC-XS30 Owners Manual6.0 MBPDF
LC-XS30 Remote Control CodesLC-XS30 Remote Control Codes74.9 KBPDF
LC-XS30 RS-232 Control Software1.4 MB
LC-XS30 RS-232 Basic Serial CommandsLC-XS30 RS-232 Basic Serial Commands183.3 KBPDF
LC-XS30 RS-232 Extended Serial CommandsLC-XS30 RS-232 Extended Serial Commands457.6 KBPDF
LC-XS30 SpecificationsLC-XS30 Specifications212.5 KBPDF
