LC-XT2 LCD Projector

Key Features

  • 7700 ANSI Lumens bright at 90% uniformity and a 700:1 contrast ratio.
  • Projects 1024 x 768 pixels, for real XGA resolution.
  • Supplied without lens. Wide choice of lenses available.
  • Projects images up to 40' wide (600" diagonal).
  • Power Lens Shift offsets the image up & down and left & right.
  • 230 MHz dot clock for compatibility with most workstations.
  • Smart data compression/expansion: compatibility with UXGA~VGA, MAC.
  • Compatible with most signal input, including DVI, RGB, Y/C, DVD, HDTV.
  • Displays video 4:3 & 16:9 in NTSC/PAL/SECAM/NTSC 4.43/PAL-M/PAL-N.
  • Video scaling. Progressive scan optimizes HD stills and animation.
  • Digital Video Noise Reduction optimizes video image.
  • 4 input channels. Interchangeable input modules permit reconfiguration.

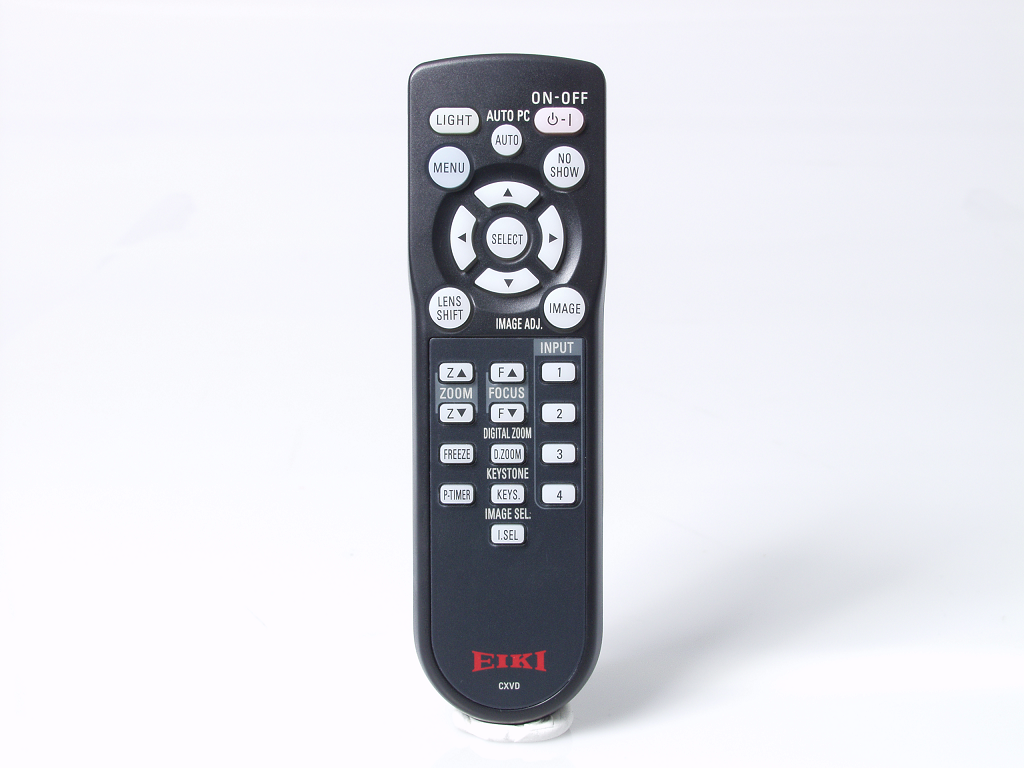

  • Wireless/wired remote with mouse control and laser pointer.
  • 3 Year Warranty.*

Included Accessories: Owner's Manual. AC Power Cord 10' (3.m), Lens Aperture Cover. Computer Input Cable 6' (1.8m) HD15~HD15. DVI Input Cable. DVI~HD15 Adapter. MAC Adapter. Wireless/wired Remote with Mouse Control and Laser Pointer & 2 x AA batteries and 1.5M wired remote cable. Mouse cables 9' (2.75m) each for PS/2, Serial Port, ADB Port. Dust Cover.

Optional Accessories: Telephoto, Midrange & Wideangle Lenses. Replacement Lamps. Additional DVI, 5 BNC, Y/C & HD15 Input Modules. HD-SDI Input Module. Upconverter Input Module. Hard Shipping Case with wheels and telescoping handle. Ceiling Mount and Post & Plate. Stacker Stand.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)

Display Technology 3LCD
Brightness (ANSI) 7,700 Lumens
Native Resolution XGA (1024x768)
Max. Computer Input UXGA
Max. Video Input 1080i
Contrast Ratio 700:1
Panel Size 1.8"
Lens Type (Throw:Width) Supplied without lens
Power Lens Shift T:B 10:0~0:10; L:R 11:9~9:11
Keystone Correction Variable Adjustment +40°~ -40°

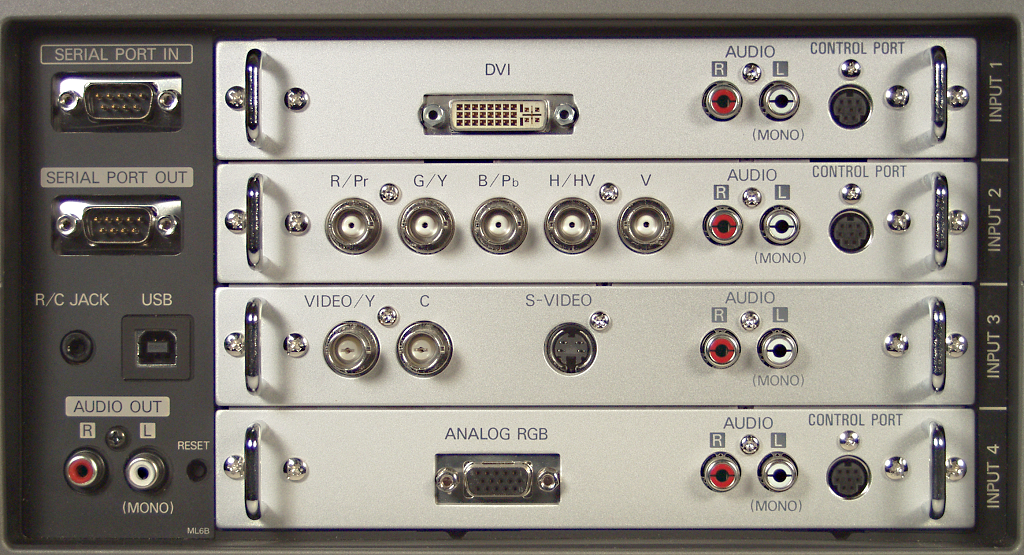

Inputs DVI x 1 data/video, RCA x 2 audio, 8-pin DIN x 1 control
BNC x 5 video, RCA x 2 audio, 8-pin DIN x 1 control
BNC x 2 & S-Video x 1 video, RCA x 2 audio
HD15 x 1 data, RCA x 2 audio, 8-pin DIN x 1 control
Outputs (Stereo) RCA x 2 (L & R)
Sound System 3 Watts; 8 cm. (3.1 in) x 2
Network Control Wired LAN monitor & control & system management with optional module
Warranty 3 Yr / 6000 hr use

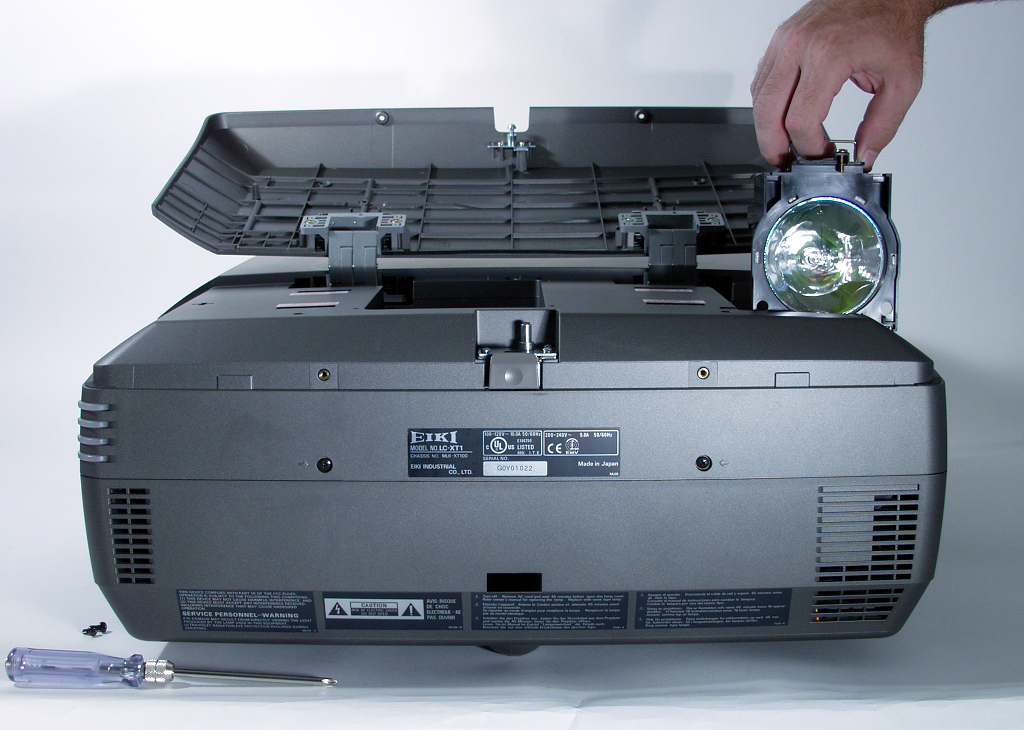

Lamp Life Up to 2,000 hours per lamp
Lamp Part # 610 292 4831 (4)
Fan Noise As low as 46 dBA

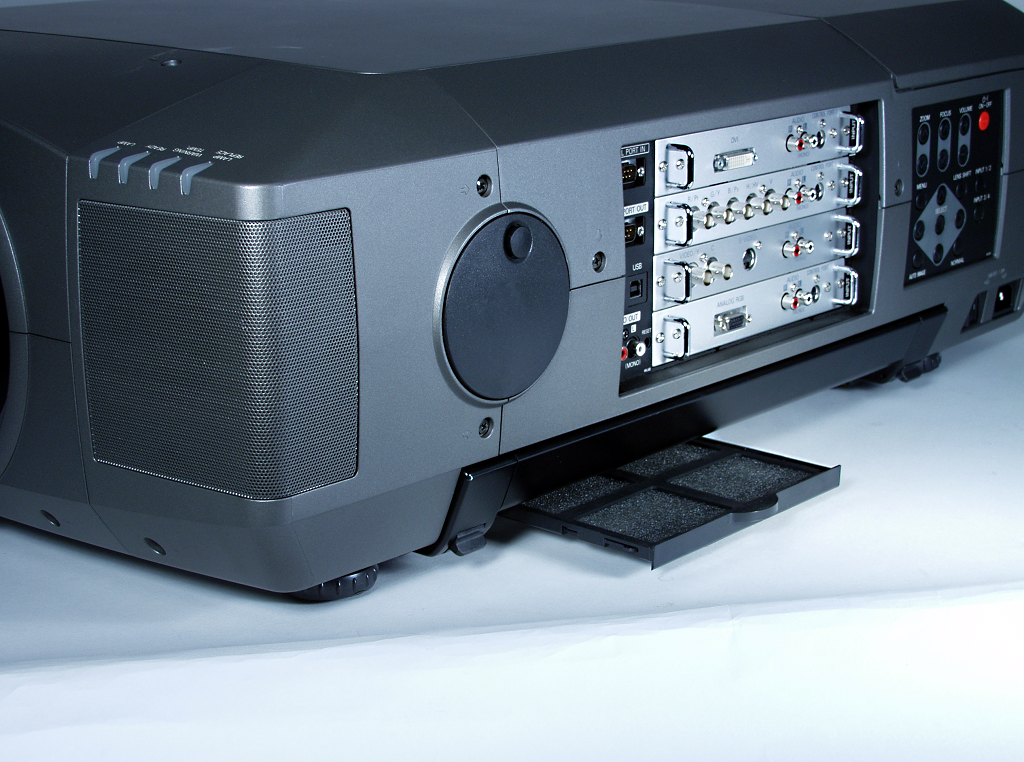

Air Filter Standard
Maximum Pitch up to 5.7° up
Weight 78.3 lbs.(35.5 kg )
Ceiling Mount Part # 0173-4149
LC-XT2 Cad Drawing AH-2101221.4 KB
LC-XT2 Cad Drawing AH-21012 Dxf5.3 KB
LC-XT2 Cad Drawing AH-2102222.2 KB
LC-XT2 Cad Drawing AH-21022 Dxf7.0 KB
LC-XT2 Cad Drawing AH-2103121.1 KB
LC-XT2 Cad Drawing AH-21031 Dxf5.3 KB
LC-XT2 Cad Drawing AH-2104122.5 KB
LC-XT2 Cad Drawing AH-21041 Dxf6.7 KB
LC-XT2 Cad Drawing AH-2109124.0 KB
LC-XT2 Cad Drawing AH-21091 Dxf8.1 KB
LC-XT2 Cad Drawing AH-2110224.3 KB
LC-XT2 Cad Drawing AH-21102 Dxf7.9 KB
LC-XT2 Cad Drawing AH-2120223.7 KB
LC-XT2 Cad Drawing AH-21202 Dxf7.4 KB
LC-XT2 Cad Drawing AH-2205122.7 KB
LC-XT2 Cad Drawing AH-22051 Dxf7.1 KB
LC-XT2 Cad Drawing AH-3202123.6 KB
LC-XT2 Cad Drawing AH-32021 Dxf8.3 KB
LC-XT2 Cad Drawing Bottom43.3 KB
LC-XT2 Cad Drawing Dxf188.4 KB
LC-XT2 Cad Drawing Front Back Dxf37.3 KB
LC-XT2 Cad Drawing Inputside Top Noninputside Dxf38.1 KB
LC-XT2 Cad Drawing Opt Lens Protrusions179.6 KB
LC-XT2 Lens ChartLC-XT2 Lens Chart57.5 KBPDF
LC-XT2 Owners ManualLC-XT2 Owners Manual963.2 KBPDF
LC-XT2 RS-232 Control SoftwareLC-XT2 RS-232 Control Software1.5 MB
LC-XT2 RS-232 Basic Serial CommandsLC-XT2 RS-232 Basic Serial Commands87.0 KBPDF
LC-XT2 RS-232 Extended Serial CommandsLC-XT2 RS-232 Extended Serial Commands314.2 KBPDF
LC-XT2 SpecificationsLC-XT2 Specifications52.3 KBPDF
