LC-XT5A LCD Projector

Breakthrough Features

Our brightest projector yet. 15,000 ANSI Lumens. New LCD panels deliver a remarkable 2000:1 contrast ratio. New Inorganic imaging engine is optimized for extended use. New 10 bit color processing improves color reproduction. Vertical and horizontal lens shift and keystone correction. Color Management software. User logo. Built-in test patterns.

Key Features

  • 15,000 ANSI lumens bright with 90% uniformity and a 2000:1 contrast ratio.
  • Native XGA resolution. Compatible with inputs up-to UXGA and WXGA.
  • Supports analog and digital video input in all color standards up-to 1080p.
  • 3 panel LCD imaging delivers a rich, color-saturated picture.
  • 10-bit color processing, for superior color reproduction.
  • A wide range of optional lenses is available. Projects images up-to 600” diagonal.
  • Vertical and horizontal power lens shift and digital keystone correction.
  • Includes most professional input configurations, including 5BNC and DVI-D.
  • Optional modules include dual (HD/SD) SDI and HD wireless receiver.
  • Optional network module for projector monitoring and control.
  • Quick change lens installation system. Wide choice of lenses available.
  • Capable of extended operation (up to 23 hours / day) with regular maintenance.
  • Supplied software permits the preconfiguration of color adjustments.
  • Wireless/wired remote control. Digital zoom 50-700%.
  • 3 year projector warranty.

Included Accessories: Quick Start Guide, Owner's Manual on CD-ROM, Power Cord, VGA Computer Input Cable (Dsub15 to Dsub15), Wireless/Wired Remote Control (with 2 AA Batteries), Color Management Software on CD-ROM, Lens Adapter x 2, Lens Spacer, Lens Light Block Sheets x 3.

Optional Accessories: Wideangle, Midrange and Telephoto Lenses, Replacement Lamps, DVI, Dsub15, 5BNC, and HD/SD-SDI Input Modules, Warp & Blending Module, RJ45 Network Control Module, ATA-Style Shipping Case with Wheels and Telescoping Handle, Ceiling Mount, Ceiling Post & Plate.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)
()

Display Technology 3LCD
Brightness (ANSI) 15,000 lumens
Native Resolution XGA (1024x768)
Max. Computer Input UXGA
Max. Video Input 1080p
Contrast Ratio 2000:1
Panel Size 1.8" (inorganic)
Lens Type (Throw:Width) Supplied without lens
Power Lens Shift U/D 50%; L/R 10%
Keystone Correction U/D 40º; L/R 20º
Inputs Dsub15 x 1; DVI-D (w/ HDCP) x 1; BNC x 5; S-Video x 1;
Empty module bay x 2; (requires 240 V/60 Hz power)
Outputs  ---
Sound System  ---
Network Control Wired LAN monitor & control & system management with optional module
Warranty 3 years
Lamp Life Up to 3,000 hours per lamp
Lamp Part # 610 334 6267 (4)
Fan Noise As low as 51 dBA
Air Filter Standard
Maximum Pitch ± 10° U/D
Weight 80.5 lb (36.5 kg)
Ceiling Mount Part # 0173-4222
NameDescriptionSizeType
LC-XT5A Cad Drawing81.2 KB
LC-XT5A Color Data Sheet1.1 MB

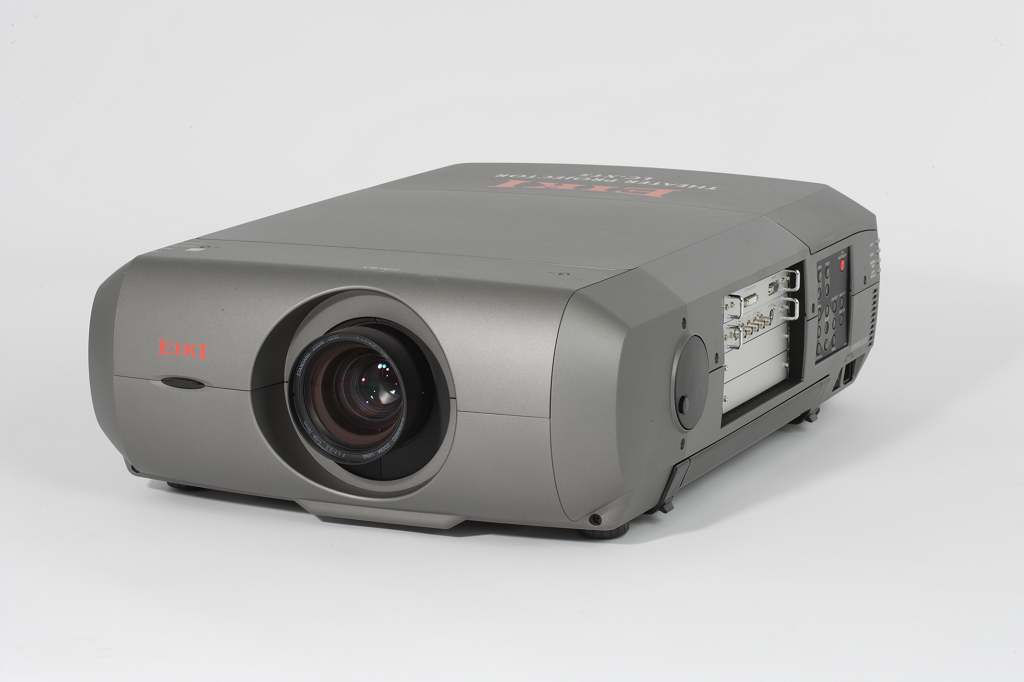

LC-XT5A Hi-res Image Beauty1LC-XT5A Hi-res Image Beauty117.6 MBZIP, TIF

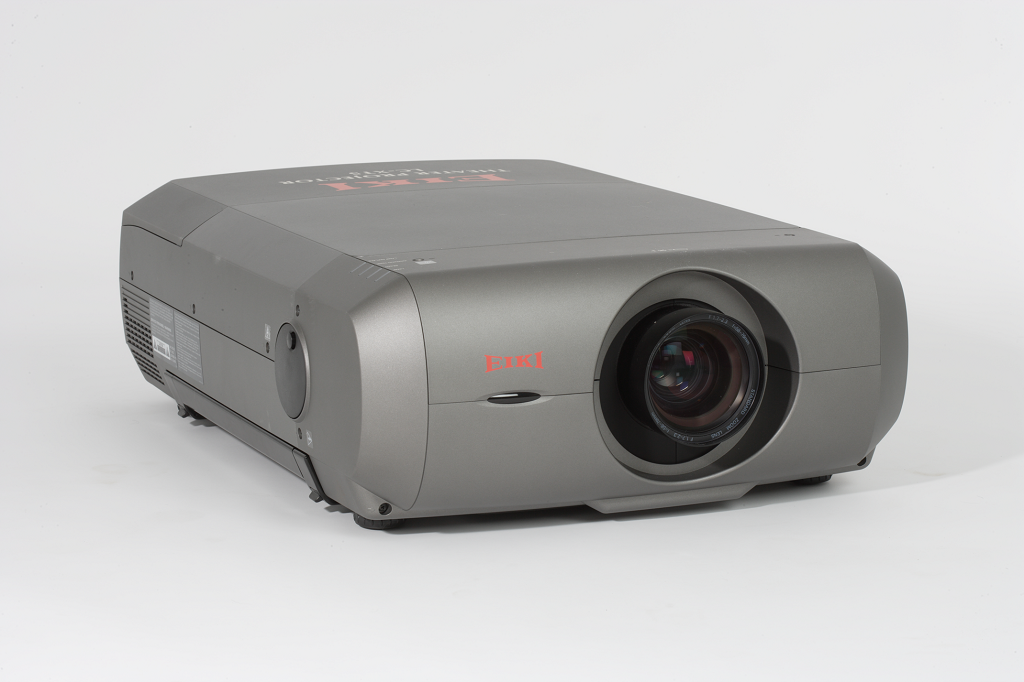

LC-XT5A Hi-res Image Beauty2LC-XT5A Hi-res Image Beauty217.7 MBZIP, TIF

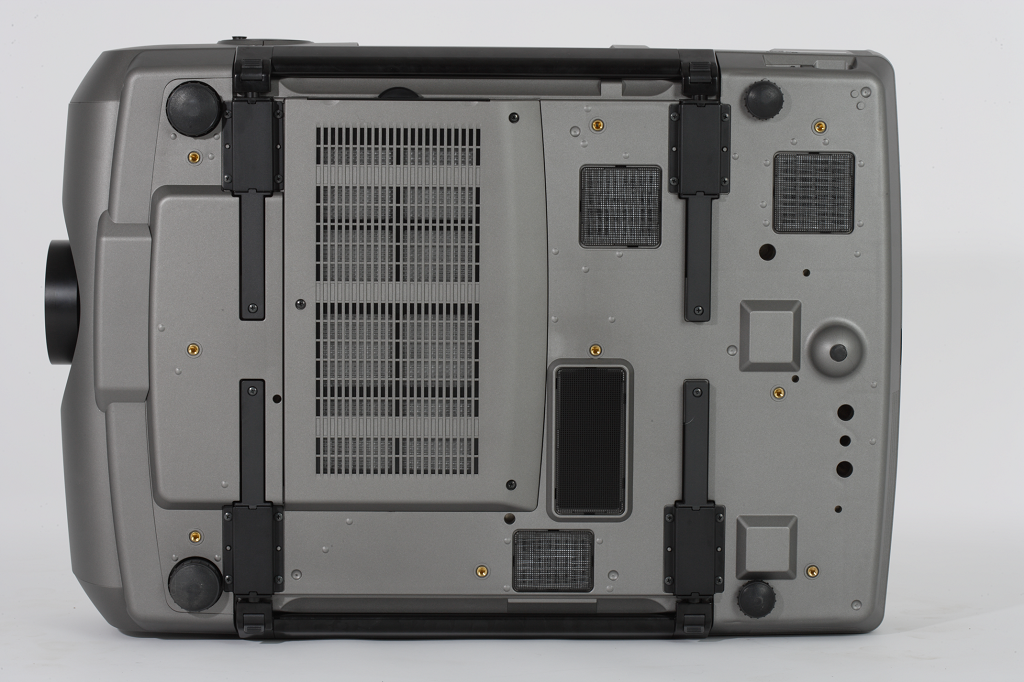

LC-XT5A Hi-res Image BottomLC-XT5A Hi-res Image Bottom19.9 MBZIP, TIF

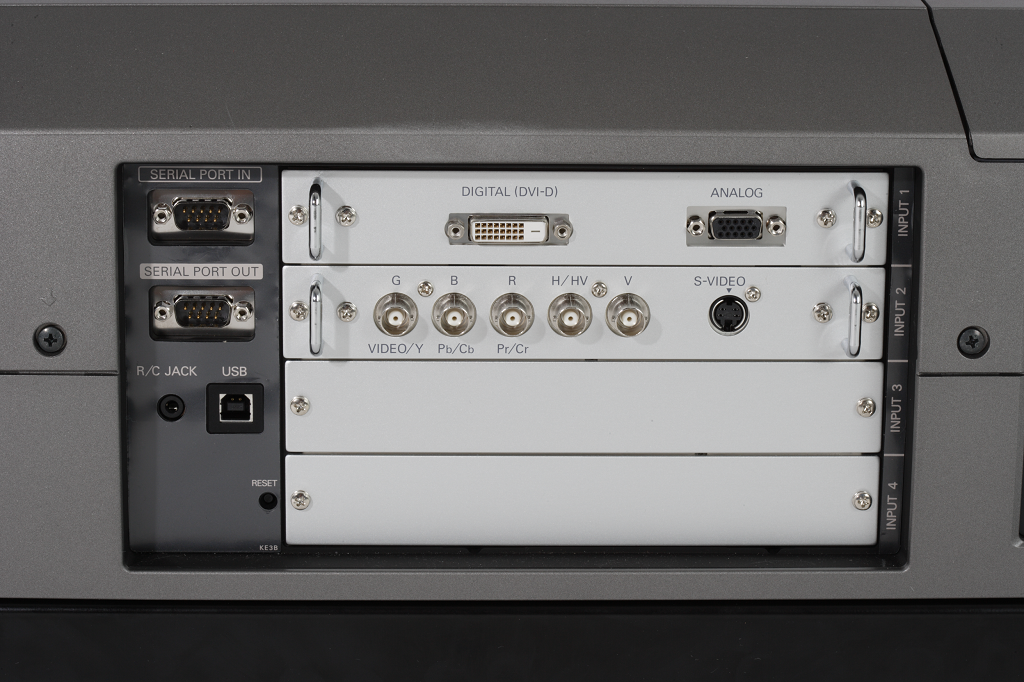

LC-XT5A Hi-res Image ConnectionsLC-XT5A Hi-res Image Connections25.6 MBZIP, TIF

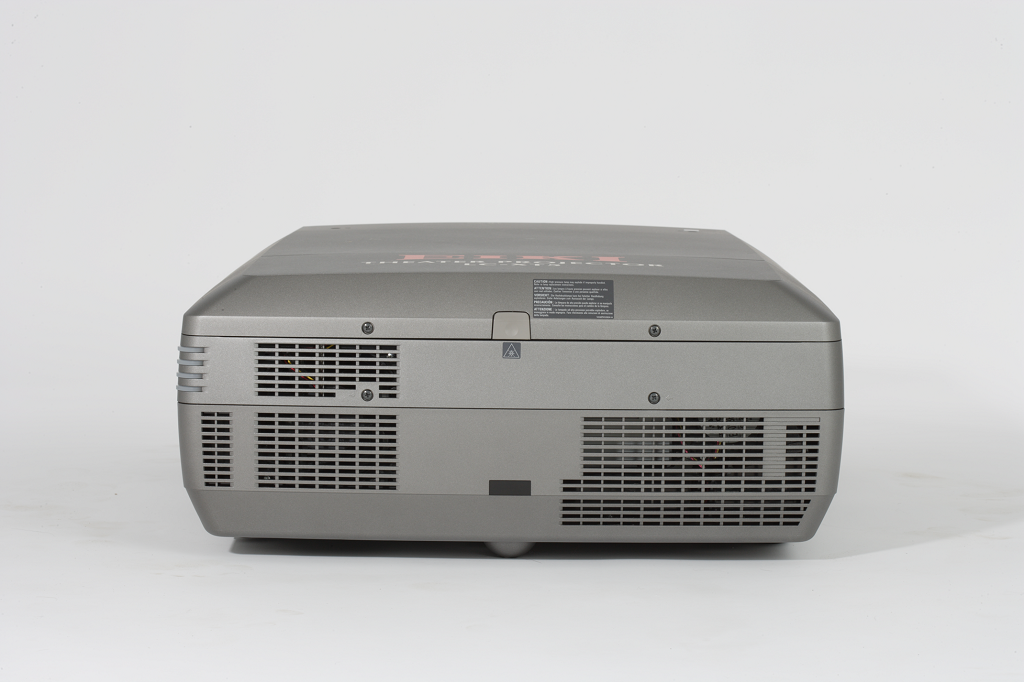

LC-XT5A Hi-res Image RearLC-XT5A Hi-res Image Rear16.8 MBZIP, TIF

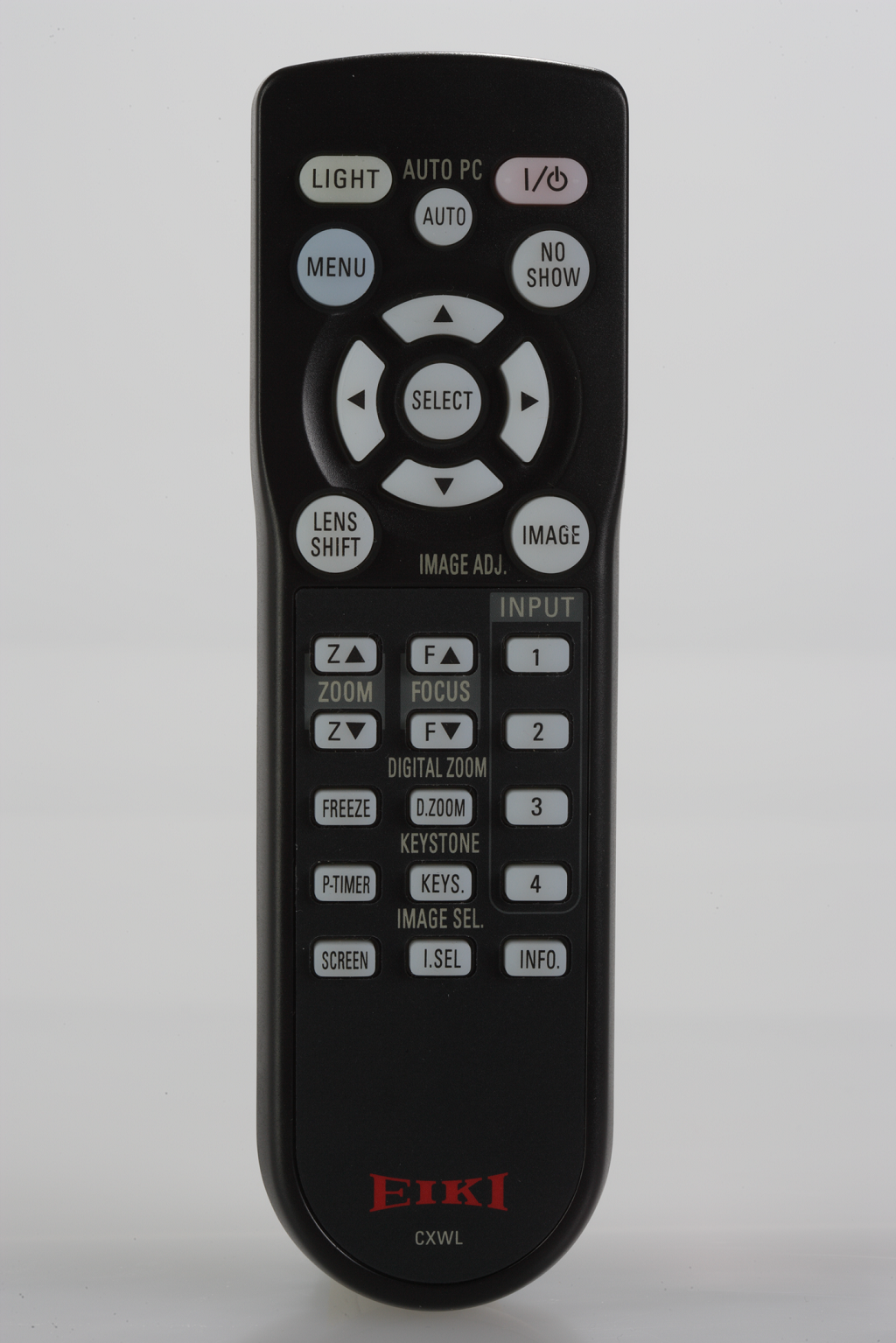

LC-XT5A Hi-res Image RemoteLC-XT5A Hi-res Image Remote17.9 MBZIP, TIF

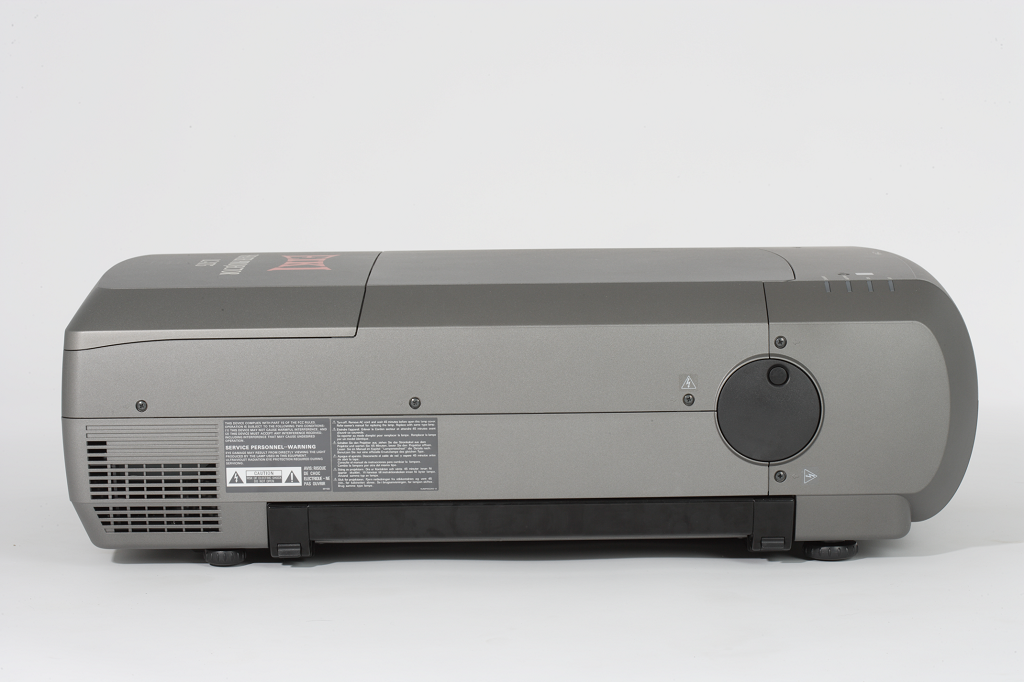

LC-XT5A Hi-res Image Side1LC-XT5A Hi-res Image Side117.0 MBZIP, TIF

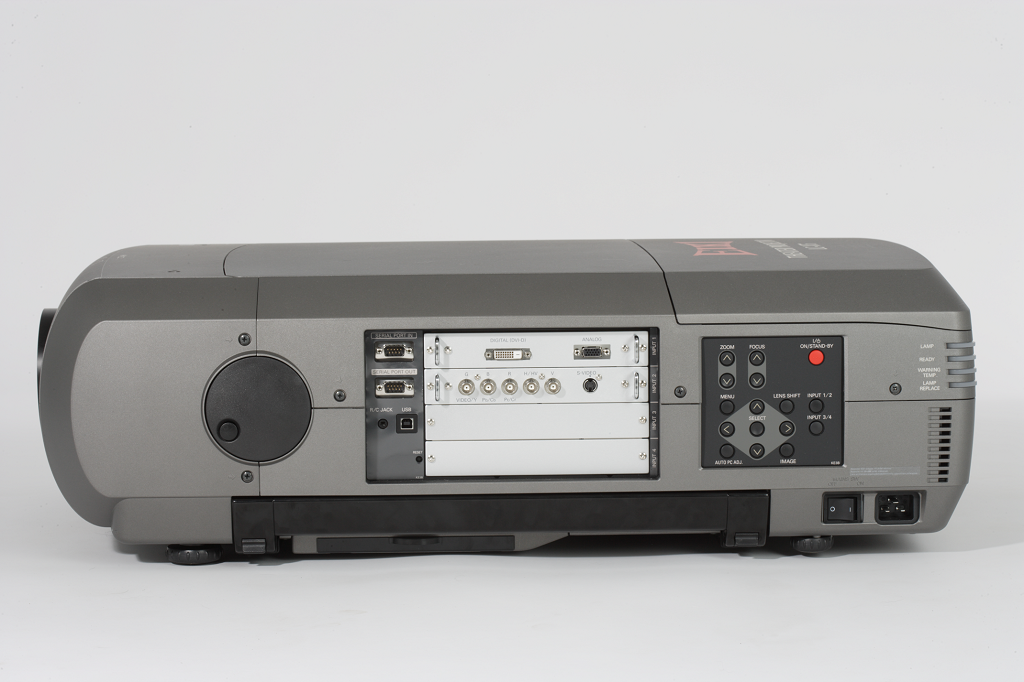

LC-XT5A Hi-res Image Side2LC-XT5A Hi-res Image Side217.3 MBZIP, TIF
LC-XT5A Hi-res Image TopLC-XT5A Hi-res Image Top19.1 MBZIP, TIF
LC-XT5A Lens ChartLC-XT5A Lens Chart12.7 KBPDF
LC-XT5A Owners ManualLC-XT5A Owners Manual4.2 MBPDF
LC-XT5A Remote Control CodesLC-XT5A Remote Control Codes67.7 KBPDF
LC-XT5A RS-232 Control SoftwareLC-XT5A RS-232 Control Software1.4 MB
LC-XT5A RS-232 Basic Serial CommandsLC-XT5A RS-232 Basic Serial Commands207.6 KBPDF
LC-XT5A RS-232 Extended Serial CommandsLC-XT5A RS-232 Extended Serial Commands491.3 KBPDF
LC-XT5A SpecificationsLC-XT5A Specifications46.1 KBPDF

Related Products

610 334 6267 Lamp
610 334 6267 Lamp
Rated Power: 330W
Lamp type: UHP
Life Expectancy: 3000h
Lamp Warranty: 90 days (Pro-Rata)
(4) used in each projector
AH-32601 Lens
AH-32601 Lens
Power Zoom & Focus FL: 1.77″ ~ 2.25″ ( 45 ~ 57mm ) f:2.3 ~ 2.8
AH-32581 Lens
AH-32581 Lens
Manual Zoom & Focus FL: 8.82″~ 12.8″ ( 224 ~ 325mm ) f:2.20 ~ 2.50
AH-32401 Lens
AH-32401 Lens
Power Zoom & Focus FL: 2.28″ ~ 2.99″ ( 58 ~ 76mm ) f:1.7 ~ 2.3
AH-32022 Lens
AH-32022 Lens
Fixed Focus FL: 1.18″ (30.0 mm) f:2.5 On-Axis only!
AH-22051 Lens
AH-22051 Lens
Power Zoom & Focus FL: 3.82″ ~ 5.16″ ( 97.0 ~ 131mm ) f:1.70 ~ 2.70
AH-21202 Lens
AH-21202 Lens
Power Zoom & Focus FL: 2.06″ ~ 2.67″ ( 52.2 ~ 67.9mm ) f:2.53 ~ 2.95
AH-21092 Lens
AH-21092 Lens
Power Zoom & Focus FL: 6.22″~ 8.7″ ( 158.0 ~ 221.0mm ) f:2.00 ~ 2.80
AH-21031 Lens
AH-21031 Lens
LC-XT6
LC-XT5A
LC-XT5
LC-XT4U
LC-XT9
LC-XT3
LC-X5L
LC-X4L
LC-X4LA
LC-SX4LA
AH-21023 Lens
AH-21023 Lens
Power Zoom & Focus FL: 4.90″ ~ 6.37″ ( 124.5 ~ 161.8mm ) f:2.00 ~ 2.60
945 044 0978 Lens
945 044 0978 Lens
Power Zoom & Focus FL:2.98″ ~ 3.84″ ( 75.7 ~ 97.5mm ) f:2.00 ~ 2.30
0001-4297 Lens
0001-4297 Lens
Manual Zoom & Focus FL: 2.75" ~ 5.00" ( 70.0 ~ 125.0mm ) f:2.0
0001-4261 Lens
0001-4261 Lens
Manual Zoom & Focus FL: 7.25″~12.38″ ( 184 ~ 314mm ) f:2.8
0001-4260 Lens
0001-4260 Lens
Manual Zoom & Focus FL: 4.49″ ~ 7.72″ ( 114 ~ 196mm ) f:2.00
910 304 6229 Bracket
910 304 6229 Bracket
Quick Change Lens Mount Brkt ( for Type 2 lenses - old type )
