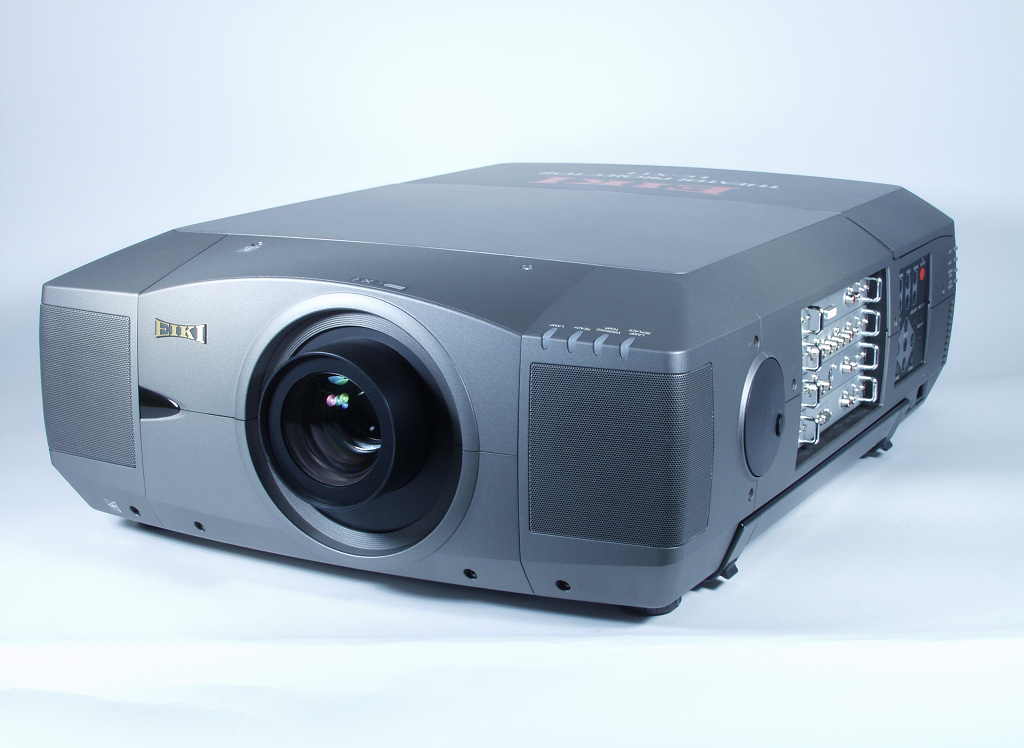

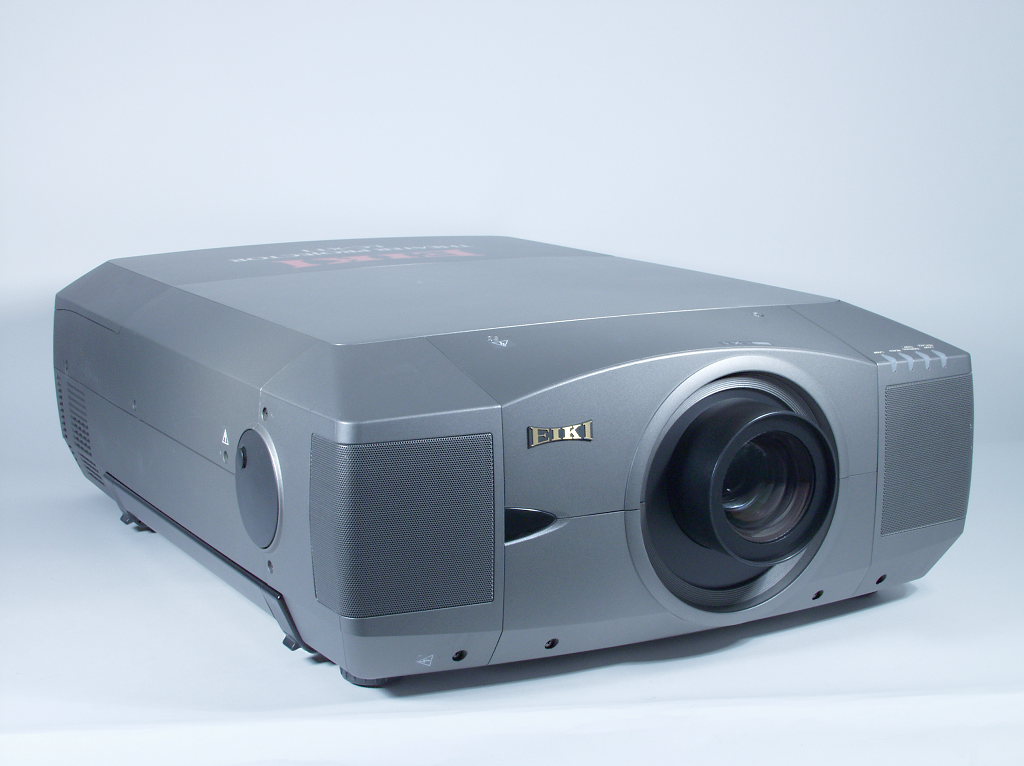

LC-XT9 LCD Projector

Significant Features

Bright yet economical. 9,000 ANSI Lumens. Optical imaging engine optimized for extended use. Delivers an impressive 1100:1 contrast ratio. Works on a 15 amp circuit.

Key Features

  • 9,000 ANSI Lumens bright at 90% uniformity and a 1100:1 contrast ratio.
  • Native XGA. Compatible with UXGA through VGA. WXGA compatible. Video scaling.
  • Works on 120V AC power (15 amp circuit ). No special wiring required.
  • Projects images up to 40' wide (600" diagonal). (Supplied without lens.)
  • Quick Change Lens Installation system. Wide choice of lenses available.
  • Power Lens Shift. Lens can be shifted vertically and horizontally.
  • Accepts most video signal input, including DVI, RGB, Y/C, DVD, HDTV.
  • Compatible with 480i/p, 575i/p, 720p, 1035i, 1080i - 50/60 input resolutions.
  • Displays video 4:3 & 16:9 in NTSC/PAL/SECAM/NTSC 4.43/PAL-M/PAL-N.
  • DVI input supports HDCP for true digital imaging. 2-3 pulldown support.

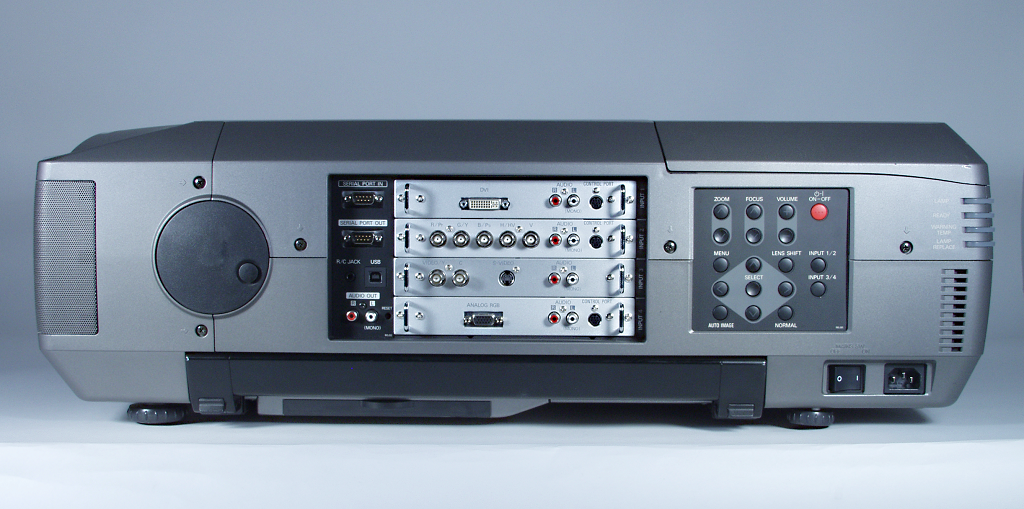

  • 4 input bays. Interchangeable input modules permit reconfiguration.
  • Supplied software permits the preconfiguring of color adjustments.

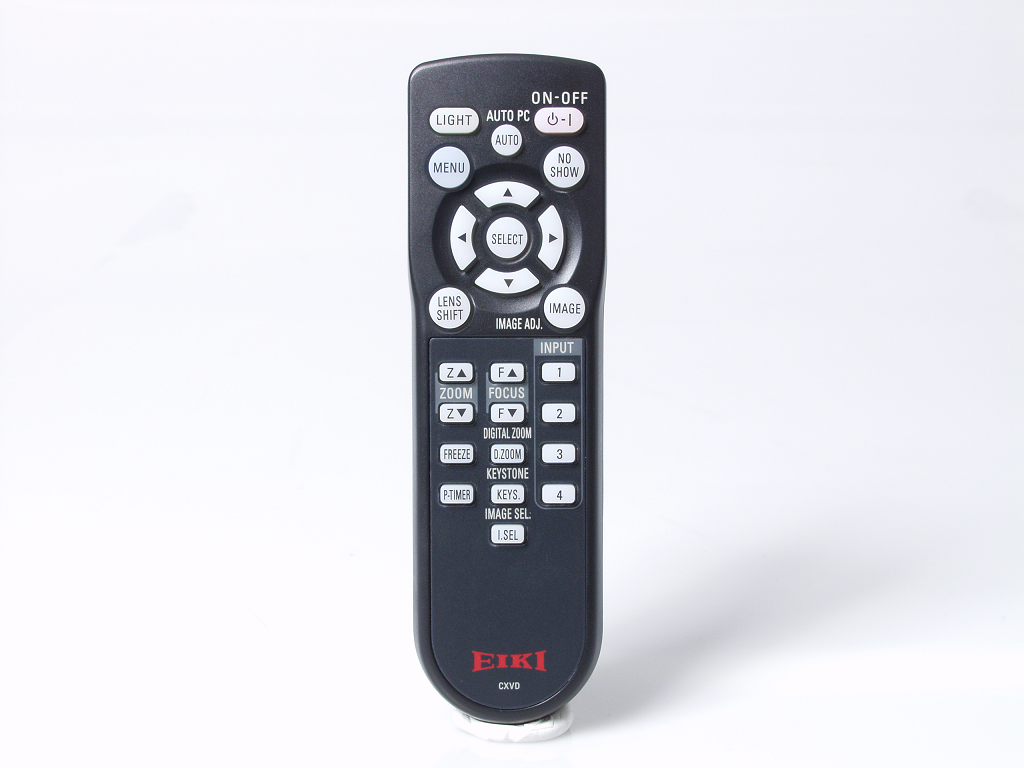

  • Wireless/wired remote control. Digital Zoom 50% ~ 700% (horizontal).
  • Capable of extended operation (up to 23 hours / day) with regular maintenance.
  • 3 year projector warranty.

Included Accessories: Owner's Manual on CD-ROM. Quick Start Guide. AC Power Cord. Lens Aperture Cover. Computer Input Cable 6' (1.8m) HD15~HD15. Wireless/wired Remote Control & 2 x AA batteries. Color Management Software. Lens Mount Adapter x 2.

Optional Accessories: Telephoto, Midrange and Wideangle Lenses. Replacement Lamps. Additional DVI, 5 BNC, and PC Input Modules. Y/C (BNCx2 / S-Video) Input Module. DVI-I w/HDCP (Digital Video) Input Module. Dual (HD & SD) SDI Input Module. HD-SDI Input Module. Upconverter Input Module. Network Control Module. Hard Shipping Case with wheels and Telescoping handle. Ceiling Mount and Post & Plate. EZ-250 Local Control. NPC-1 Network Control.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)
()

Display Technology 3LCD
Brightness (ANSI) 9,000 lumens
Native Resolution XGA (1024x768)
Max. Computer Input UXGA
Max. Video Input 1080i
Contrast Ratio 1100:1
Panel Size 1.8"
Lens Type (Throw:Width) Supplied without lens
Power Lens Shift T:B 10:0~0:10; L:R 3:2~2:3
Keystone Correction Variable Adjustment +40°~ -40°

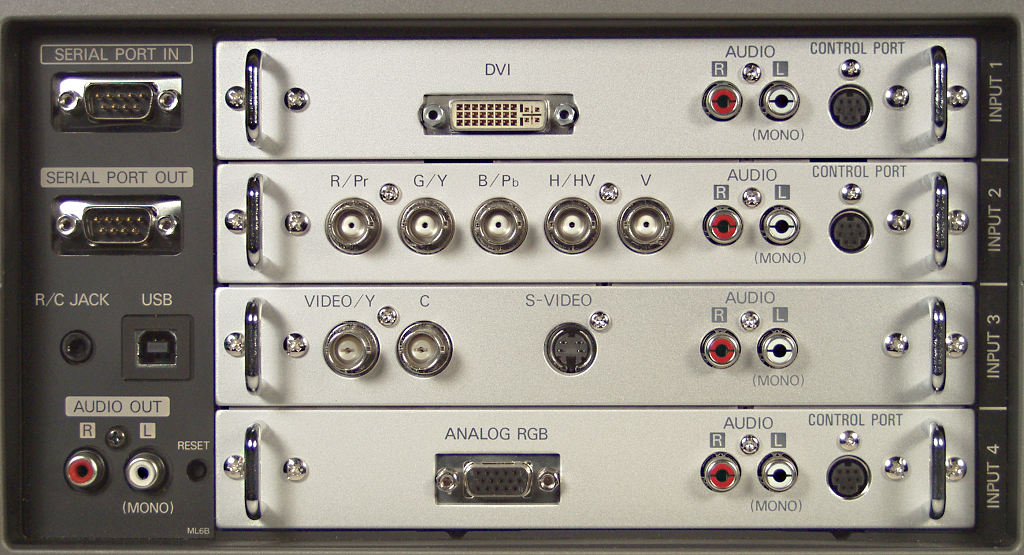

Inputs DVI-I x 1 data/video, RCA x 2 audio, 8-pin DIN x 1 control
BNC x 5 video, RCA x 2 audio, 8-pin DIN x 1 control
HD15 x 1 data, RCA x 2 audio, 8-pin DIN x 1 control
Empty module bay x 1;
Outputs Audio: Output - Line (Stereo) RCA x 2 (L & R)
Sound System  ---
Network Control Wired LAN monitor & control & system management with optional module
Warranty 3 years

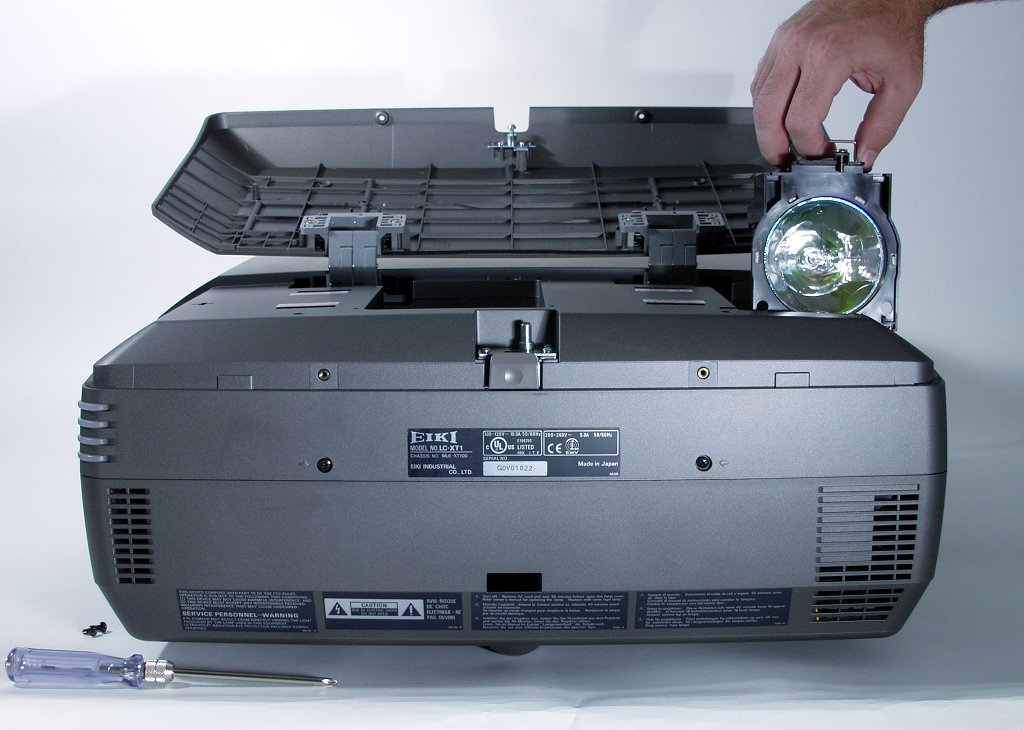

Lamp Life Up to 2,000 hours per lamp
Lamp Part # 610 300 0862 (4)
Fan Noise As low as 51 dBA

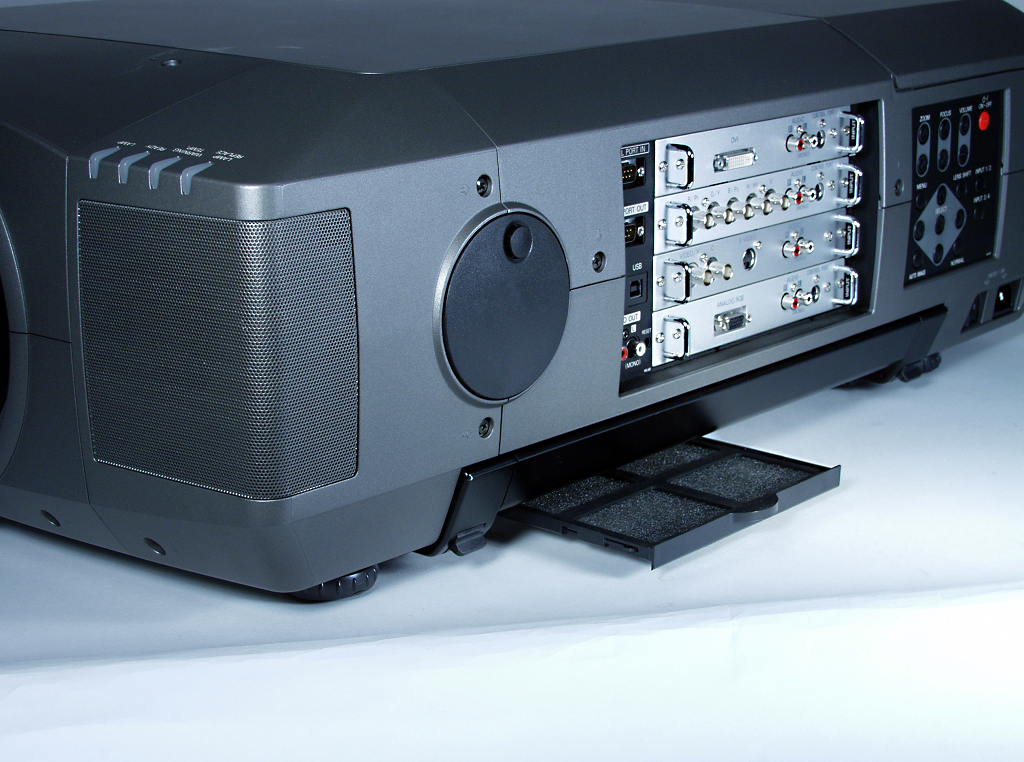

Air Filter Standard
Maximum Pitch up to 5.7° up
Weight 80.5 lb (36.5 kg)
Ceiling Mount Part # 0173-4149
NameDescriptionSizeType
LC-XT9 Cad Drawing114.5 KB
LC-XT9 Color Data Sheet646.2 KB
LC-XT9 Lens ChartLC-XT9 Lens Chart12.7 KBPDF
LC-XT9 Owners ManualLC-XT9 Owners Manual1.5 MBPDF
LC-XT9 Remote Control CodesLC-XT9 Remote Control Codes66.4 KBPDF
LC-XT9 RS-232 Control SoftwareLC-XT9 RS-232 Control Software1.4 MB
LC-XT9 RS-232 Basic Serial CommandsLC-XT9 RS-232 Basic Serial Commands162.4 KBPDF
LC-XT9 RS-232 Extended Serial CommandsLC-XT9 RS-232 Extended Serial Commands299.1 KBPDF
LC-XT9 SpecificationsLC-XT9 Specifications24.6 KBPDF
