NPC-1 Network Projector Control

Control your computer/video projectors with ease. The EIKI NPC-1 system lets you maintain projectors and support end users
through your TCP/IP network ... from across the room, or around the world.
The EIKI NPC-1 system consists of a palm-sized projector-to-network interface, and software with basic features permitting you to
monitor projector status and manage projector functions. And optional software is available to support multiple projector control
and projector alerts.

Key Features:

Universal Network Control - Preconfigured for EIKI projectors, NPC-1 can control most projectors*... from EIKI or other manufacturers, in current production or legacy... with a simple file download**. Precision Command Control - There is no delay time between command and execution. True simultaneous execution of the same command on multiple devices is built-in (with the NetControl Advanced Package).
Easy To Configure and Use - NPC-1 requires no programming.
The NetControl software locates the NPC-1 on the network and assigns the projector. Only the control program on the computer gets updates.
Maximum Projector Security - The brains of the system are in the computer... not the controller. Even if the projector and controller are both disabled, the system knows (with the NetControl Advanced Package).

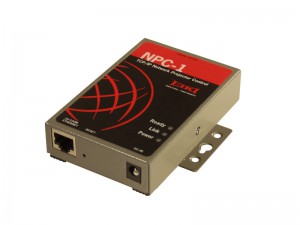

NPC-1 Interface Hardware

npc-1 unit drawing

Simple Installation.
This palm-sized, unobtrusive device is
quickly and easily mounted anywhere.

npc-1 connections drawing

Simple Connections.
Connect DB9 to projector, RJ45 to network,
DC plug to AC via power adapter.

 SPECIFICATIONS:
Processor/Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 bit / 512 KB
LAN Interface. . . . . . 1 x R J45f (100Base-TX 10/100 Mbps, auto-detecting)
Serial Interface. . . . . . . . 1 x DB9m (RS232 DTE male, 50 bps – 230 bps)
Protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TCP, IP, UDP, DHCP, ICMP
Power Requirements . . . . . . . . . . . DC 9 V to 30 V, 300 mA (max.) at 9 V
Operating Temp... . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 – 55°C, 32 – 131°F
Operating Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 – 95% RH
Dimensions (HxWxD, with ears)3.95x 3.54 x 0.87 in. (100.4x90x22 mm)
Surge Protection . . . . . . . . . . . . . . . . . . . 15KV ESD protection for serial port
Magnetic Isolation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5KV for Ethernet
Regulatory Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . FCC, CE, UL, CUL
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Years
NetControl Starter Softwarenpc-1 starter software 1Monitor the Projector.
Check its status, including
input mode selected,
lamp time consumed,
temperature.

npc-1 starter software 2Manage the Projector.
Control standard functions, including input
selection, lens operation, On and Off.

 SYSTEM REQUIREMENTS:
• Intel® Pentium® II/400 MHz or compatible.
• Microsoft® Windows® 98SE, ME, NT (SP5), 2000 (SP3), or XP.
• 64 MB RAM (128 MB recommended).
• Network adapter.
• Access to TCP/IP network.
• 23 MB hard disk space (full install).
• CD-ROM drive.
• XGA or higher resolution monitor (1024 x 768, 256 color).
• Mouse or other pointing device.
Expand the Power of Your NPC-1 System, with the Optional NetControl Advanced Software Package:
• Get instant access to every projector in the NPC-1 system, easily.
• Take greater control: get menu level selections and adjustments.
• Assign projector properties: serial number, other types of information.
• Create groups of projectors: simultaneously address many projectors.
• Create events for projectors and groups: set future behavior to occur.
• Get maintenance alerts, such as lamp life, both on-screen and via e-mail.
• Get security alerts, such as failure or theft, both on-screen and via e-mail.
