Mini Cat 5 A/V Extender

The VE022 Mini Cat 5 A/V Extender allows you to extend the distance between your video/audio source and display devices by as much as 150 meters, using a Cat 5e cable, providing an easy way to replace heavy and expensive VGA cables. With hot-plugging support, you can quickly add or remove the VE022 transmitter/receiver connected to the source/display device without having to power down devices.
The VE022 Mini Cat 5 A/V Extender is a compact, convenient and economical addition to your video/audio setup.


RoHS compliantdo not dispose




Package Contents

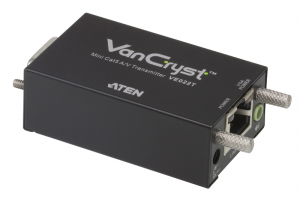

  • 1x VE022T Mini Cat 5 A/V Transmitter
  • 1x VE022R Mini Cat 5 A/V Receiver
  • 1x Power Adapter
  • 1x VGA Cable (35 cm)
  • 1x Audio Cable (40 cm)
  • 1x Dock Mount kit
  • 1x User Instructions
  • 1x USB to DC Power Cord



VC022 Spec / Data Sheet
VC022 Spec / Data Sheet
254.7 KB
VC022 Quick Start / User Guide
VC022 Quick Start / User Guide
5.7 MB
  • Uses Cat 5e cable to extend audio and video transmission up to 500 feet (150 m)
  • Superior video quality – screen resolutions include 1920 x 1200@60Hz(30 m), 1600 x 1200@60Hz 330 feet (100 m) and 1280 x 1024@60Hz 500 feet (150 m)
  • Adjustable Gain Control lets you manually adjust signal strength to compensate for distance
  • Audio enabled (mono)
  • No external power supply needed for transmitter
  • Convenient docking interface for mounting the VE022 on the display device.
  • Eliminates the need for bulky VGA cables
  • Easy installation
Video Input 1 x HDB-15(Transmitter)
Video Output 1 x HDB-15(Receiver)
Audio Input 1 x Audio Jack(Transmitter)
Audio Output 1 x Audio Jack(Receiver)
Power 1 x DC Jack
Unit to Unit Connectors 1 x RJ-45 Female (Transmitter/Receiver)
Picture Compensation 1 x Knob(Receiver)
Video Resolution 1920 x 1200 @ 100 ft.; 1600x 1200@ 330 ft.; 1280x 1024@500 ft.
Power Consumption DC5V, 0.44 W(Transmitter); DC5V, 0.88 W(Receiver)
Humidity 0-80% RH, Non-condensing
Operation Temperature 32 - 122 F
Storage Temperature -4 - 140 F
Power Adaptor Part #
for North America 0AD8-0705-10EG
Physical Properties
Unit Weight 0.1 lb.(Transmitter); 0.1 lb.(Receiver)
Housing Metal
Case Dimension 19.3x 12.4x 13.3 in.
Unit Package Dimensions 9.5x 6.5x 2.5 in
Unit Weight with package 1.0 lb.
Case Weight 20 lbs.
Case Qty 20
Unit Dimension 2.5x 1.4x 1 in. (Transmitter); 2.5x 1.4x 1 in.(Receiver)


  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
