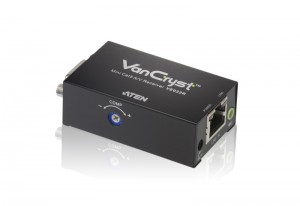

Mini Cat 5 A/V Receiver

The VE022R Mini Cat 5 A/V Receiver connects with a VE022T to extend signals up to 150m from the source using a Cat 5e cable. With hot-plugging support, you can quickly add or remove the VE022R receiver connected to the display device without having to power down any of the devices. The VE022 Mini Cat 5 A/V Extender is a compact, convenient and economical addition to your video/audio setup.

Package Contents

  • 1x VE022R Mini Cat 5 A/V Receiver
  • 1x Power Adapter
  • 1x VGA Cable (35 cm)
  • 1x Audio Cable (40 cm)
  • 1x Mounting kit
  • 1x User Instruction
  • 1x USB to DC Power Cord

RoHS compliantdo not dispose




VE022R Specification sheet
VE022R Specification sheet
254.7 KB
VE022R User Guide
VE022R User Guide
5.7 MB
  • Uses Cat 5e cable to extend audio and video transmission up to 150 m
  • Superior video quality – screen resolutions include 1920 x 1200@60Hz(30 m), 1600 x 1200@60Hz(100 m) and 1280 x 1024@60Hz(150 m)
  • Adjustable Gain Control lets you manually adjust signal strength to compensate for distance
  • Audio enabled (mono)
  • No external power supply needed for transmitter
  • Convenient docking interface for mounting the VE022 on the display device.
  • Eliminates the need for bulky VGA cables
  • Easy installation
Video Output Interface 1 x HDB-15 Female (Blue)
Impedance 75 Ώ
Video Max. Bandwidth 300 MHz
Max. Resolutions / Distance Up to 1920 x 1200@30m ; 1600 x 1200@100m
1280 x 1024@150m
Audio Output 1 x Mini Stereo Jack Female (Green)
Power Connector: 1 x DC Jack
Consumption: 5 VDC, 0.88W
Environment Operating Temp. 0 - 50°C
Storage Temp. -20 - 60°C
Humidity 0-80% RH, Non-Condensing
Housing Metal
Weight 0.06 kg
(L x W x H)
3.53 x 6.42 x 2.06 cm
Carton Lot 20 pcs
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
