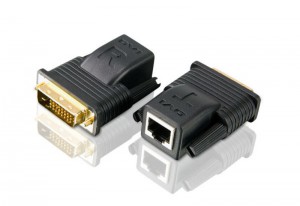

VE066

Mini Cat 5 DVI Extender

The VE066 Mini Cat 5 DVI Extender allows you to increase the distance between your DVI display and DVI source by up to 20 m using only one Cat 5e or Cat 6 cable, providing a convenient way to replace heavy and expensive DVI cables. With hot-plugging support, easily add or remove the VE066 Transmitter connected to the source or the VE066 Receiver connected to the display without having to power down the devices. Compatible with all ATEN DVI switches and DVI splitters, the VE066 Mini Cat 5 DVI Extender is a compact, convenient and economical way to extend your DVI display.



RoHS compliantdo not dispose







Package Contents

  • 1x VE066T Mini Cat 5 DVI Extender (Transmitter)
  • 1x VE066R Mini Cat 5 DVI Extender (Receiver)
  • 1x User Instructions



Patent No.

CN ZL 01124239.6 , CN ZL 200410042772.8 , DE 102004058233 , JP 4160936 , JP 5244448 , TW 150098 , TW I243890 , US 6160543 , US 6489854 , US 7532998 , US 8090553



VC066 Spec / Data Sheet
VC066 Spec / Data Sheet
ve066_extender_ss_en.pdf
547.3 KB
108 Downloads
Details
VC066 Quick Start / User Guide
VC066 Quick Start / User Guide
ve066_extenders_ug.pdf
3.8 MB
99 Downloads
Details
  • Extends the distance between DVI source and DVI display
  • Uses Cat 5e cable to connect the Transmitter and Receiver units
  • Long distance transmission - up to 20 m*
  • HDCP 1.1 Compliant
  • Supports hot-plugging
  • Superior video quality - up to 1920 x 1200
  • Compact housing
  • Compatible with all ATEN DVI switches and DVI splitters
  • Supports LCD Screen, Plasma TV, and projectors
  • Perfect for Home entertainment system, Bank, Surveillance system, Outdoors multimedia display, Airport, Finance institution
  • Smart Video Display - Image quality is optimized based on the available resolution of the output device
  • Non-Powered* Using different source devices / display devices will result in varying results. For best results, we recommend using high quality cables
Function VE066T VE066R
Connectors DVI In 1 x DVI-D
Male (Gold)
N/A
DVI Out N/A 1 x DVI-D
Male (Gold)
Unit to Unit 1 x RJ-45 Female
Video Resolution up to 1920 x 1200
Transmission Distance 20 m
Environment Operating Temp. 0 -50°C
Storage Temp. -20 - 60°C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.05 kg 0.05 kg
Dimensions
(L x W x H)
5.66 x 4.07 x 2.15 cm 5.66 x 4.07 x 2.15 cm
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
