Video Extender

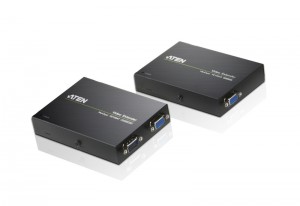

VE150A video extender comprises a local transmitting unit and a remote receiving unit which are connected by standard Cat 5e cables. The distance of both units can be extended up to 150m. It is ideal for factories and construction sites, or any location where the display may need to expose in a risky setting, but you want the system to be kept in a safe location.


RoHS compliantdo not dispose




Package Contents
  • 1x VE150AT Video Extender (Local unit)
  • 1x VE150AR Video Extender (Remote unit)
  • 2x Power Adapters
  • 1x VGA Cable
  • 1x Mounting Kit
  • 1x User Instructions
Patent No.

US 6160543



VE150A Spec / Data Sheet
VE150A Spec / Data Sheet
163.9 KB
VE150A Quick Start / User Guide
VE150A Quick Start / User Guide
2.4 MB
  • Uses Cat 5e cables to connect the local and remote units
  • Supports one local and one remote display
  • Long distance transmission – up to 150 m
  • Adjustable gain control – manually adjust signal strength to compensate for distance
  • Superior video quality – up to 1920x1200 (30 m);1600x1200 (100 m); 1280x1024 (150 m)
  • Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors
  • Supports wide screen formats
  • Supports hot-plugging
  • Built-in 8KV/15KV ESD protection
  • Supports DDC for the local monitor
  • Easy installation
  • Rack Mountable
  • Plug-and-play – no software installation required
Function VE150AT VE150AR
Display Connections 1 1
Connectors Input Video 1 x HDB-15 Male (Blue) N/A
Output Video 1 x HDB-15 Female (Blue) 1 x HDB-15 Female (Blue)
Unit to Unit 1 x RJ-45 Female (Black) 1 x RJ-45 Female (Black)
Power 1 x DC Jack 1 x DC Jack
Switches Manual Gain Control N/A 1 x Knob
LEDs Power 1 (Green) 1 (Green)
Video 1920x1200 @ 60Hz (30 m); 1600x1200 @ 60Hz (100 m); 1280x1024 @ 60Hz (150 m)
Power Consumption DC5.3V, 1.0W DC5.3V, 1.2W
Environment Operating Temp. 0 - 50°C
Storage Temp. -20 - 60°C
Humidity 0 - 80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.24 kg 0.24 kg
(L x W x H)
12.77 x 9.04 x 2.26 cm 12.77 x 9.04 x 2.26 cm
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
