VE156

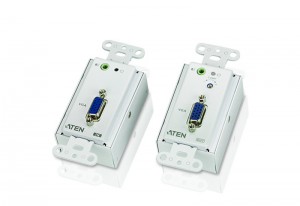

VGA Over Cat 5 Extender Wall Plate

The VE156 VGA Over Cat 5 Extender Wall Plate extends VGA and audio signals up to 150m using Cat 5e cable. It supports popular wide screen formats and ensures excellent video quality over long distance transmissions. The VE156 combination can further extend the distance or multiply sources/displays.
The VE156 can be powered at either the Transmitter or Receiver side, and uses a second Cat 5e cable to transmit the power signal. The VE156’s compact wall plate design does away with bulky cables and allows a neat and convenient installation. It is an ideal solution for function rooms, museums and any environment that requires equipment or cabling to be kept hidden from public view.



RoHS compliantdo not dispose





Package Contents
  • 1x VE156T VGA Over Cat 5 Extender Wall Plate
  • 1x VE156R VGA Over Cat 5 Extender Wall Plate
  • 1x Terminal Block Connector
  • 1x Power Adapter
  • 1x User Instructions





VE156 Spec / Data Sheet
VE156 Spec / Data Sheet
ve156_extender_ss_en.pdf
240.6 KB
136 Downloads
Details
VE156 Owner's Manual
VE156 Owner's Manual
20141218162445001.pdf
1.1 MB
134 Downloads
Details
VE156 Quick Start / User Guide
VE156 Quick Start / User Guide
ve156_606_806_extender_qsg.pdf
2.8 MB
124 Downloads
Details
  • Uses two Cat 5e cables to connect the local and remote units – one to transmit video and audio; and another for power*
  • Remotely powered from either the Transmitter or Receiver side**
  • Extends the distance between VGA source and VGA display
  • Superior video quality – up to 1920 x 1200@60Hz (30 m), 1280 x 1024@60Hz (150m)
  • Adjustable Gain Control – manually adjusts signal strength to compensate for distance
  • Supports wide screen formats
  • Supports hot-plugging
  • Decora type design is easily configurable to fit various wall plates
  • LED indication of power sources / connection status
  • Supports stereo audio
  • Built-in 8KV/15KV ESD protection
  • Easy installation
  • Wall mountable type for a neat and cleaner installation
  • Plug-and-play – no software installation requiredNote:
    The second Cat 5e cable connection is required to remotely power on either the Transmitter or Receiver.
    **A power adapter is provided with this package, and can be used at either the Transmitter or Receiver side, which in turn remotely powers the other unit.
Function VE156T VE156R
Connectors Video In 1 x HDB-15 Female (Blue) N/A
Video Out N/A 1 x HDB-15 Female (Blue)
Audio In 1 x 3.5mm Stereo Jack (Green) N/A
Audio Out N/A 1 x 3.5mm Stereo Jack (Green)
Power 1 x RJ-45 Female (Silver) 1 x RJ-45 Female (Silver)
Power 1 x Terminal Block (Green) 1 x Terminal Block (Green)
Line In N/A 1 x RJ-45 Female (Silver)
Line Out 1 x RJ-45 Female (Silver) N/A
LED Power 1 (Green)
Link N/A 1 (Amber)
Switch Manual Gain Control N/A 1x Knob
Video 1920 x 1200 @ 60Hz (30m),
1280 x 1024 @ 60Hz (150m)
Power Consumption DC 9V, 3.2W
Environment Operating Temp. 0–50°C
Storage Temp. -20–60°C
Humidity 0–80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 0.17 kg 0.17 kg
Dimensions
(L x W x H)
10.11 x 4.44 x 4.26 cm 10.11 x 4.44 x 4.26 cm
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
